480 High Torque Motor 11V 39000rpm
Product Description：
| Brand | chihai motor |
| Model | CHF-480WA-8514T High Torque Motor |
| Appearance | CNC machined High thermal back cover |
| Magnetic materials | N35H Neodymium Magnet |
| DC11.1V SPEED | 39000 rpm |
| weight | About 180g |
| Adaptation type |
No. 2 wave box Airsoft gun M90-M150 JIN MING M4A1-J9 ACR-J10 Wavebox upgrade 480 motor insertion Special wave box type: WARINTEREST JIQU HK416D / KUBLAI BD556 JINGJI SLR / NEW WELL M4 FB WAVE BOX FIGHTING BRO |
MIM gold plated steel pinion gear:
Hardened, stable and durable for longer life.
N35 Nd-Fe-b high torque strong output:
High torque motor magnet, thickened close to armature rotor, strong torque protection.
makes the magnet as thick as possible in the limited space, and strives to increase the output torque!

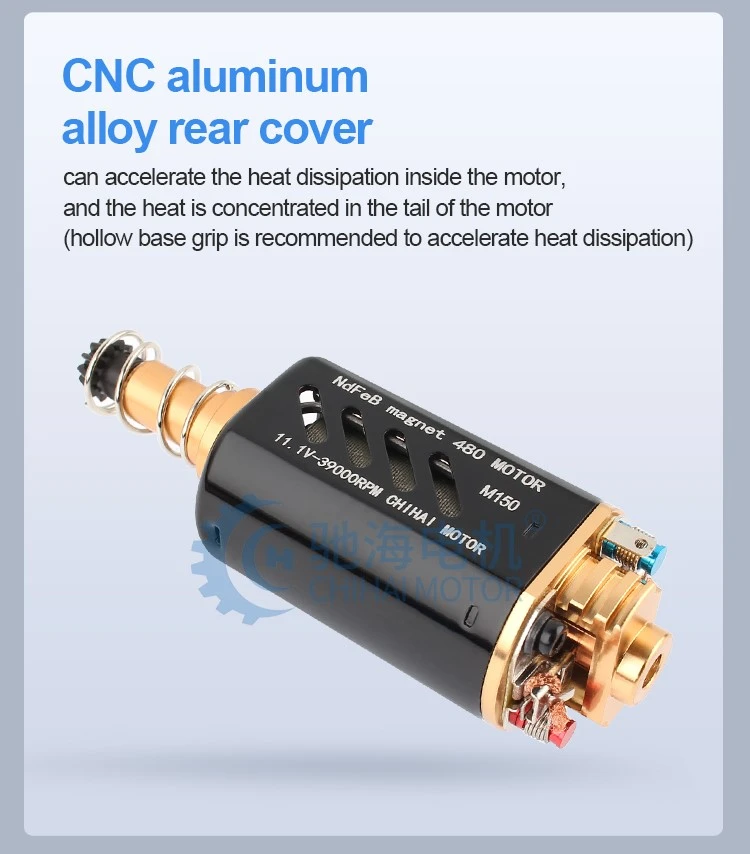

CNC aluminum alloy rear cover :
can accelerate the heat dissipation inside the motor, and the heat is concentrated in the tail of the motor
(hollow base grip is recommended to accelerate heat dissipation)
18650 strong power above 20A (recommended 30A)
Polymer 1200mAH above 25C
Battery connector:XT30
Wiring in the gearbox needs to be used at least 1.0 square temperature resistant line group
High speed -heat dissipation
Continuous single shot or using fire control will cause the motor to heat up faster!
Detailed Images：
Product & specifications:
| Model: CHF-480WA-8514T High Torque Motor | |||
| Voltage: DC 11.1V | |||
| No load speed | No load current | At stall torque | At stall current |
| 39000 rpm | 4.20 A | 451.5 mN.m | 170.1 A |
AT MAX EFFICIENCY
| Speed | Current | Torque | Output Powe | Efficiency |
| 33272 rpm | 26.73 A | 61.31 mN.m | 213.8 W | 72.04 % |
AT MAX OUTPUT POWER
| Speed | Current | Torque | Output Powe | Efficiency |
|
19250 rpm |
87.15 A | 225.75 mN.m | 455.36 W | 47.07 % |
| Due to spring, gear,gearbox, air density and other factors; The rate of fire table is for reference only! | ||
| DC 11.1V no-load speed 39000 rpm | ||
| The thicker the spring, the higher the motor load, the greater the current output, the faster the motor heating! | ||
| ratio of gearbox | Recommended spring grade | Estimated rate of fire |
| 1:18 |
1.1~1.4mm |
27-31 S/M |
| 1:16 | 1.1~1.3mm |
30-35 S/M |
| 1:13 | 1.1~1.3mm | experienced ≥35 M/S |
| DC 7.4V no-load speed 25000 rpm | ||
| ratio of gearbox | Recommended spring grade | Recommended spring grade |
| 1:18 | 1.1~1.3mm | 17-20 S/M |
| 1:16 | 1.1~1.3mm | 20-23 S/M |
| 1:13 | 1.1~1.2mm | 25-28 S/M |
