High Torque 12v 24v Brushless DC Gear Motor
Product Description Rotation Speed： Comes with speed control knob Stepless speed regulation All-metal gears： Adoption of all-metal gear material more wear-resistant prolongs its service life Hall drive： Built-in sensing hall drive board can be operated directiy by electricity Detailed Images
Send Inquiry
Product Description
| Brand | chihai motor |
| Model | CHR-GM37-BLDC3525 Brushless dc reduction motor |

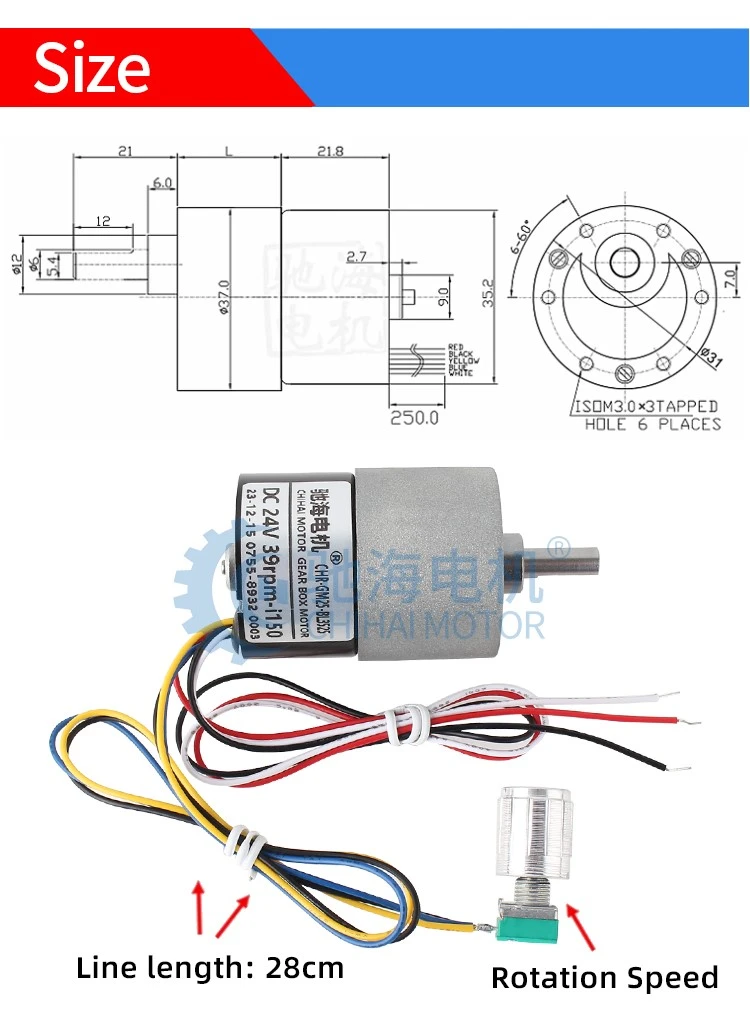

| Shaft length | 21mm |
| Shaft diameter | φ6mm D |
| Rated Voltage | DC 12-24V (voltage cannot be mixed) |
| Weight | About 160g |
| FG signal | Motor outputs 9 high and low level speed measuring signals per revolution |
| The firmware performance | The stator brushless,Quadrupole magnetic, Rotor brushless,Six slot structure |
| applications | Robots, mechanical equipment, intelligent machines, power windows Electric door, gimbal, etc. |

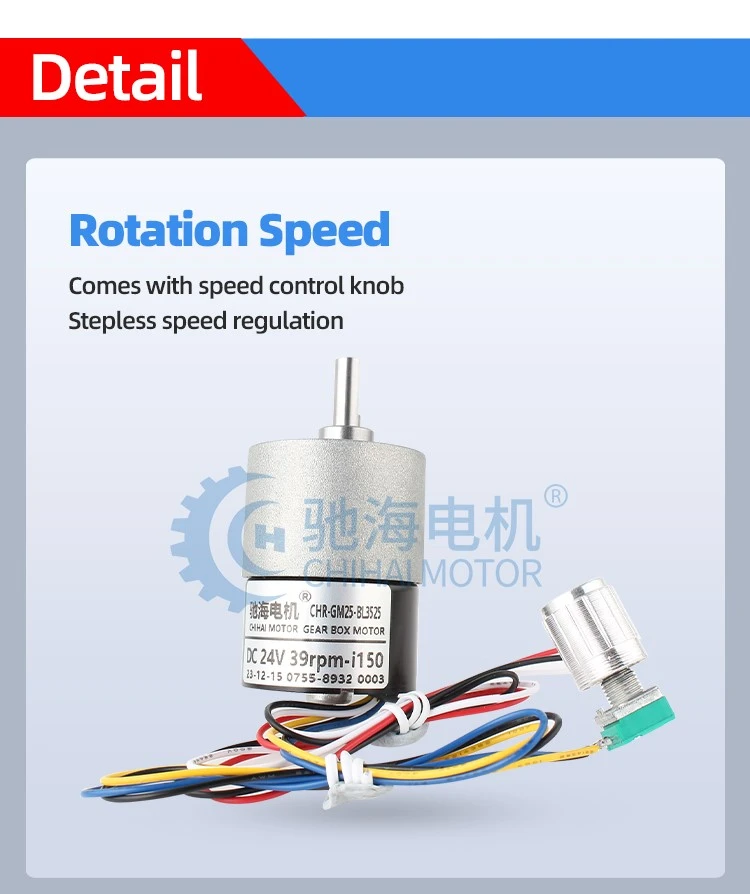

Rotation Speed：
Comes with speed control knob Stepless speed regulation

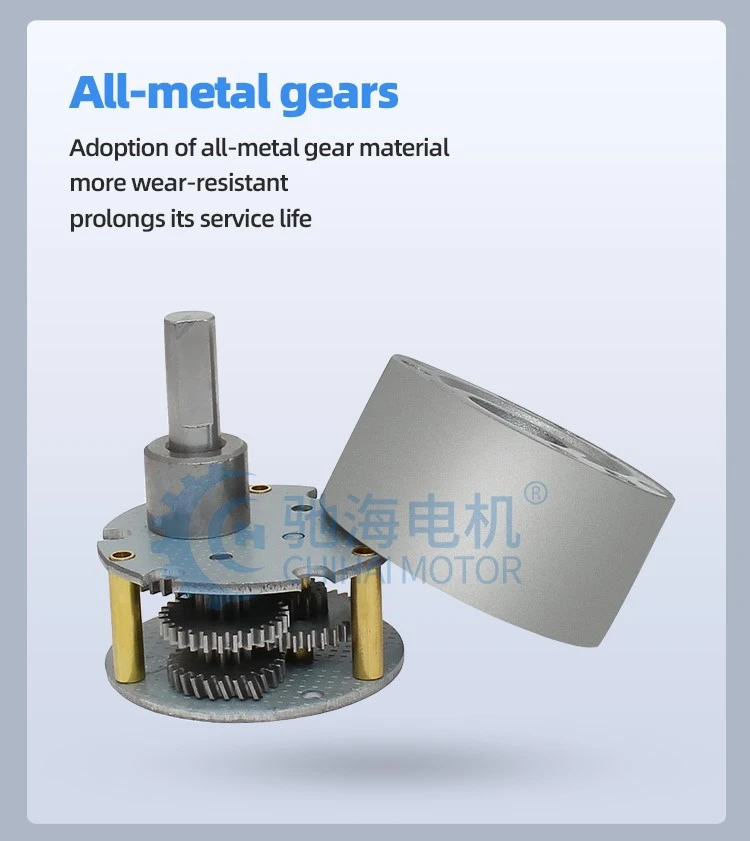

All-metal gears：
Adoption of all-metal gear material more wear-resistant prolongs its service life

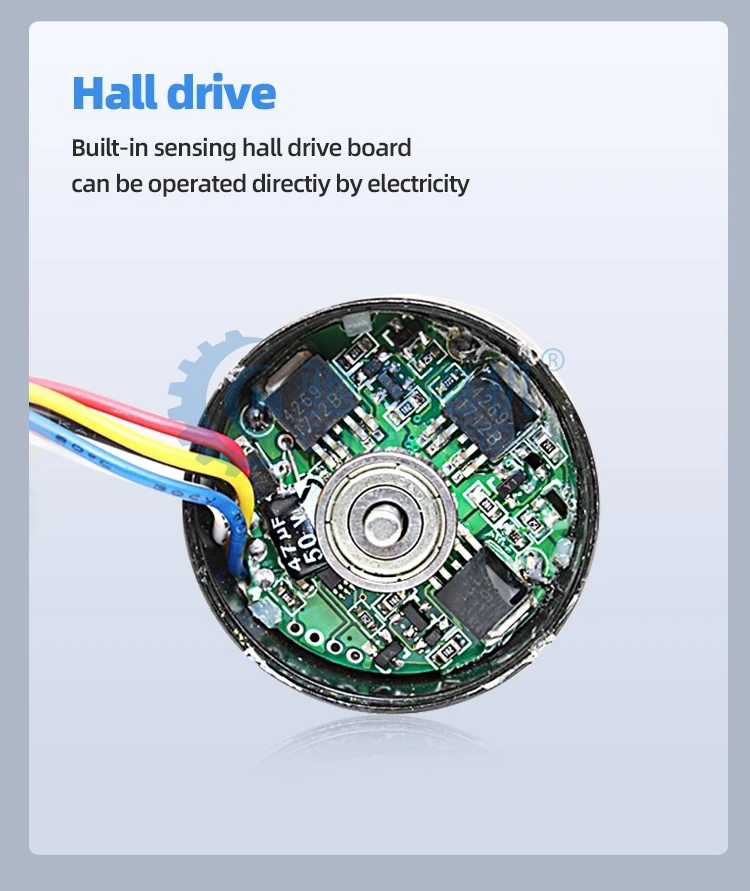

Hall drive：
Built-in sensing hall drive board can be operated directiy by electricity
Detailed Images
Hot Tags: high torque 12v 24v brushless dc gear motor, China, manufacturers, factory, customized, wholesale, bulk, in stock, Long Life Micro Brushless Gear Motor, DC Brushless Gear Motor, Brushless DC Motor
