37mm Micro 520 Gear Box Electric Metal Gear Coding Motor
Shaft diameter: 6mm
Voltage range: DC6- 24.0V
Product Description
Product Type: | CHR-GM37-520ABHL off-axis carbon brush dc mini hall encoder motor with back cover for smart car DIY robot parts |
Output shaft length: | 21mm D 12mm |
Motor diameter: | ∮37mm |
Shaft diameter: | 6mm |
Voltage range: | DC6- 24.0V |
Weight: | about 152g |
Application: | Intelligent self-balancing dual-wheel car, intelligent tracking car, intelligent appliances, robot, camera rocker arm, electric |
● Motor Features: low noise,long life,adjustable speed,with brake, with speed feedback signal
● Motor Diameter: about 25mm,Motor Body Length: 18mm

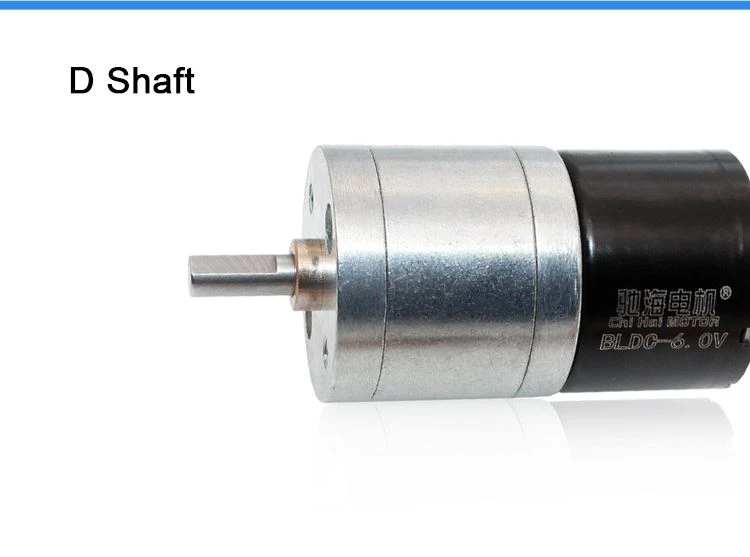

● Output Shaft Diameter: 4mm(D-Type),Output Shaft Length: 12mm
● Continuous Current(A): 130ma
● Torque: Max 7kg.cm

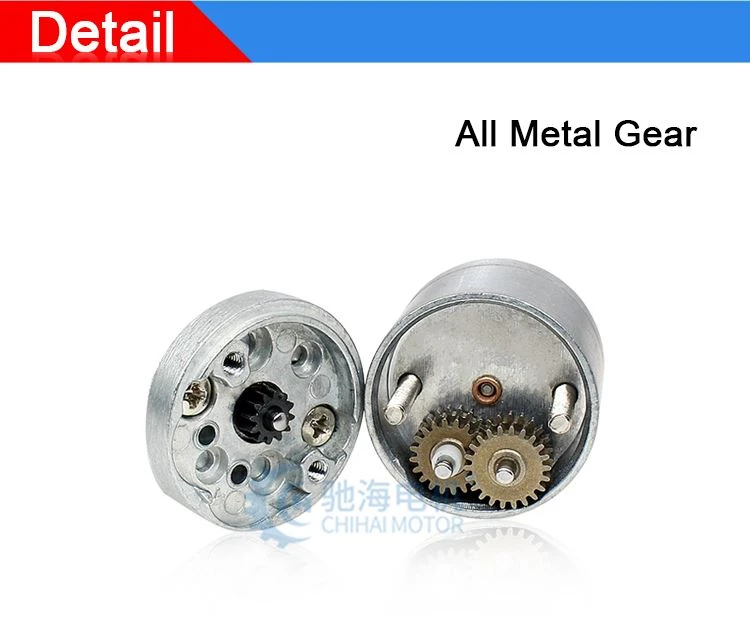

All metal gear construction
The all-metal gear construction of our motors not only provides more stable performance, but also keeps them
running efficiently for longer.
Pure copper wire winding
Pure copper wire winding is a very important part of the motor, and its use can significantly improve the performance of the motor. Compared with other winding materials, pure copper wire winding has lower resistivity and higher electrical conductivity, so it can reduce energy loss and improve its efficiency when the motor is running.
The use of pure copper wire winding can significantly improve the durability of the motor. Because the flexibility and ductility of pure copper wire is much higher than that of other metals, it can better absorb shock and bear load during the operation of the motor, reducing the failure and damage caused by excessive wear.
Coding motor is an advanced motor control technology, which uses advanced coding control technology to accurately control the motor and improve the operating efficiency and stability of the motor.
The coded motor uses the digital way to control the motor, compared with the traditional motor control technology, it has higher precision and better performance. It can make the motor more stable during the working process, reduce noise and vibration, and make the machine run more stable and reliable.

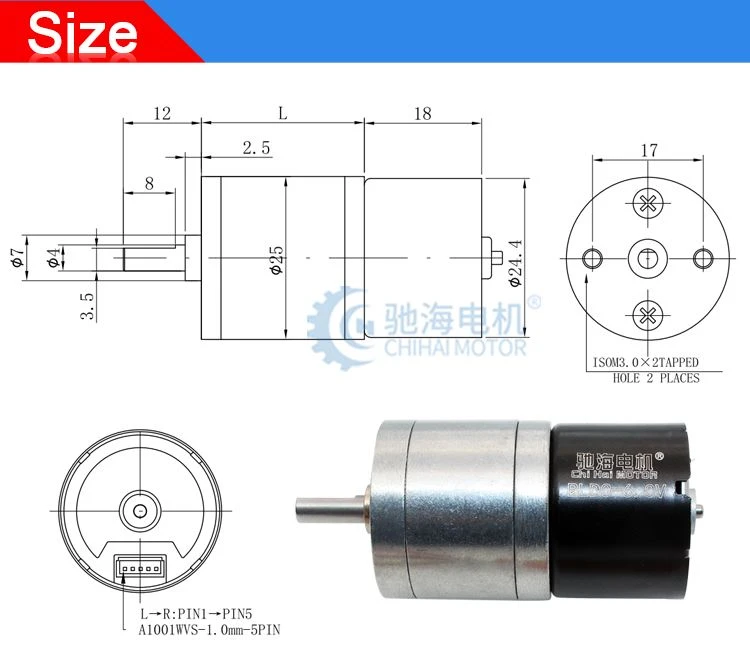

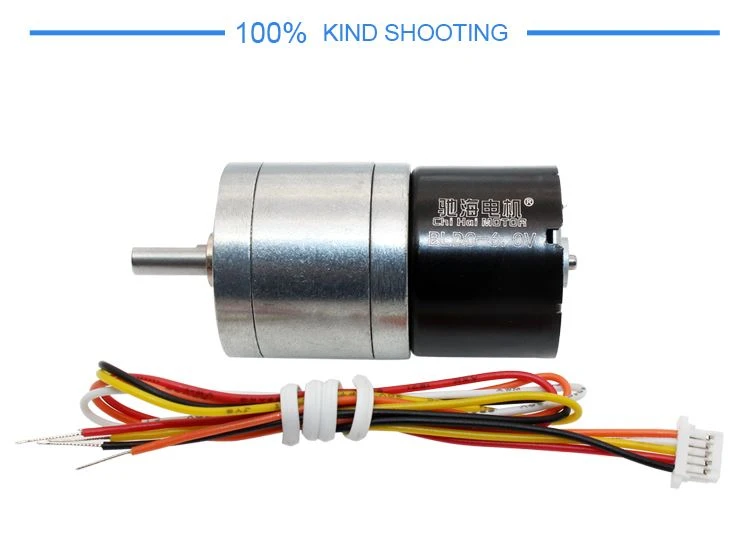

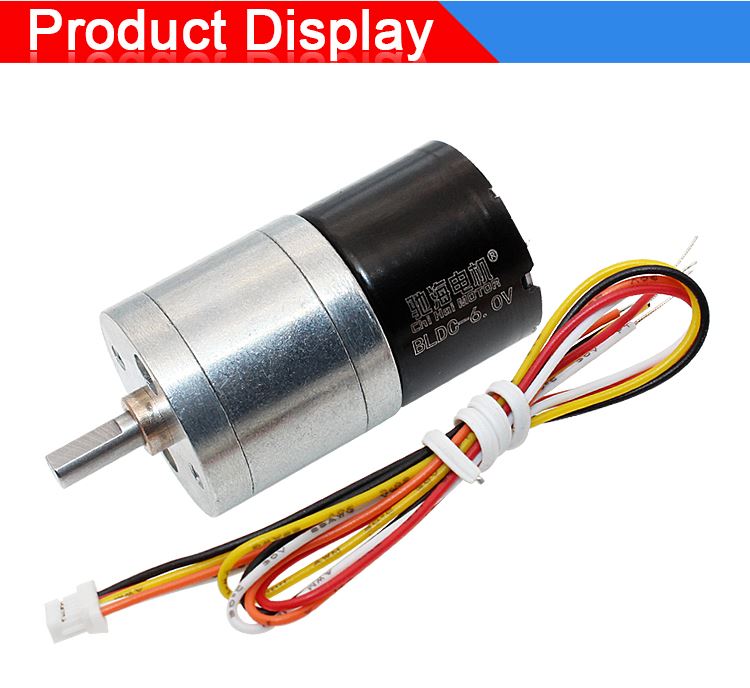

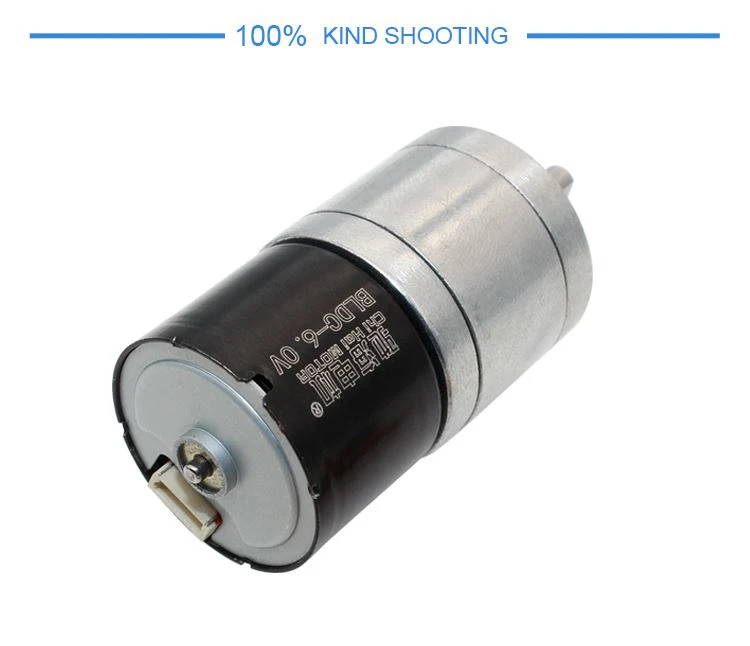

Detailed Images

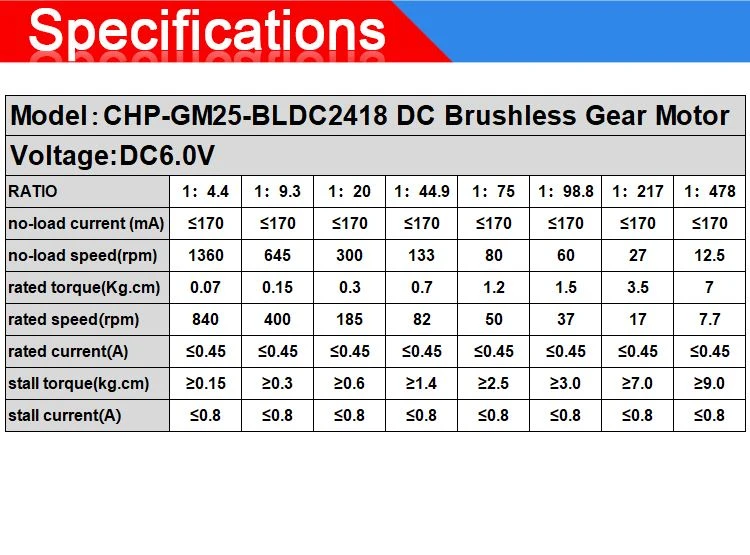

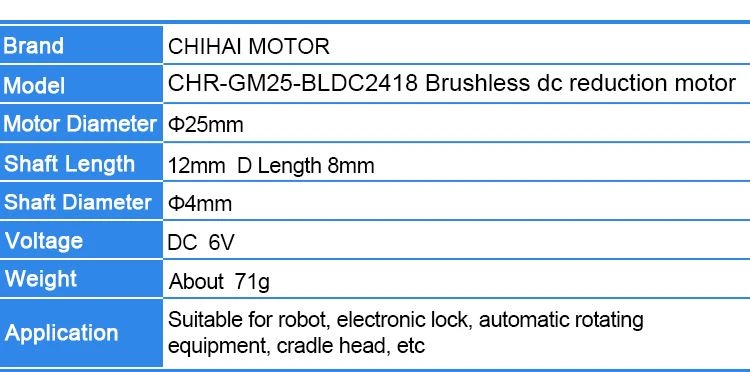

Product Paramet
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
