Worm Gear 555 Motor Self-locking High Torque With Hall Drive
Weight: About 435g
Wiring specification: XH2.54-6PIN terminal connector
Product Description

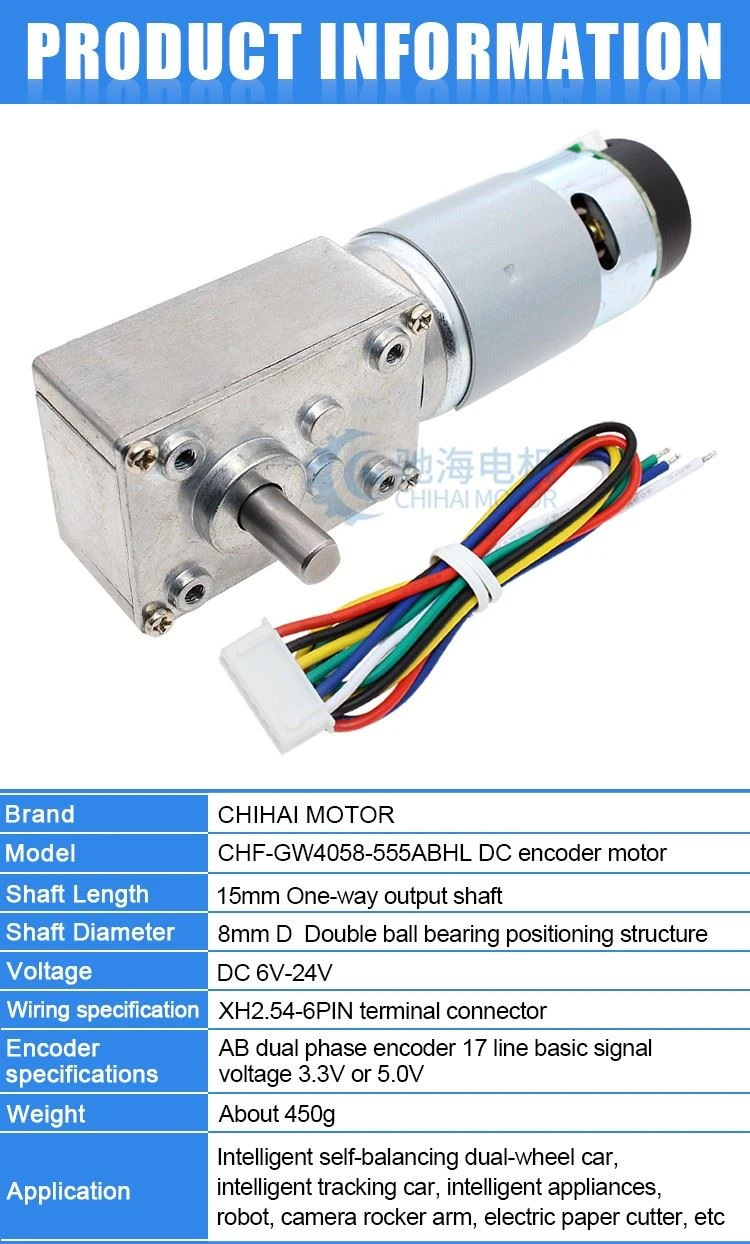

Product Type: | CHW-GW4058-555 ABHL Worm gear reducer motor with encoder |

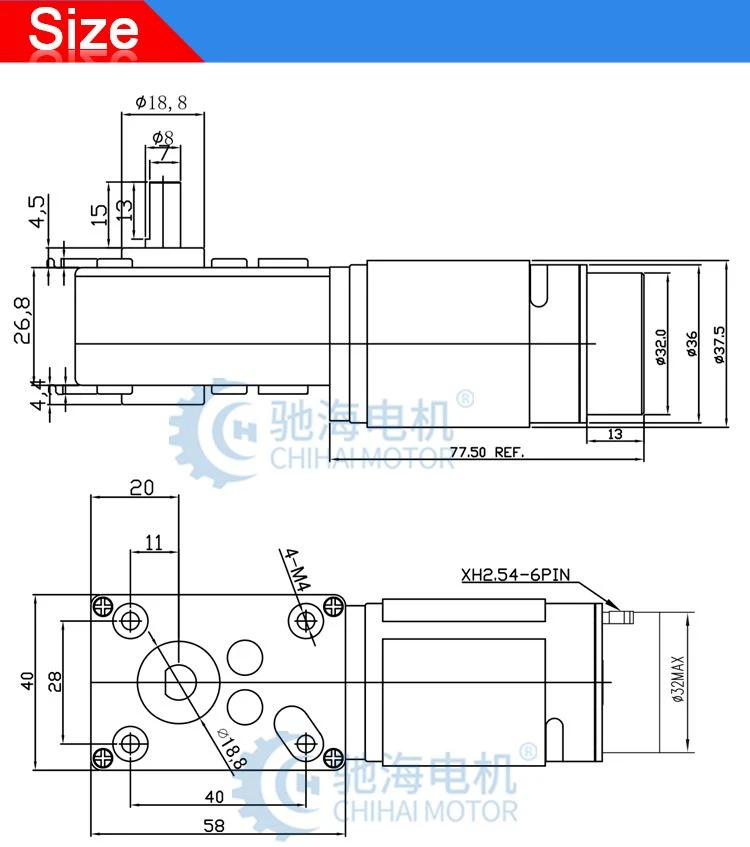

Size: | 45mm*58mm*122mm (Without shaft and terminal block) |
Shaft diameter: | 8mm D Double ball bearing positioning structure |
Shaft length: | 15mm One-way output shaft |
Voltage range: | DC 6V-24V |
Weight: | About 435g |

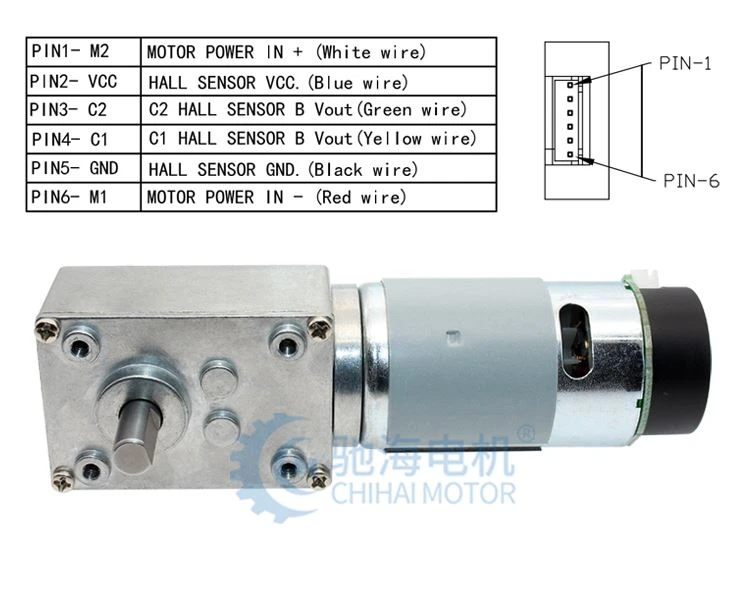

Wiring specification: | XH2.54-6PIN terminal connector |

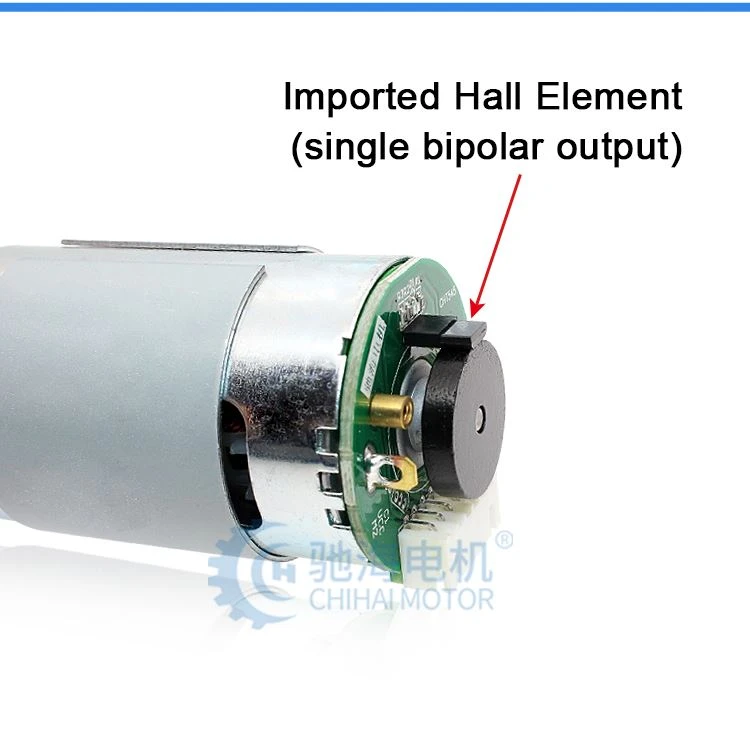

Encoder specifications: | AB dual phase encoder 17 line basic signal voltage 3.3V or 5.0V |
Application: | Intelligent self-balancing dual-wheel car, intelligent tracking car, intelligent appliances, robot, camera rocker arm, electric |
1. Pure copper wire winding: the rotor part adopts pure copper group, with low resistance and strong conductivity, which increases the motor torque.
2. D-shaped shaft: D-shaped shaft, easier to install, not easy to slip, saving installation time.

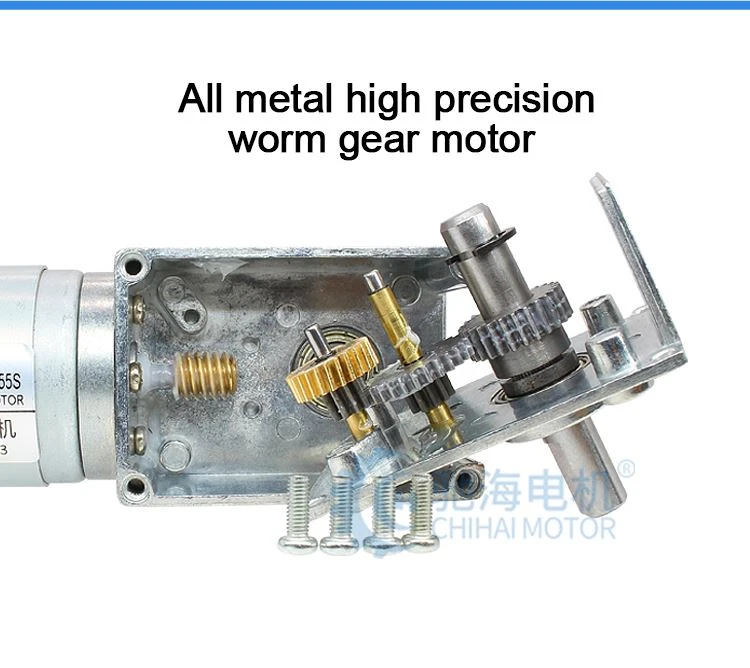

3. Adopt all-metal structure: wear resistance, strong torsion resistance, long life, stable operation.
Turbo-rod DC gear motor is a kind of efficient and reliable motor equipment, which has the advantages of high power, high speed and high efficiency. It is a composite mechanical device composed of a turborod engine and a DC motor, which can be applied to various fields, such as the propulsion device of aircraft, trains, automobiles, ships and other transportation vehicles.、
The advantages of turbo-rod DC gear motor are its simple structure and smooth operation, which can operate in harsh environments such as high density, high temperature and high speed, and it has high precision and can realize various special functions such as variable speed control. At the same time, the turborod DC gear motor can also realize automatic control, which greatly improves the production efficiency and quality.

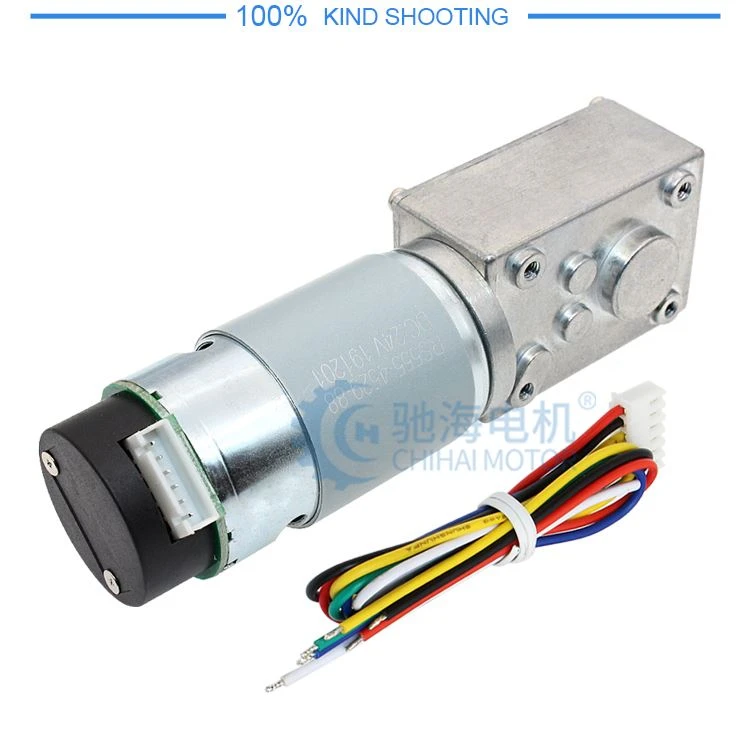

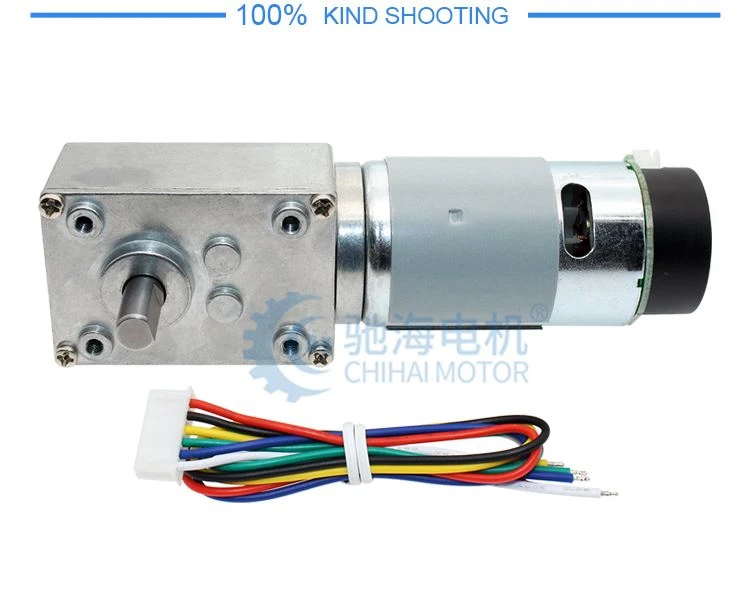

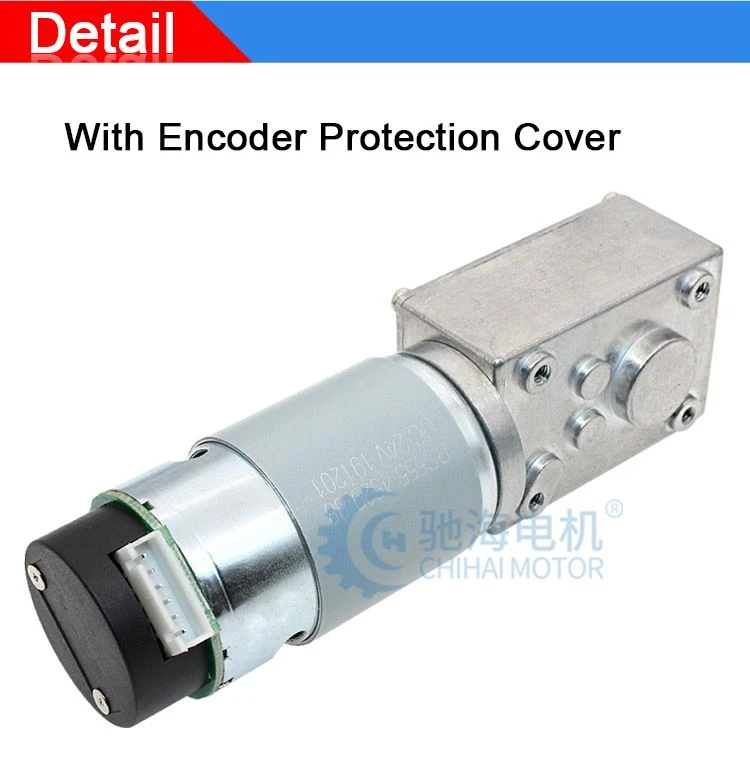

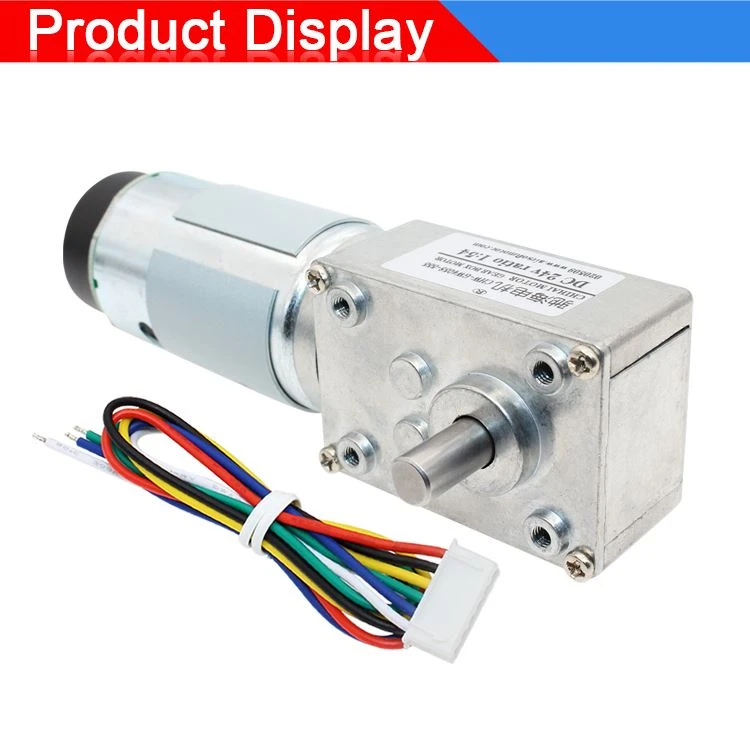

Detailed Images

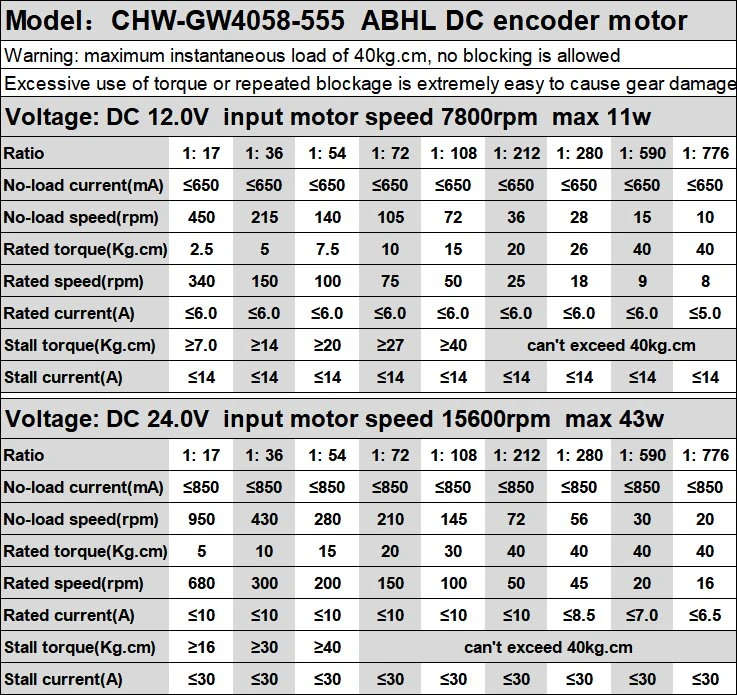

Product Paramet
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
