N20 Micro Worm Gear Coding Motor

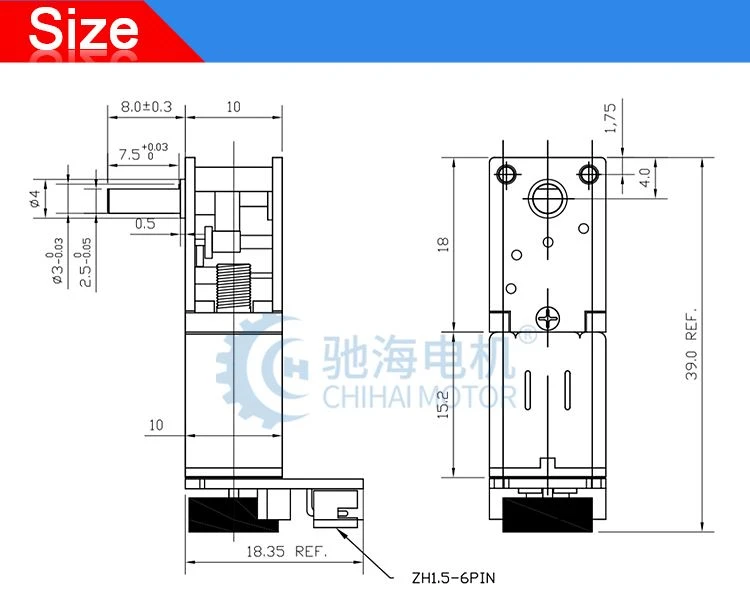

Size:10*18*34mm (not include the shaft)
Shaft length:8mm D

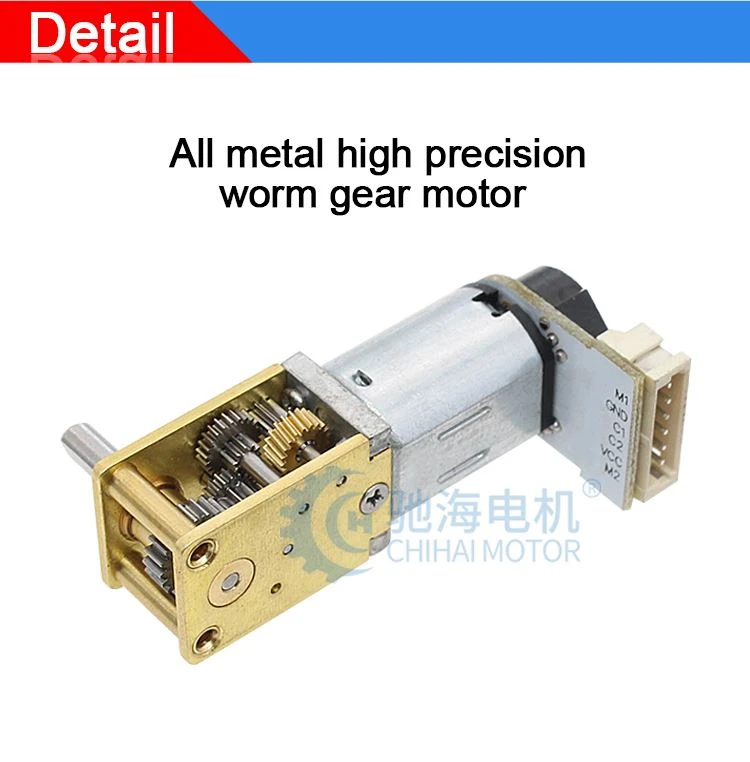

N20 Micro worm gear coding motor
Product Description
Product Type: | CHF-GW12T-N20VA ABHL DC worm gear motor with hall encoder |
Size: | 10*18*34mm (not include the shaft) |
Shaft length: | 8mm D |
Shaft Dianeter: | Φ3mm Thick 2.5 D |
Voltage: | DC 3-12V |
Weight： | About 16g |

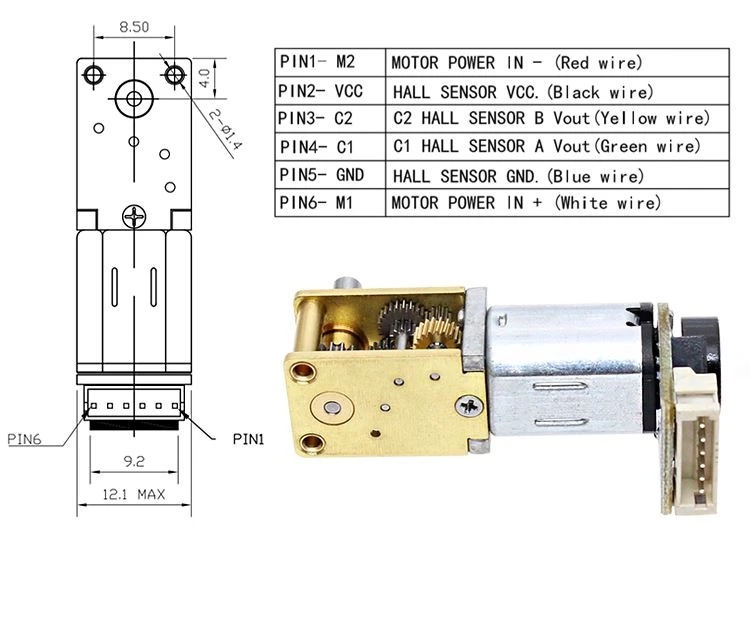

Wiring specification: | ZH1.5-6PIN terminal connector |

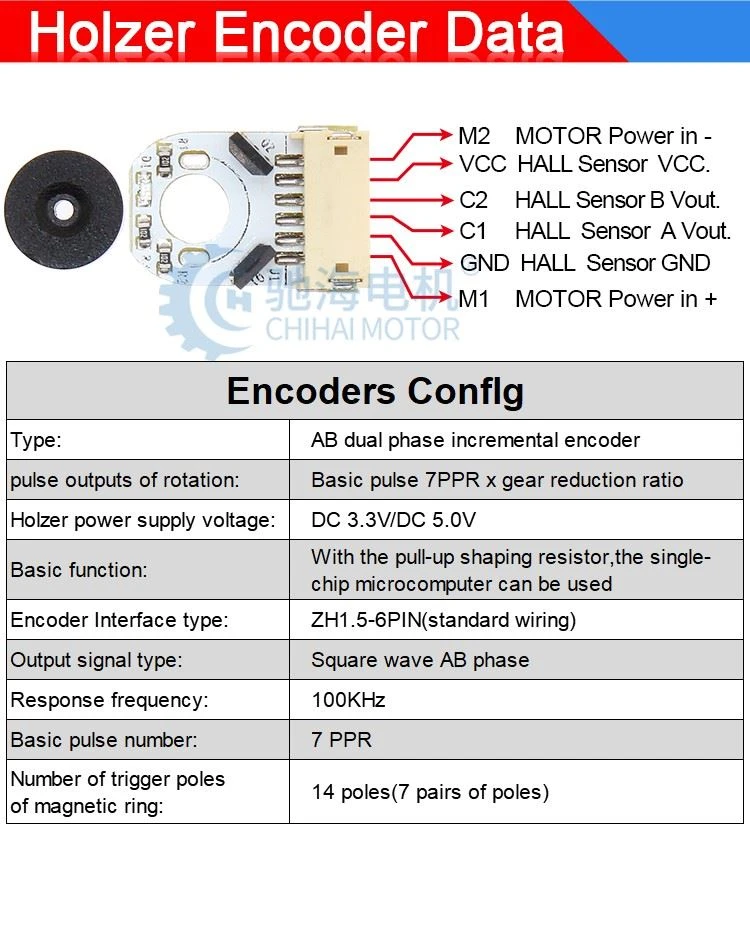

Encoder Specifications: | AB dual phase encoder 7 line basic signal voltage 3.3V or 5.0V |
Application： | Intelligent robot, intelligent manipulator, intelligent furnitureIntelligent focusing system, miniature head, etc |

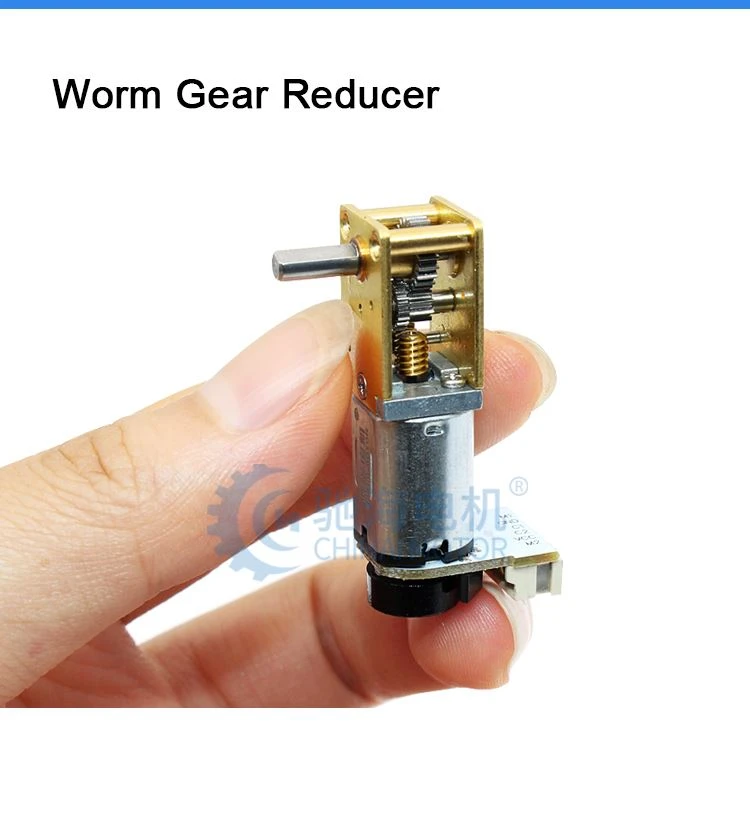

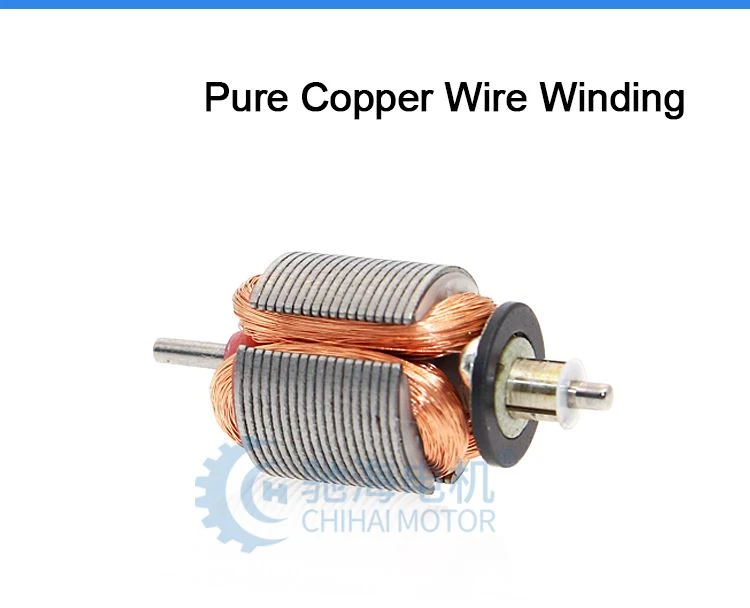

Detailed Images
Model: CHF-GW12T-N20VA DC Worm Gear Motor | ||||
Voltage:DC12.0V power 0.2W（A35# Input the motor） | ||||
Micro-gear construction, self-locking function is not recommended to use greater than 5.0kg.cm. The continuous rated load should not exceed 2.5kg.cm | ||||
RATIO | 118 | 238 | 300 | 603 |
No-load current(mA) | ≤65 | ≤65 | ≤65 | ≤65 |
No-load speed(rpm) | 200 | 100 | 78 | 39 |
Rated torque(Kg.cm) | 0.4 | 0.7 | 0.9 | 1.8 |
Rated torque(N.m) | 0.034 | 0.069 | 0.088 | 0.18 |
Rated speed（rpm) | 140 | 70 | 55 | 27 |
Rated current（A) | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 |
Stall current（A） | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 |
Stall torque(Kg.cm) | ≤1.10 | ≤2.40 | Cant exceed 3.0kg.cm | |
HALL Signal(7×Ratio) | 826.469 | 1652.931 | 2112.082 | 4224.164 |
Voltage:DC6.0V power 0.2W （A35# Input the motor） | ||||
RATIO | 118 | 238 | 300 | 603 |
No-load current(mA) | ≤35 | ≤35 | ≤35 | ≤35 |
No-load speed(rpm) | 98 | 49 | 37 | 19 |
Rated torque(Kg.cm) | 0.15 | 0.3 | 0.4 | 0.8 |
Rated torque(N.m) | 0.015 | 0.029 | 0.039 | 0.078 |
Rated speed（rpm) | 70 | 35 | 27 | 13 |
Rated current（A) | ≤0.08 | ≤0.08 | ≤0.08 | ≤0.08 |
Stall current（A） | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
Stall torque(Kg.cm) | ≤0.5 | ≤1.0 | ≤1.5 | ≤2.8 |
Voltage:DC6.0V power 0.6W （B 45# Input the motor） | ||||
RATIO | 118 | 238 | 300 | 603 |
No-load current(mA) | ≤35 | ≤35 | ≤35 | ≤35 |
No-load speed(rpm) | 190 | 94 | 74 | 37 |
Rated torque(Kg.cm) | 0.30 | 0.60 | 0.75 | 1.5 |
Rated torque(N.m) | 0.03 | 0.06 | 0.074 | 0.15 |
Rated speed（rpm) | 140 | 70 | 55 | 27 |
Rated current（A) | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.20 |
Stall current（A） | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 |
Stall torque(Kg.cm) | ≤1.10 | ≤2.40 | Cant exceed 3.0kg.cm | |
Voltage:DC3.0V power 0.15W （B 45# Input the motor） | ||||
RATIO | 118 | 238 | 300 | 603 |
No-load current(mA) | ≤35 | ≤35 | ≤35 | ≤35 |
No-load speed(rpm) | 90 | 45 | 35 | 18 |
Rated torque(Kg.cm) | 0.15 | 0.30 | 0.40 | 0.8 |
Rated torque(N.m) | 0.015 | 0.029 | 0.039 | 0.078 |
Rated speed（rpm) | 65 | 33 | 26 | 13 |
Rated current（A) | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 |
Stall current（A） | ≤0.35 | ≤0.35 | ≤0.35 | ≤0.35 |
Stall torque(Kg.cm) | ≤0.5 | ≤1.0 | ≤1.5 | ≤2.8 |
