High Torque 42mm Planetray Gearbox With Encoder Motor
Wiring specification:PH2.0-4PIN Standard connection terminal line,wire length 200mm
Specifications:VH3.96-2PIN Standard wiring wire length 200mm
High torque 42mm planetray gearbox with encoder motor
Product Description

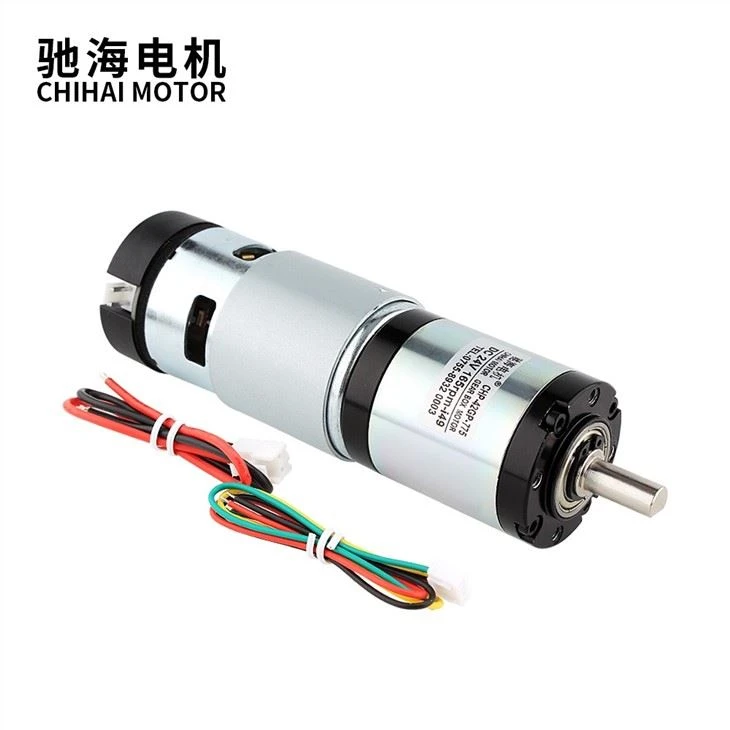

Product Type: | CHP-42GP-775-ABHL Permanent magnet dc planetary reduction motor |
external diameter： | Φ42mm |
Shaft length： | 22mm. D length 12mm |
Shaft Dianeter: | 8mm D |
Voltage: | DC 12-24V |
Weight： | About 795g |
Wiring specification： | PH2.0-4PIN Standard connection terminal line,wire length 200mm |
Specifications： | VH3.96-2PIN Standard wiring wire length 200mm |
Detailed Images
Product & specifications
Model：CHP-42GP-775ABHL DC Planetary gear motor | ||||||||||||||
Voltage:DC12.0V max power 35 W | ||||||||||||||
Special note: due to the high power and current of the motor, | ||||||||||||||
RATIO | 1: 3.7 | 1: 5 | 1: 13 | 1: 18 | 1: 25 | 1: 49 | 1: 67 | 1: 92 | 1: 125 | 1: 181 | 1: 246 | 1: 336 | 1: 458 | 1: 625 |
Number of stages | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
No-load current(mA) | ≤500 | ≤500 | ≤500 | ≤500 | ≤500 | ≤500 | ≤500 | ≤500 | ≤500 | ≤500 | ≤500 | ≤500 | ≤500 | ≤500 |
No-load speed(rpm) | 1100 | 820 | 315 | 228 | 165 | 83 | 60 | 45 | 32 | 22 | 16.5 | 12 | 9 | 6.5 |
Rated torque(Kg.cm) | 5.50 | 7.5 | 20.0 | 20.0 | 20.0 | 30.0 | 30.0 | 40.0 | 40.0 | 50.0 | 70.0 | 70.0 | 70.0 | 70.0 |
Rated torque(N.m) | 0.53 | 0.7 | 2.0 | 2.0 | 2.0 | 3.0 | 3.0 | 4.0 | 4.0 | 5.0 | 7.0 | 7.0 | 7.0 | 7.0 |
Rated speed(rpm) | 550 | 410 | 150 | 140 | 110 | 60 | 50 | 37 | 27 | 19 | 15 | 11 | 8 | 5.8 |
Rated current(A) | ≤6.0 | ≤6.0 | ≤6.0 | ≤4.5 | ≤4.0 | ≤3.5 | ≤2.8 | ≤2.5 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤1.5 |
Rtall current(A） | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 |
Length of gearbox | 33.5 | 33.5 | 43.5 | 43.5 | 43.5 | 53.5 | 53.5 | 53.5 | 53.5 | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 |
Voltage:DC24.0V max power 150W | ||||||||||||||
RATIO | 1: 3.7 | 1: 5 | 1: 13 | 1: 18 | 1: 25 | 1: 49 | 1: 67 | 1: 92 | 1: 125 | 1: 181 | 1: 246 | 1: 336 | 1: 458 | 1: 625 |
Number of stages | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
No-load current(mA) | ≤700 | ≤700 | ≤700 | ≤700 | ≤700 | ≤700 | ≤700 | ≤700 | ≤700 | ≤700 | ≤700 | ≤700 | ≤700 | ≤700 |
No-load speed(rpm) | 2200 | 1640 | 630 | 450 | 330 | 165 | 120 | 90 | 64 | 44 | 33 | 24 | 18 | 13 |
Rated torque(Kg.cm) | 11.00 | 15.0 | 30.0 | 30.0 | 30.0 | 40.0 | 50.0 | 60.0 | 60.0 | 70.0 | 90.0 | 90.0 | 90.0 | 90.0 |
Rated torque(N.m) | 1.20 | 1.3 | 3.0 | 3.0 | 3.0 | 4.0 | 5.0 | 6.0 | 6.0 | 7.0 | 9.0 | 9.0 | 9.0 | 9.0 |
Rated speed(rpm) | 1100 | 820 | 300 | 300 | 250 | 130 | 105 | 80 | 55 | 40 | 30 | 22 | 16 | 12 |
Rated current(A) | ≤13.0 | ≤13.0 | ≤13.0 | ≤10 | ≤9.0 | ≤7.0 | ≤6.0 | ≤5.0 | ≤4.0 | ≤4.0 | ≤4.0 | ≤4.0 | ≤4.0 | ≤3.0 |
Rtall current(A） | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 |
Length of gearbox | 33.5 | 33.5 | 43.5 | 43.5 | 43.5 | 53.5 | 53.5 | 53.5 | 53.5 | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 |
