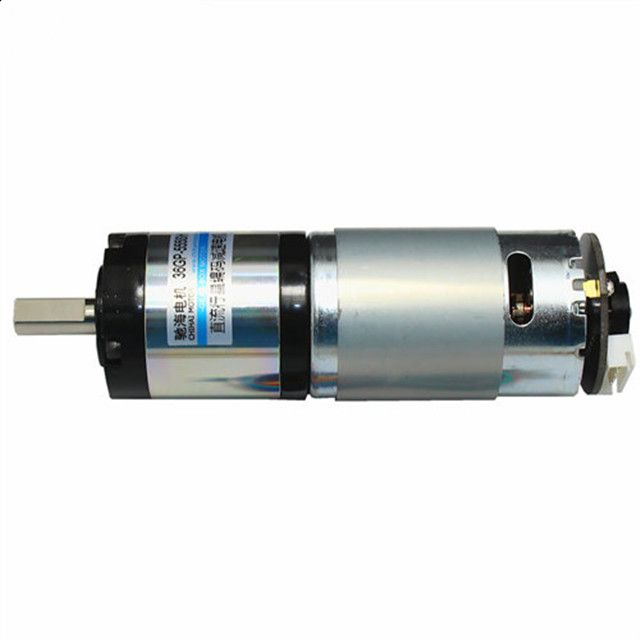

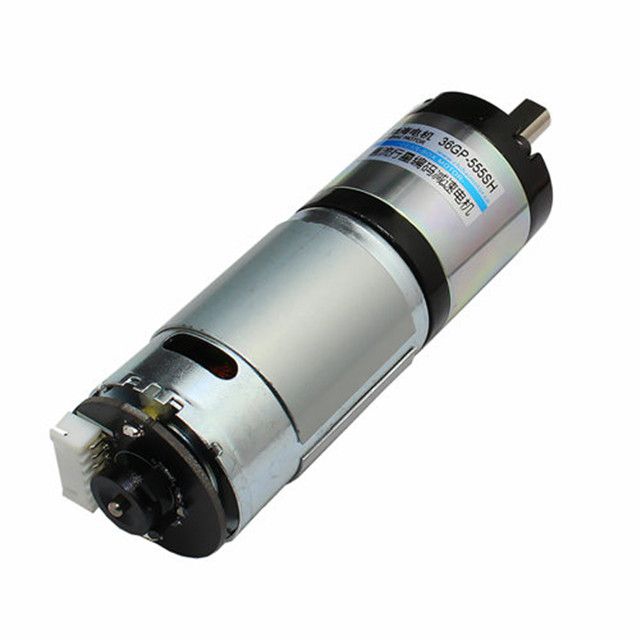

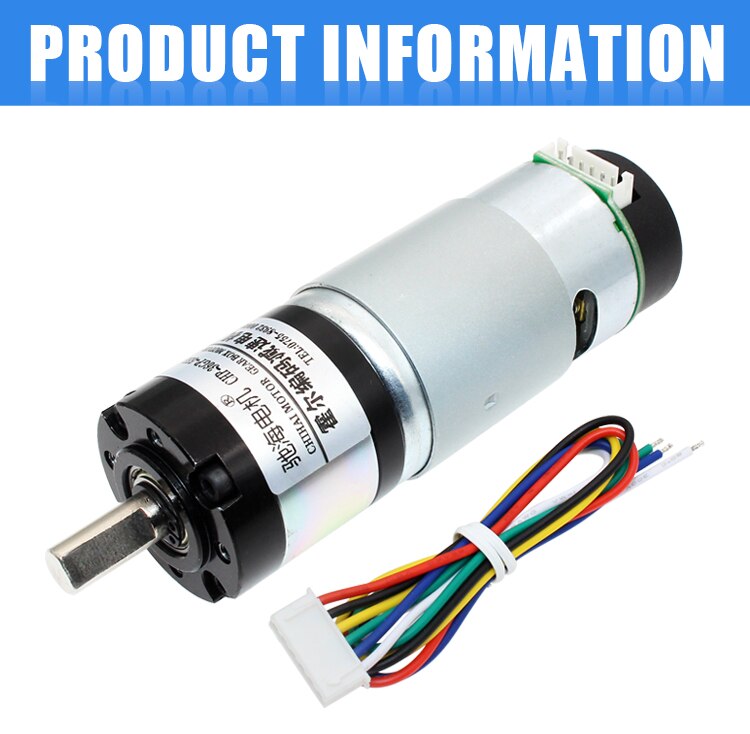

Micro DC Planetary Gear Motor with Encoder

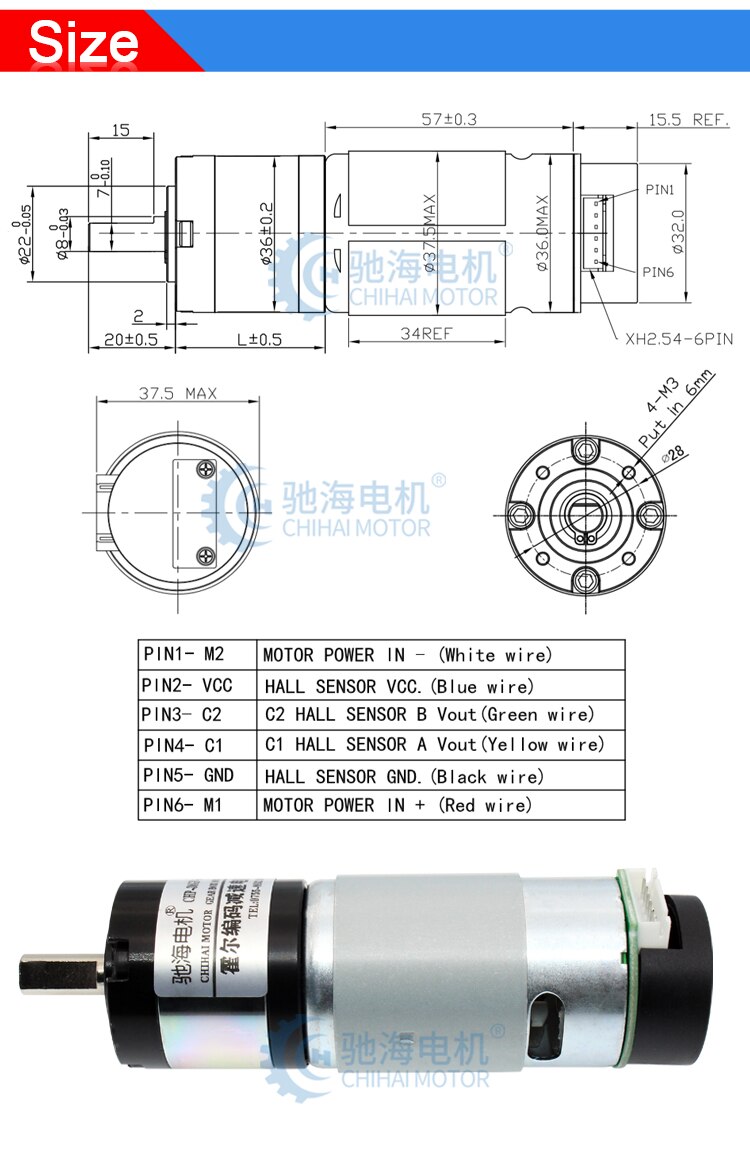

Size: 36*(70mm+L) (excluding shaft and terminal)
Axle length: 20.0MM one way out shaft
Model: CHP-36GP-555-ABHL
Product Description

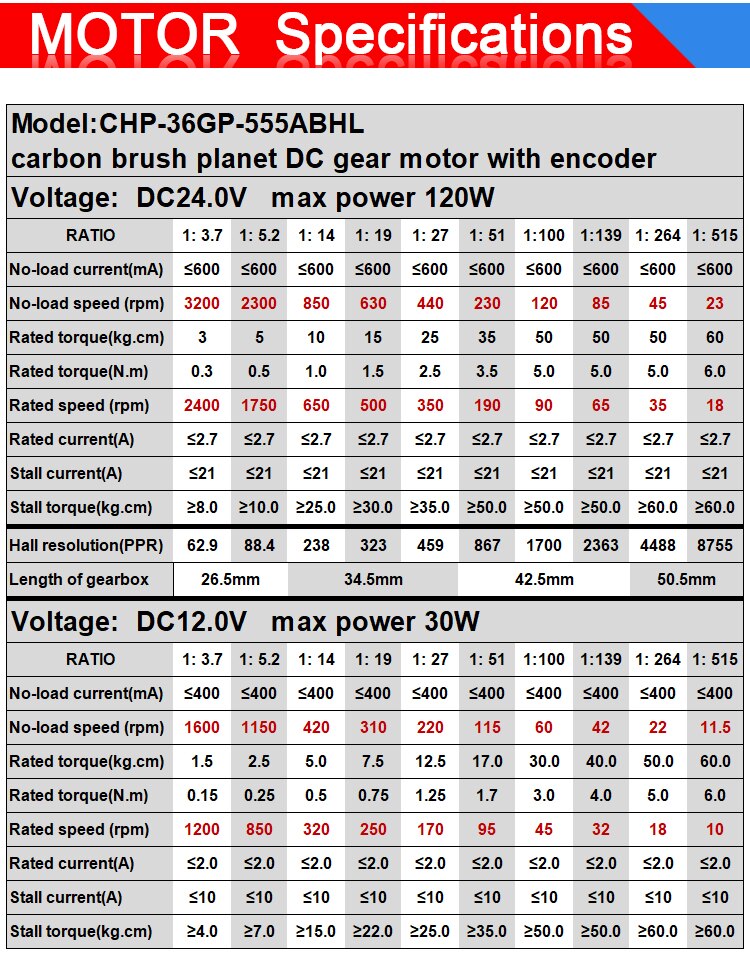

Model | CHP-36GP-555-ABHLL permanent magnet planetary coding deceleration motor |
Size | 36*(70mm+L) (excluding shaft and terminal) |
Axle length | 20.0MM one way out shaft |

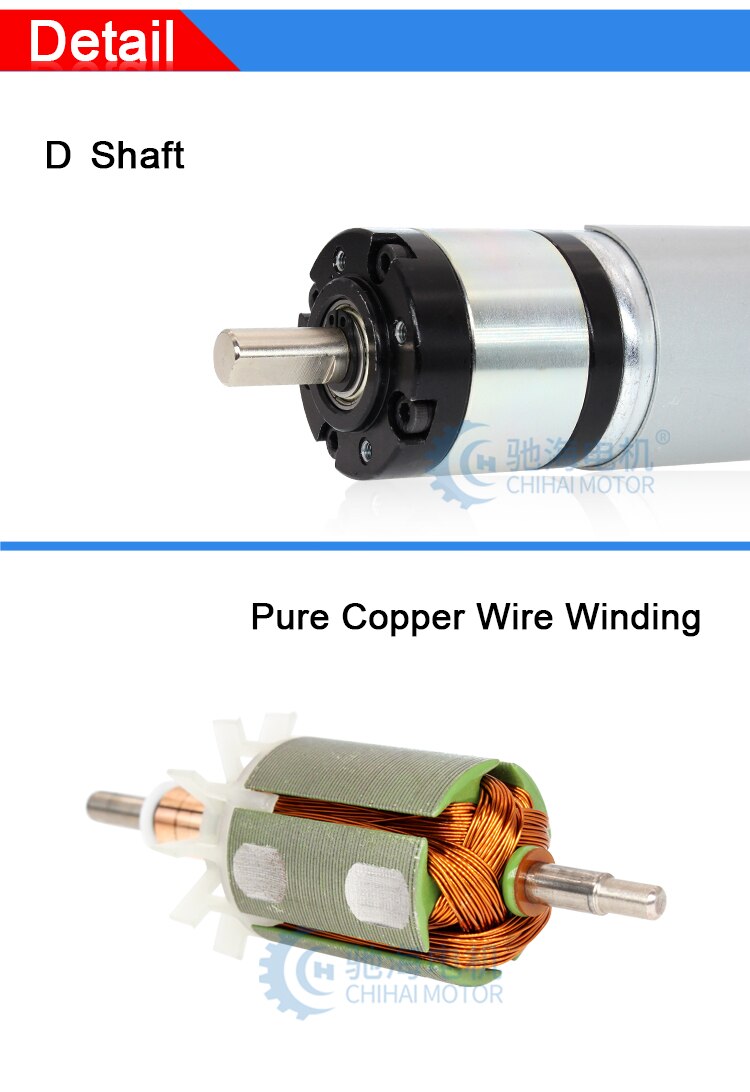

Axle diameter | 8mm D type shaft double ball bearing positioning structure |
Voltage | 12-24v |
Weight | 480g or so, different parameters, weight is more than 10 grams difference |
Wiring specification | XH2.54-6PIN terminal connector |

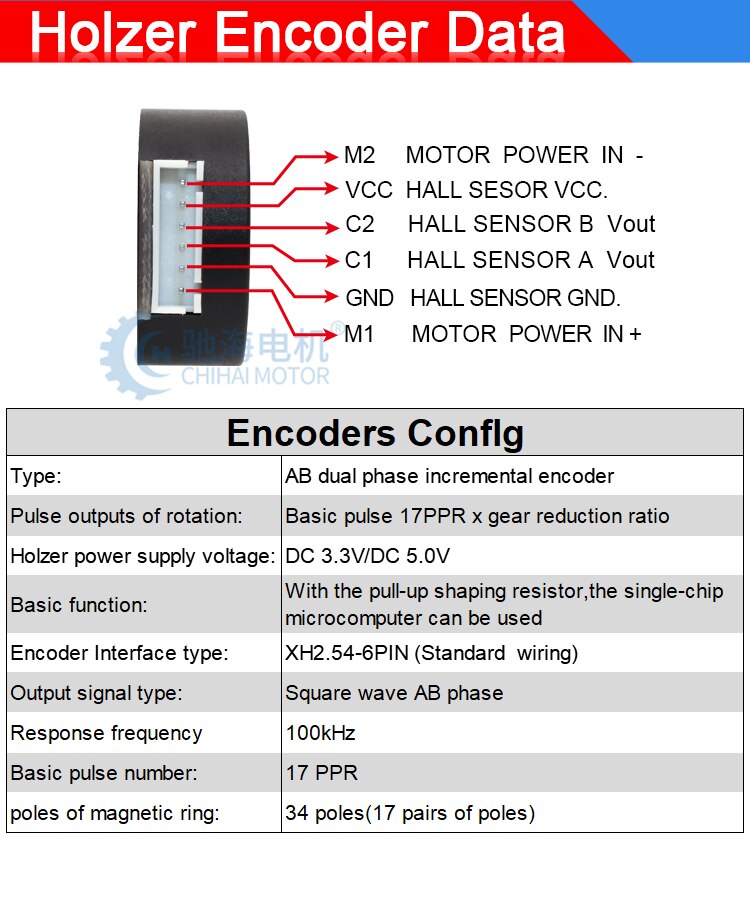

Encoder Specification | A B dual phase encoder, 11 line basic signal voltage 3.3V or 5.0V |
AB dual phase incremental encoder is a common rotary position detection device, which has the advantages of high precision, high reliability and high stability, and is widely used in various mechanical equipment, automation system and numerical control equipment.
AB dual phase incremental encoder uses photoelectric measurement technology to convert the rotating motion into a digital signal output to achieve accurate measurement of the rotating position. It is characterized by high measurement accuracy, wide measurement range, strong anti-interference ability of output signal, and high reliability and good stability.
AB dual phase incremental encoders have a very wide range of applications, including the measurement of various physical quantities, position and Angle control, speed and acceleration detection. It can not only be used in machine tools, wind power, automation control, electronic equipment and other fields, but also in medical equipment, aerospace, robotics, military and other fields.
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
