Brushless Planetary Gear Reduction Motor
Product Description
| Product Type |
CHP-22GP-BL2418 Brushless DC planetary gear reduction motor |
| Diameter | ∮22mm |
| Shaft length | 14mm |
| Shaft Dianeter | 4mm , thick 3.5mm |
| Voltage | DC 10-16V |
| Weight | About 61g |

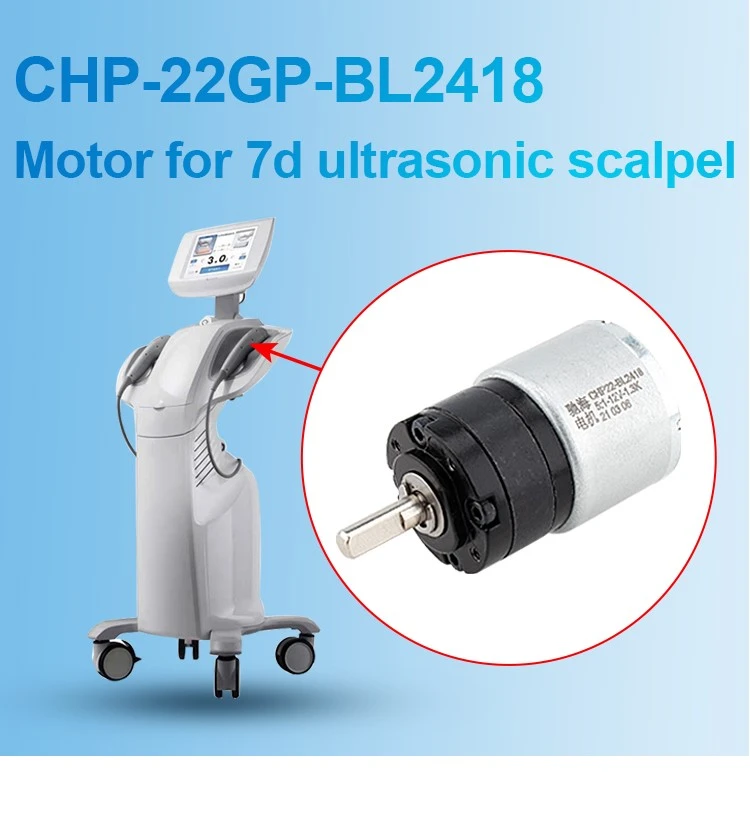

| Application | Motor for 7d ultrasonic scalpel |
Brushless DC planetary gear motor is a kind of efficient, stable and reliable driving equipment, which is widely used in various electromechanical equipment and industrial production.
Brushless DC planetary gear motor has many excellent characteristics, such as high efficiency, low noise, long life and so on. The motor adopts brushless motor technology and has the characteristics of high torque, high speed and high efficiency. At the same time, the motor also adopts a planetary gear reduction device, which effectively reduces the output speed and improves the torque output, ensuring the efficient and stable operation of the motor.
In addition, the brushless DC planetary gear motor also has extremely high reliability and stability. High precision machining technology and high wear-resistant materials are used to ensure the precision and durability of motor parts. At the same time, it also has excellent protection performance such as waterproof, dustproof, earthquake resistance and impact resistance, and can operate safely and reliably in harsh working environment.
Brushless DC planetary gear motor is a reliable, efficient and reliable drive equipment, with many excellent performance and excellent protection performance.

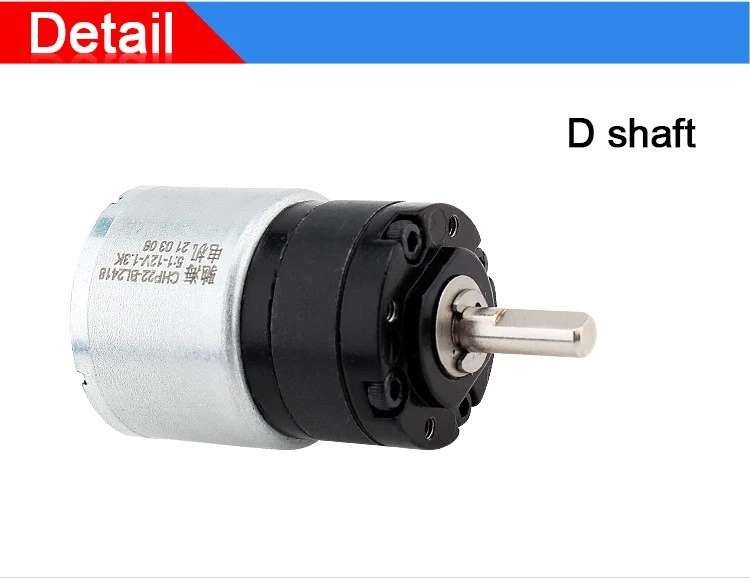

D shaft
Compared with the traditional shaft, the D-shaped shaft has better torque transmission capacity and higher transmission efficiency. In addition, the design of the D-font shaft can also effectively reduce the noise and vibration of the motor, and improve the service life of the motor.
All Metal Gear
The all-metal gear structure ensures its durability and stability, and it works more efficiently. Its design ideas are full of science and technology and modern sense, showing the technical strength and innovation ability of modern manufacturing industry.
Detailed Images
Product & specifications
| Model：CHP-22GP-BL2418 Brushless DC planetary gear motor |
| Voltage:12V Support customization |
| RATIO | 5:1 |
| specifications | 5:1-12V-1.3K |
| No-load current(mA) | ≤150 mA |
| No-load speed (rpm) | 1300±10% RPM |
| Rated torque(Kg.cm) | 0.13 kg.cm |
| Rated speed(rpm) | 1050 ± 10% RPM |
| Rated current(A) | ≤0.6A |
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
