20mm High Torque Dc Gear 2040 Motor
Weight: about 75g
Application case:intelligent robot, electric curtain, intelligent balance car,intelligent manipulator, etc
Product Description

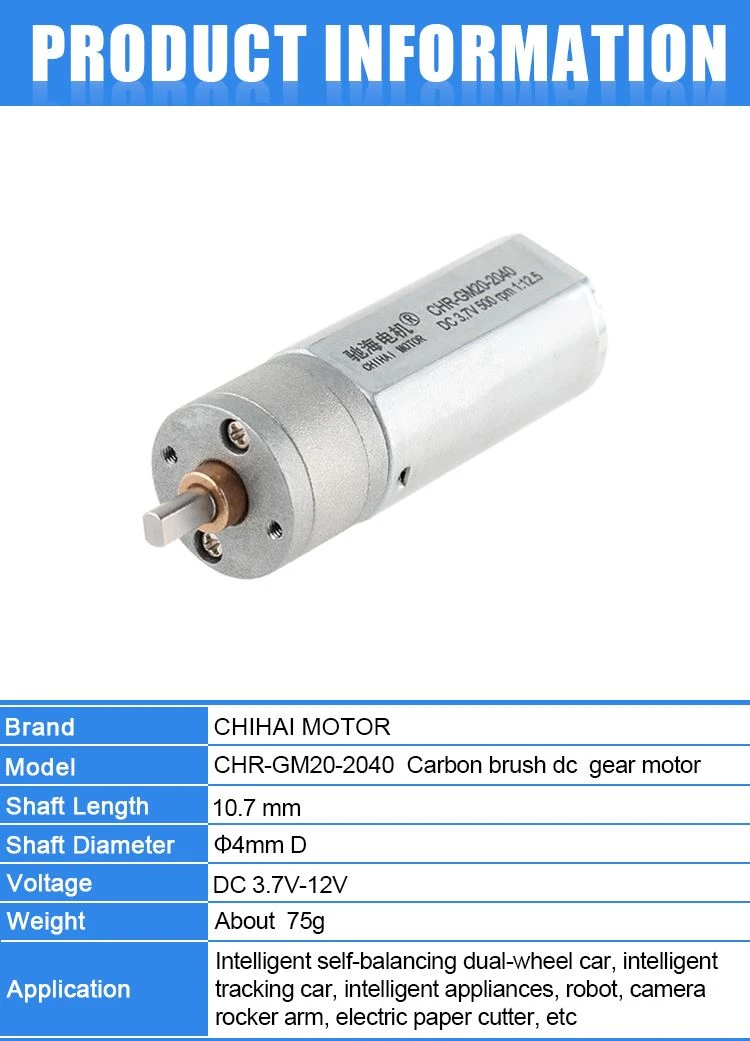

Brand: | Chihai motor |
Product Type: | CHR-GM20-2040 permanent magnet dc gear motor |

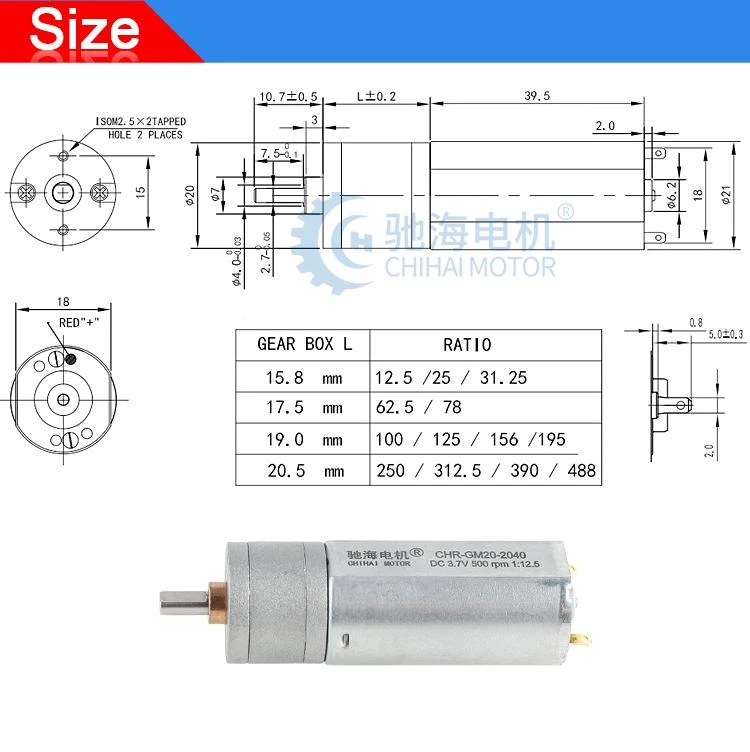

Output shaft length: | diameter 20mm * Lmm (different deceleration different ratio) |
axle diameter: | out axis diameter 4mmD (batch customizable) |
Voltage: | DC 3.7V-12V |
Weight: | about 75g |
Application case: | intelligent robot, electric curtain, intelligent balance car, intelligent manipulator, etc |

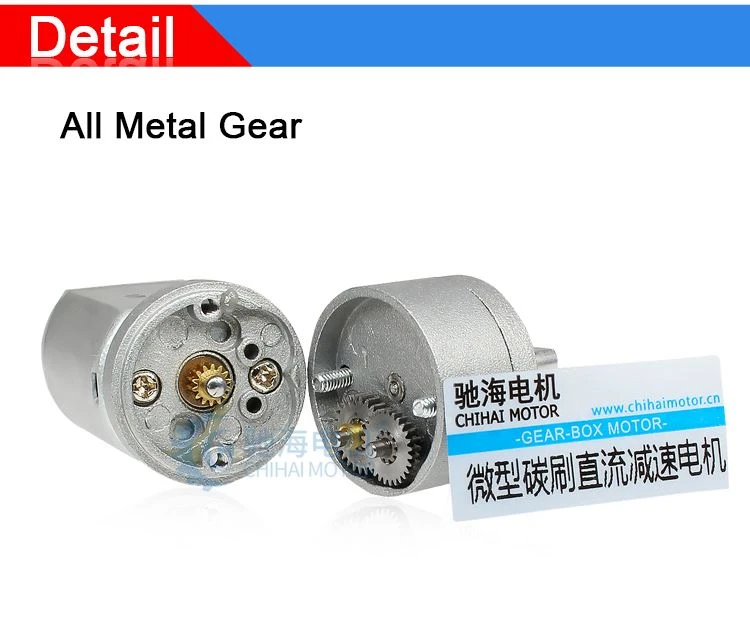

Gearbox Type: Round Spur

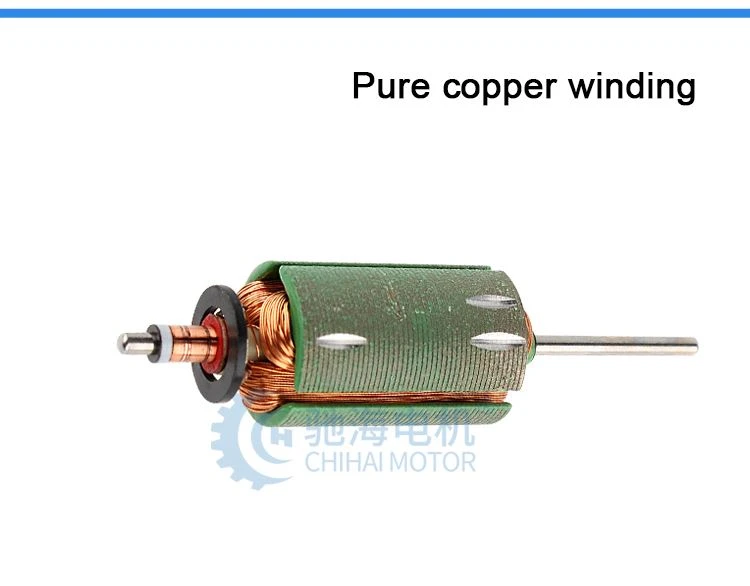

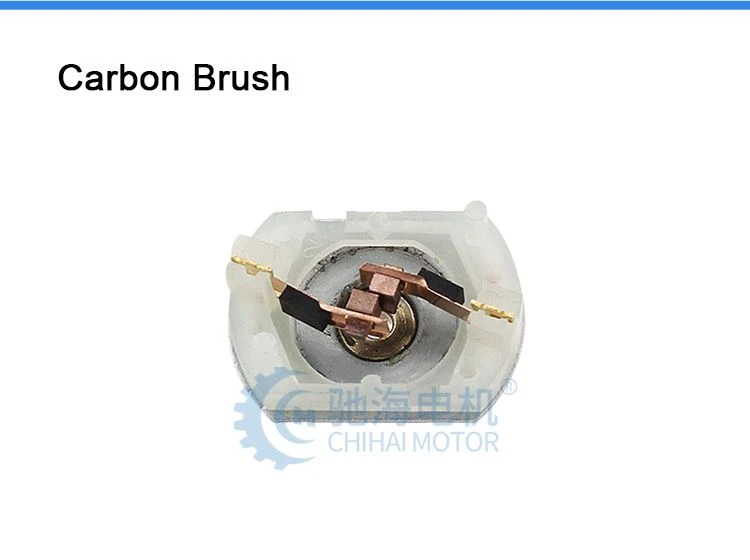

Motor Type: Brushed
Applications: Smart Appliances, Smart toys, door lock, fingerprint lock, express cabinet lock, bicycle lock, parking lock, projector, hair curler, service robots
● 20mm dc spur gear motor with 2040 motor
● Dc motor small size dc gear motor with low speed and big torque
● 20mm gear motor provide 0.5Nm torque and more reliable
● Suitable to small diameter, low noise and big torque application

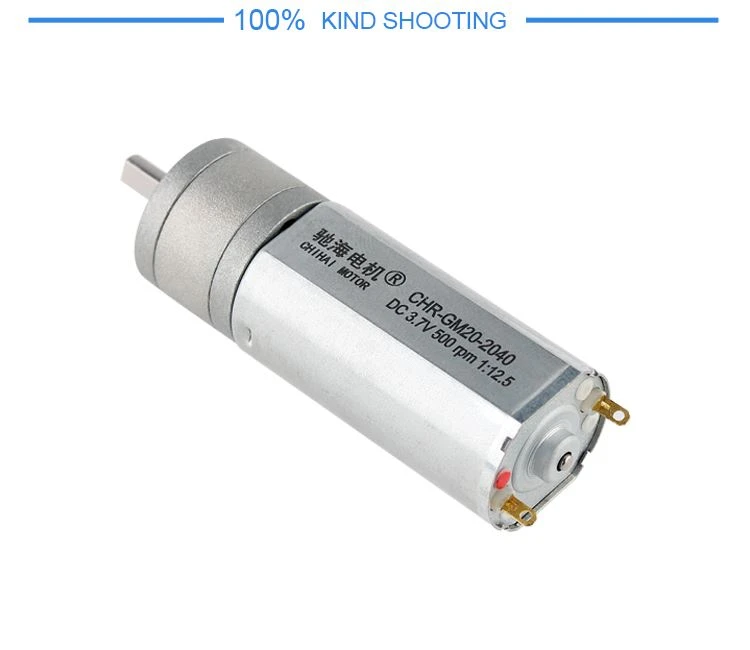

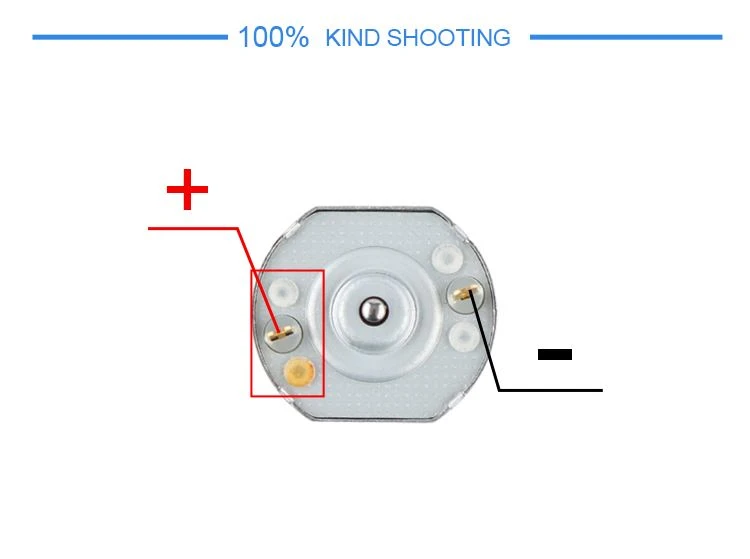

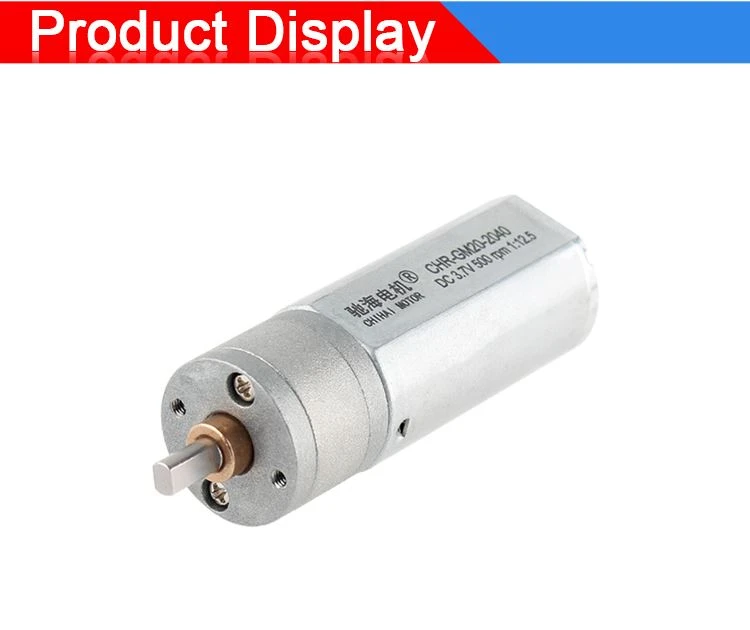

Detailed Images

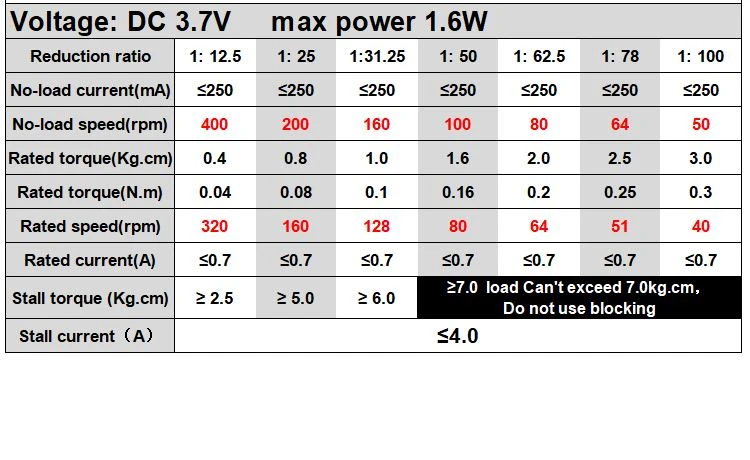

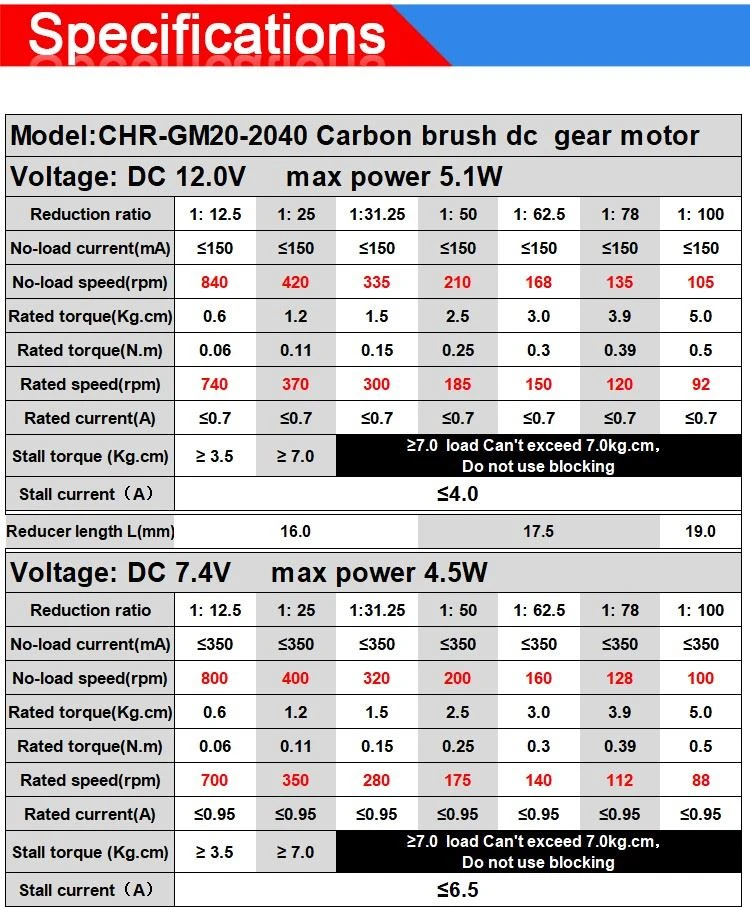

Product Paramet

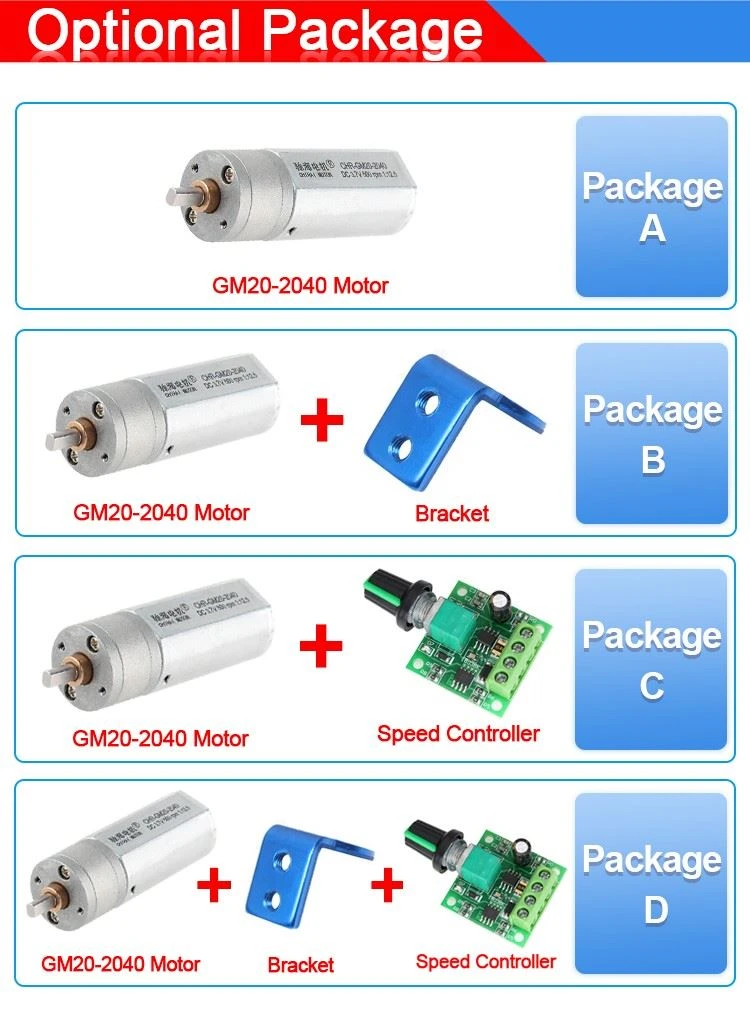

Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
