Worm Gear And Worm Reduction Motor
Product Description
| Product Type |
CHW4632-370 ABHL gear motors |
| Output shaft length | 18.5mm D |
| Shaft diameter |
6mm |
| Voltage range |
DC1.5- 24.0V |
| weight |
About 200g |
| wiring specification |
PH2.0-6PIN terminal head |
| encoder Specification |
A B dual phase encoder, 11 line basic signalvoltage 3.3V or 5.0V |
characteristic：
1.Worm gear and worm deceleration drive, power off self-locking force
2.Pure copper wire winding，The rotor part adopts pure copper group, small resistance and strong conductivity,
and the motor torque is increased

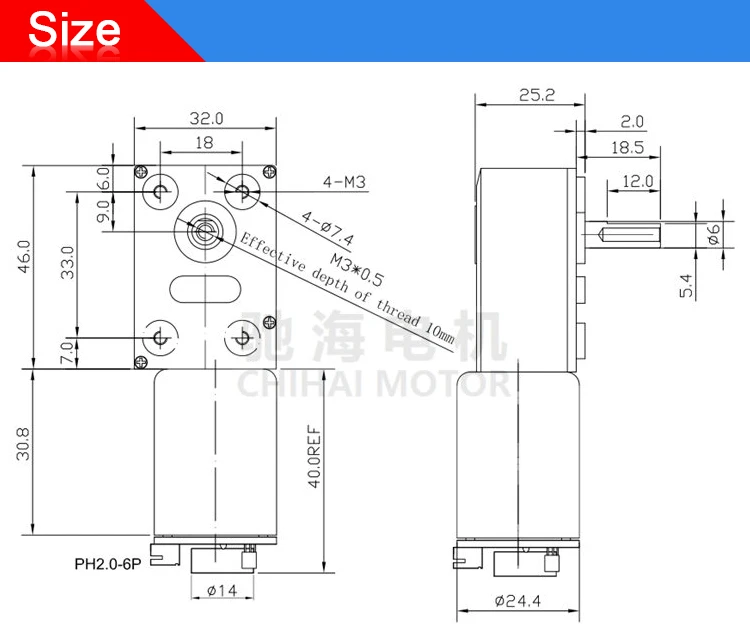

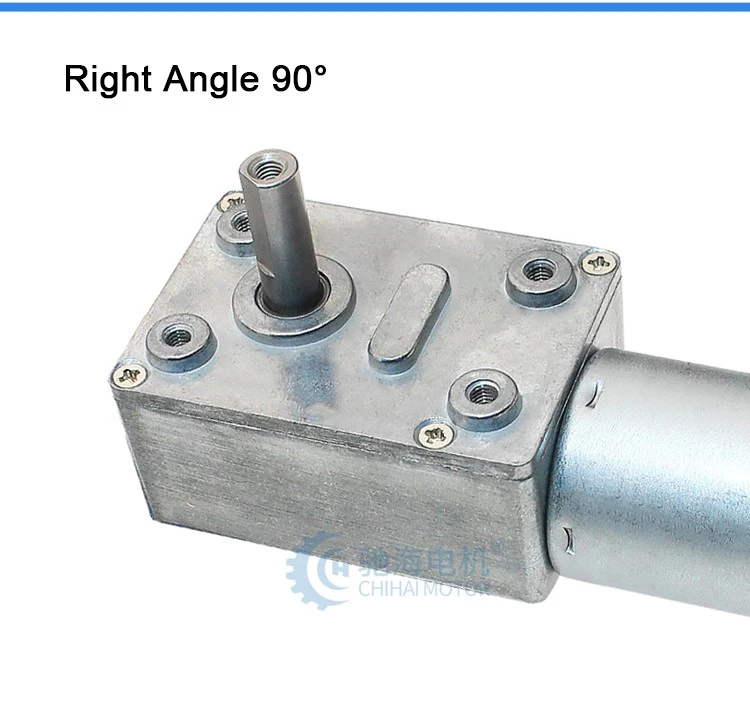

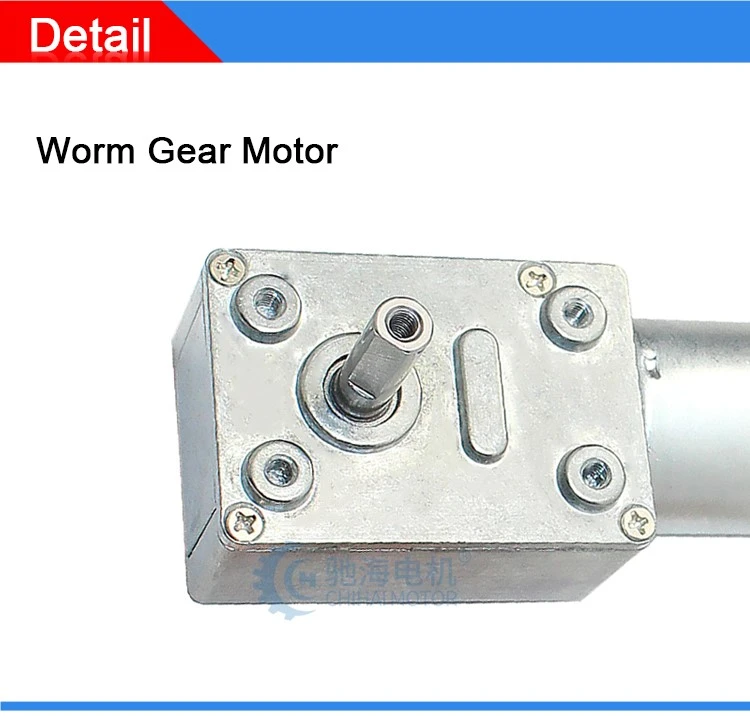

Detailed Images
Packing & Delivery
| Model：CHW-4632-370 ABHL Worm Gear Motor |
| Voltage: DC6.0V Out power: 2.5W |
| Reduction ratio | 1：32 | 1：65 | 1：158 | 1：200 | 1：337 | 1：564 | 1：1019 |
| No-load current（mA) | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 |
| No-load speed(rpm) | 185 | 90 | 37 | 30 | 18 | 11 | 6 |
| Rated torque(Kg.cm) | 1.6 | 3.3 | 7.5 | 10.0 | 17.0 | 28.0 | 30.0 |
| Rated speed（rpm) | 132 | 65 | 27 | 21 | 13 | 7 | 4 |
| Rated current（A) | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 |
| Stall torque（Kg.cm) | ≥2.9 | ≥6.0 | ≥15.0 | max torque 30kg.cm |
| Stall current（A） | ≤2.6 | ≤2.6 | ≤2.6 | ≤2.6 | ≤2.6 | ≤2.6 | ≤2.6 |
| Hall Signal(11×RATIO) | 352 | 715 | 1738 | 2200 | 3707 | 6204 | 11209 |
| Voltage: DC12.0V Out power: 3.3W |
| Reduction ratio | 1：32 | 1：65 | 1：158 | 1：200 | 1：337 | 1：564 | 1：1019 |
| No-load current（mA) | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 |
| No-load speed(rpm) | 185 | 90 | 37 | 30 | 18 | 11 | 6 |
| Rated torque(Kg.cm) | 1.6 | 3.3 | 7.5 | 10.0 | 17.0 | 28.0 | 30.0 |
| Rated speed（rpm) | 132 | 65 | 27 | 21 | 13 | 7 | 4 |
| Rated current（A) | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
| Stall torque（Kg.cm) | ≥2.9 | ≥6.0 | ≥15.0 | max torque 30kg.cm |
| Stall current（A） | ≤1.2 | ≤1.2 | ≤1.2 | ≤1.2 | ≤1.2 | ≤1.2 | ≤1.2 |
| Hall Signal(11×RATIO) | 352 | 715 | 1738 | 2200 | 3707 | 6204 | 11209 |
| Voltage: DC24.0V Out power: 12.0W |
| Reduction ratio | 1: 32 | 1: 65 | 1: 158 | 1: 200 | 1: 337 | 1: 564 | 1: 1019 |
| No-load current（mA) | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 |
| No-load speed(rpm) | 375 | 180 | 74 | 60 | 35 | 21 | 12 |
| Rated torque(Kg.cm) | 3.2 | 6.0 | 6.0 | 7.5 | 13.0 | 20.0 | 30.0 |
| Rated speed（rpm) | 264 | 130 | 53 | 42 | 25 | 15 | 8 |
| Rated current（A) | ≤0.7 | ≤0.7 | ≤0.7 | ≤0.7 | ≤0.7 | ≤0.7 | ≤0.7 |
| Stall torque（Kg.cm) | ≥5.5 | ≥12.0 | max torque 30kg.cm |
| Stall current（A） | ≤2.3 | ≤2.3 | ≤2.3 | ≤2.3 | ≤2.3 | ≤2.3 | ≤2.3 |
| Hall Signal(11×RATIO) | 352 | 715 | 1738 | 2200 | 3707 | 6204 | 11209 |
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
