Dc Screw Shaft Reducer Motor
Product Description
| Product Type | CHR-GM37-545 DC gear motor |

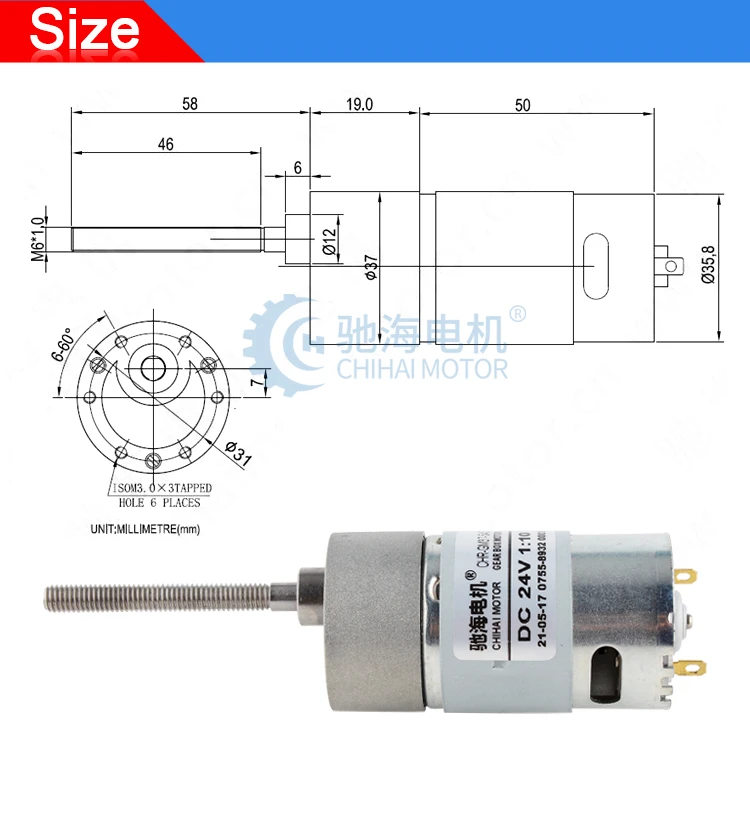

| Size | Φ37mm |
| Shaft length | 58mm |
| Shaft Dianeter |
M6 pitch, 1.0mm, coarse thread shaft |
| Voltage |
DC 12-24V |
| Weight | About 267g |
| Application |
Intelligent self-balancing two-wheeled car, intelligent tracking car, intelligent home appliancesRobot, camera rocker arm, electric paper cutting machine, etc |

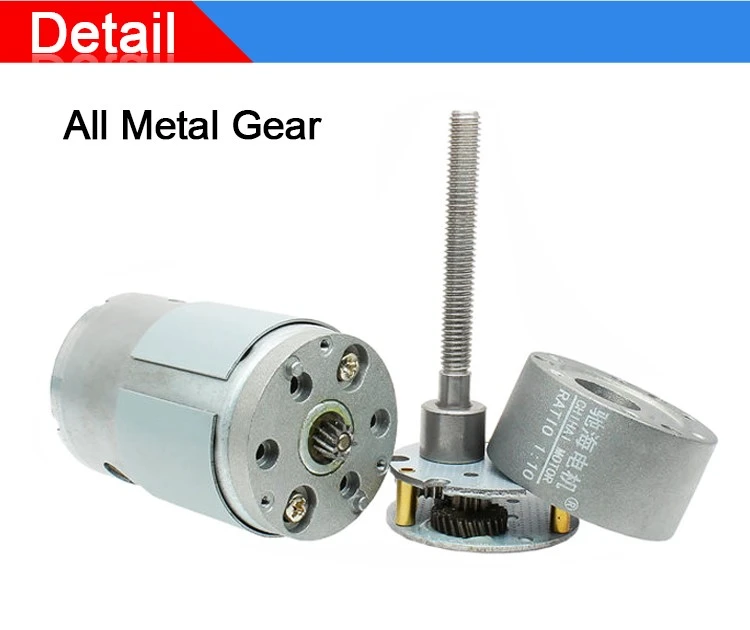

Helical Angle bevel gear structure：
Reduce load noise and improve transmission efficiency.

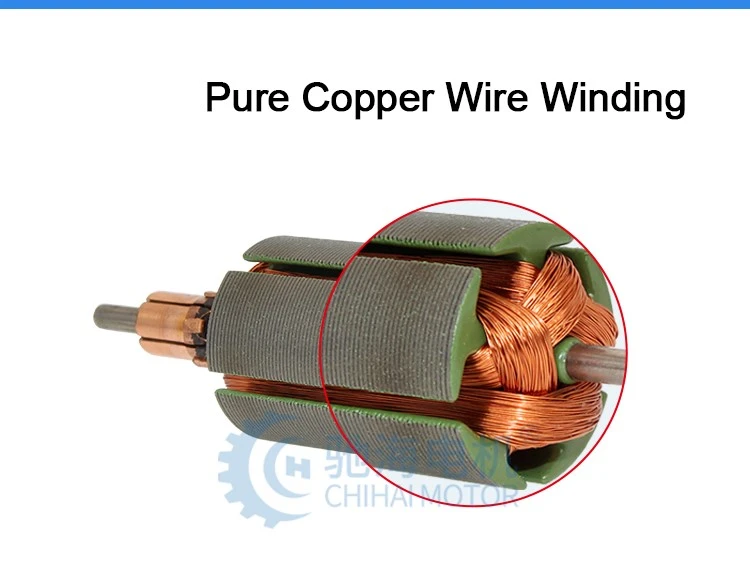

Pure copper wire winding：
The rotor part adopts pure copper group, small resistance and strong conductivity, and the motor torque is increased

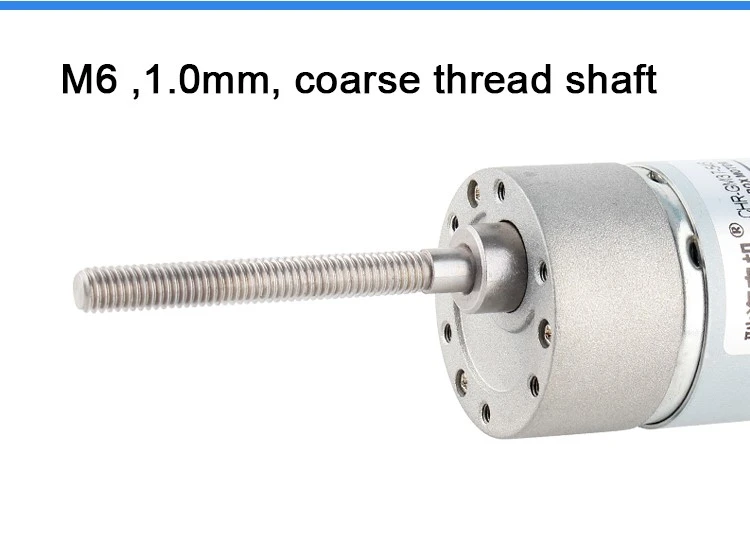

Screw shaft：
M6 pitch 1.0mm coarse thread shaft
Scope of use：
Intelligent robot, electric curtain, intelligent balance car, intelligent manipulator, etc
Detailed Images

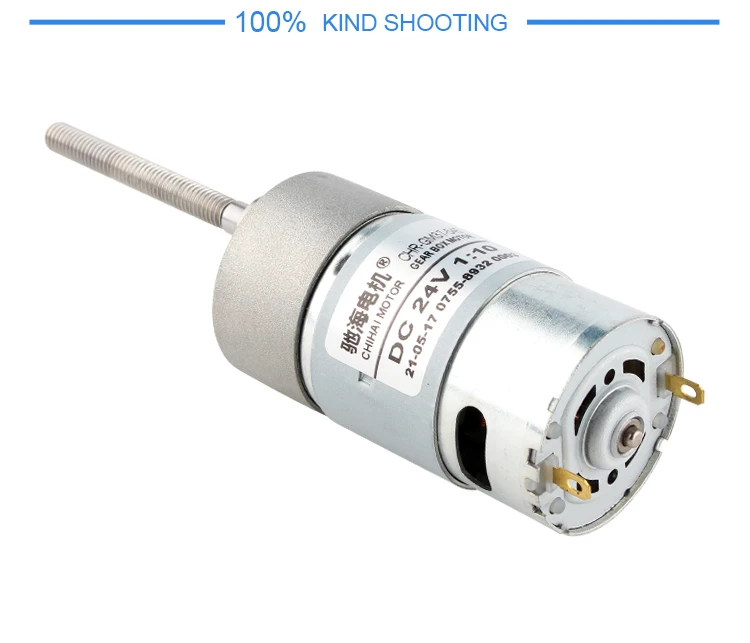

Product & specifications
| Model: CHR-GM37-545 DC gear motor |
| Voltage | 24.0V | 12.0V |
| No-load Current | 0.35 A | 0.25 A |
| No-load speed | 720 rpm | 350 rpm |
| RATIO 1: 10 |
| MAX EFF.OUTPUT | 6.9 W | 2.0 W |
| MAX EFF.TORQUE | 1.0 kg.cm | 0.6 kg.cm |
| MAX EFF.CURRENT | 1.4 A | 0.83 A |
| MAX EFF.SPEED | 600 rpm | 280 rpm |
| M6 pitch, 1.0mm, coarse thread shaft |
| MAX EFF.OUTPUT | 13 W | 3.1 W |
| MAX EFF.TORQUE | 3.5 g.cm | 1.7 g.cm |
| MAX EFF.CURRENT | 3.75 A | 1.8 A |
| MAX EFF.SPEED | 360 rpm | 170 rpm |
| STALL TORQUE | ≥6.5 kg.cm | ≥3.0 kg.cm |
| STALL CURRENT | ≤7.5 A | ≤3.8 A |

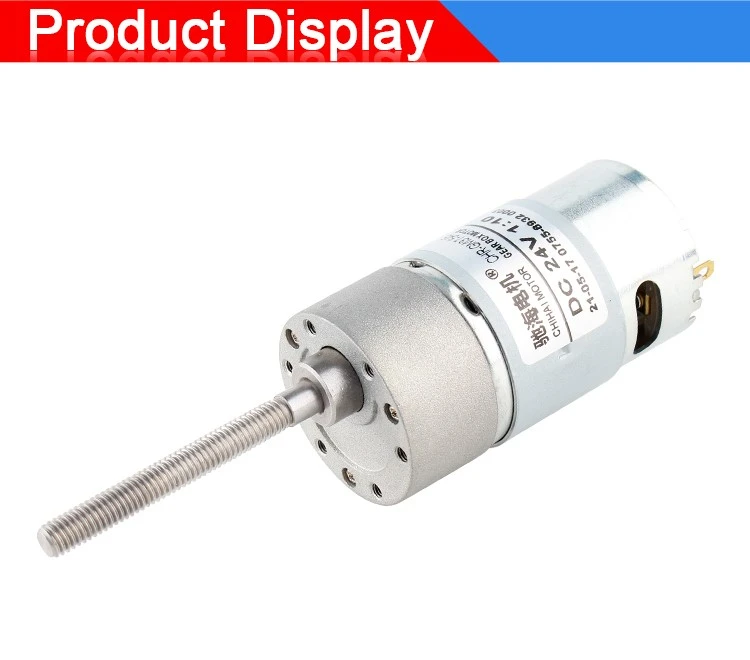

Product &display
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
