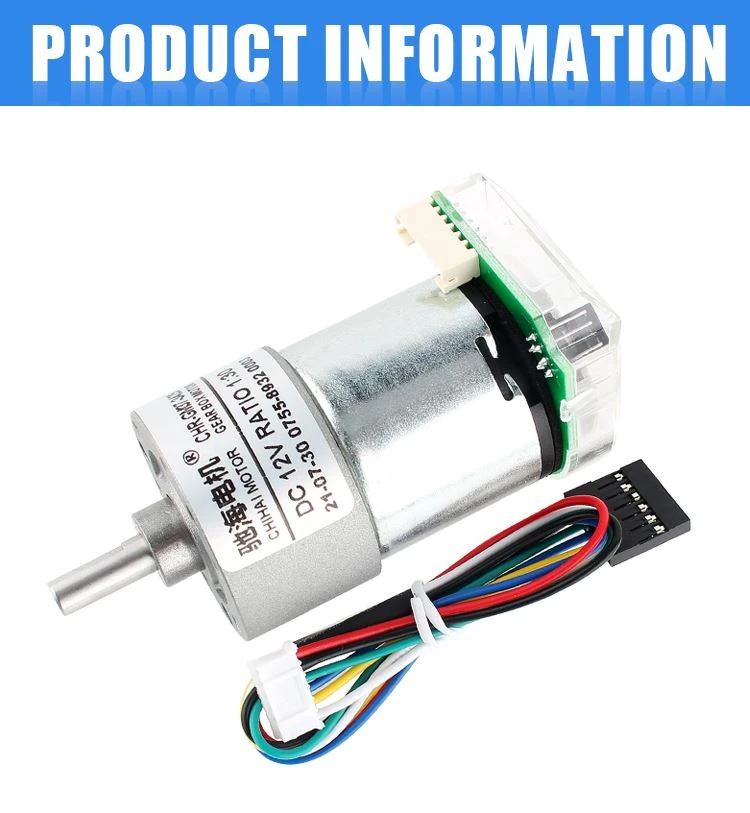

Large Torque Metal Tubular Photoelectric Encoder MOTOR
Motor diameter: ∮37mm
Voltage range: DC6-24.0V

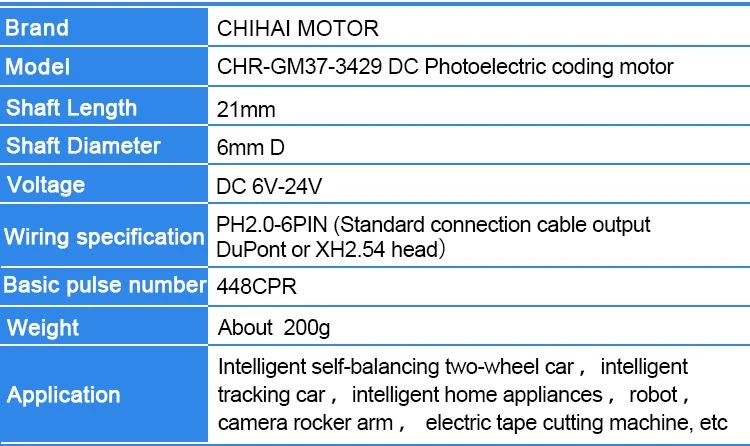

Product Description
Product Type: | CHR-GM37-3429PABHL Photoelectric coding motor DC12V 6V Large Torque Metal Tubular eccentric Gearbox Reduction Gear Motor with encoder carbon brush dc mini encoder motor for balancing trolley/Robot |

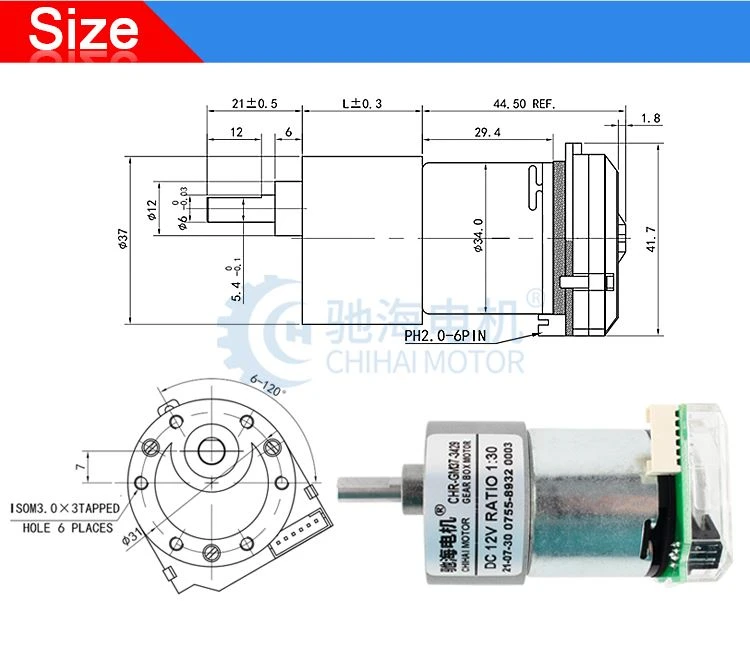

Output shaft length: | 21mm D 12mm |
Motor diameter: | ∮37mm |
Voltage range: | DC6-24.0V |

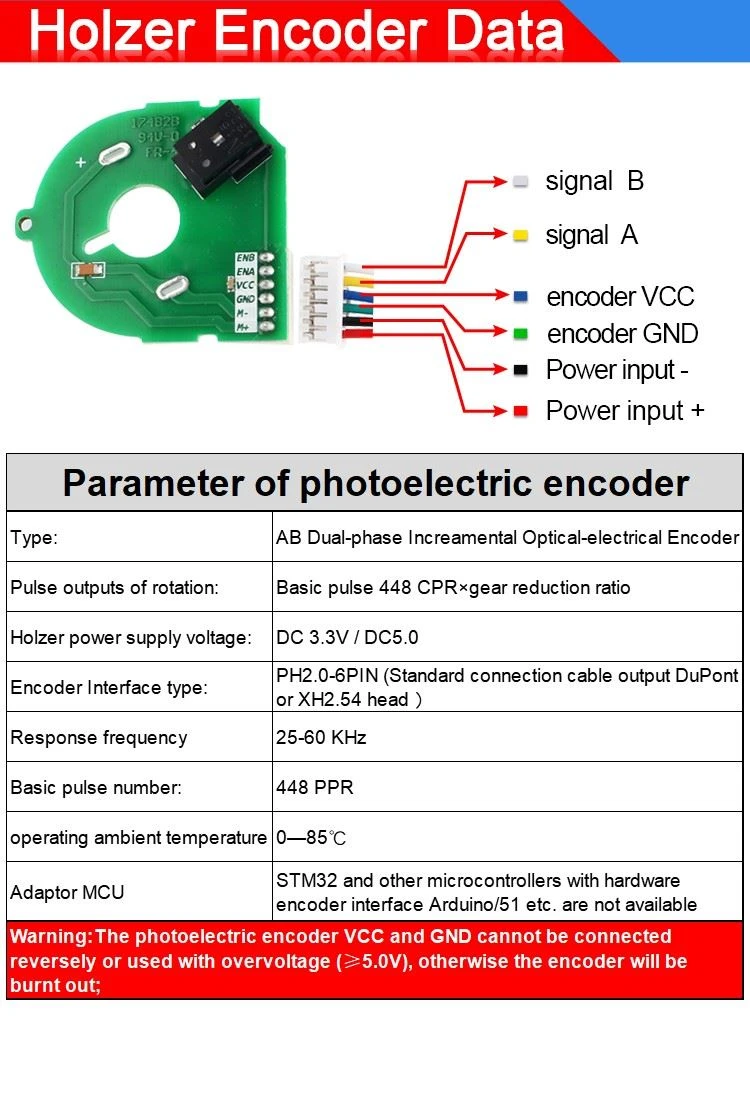

Wiring specification: | PH2.0-6PIN (Standard connection cable output DuPont or XH2.54 head） |
Basic pulse number: | 448CPR |
Weight: | about 200g |
Application: | Intelligent self-balancing dual-wheel car, intelligent tracking car, intelligent appliances, robot, camera rocker arm, electric |

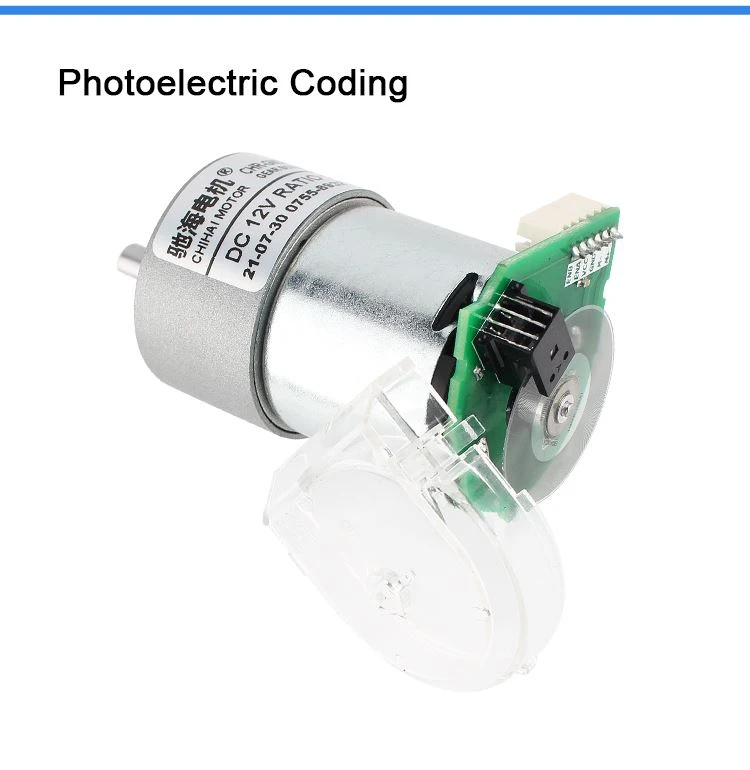

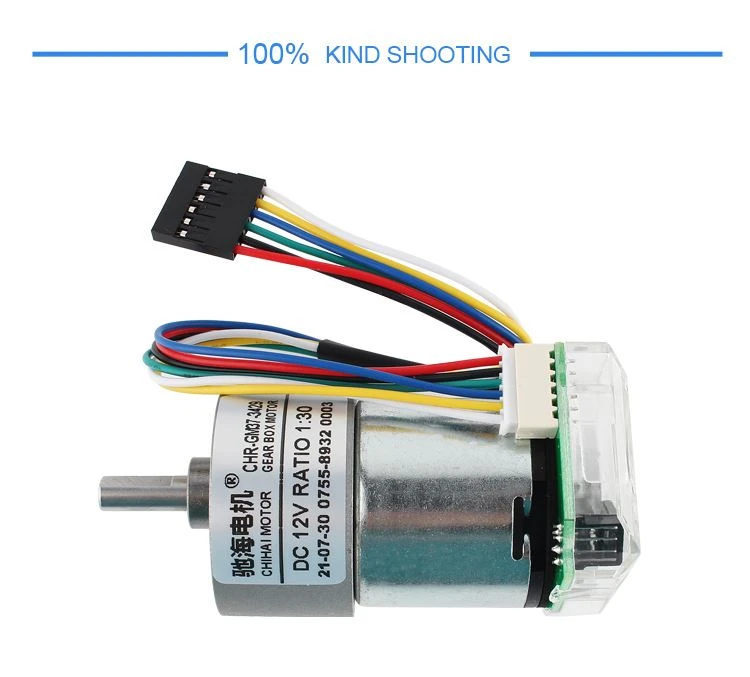

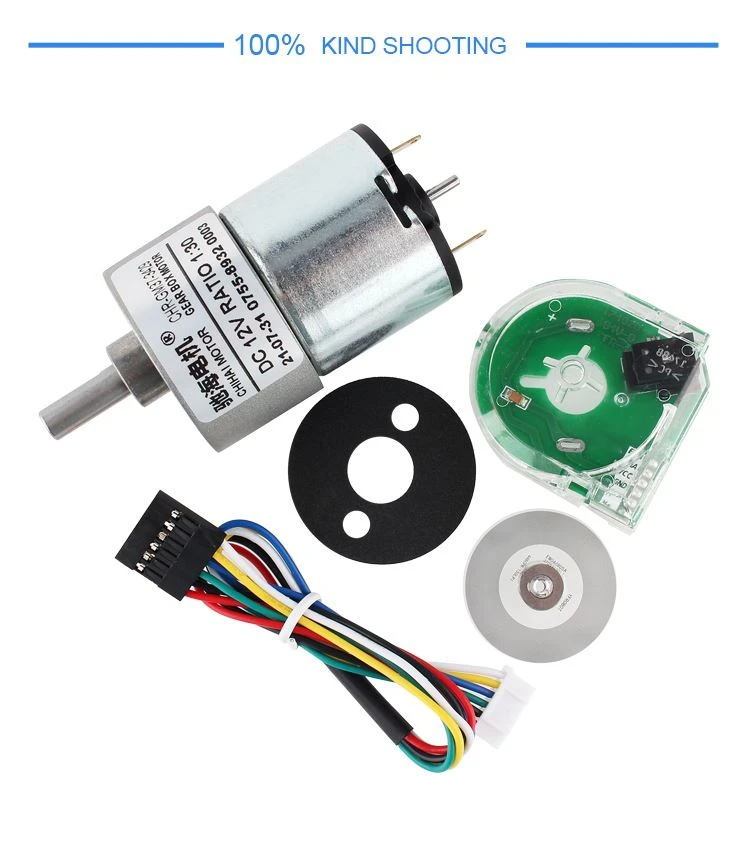

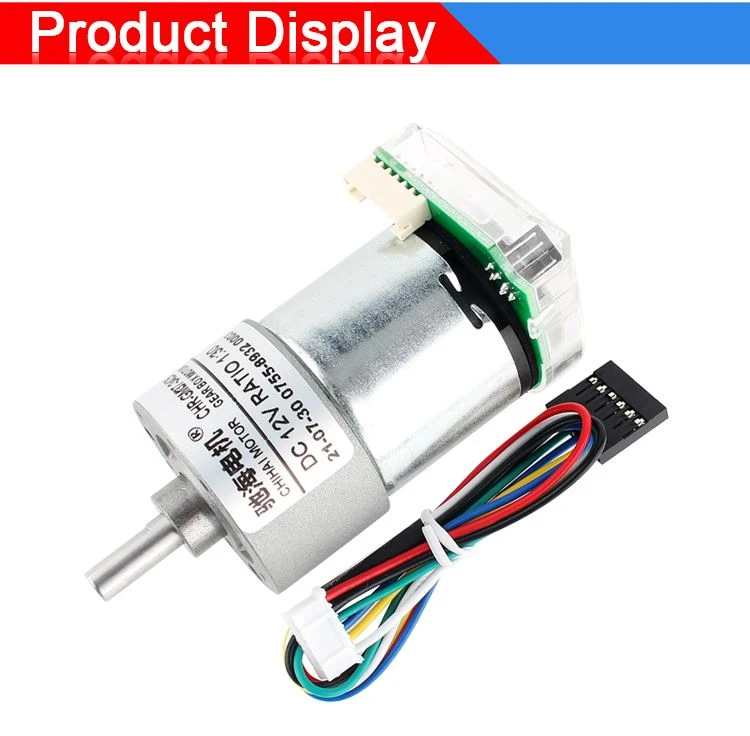

Detailed Images

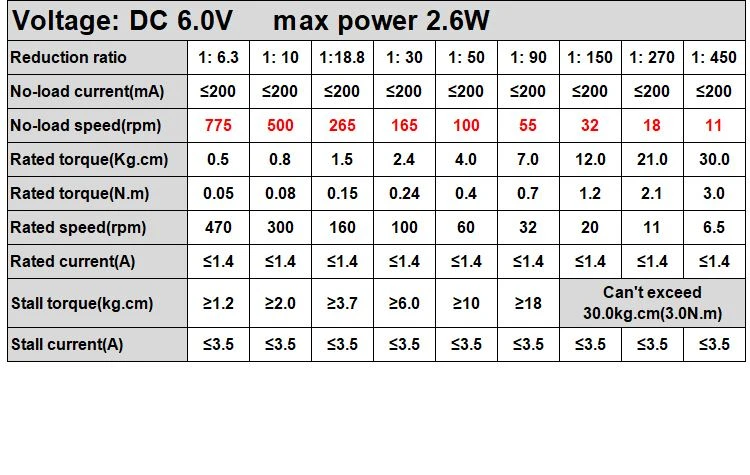

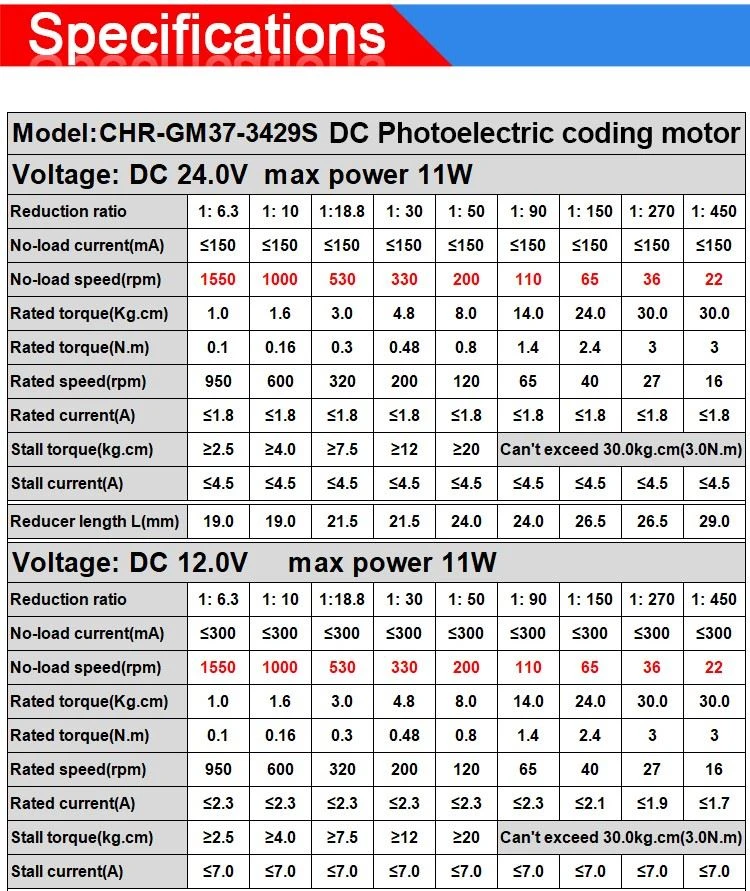

Product Paramet
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
