37mm 3530 Electric Dc Gear Motor
Voltage: DC 12 -24V
Weight:About 170g
37mm 3530 electric dc gear motor
Product Description
Product Type: | CHR-GM37-3530 DC gear motor |
Shaft length： | 21mm D 12mm |
Shaft Dianeter: | Φ 6mm D |
Voltage: | DC 12 -24V |
Weight： | About 170g |
Application: | Intelligent self-balancing two-wheeled car, intelligent tracking car, intelligent home appliancesRobot, camera rocker arm, electric paper cutting machine, etc |
Dc gear motor is an important power device with strong power and stable speed, which is very suitable for use in various industrial, agricultural, medical and other fields. Using advanced molding process and precision machining technology, it can provide efficient energy conversion and reliable working performance.
Dc gear motor has the advantages of simple structure, small size, light weight, etc., suitable for a variety of compact space applications, such as planetary gear motor, linear gear motor, etc. It has the characteristics of high precision, high efficiency, high reliability and low noise, and can meet the requirements of different workplaces.
Dc gear motors are widely used in various mechanical equipment, automated production lines, robots and other fields, such as industrial machinery, household appliances, auto parts, medical equipment and so on.

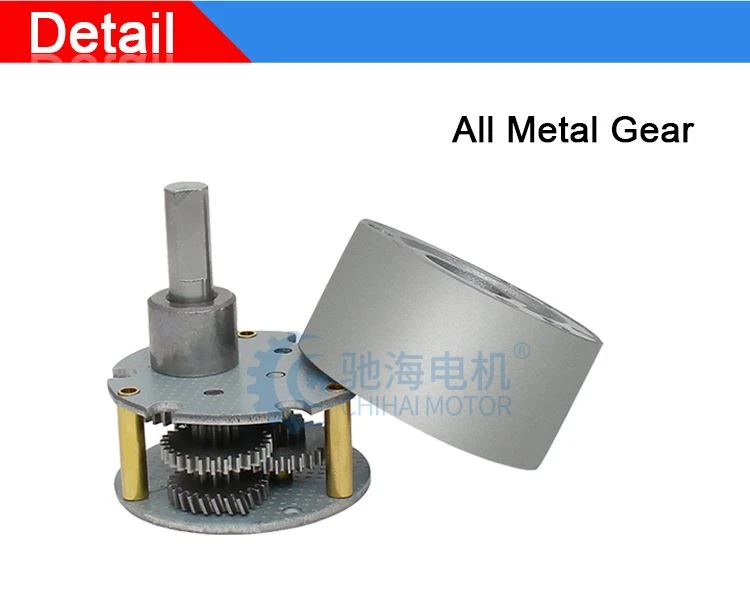

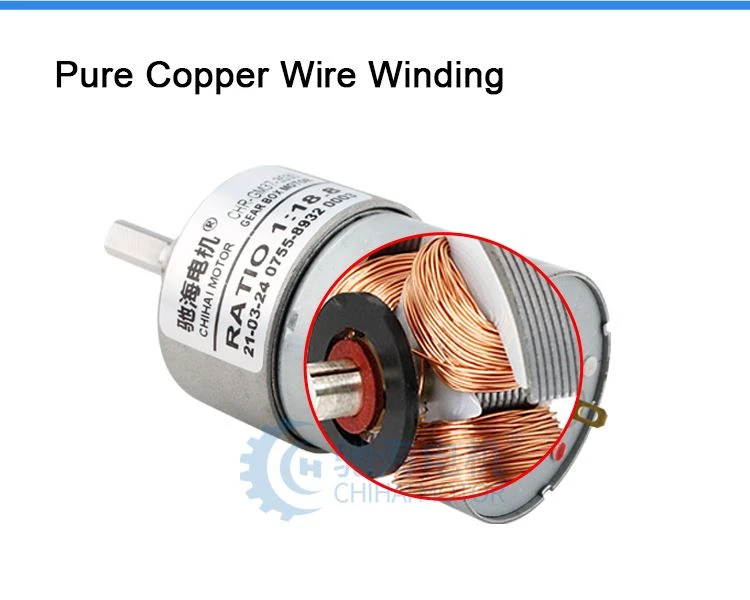

Detailed Images
Product & specifications
Model:CHR-GM37-3530 Carbon brush dc gear motor | |||||||||||
Voltage: DC 24.0V max power 3.1W | |||||||||||
Special note: because of the power of the motor, the current is high, | |||||||||||
Reduction ratio | 1: 6.3 | 1: 10 | 1:18.8 | 1: 30 | 1: 50 | 1: 90 | 1: 150 | 1: 270 | 1: 450 | 1: 650 | 1: 810 |
No-load current(mA) | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 |
No-load speed(rpm) | 940 | 590 | 316 | 198 | 118 | 66 | 39 | 22 | 13 | 9 | 7 |
Rated torque(Kg.cm) | 0.6 | 1.0 | 1.9 | 3.0 | 5.0 | 9.0 | 15.0 | 27.0 | Can't exceed | ||
Rated torque(N.m) | 0.06 | 0.10 | 0.18 | 0.29 | 0.49 | 0.88 | 1.47 | 2.64 | |||
Rated speed(rpm) | 425 | 270 | 143 | 90 | 54 | 30 | 18 | 10 | 6 | 4 | 3 |
Rated current(A) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.4 | 0.3 |
Stall current(A) | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 |
Reducer length L(mm) | 19.0 | 19.0 | 21.5 | 21.5 | 24.0 | 24.0 | 26.5 | 26.5 | 29.0 | 29.0 | 29.0 |
Voltage: DC 12.0V max power 0.52W | |||||||||||
Reduction ratio | 1: 6.3 | 1: 10 | 1:18.8 | 1: 30 | 1: 50 | 1: 90 | 1: 150 | 1: 270 | 1: 450 | 1: 650 | 1: 810 |
No-load current（mA) | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 |
No-load speed(rpm) | 470 | 295 | 158 | 99 | 59 | 33 | 18 | 11 | 7 | 5 | 4 |
Rated torque(Kg.cm) | 0.2 | 0.3 | 0.6 | 1.0 | 1.7 | 3.0 | 5.0 | 9.0 | 15.0 | 21.0 | 27.0 |
Rated torque(N.m) | 0.02 | 0.03 | 0.06 | 0.10 | 0.16 | 0.29 | 0.49 | 0.88 | 1.47 | 2.12 | 2.64 |
Rated speed(rpm) | 255 | 162 | 86 | 54 | 32 | 18 | 10 | 6 | 4 | 3 | 2 |
Rated current(A) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
Stall current(A) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |

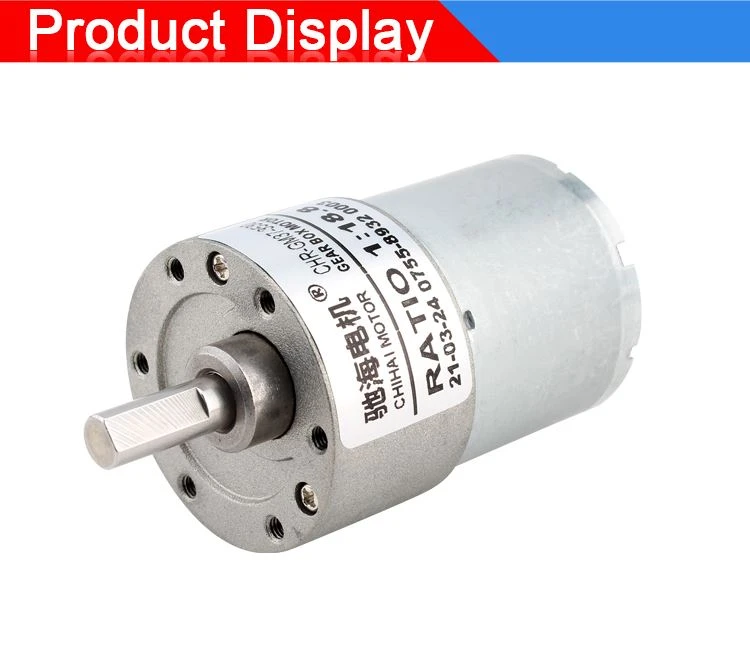

Product &display
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
