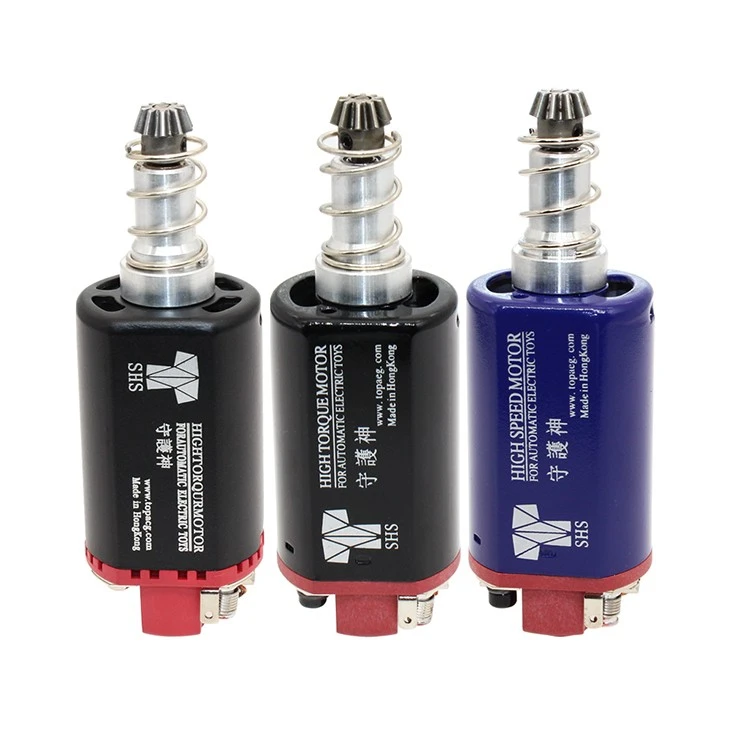

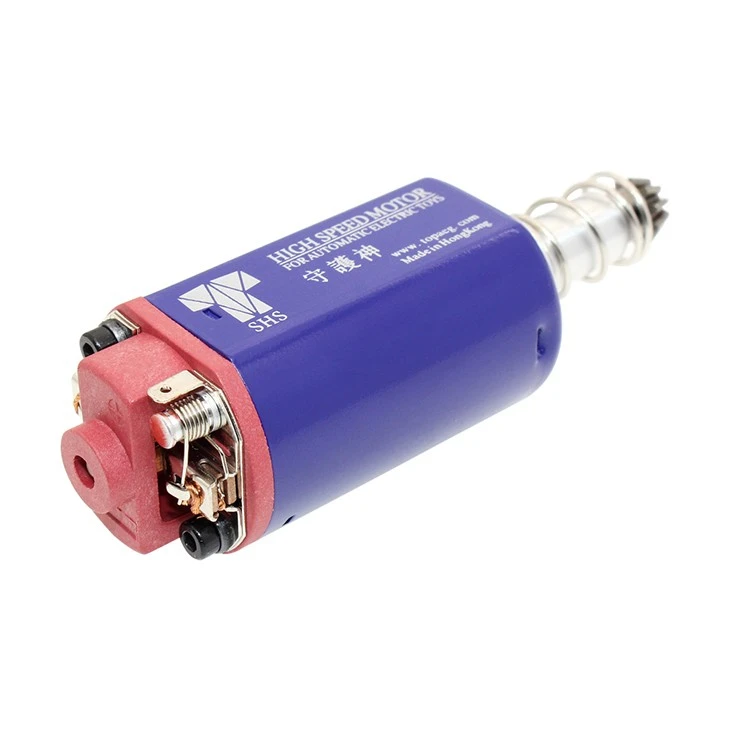

SHS High Torque/high Speed/high Speed & High Torque DC Motor

Product Description

Product Type	SHS High torque/high speed/high Speed & High Torque DC Motor
High speed	DC 11.1V 35000RPM
High torque	DC11.1V 31000RPM
High speed and torque	DC11.1V 46000RPM
Application	LONG type OF M4, M16, MP5, G3, M14 and P90 AEG. The new Ultra Custom series of Qihai Cars Magnum High torque Motor/Ultra Custom Motor is designed for ultra power upgrade Airsoft AEG. Suitable for G&P, M14, DMR, MK14 CRANE PROTOTYPE KIT series.



Detailed Images



Product & specifications

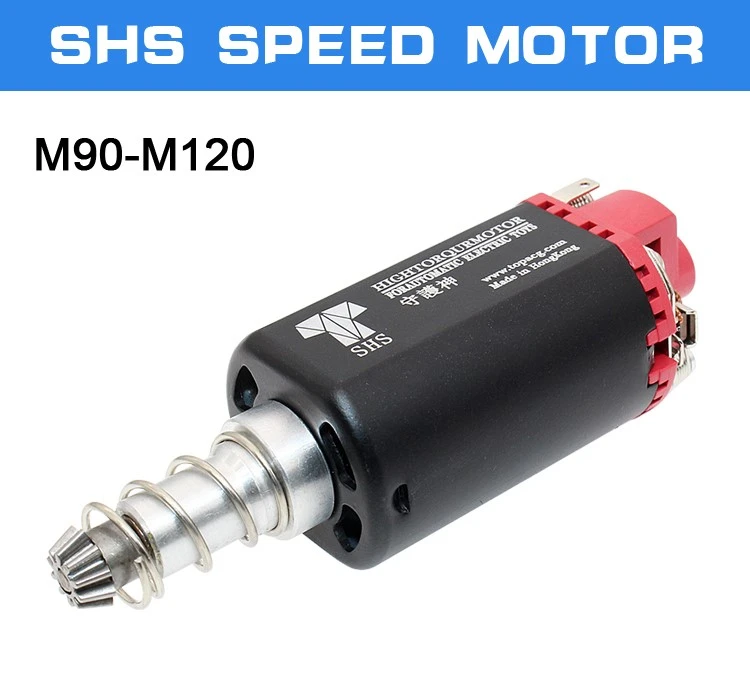

SHS SPEED MOTOR Specifications

Voltage: DC 11.1V

No load speed	No load current	At stall torque	At stall current
35000 rpm	2.5 A	3642.9 g.cm	127.500 A



AT MAXIMUM EFFICIENCY

Speed	Current	Torque	Output	EFF
30800.0 rpm	17.500 A	437.1 g.cm	138.092 W	71.09 %



AT MAXIMUM OUTPUT

Speed	Current	Torque	Output	EFF
17500 rpm	65.000 A	1821.4 g.cm	326.923 W	45.31 %



1- Ferrite Wet Pressure Magnets

2- Nylon low thermal conductivity rear cover

3-ball bearing construction

4-extra strong powder metallurgy pinion gear

5-Closed paint shell

6-High performance wear-resistant carbon brush

7-Armature Dynamic Balancing







Product & specifications

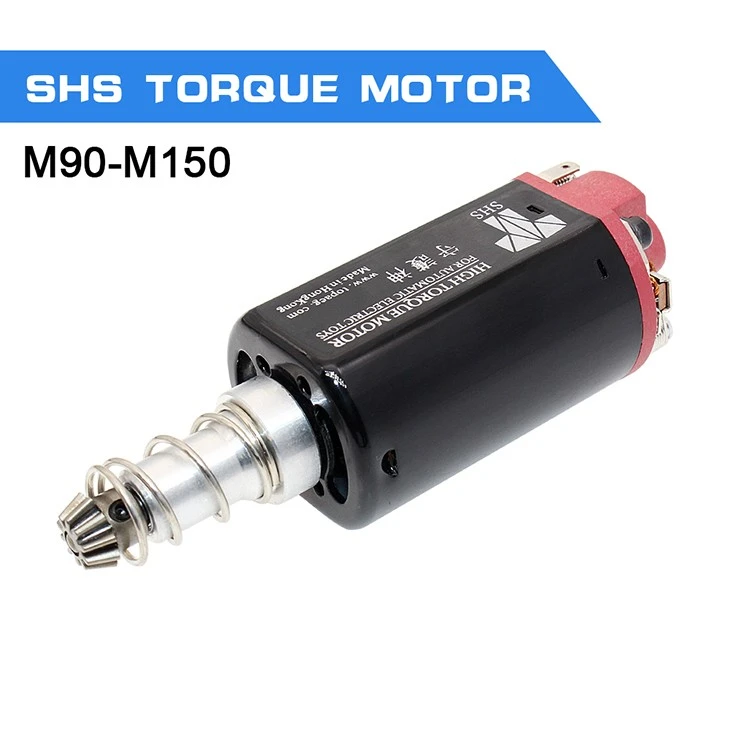

SHS TORQUE MOTOR Specifications

Voltage: DC 11.1V

No load speed	No load current	At stall torque	At stall current
31000 rpm	3.5 A	5712.9 g.cm	189.500 A



AT MAXIMUM EFFICIENCY

Speed	Current	Torque	Output	EFF
27280.0 rpm	25.820 A	685.5 g.cm	191.811 W	66.93 %



AT MAXIMUM OUTPUT

Speed	Current	Torque	Output	EFF
15500 rpm	96.500 A	2856.4 g.cm	454.099 W	42.39 %



Medium speed high torque Classic motor



1-N35H Neodymium Magnet

2-Nylon low thermal conductivity rear cover

3-Ball bearing construction

4-extra strong powder metallurgy pinion gear

5- Closed paint shell

6-High performance wear-resistant carbon brush

7-Armature Dynamic Balancing









Product & specifications

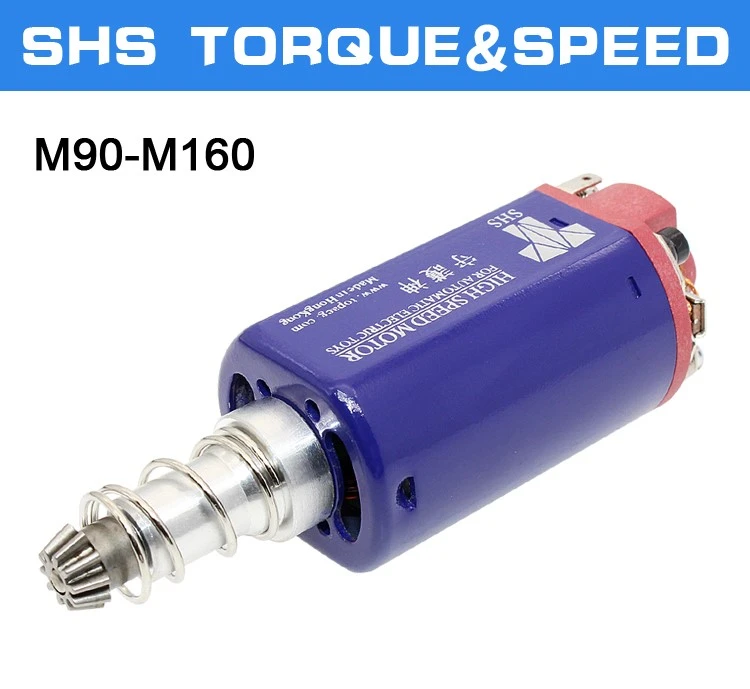

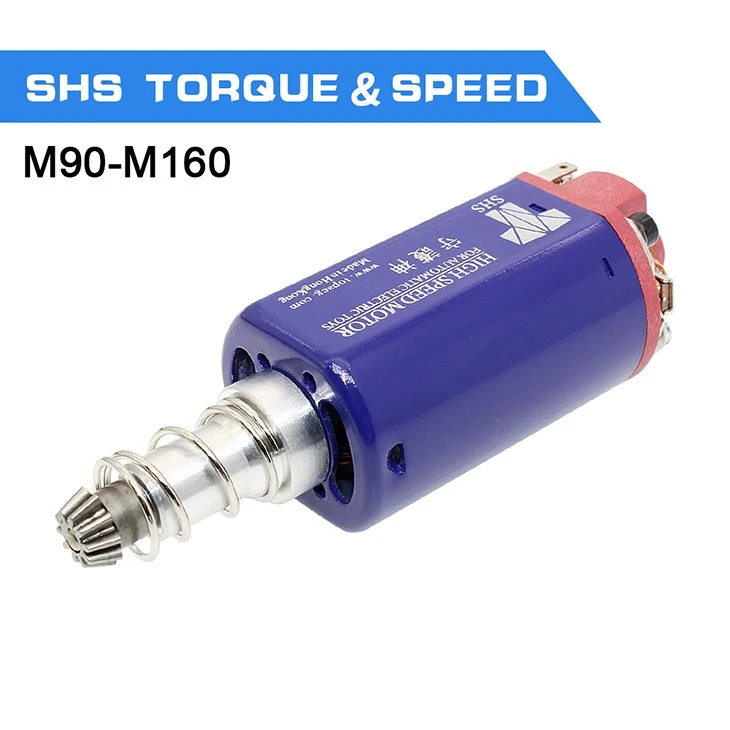

SHS TORQUE & SPEED Specifications

Voltage: DC 11.1V

No load speed	No load current	At stall torque	At stall current
46000 rpm	6 A	4140.0 g.cm	228.333 A



AT MAXIMUM EFFICIENCY

Speed	Current	Torque	Output	EFF
39560.0 rpm	37.127 A	579.6 g.cm	235.169 W	57.07%



AT MAXIMUM OUTPUT

Speed	Current	Torque	Output	EFF
23000 rpm	117.167 A	2070.0 g.cm	488.308 W	37.55%



high speed high torque：

High rate of fire powered support type High speed heat up quickly.at 7.4V will be better.



1-N35H Neodymium Magnet

2-Nylon low thermal conductivity rear cover

3-Ball bearing construction

4-extra strong powder metallurgy pinion gear

5- Closed paint shell

6-High performance wear-resistant carbon brush

7-Armature Dynamic Balancing







Packing & Delivery

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.



ATTENTION:

If special customs clearance documents are required, please contact us in advance for confirmation.
