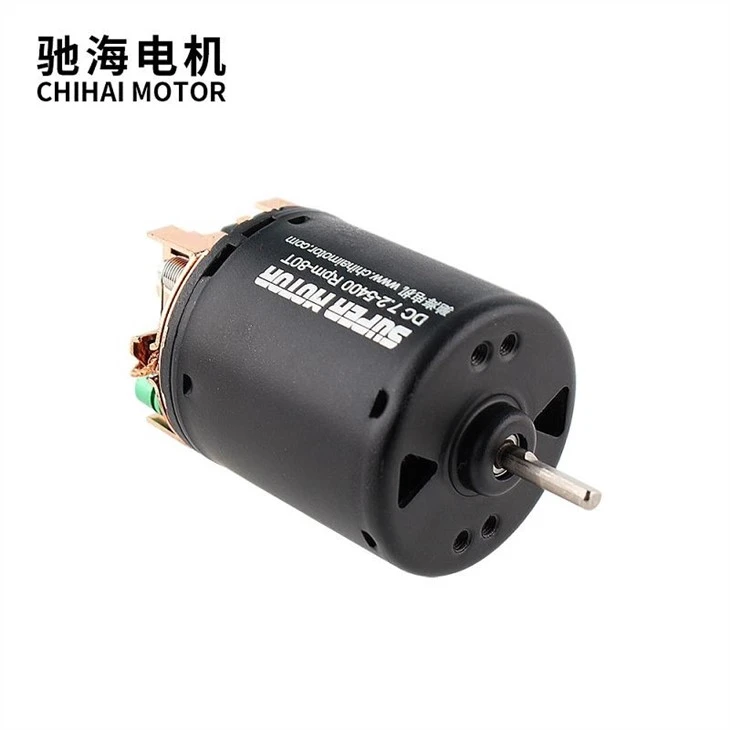

540 Brushed Crawler Electric Motor 21T 27T 35T
Motor diameter: 36mm
Weight: About 165g

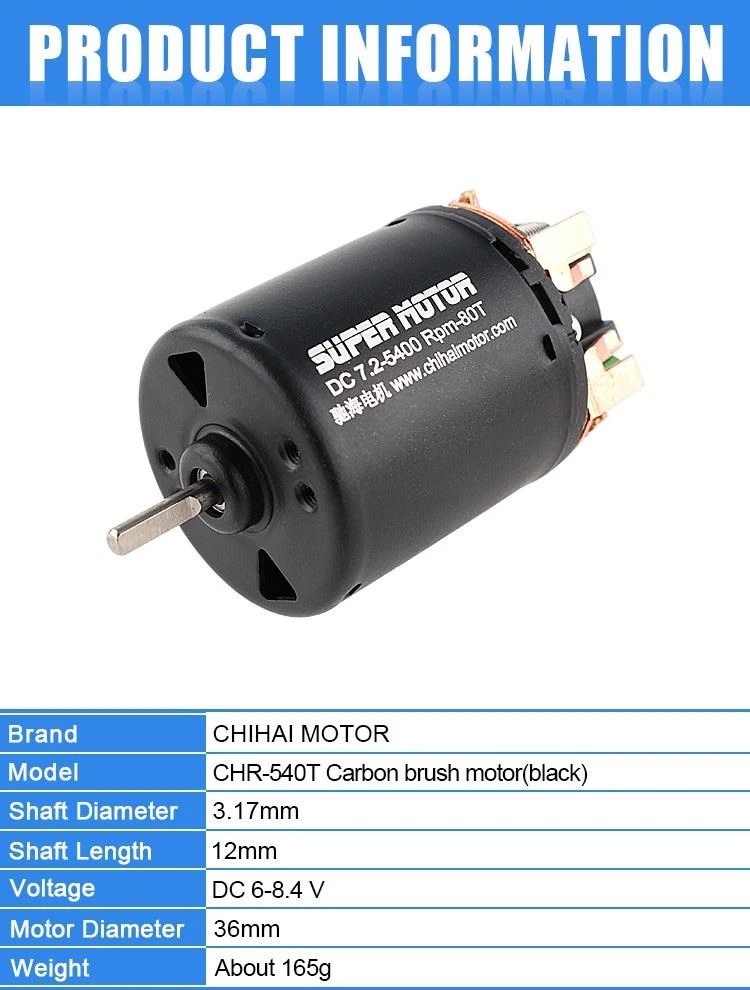

Product Description
Brand: | chihai motor |
Product Type: | CHR-540T Electric brush Motor (black) Brushed Motor for 1/10 Off-Road Rock Crawler Climbing RC Car RC Brushed Motors |

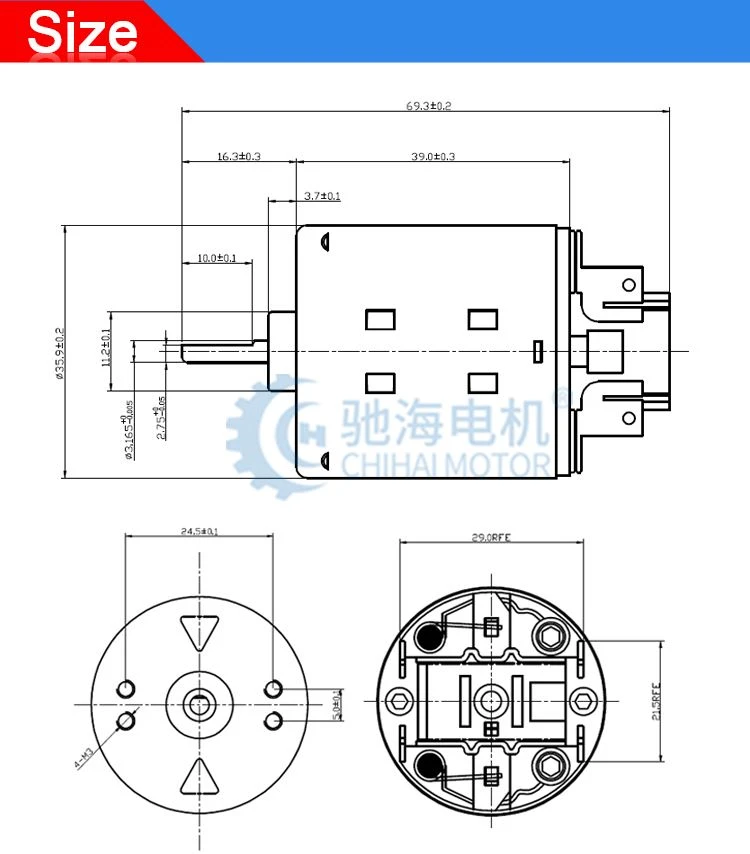

Shaft length: | 12mm |
Shaft diameter: | 3.17mm |
Voltage range: | DC 6-8.4 V |
Motor diameter: | 36mm |
Weight: | About 165g |

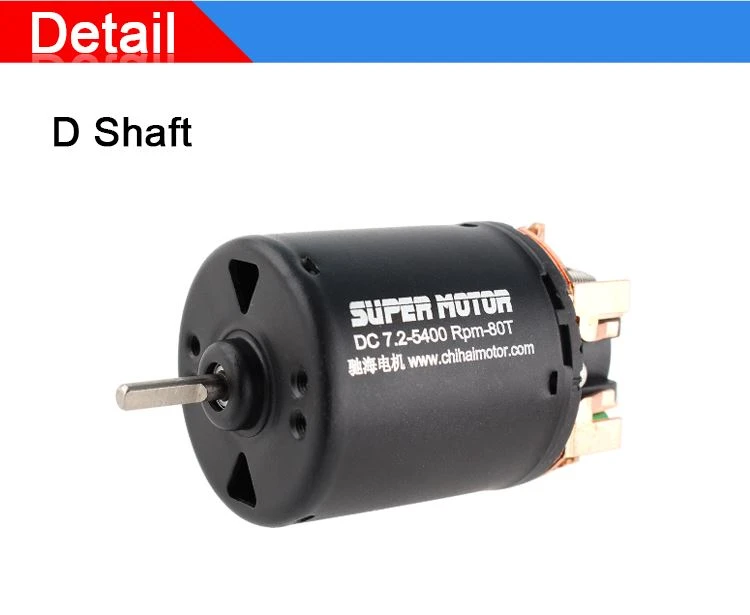

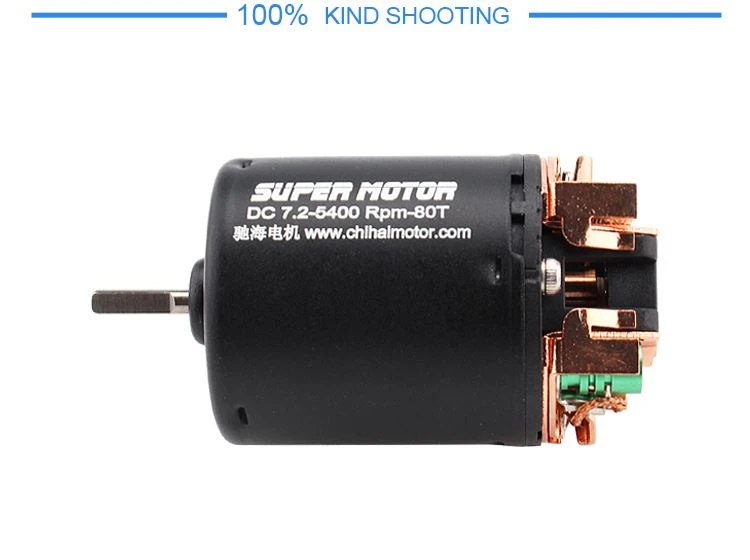

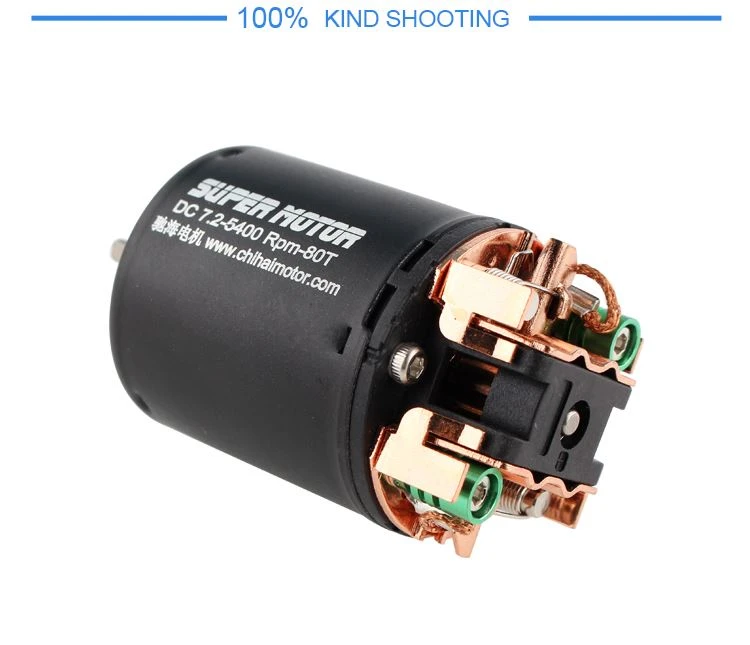

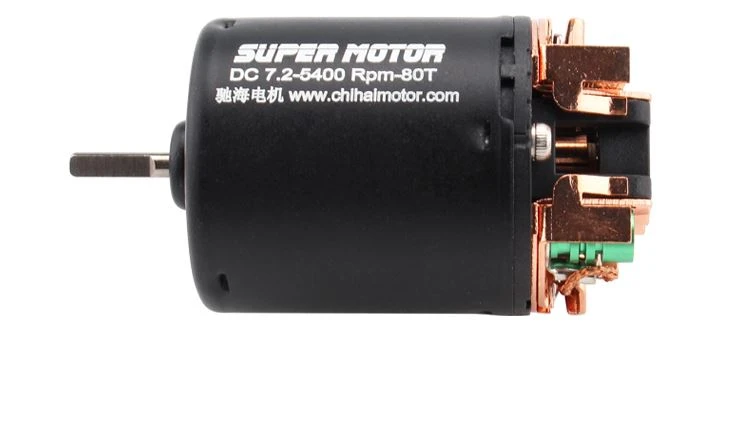

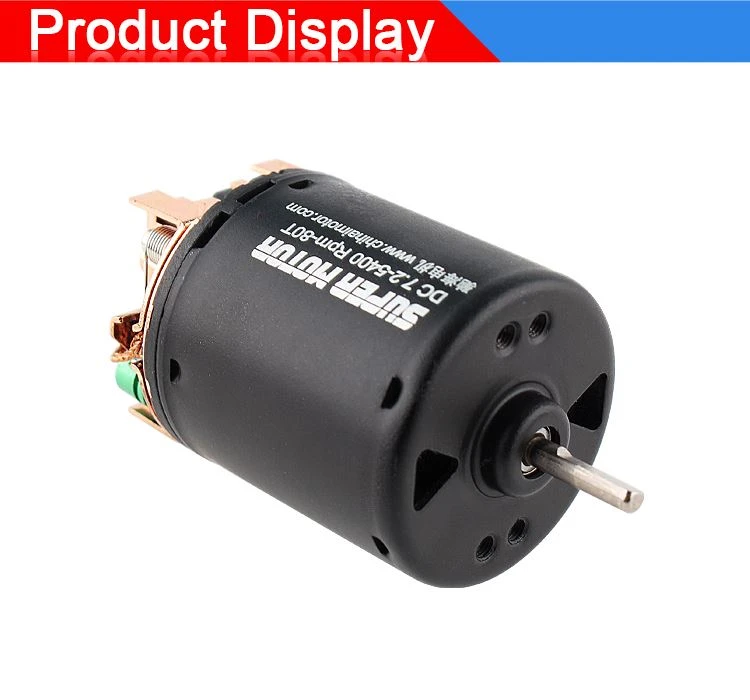

Detailed Images

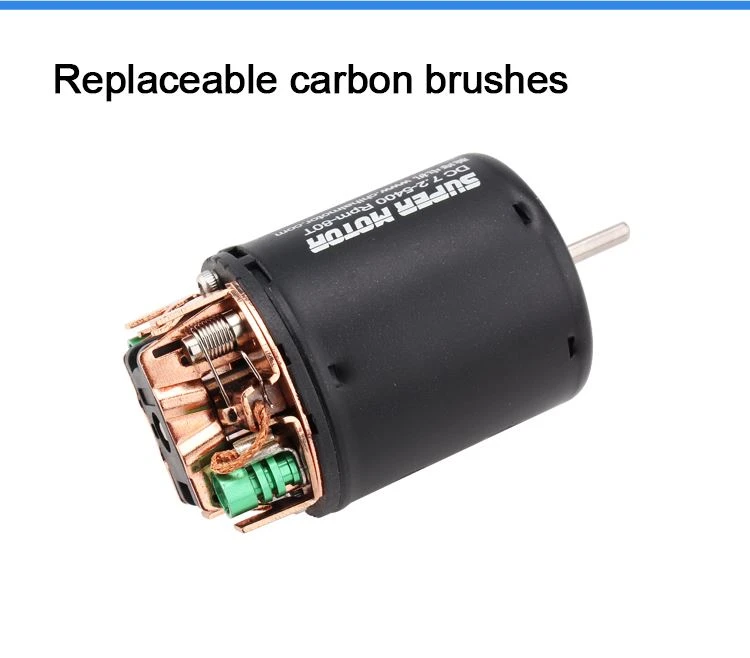

Carbon brush motor is a kind of motor widely used in modern mechanical equipment, because of its simple structure, low manufacturing cost, easy maintenance and other advantages are widely used. The carbon brush motor mainly uses DC power to work, and its interior is composed of brushes and electrodes, which can generate a powerful electromagnetic field during operation, thereby driving the motor to rotate.
Carbon brush motor also has a very wide range of applications, vehicles, factory machinery, home appliances and other aspects contain the shadow of carbon brush motor. The application of carbon brush motor effectively improves the production efficiency of mechanical equipment.

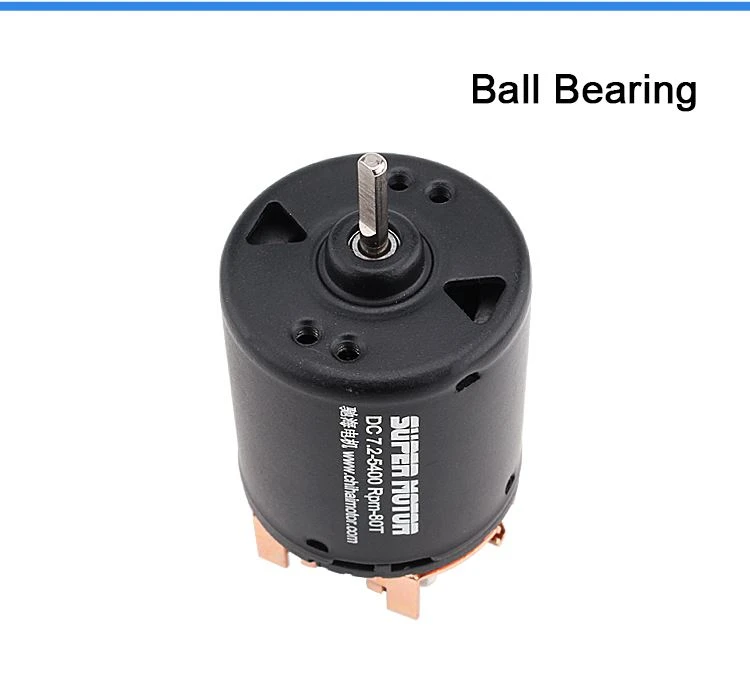

The ball bearing structure can effectively reduce friction loss and noise, enhance the smooth operation of the motor, and effectively improve the efficiency and reliability of the motor. It can also withstand high-speed and high-temperature working environment, and is not easy to deformation and damage.

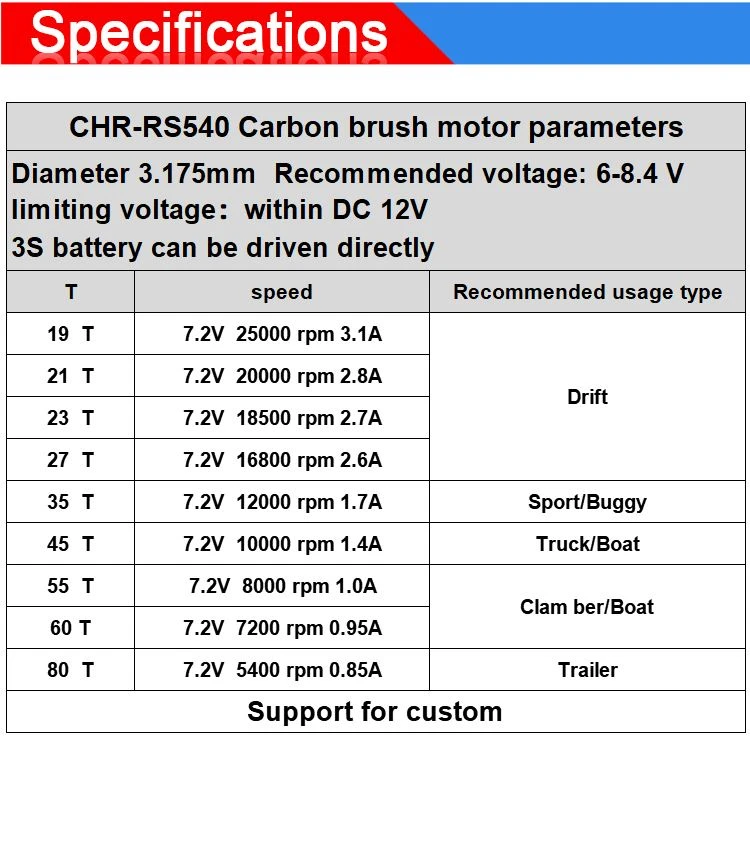

Product Paramet
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
