Brushless DC Motor With Driver
Product Description

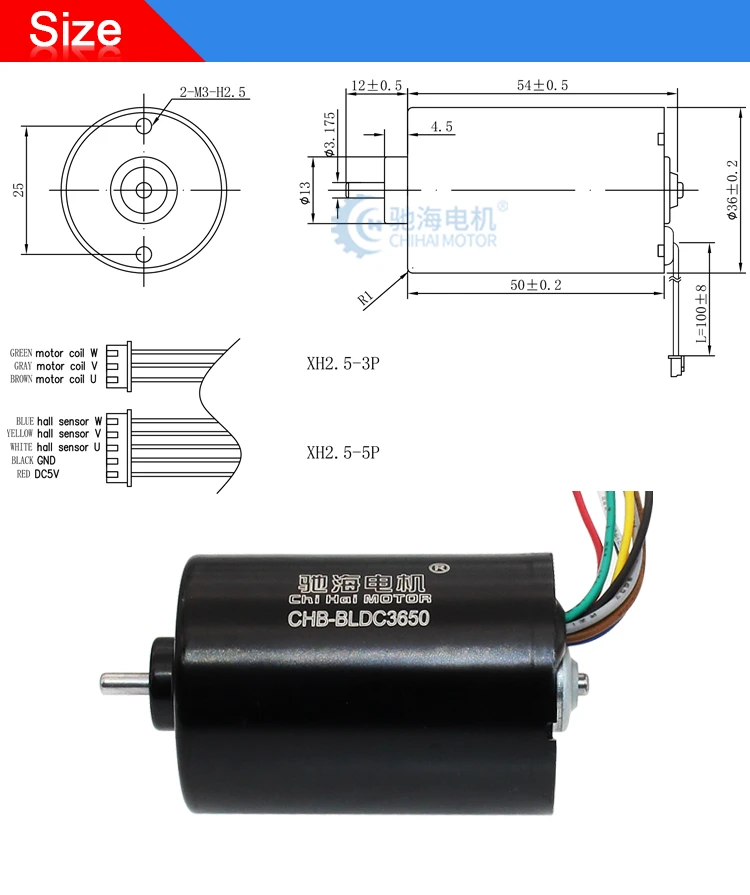

| Product Type |
CHB-BLDC3650 Brushless dc motor |
| Shaft length | 12mm (With notched card slot) |
| Shaft Dianeter | 3.175mm |
| Rated Voltage | DC 12-24V wire length 270mm |
| Drive mode | External drive required |
|
The firmware Performance |
The stator brushless,Quadrupole magnetic, Rotor brushless,Six slot structure |
| Weight | About 200g |
| Applications |
Home and office Automation Banking and Medical Equipment Intelligent robot |
BLDC3650 DC brushless deceleration motor outer diameter 36MM, the motor features long life (about equivalent to brush motor 3-5 times) wide operating voltage range, brushless motor, low noise, large torque, stable and reliable performance, can be positive and negative, but also with brake, speed regulation and speed measurement line output. Chihai motor manufacturers mass production quality guaranteed! Can meet the product requirements of different occasions, products with the company's new brushless motor to form different speed output, suitable for robots, mechanical equipment, intelligent machines, electric Windows, electric doors, automatic rotating equipment, head and so on.

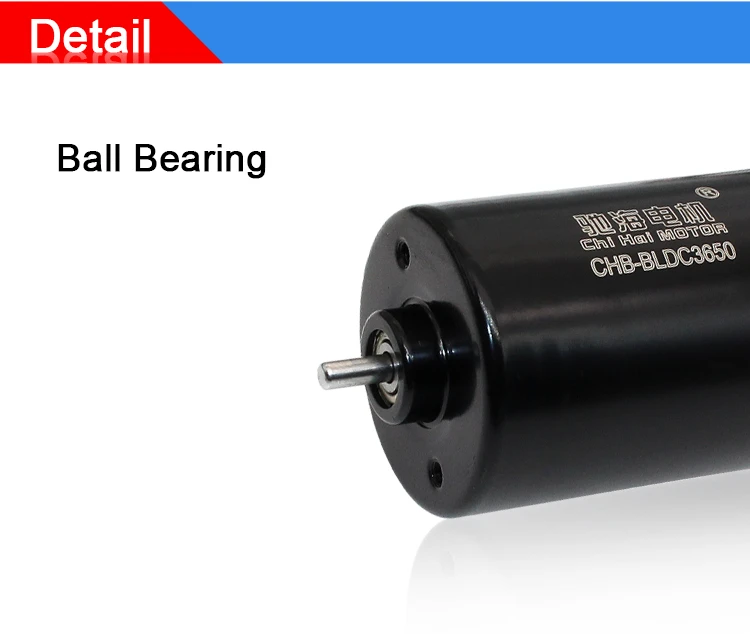

Ball bearing construction：
The motor adopts ball bearing structure, low friction resistance, low noise, long life, fast heat dissipation and strong composite ability.
Hall drive：
Built-in inductive hall drive board, direct power can be No external drive circuit is required for operation.

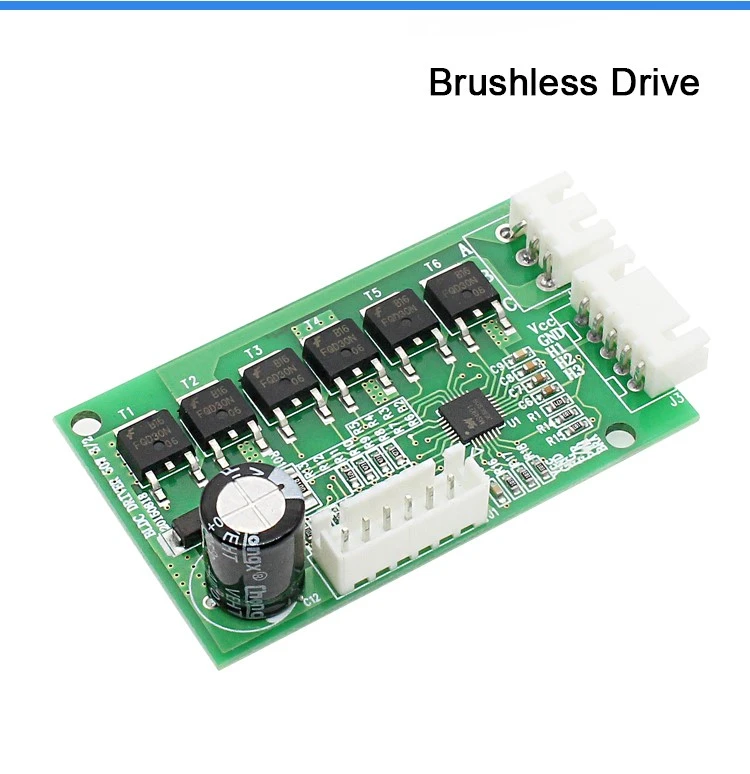

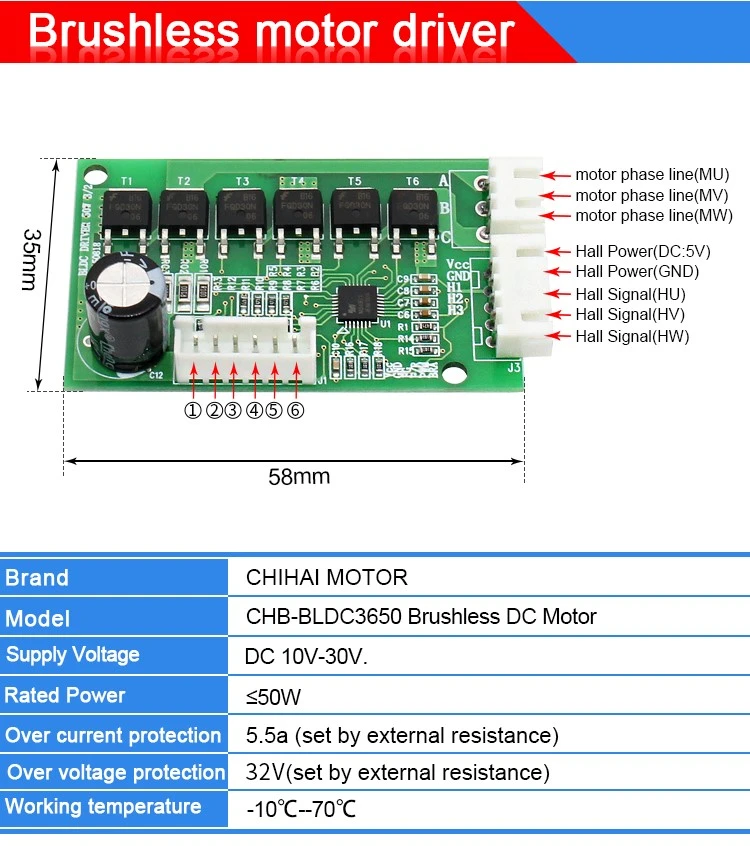

Brushless Drive：
Brushless drives offer many advantages over traditional brushless motors, such as higher efficiency, longer service life, lower noise and fewer maintenance requirements.
In home appliances, brushless drives have been widely used in various electrical appliances, such as washing machines, vacuum cleaners, fans and so on. These appliances use brushless drives to improve operating efficiency, reduce noise and extend service life.
In mechanical manufacturing, brushless drives are also widely used, such as automobiles, robots, and so on. The operation efficiency of the brushless drive is higher, which can better meet the needs of the mechanical manufacturing field, reduce the maintenance cost and failure rate of the machine, and further improve the production efficiency of the machine.
Detailed Images
Product & specifications
| Model: BLDC3650 Brushless DC Motor |
| Voltage（V) | 12.0V | 24.0V |
| No-load Current (mA) | ≤230 | ≤300 |
| No-load Speed (rpm) | 4150±10% | 8300±10% |
| Rated Torque (g.cm) | 80 | 160 |
| Rated Speed (rpm) | 3400 | 6800 |
| Rated Current (A) | ≤0.8 | ≤1.6 |
| Drive Protection Voltage（V) | 30.0 | 30.0 |
| Drive Current Protection (A) | 3.0 | 3.0 |

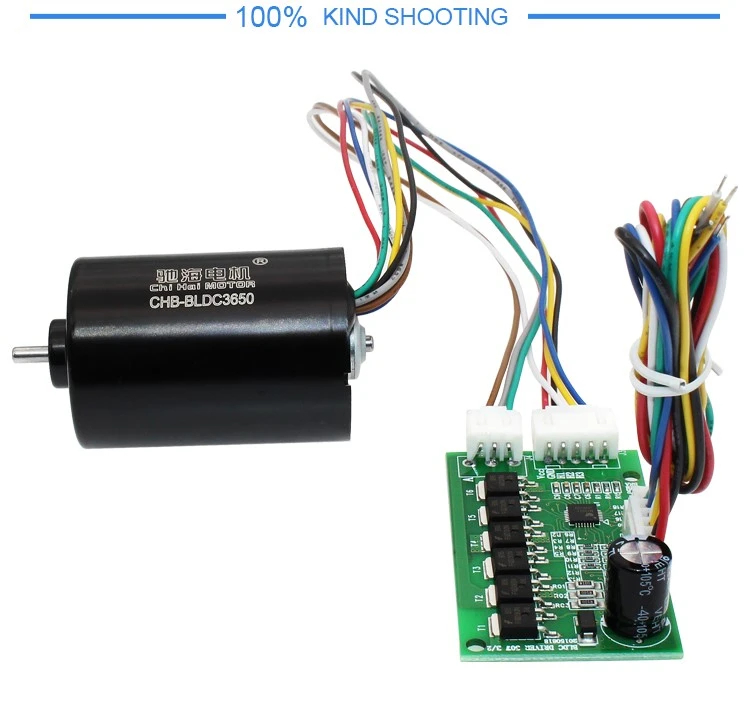

Product &display
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
