Permanent Magnet 2 Phase 4 Wire Metal Gear Stepping Brushless Geared Motor
Product Description
| Product Type |
CHS-GM1024-10BY Permanent magnet 2 phase 4 wire metal gear stepping brushless geared motor |
| Phase | 2 |
| Step Angle | 18° |
| Impedance | 39 Ω/Phase |
| Torque | 3.5 gf.cm |
Features: The lower the deceleration ratio, the larger the stepping Angle, the smaller the torque, the smaller the deceleration ratio, the smaller the stepping Angle, the greater the torque!
Brushless motor is an advanced motor, with high efficiency, low noise, good stability, but also has the advantages of energy saving, environmental protection and so on.
The 2-phase 4-line brushless gear motor uses electronic commutation technology, so it can achieve accurate control during operation and adapt to various load environments and working conditions. At the same time, it also uses a precision gear reducer, which can achieve higher output torque and lower speed.
Brushless gear motors are widely used in many fields, such as automobiles, tractors, robots, medical devices and so on.

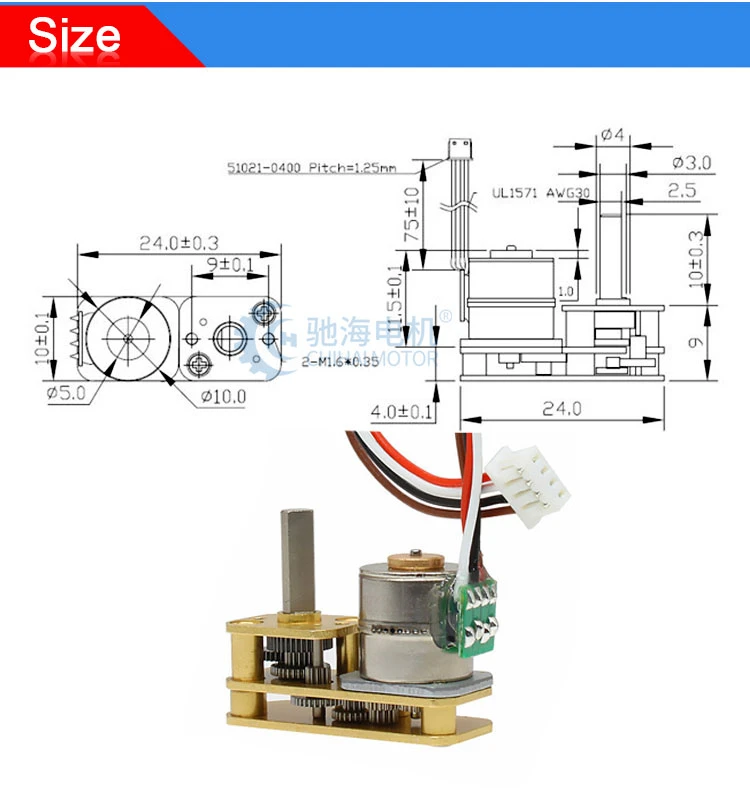

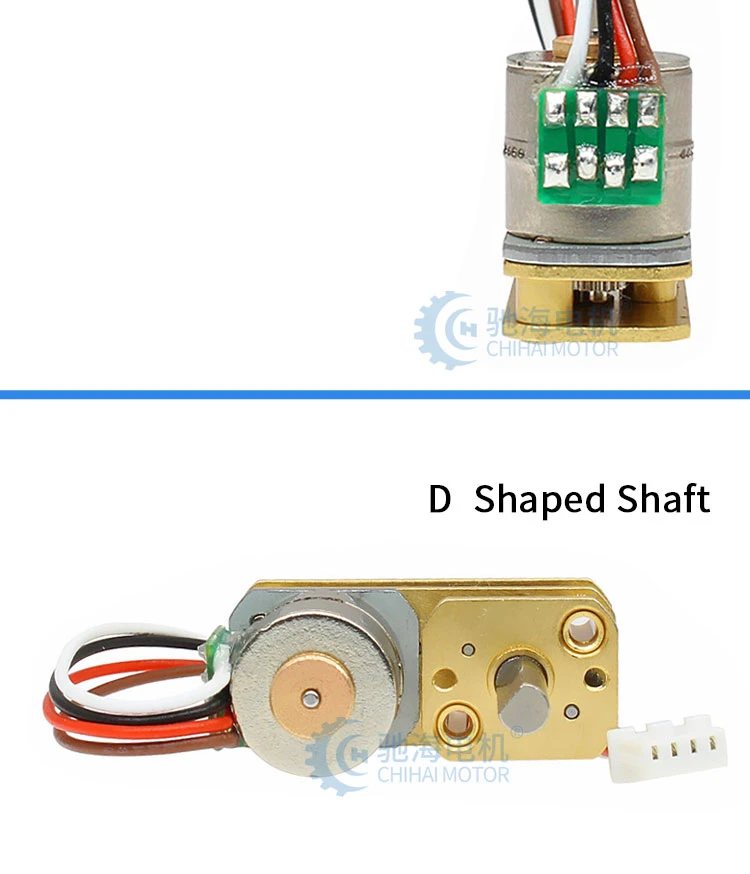

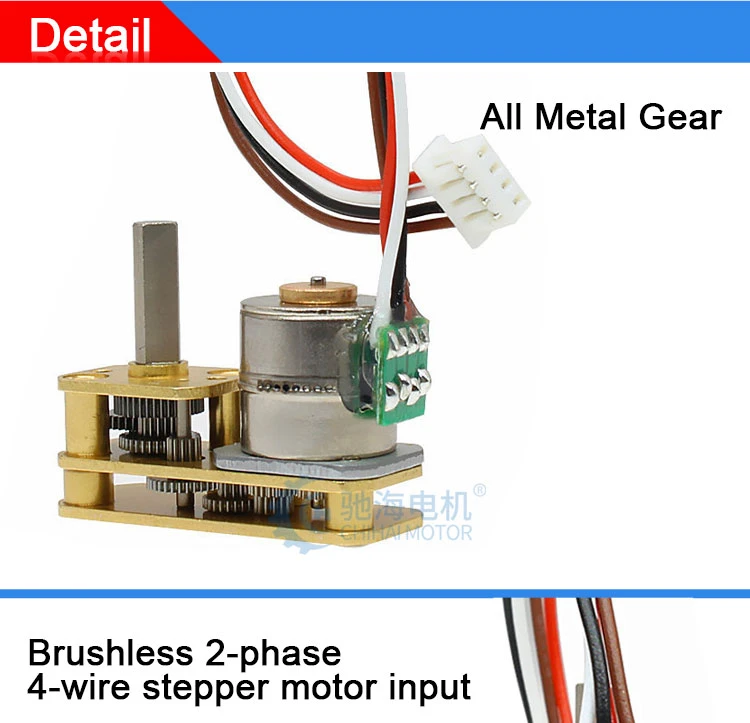

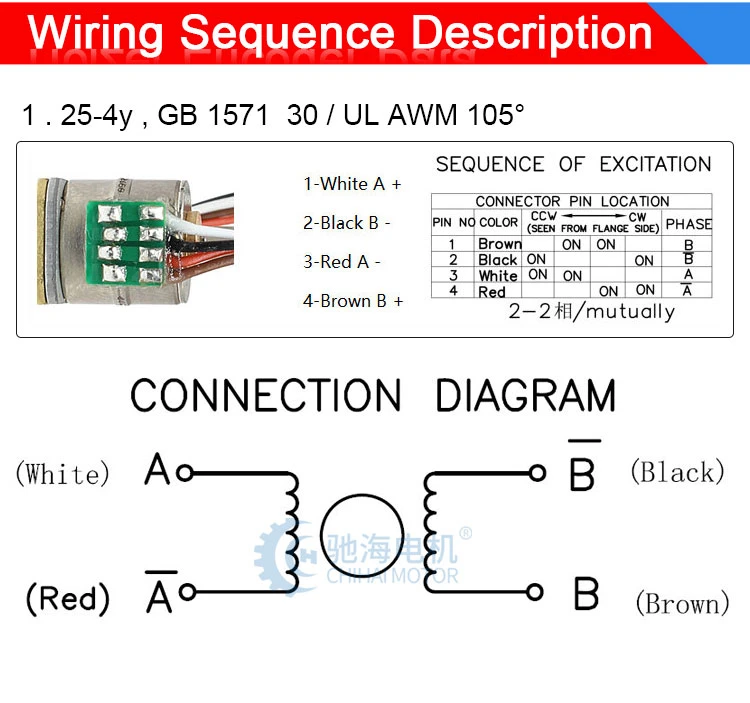

Detailed Images
Input stepper motor parameters
| MODEL | CHS-10BY-M1055 |
| RATED VOLTAGE | 5 V DC (DrIVER IC:l6219) | CURRENT PER PHASE | 128mA / PHASE |
| COIL RESISTANCE | 39±7% ohm / PHASE | NO.OF PHASES | 2 PHASES |
| STEP ANGLE | 18° / STEP | EXCITATION METHOD | 2 PHASES EXCITATION |
| DRIVE MODE | BIPOLAR DRIVE | COIL INDUCTANCE | 14.3 mH / PHASE |
| PULL-OUT TORQUE | MORE THAN 3.5 gf-cm AT 500 pps |
HOLDING TORQUE | MORE THAN 13 gf-cm AT 0 pps |
| MAX RESPONSE FREQUENCY | MORE THAN 1200 pps | MAX STARTING FREQUENCY | MORE THAN 900 pps |
| INSULATION CLASS | CLASS E FOR COILS | INSULATION STRENGTH | 100 V AC FOR ONE SECOND |
| INSULATION RESISTANCE | 50MΩ DC 500V | OPERATING TEMPERATURE | -0 ～ +55℃ |
Output parameters of deceleration motor
| Model:CHS-GM1024-10BY Brushless Stepping Gear Motor |
| Voltage: DC 5.0V (Driver IC:L6219) |
| Number Of Phase | Bipolar 2-2 Phase |
| Reduction Ratio | 1: 50 | 1: 100 | 1: 150 | 1: 200 | 1: 350 | 1: 380 | 1: 500 |
| Step Angle | 0.36° | 0.18° | 0.12° | 0.09° | 0.051° | 0.047° | 0.036° |
| Current Per Phase | 128mA / PHASE |
| Resistance Per Phase | 39±7% ohm / PHASE |
| Inductor Per Phase | 14.3 mH / PHASE |
| Holding Torque( Kgf.cm) | 0.60 | 1.10 | 1.60 | 2.00 | Can't exceed 3.0kgf.cm |
| Pull Out Torque( Kgf.cm) | 0.18 | 0.30 | 0.45 | 0.60 | 1.00 | 1.10 | 1.50 |
| Max. No Load Response | MORE THAN 1200 pps |
| Max. Slew Speed | MORE THAN 900 pps |
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
