10BY Brushless Stepper Worm Gear Motor
Product Description
| Product Type |
CHF-GW12T-10BY Brushless Stepper worm gear motor |
| Shaft length | 8mm D |
| Shaft diameter | Φ3mm Thick 2.5 D |
| Voltage | DC 5.0V |
| Weight | About 12g |
| Step Angle | 18 ° Step Angle |
| phase resistance | 39 Ω/Phase |
| wiring | A- (red) A+(white) B- (Black) B+(brown) |
| Application |
Intelligent platform, electric selfie stick, mobile phone camera tracking equipment Robot, intelligent manipulator, etc Optional accessories：flange coupling, simple drive, etc. |
The brushless stepping worm gear motor is a kind of efficient and stable motor, which has been widely used in modern industry. Adopting the most advanced brushless technology, it has the characteristics of low energy consumption, low noise, high precision and high reliability.
The motor not only has excellent performance, but also energy saving and environmental protection. Advanced energy-saving technology is adopted to reduce energy consumption and environmental pollution during operation. Compared with traditional motors, it does not require the use of brushes, reduces pollution and noise, and helps to improve the comfort and productivity of the working environment.
The application range of brushless stepping worm gear motor is very wide, involving automation, robot, precision instrument and other fields. It also has important applications in automotive, electrical, electric and other industries, which greatly improves work efficiency and product quality.

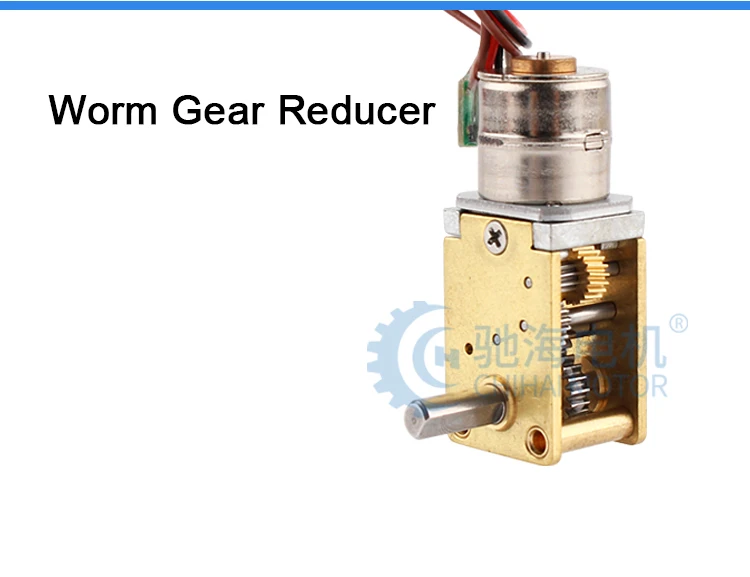

Detailed Images
input motor parameters
| MODEL | CHS-10BY-M1055 |
| RATED VOLTAGE | 5 V DC (DrIVER IC:l6219) | CURRENT PER PHASE | 128mA / PHASE |
| COIL RESISTANCE | 39±7% ohm / PHASE | NO.OF PHASES | 2 PHASES |
| STEP ANGLE | 18° / STEP | EXCITATION METHOD | 2 PHASES EXCITATION |
| DRIVE MODE | BIPOLAR DRIVE | COIL INDUCTANCE | 14.3 mH / PHASE |
| PULL-OUT TORQUE | 3.5 gf-cm AT 500 pps | HOLDING TORQUE | MORE THAN 13 gf-cm AT 0 pps |
| MAX RESPONSE FREQUENCY | MORE THAN 1200 pps | MAX STARTING FREQUENCY |
MORE THAN 900 pps |
| INSULATION CLASS | CLASS E FOR COILS | INSULATION STRENGTH | 100 V AC FOR ONE SECOND |
| INSULATION RESISTANCE | 50MΩ DC 500V | OPERATING TEMPERATURE |
-0 ～ +55℃ |
Product Parameters
| Model:CHF-GW12T-10BY Brushless Stepper worm gear motor |
| Voltage: DC 5.0V (Driver IC:L6219) |
| NO. of phases | Bipolar 2-2 Phase |
| Ratio | 1: 42 | 1: 118 | 1: 236 | 1: 300 | 1: 603 | 1: 1016 |
| Accurate reduction ratio | 42.0 | 118.067 | 236.133 | 301.726 | 603.452 | 1016.42 |
| Step angle | 0.429° | 0.1525° | 0.0762° | 0.0597° | 0.0298° | 0.0177 |
| Phase Current | 128mA / PHASE |
| Phase Resistance | 39±7% ohm / PHASE |
| Phase Inductance | 14.3 mH / PHASE |
| Holding Torque(kgf.cm) | 0.5 | 1.40 | 2.80 | Can't exceed 3.0kgf.cm |
| Pull out Torque(kgf.cm) | 0.12 | 0.35 | 0.70 | 0.90 | 1.80 | 3.0 |
| Max starting frequency | MORE THAN 1200 PPS |
| Max response frequency | MORE THAN 900 PPS |
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
