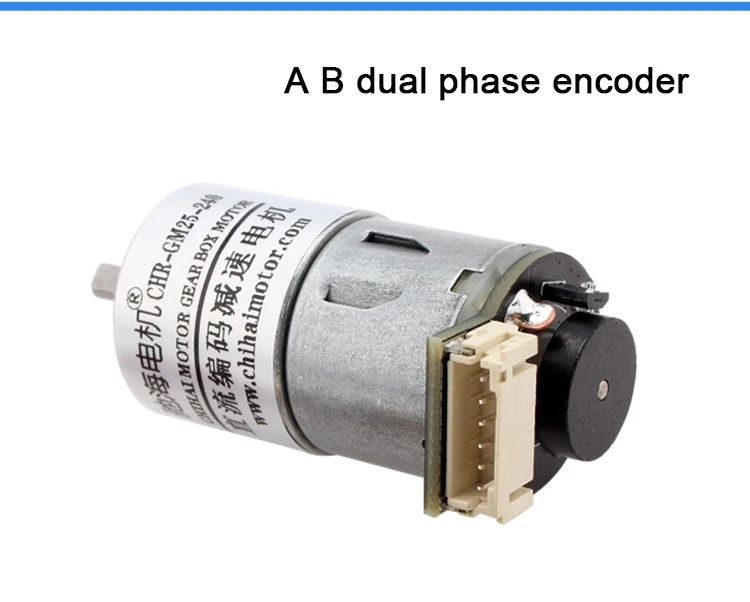

Dc Gear Motor With Encoder AB Dual Phase Encoder
Product Description
| Product Type | CHR-GM25-240T ABHL dc gear motor with encoder |
| motor Diameter | ∮25mm |

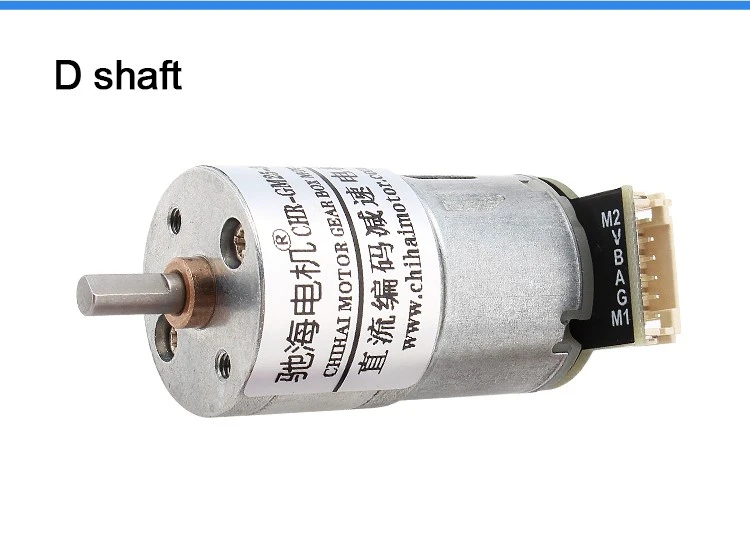

| Shaft length | 12 D length 8mm |
| Shaft Dianeter | ∮4mm D thick 3.5mm |
| Voltage | DC 7.4 |
| Weight | About 70g |
| Wiring specification |
PH2.0 -6PIN terminal connector Encoder |
| Specifications |

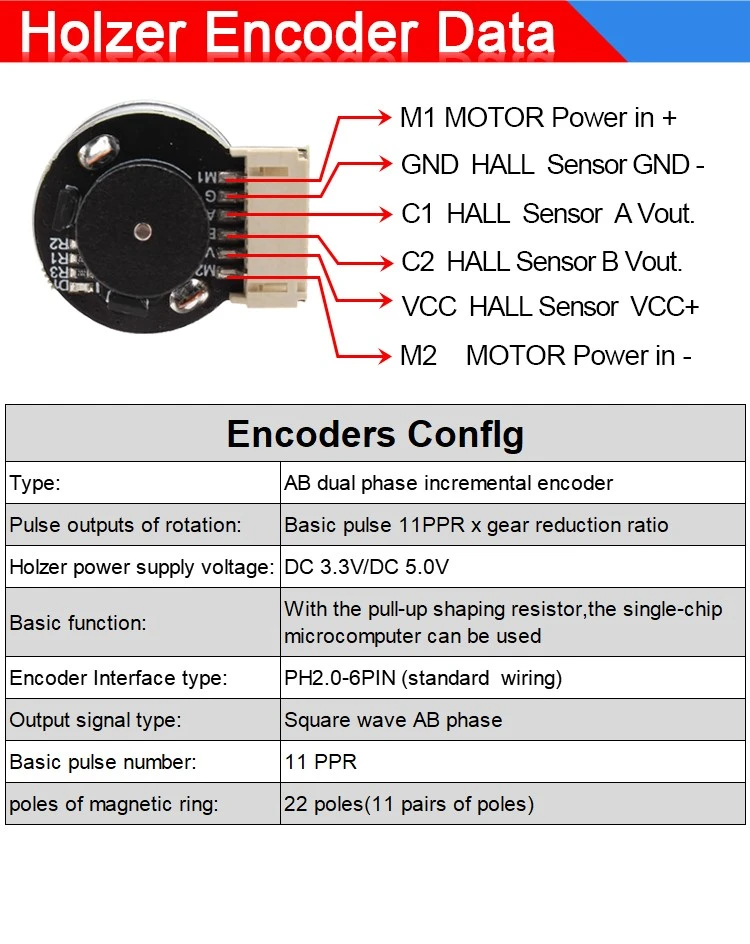

AB dual phase encoder 11 line basic signal voltage 3.3V or 5.0V |
| Application |
Intelligent robot, electric curtain, intelligent balanced car, Intelligent manipulator, etc. |
DC Gearmotor is a highly efficient and stable motor, which can achieve higher torque output through gearing and reduction support. The scope of use is very wide, applied in many fields, such as machinery manufacturing, aerospace, automotive industry and so on.
The reliability and stability of the motor is very high, and it can work stably for a long time without too many failures and losses. At the same time, the power output of DC gear motors is also very stable, which can fully meet the needs of various production environments.
Detailed Images
Product & specifications
| Model:CHR-GM25-240T DC Gear Reducer Motor |
| Voltage:DC 7.4V MAX POWER 1.0W |
| RATIO | 4 | 10 | 15 | 20 | 34 | 45 | 75 | 100 | 165 | 217 | 362 | 478 |
| No-load current(mA) | ≤230 | ≤230 | ≤230 | ≤230 | ≤230 | ≤230 | ≤230 | ≤230 | ≤230 | ≤230 | ≤230 | ≤230 |
| No-load speed(rpm) | 2500 | 1200 | 730 | 550 | 350 | 250 | 150 | 110 | 68 | 52 | 31 | 24 |
| Rated torque(Kg.cm) | 0.04 | 0.1 | 0.13 | 0.18 | 0.3 | 0.42 | 0.7 | 0.9 | 1.5 | 2.0 | 3.3 | 4.5 |
| Rated speed(rpm) | 1800 | 860 | 530 | 400 | 235 | 175 | 105 | 80 | 48 | 37 | 22 | 17 |
| Rated current(A) | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
| Stall torque(kg.cm) | ≥0.14 | ≥0.3 | ≥0.45 | ≥0.6 | ≥1.1 | ≥1.4 | ≥2.4 | ≥3.2 | ≥5.0 | ≥6.5 | ≥9.0 | ≥9.0 |
| Stall current(A) | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 |
| Gearbox length(L) | 19.0 mm | 21.0 mm | 23.0 mm | 25.0 mm | 27.0 mm | |||||||
| Accurate reduction ratio | 4.4 | 9.3 | 15.46 | 20.41 | 34.01 | 44.9 | 74.83 | 98.78 | 164.63 | 217.31 | 362.18 | 478.08 |
| Hall Signal | 48.4 | 102.3 | 170.06 | 224.51 | 374.11 | 493.9 | 823.13 | 1086.58 | 1810.93 | 2390.41 | 3983.98 | 5258.88 |

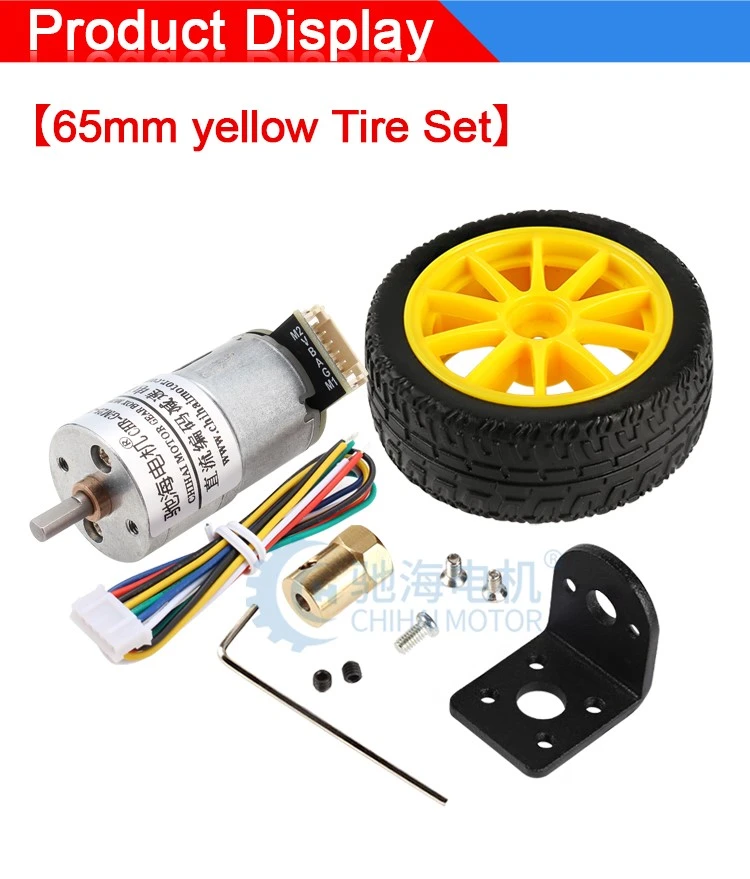

Product &display
