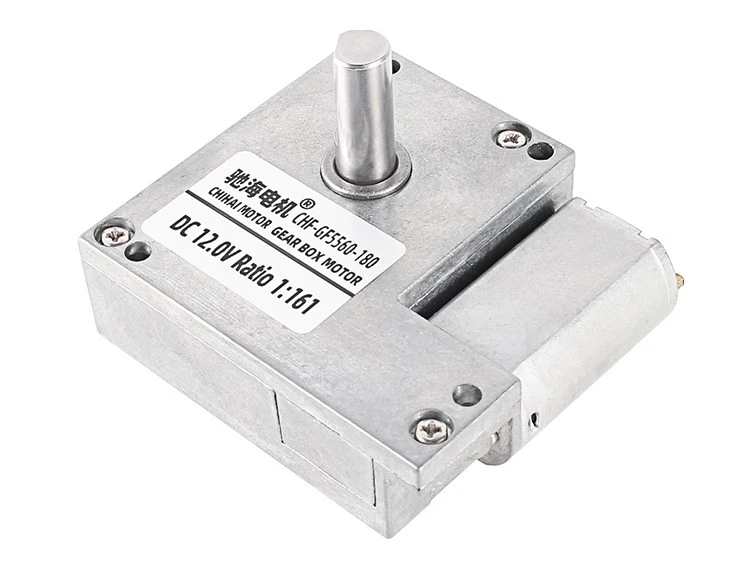

Dc Gear Motor With Self-locking Function

Product Description

Brand	CHIHAI MOTOR
Product Type	CHF-GF5560-180 Dc gear motor
Shaft Length	21mm   D15mm
Shaft Dianeter	φ7mm
Voltage	DC 6-12V
Weight	About 200g
Gear Module	0.5-0.8m
Max Rated Torque(Kg.cm)	25.0 Kg.cm Max
Max Momentary Tolerance Torque(Kg.cm)	40.0 Kg.cm Max
Number Of Gear Stages	4
Gear reduction ratio (production type available)	1:26.9、1:53.8、1:89.6、1:125.4、1:161 1:179.2、1:250.8、1:322、1:388.9 1:700 1:544.48、1:777.8、1:1088.81、1:1400

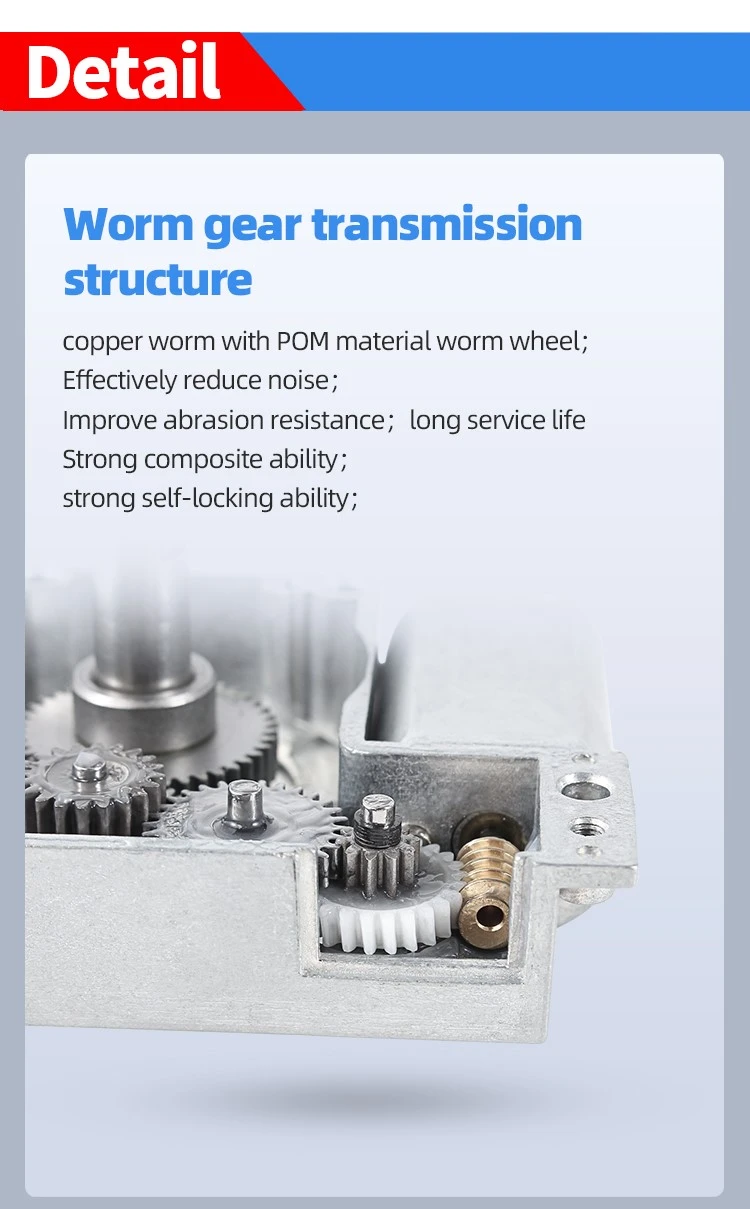

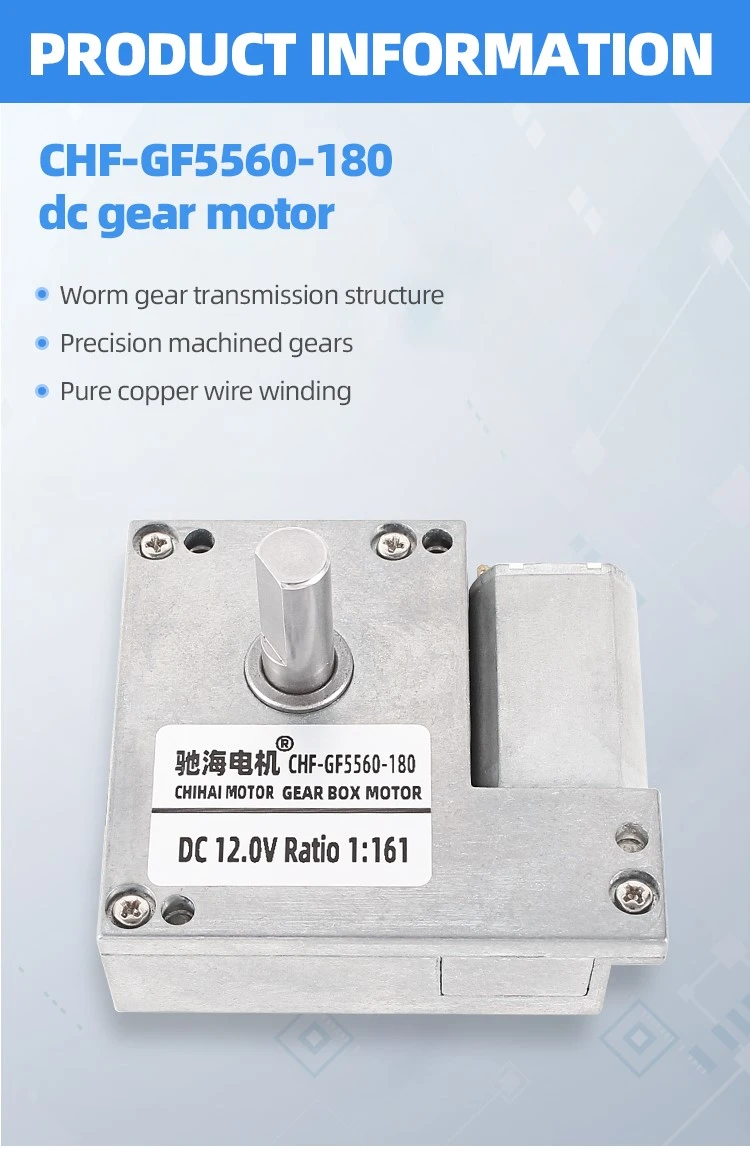

Worm gear transmission structure：

copper worm with POM material worm wheel， Effectively reduce noise

Improve abrasion resistance，long service life

Strong composite ability，strong self-locking ability

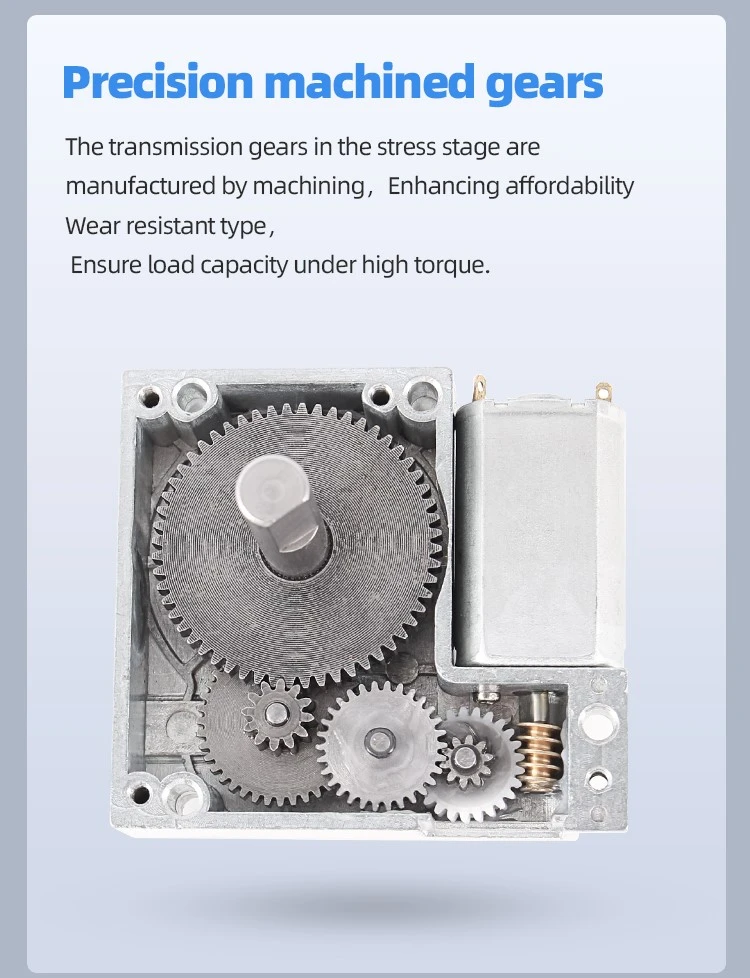

Precision machined gears：

The transmission gears in the stress stage are manufactured by machining

Enhancing affordability，Wear resistant type

Ensure load capacity under high torque

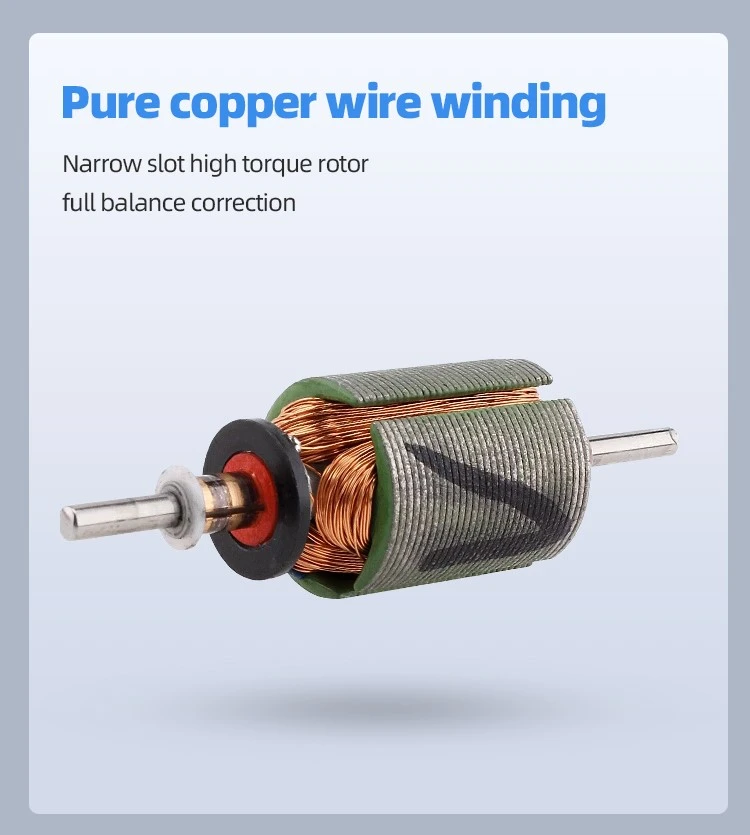

Pure copper wire winding：

Narrow slot high torque rotor，full balance correction



D Shaft：

The D-shaped axis is an excellent axis with many advantages. First, it has better carrying capacity and torsional rigidity, which can provide a larger load area. Secondly, the D-font shaft has better rigidity when installed, which can effectively avoid axial movement and rotation. It can also withstand higher loads and improve the service life and reliability of the motor.

The D-shaped shaft has higher working efficiency and lower energy consumption, and is better able to transfer power and torque. In addition, it is able to exert more power and speed, and adapt to different loads more easily.





Dc motor is a common type of motor with a wide range of applications. It has important applications in industry, transportation, home appliances, office and other fields.



First of all, DC motor has high efficiency and good speed regulation characteristics. Dc motors are more efficient and can effectively convert electrical energy into mechanical energy. It has very good speed regulation characteristics, and can change the speed by changing the voltage and current to meet the operation requirements under different working conditions.



Secondly, DC motor has stability and reliability. Dc motor has high stability in operation, is not easy to be affected by external factors, and has a long life and good reliability.



Dc motors are small in size and light in weight, and are suitable for installation in places with limited space or in equipment that needs to be handled.





Detailed Images













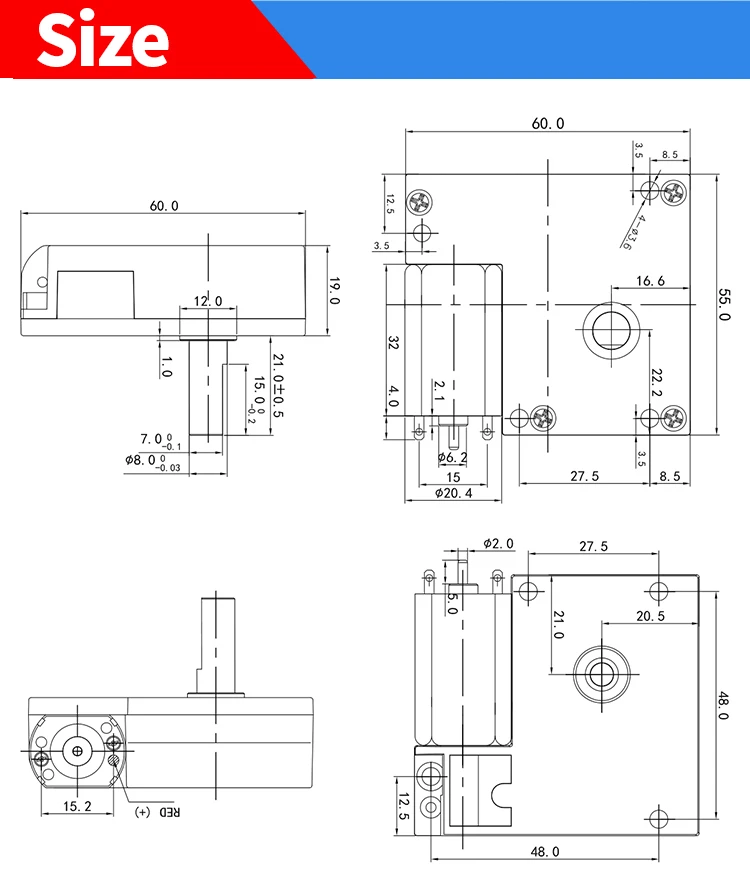

Product & specifications

Model: CHF-GF5560-180 Dc gear motor

Voltage: DC12.0V High torque inout motor: MAX power 4.2 W

Ratio	1:26.9	1:53.8	1:161	1:322	1:700	1:1400
No load Current(mA)	≤200	≤200	≤200	≤200≤200	≤200	≤200
No load Speed(rpm)	590	295	100	50	23	11
Rated torque(kg.cm)	0.5	1.0	3.0	6.0	13.0	25.0
Rated Torque(N.m)	0.05	0.1	0.3	0.6	1.3	2.5
Rated Speed(rpm)	460	230	78	39	18	9

Rated Current(A)	≤0.80
Stall Current (A)	≤3.30

Stall Torque(kg.cm)

≥2.0

≥4.0

≥14.0

≥28.0

≥40.0





Voltage: DC6.0V High torque inout motor: MAX power 1.0 W

Ratio	1:26.9	1:53.8	1:161	1:322	1:700	1:1400
No load Current(mA)	≤130	≤130	≤130	≤130	≤130	≤130
No load Speed(rpm)	290	145	50	25	11	5.5
Rated torque(kg.cm)	0.25	0.5	1.6	3.0	6.5	12.5
Rated Torque(N.m)	0.025	0.05	0.16	0.3	0.65	1.25
Rated Speed(rpm)	230	110	40	19	9	4.5

Rated Current(A)	≤0.60
Stall Current (A)	≤1.8

Stall Torque(kg.cm)

≥1.0

≥2.0

≥7.0

≥14.0

≥30.0

≥40.0
