Permanent Magnet DC Motor Hall Encoder Speed Measuring Motor
Product Description
| Product Type | CHR-555 ABHL DC Hall encoder reducer motor |
| external diameter | Φ36*72mm (without outgoing shaft and terminal) |

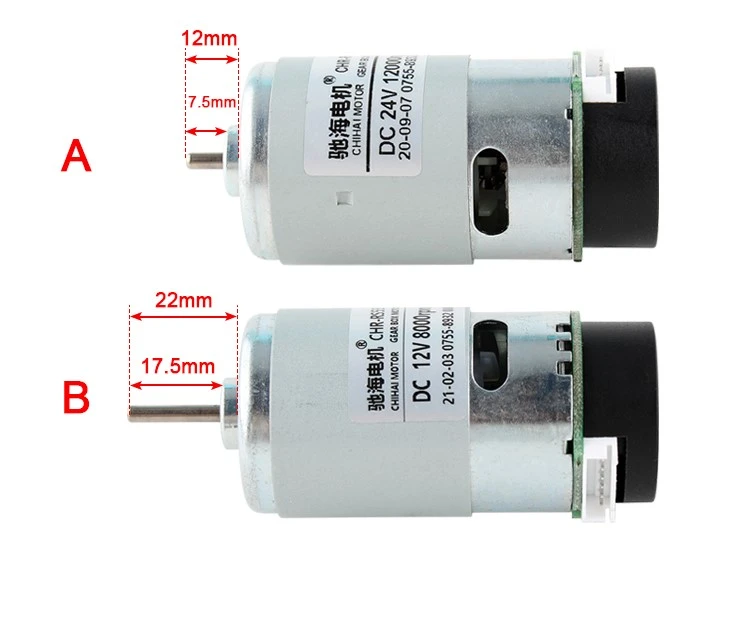

| Shaft length | A:12mm, B:22mm, out of the shaft |
| Shaft Dianeter | Φ3.175 mm circular shaft |
| Voltage | DC 6-24V |
| Weight | About 230g |
| wiring specification |
A B dual phase encoder, 17 line basic signal voltage 3.3V or 5.0V |
| encoder Specification |
A B dual phase encoder, 17 line basic signal voltage 3.3V or 5.0V |
| Application |
Intelligent self-balancing two-wheeler, intelligent tracking car, intelligent home appliances, robots, camera rocker arm, reducer matching, etc |
Dc Hall encoder motor is a kind of high efficiency, reliable and precise motor, which has a wide range of applications in industrial automation, machinery manufacturing and other fields. The motor adopts Hall encoder technology, which can realize high-precision position control and motion control, and also has the advantages of high speed, high torque, low noise and so on.
The use of motors is very wide, including industrial production lines, conveyors, automation equipment, medical equipment, office equipment and other fields.
In addition, the DC Hall encoder gear motor also has a high degree of reliability and stability. The use of a series of advanced technologies and materials, such as metal gears, high-strength excitation magnets, can withstand a variety of harsh working environments and working conditions, but also to ensure long-term stable operation.
Detailed Images
Product & specifications
| Model：CHR-RS555-ABHL-4529 |
| Voltage: DC6.0V-24.0V Direction of rotation：CCW-- M1+ M2- / CW-- M1- M2+ |
| Voltage | 6.0 | 12.0 | 24.0 |
| No-load current（mA) | ≤350 | ≤400 | ≤500 |
| No-load speed (rpm)±10% | 3900 | 8000 | 16000 |
| Rated torque(g.cm) | 200.0 | 400.0 | 800.0 |
| Rated-load speed (rpm) | 3300 | 6700 | 10000 |
| Rated-load current（A) | ≤2.0 | ≤3.5 | ≤6.5 |
| STALL torque (Kg.cm) | ≥1.0 | ≥2.0 | ≥3.0 |
| STALL current（A) | ≤9.0 | ≤18.5 | ≤37.0 |
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
