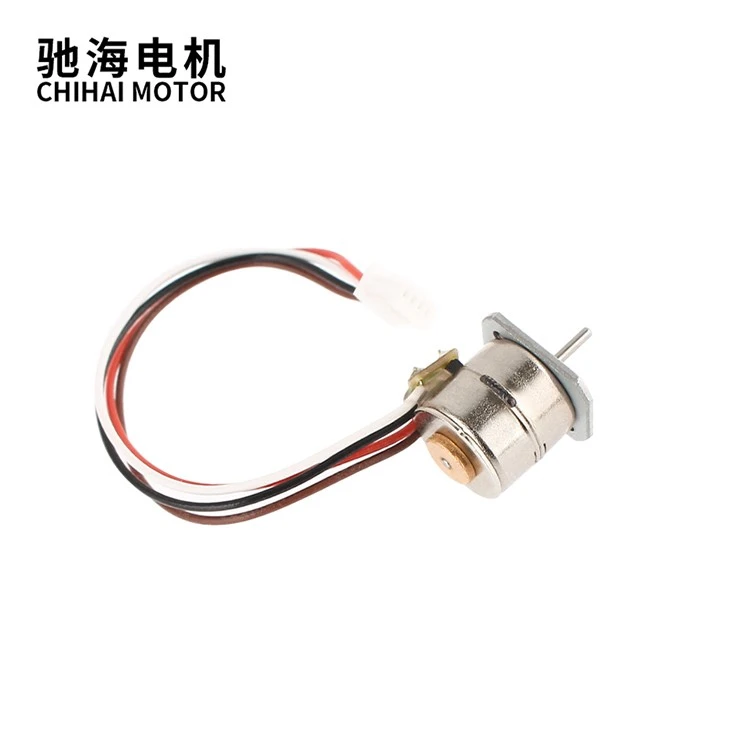

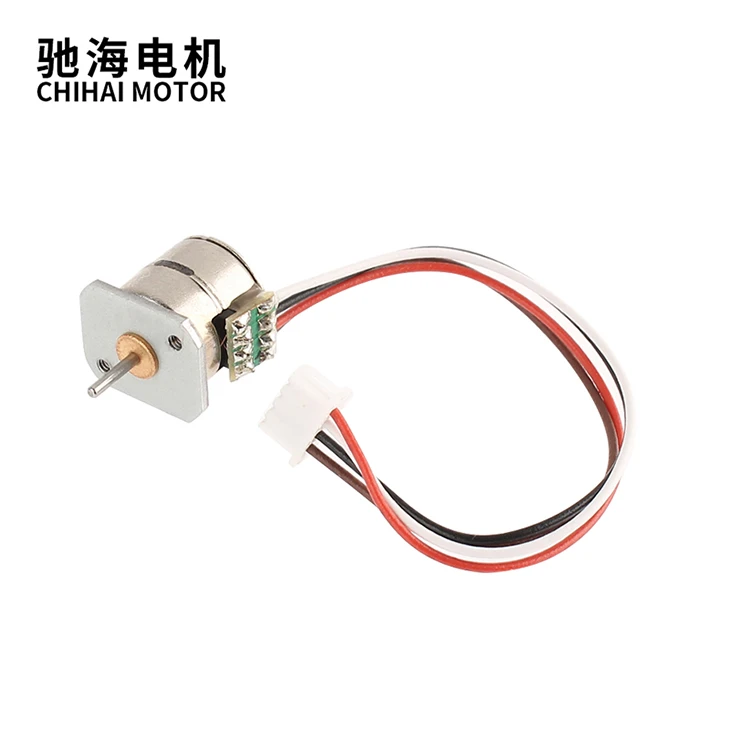

10BY Permanent Magnet Brushless Stepper Motor
Product Description： Circular shaft： Easier to install, less slippery, saves installation time PCB Wiring In-Line： (Mass production of custom wire lengths, plug types, etc.) Brushless 2-phase 4-wire stepper motor input Detailed Images： Product Paramenters
Send Inquiry
Product Description：
| Brand | CHIHAI MOTOR |
| Model | CHS-SM1090-10BY Brushless Stepper motor |
| Shaft length | 6.1mm |
| Shaft Dianeter | Φ1mm circular shaft |
| Voltage | DC 5V |
| Step Angle | 18° step angle |
| Phase resistance | 39 Ω/Phase |
| Wiring | A- (red) A+(white) B- (Black) B+(brown) |
| Weight | About 5g |
| Application | Intelligent robot, intelligent manipulator, intelligent furniture Intelligent focusing system, miniature head, etc |

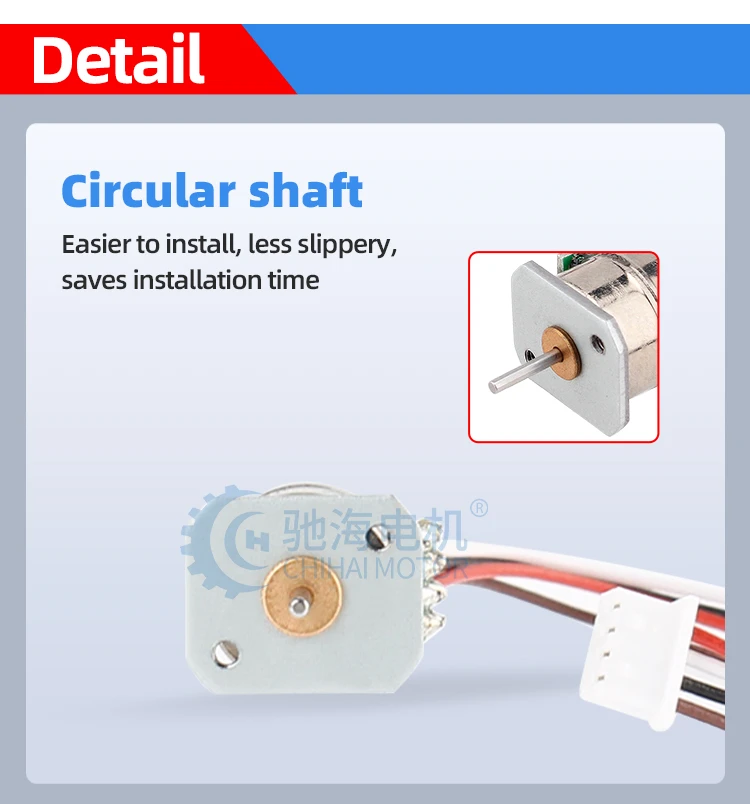

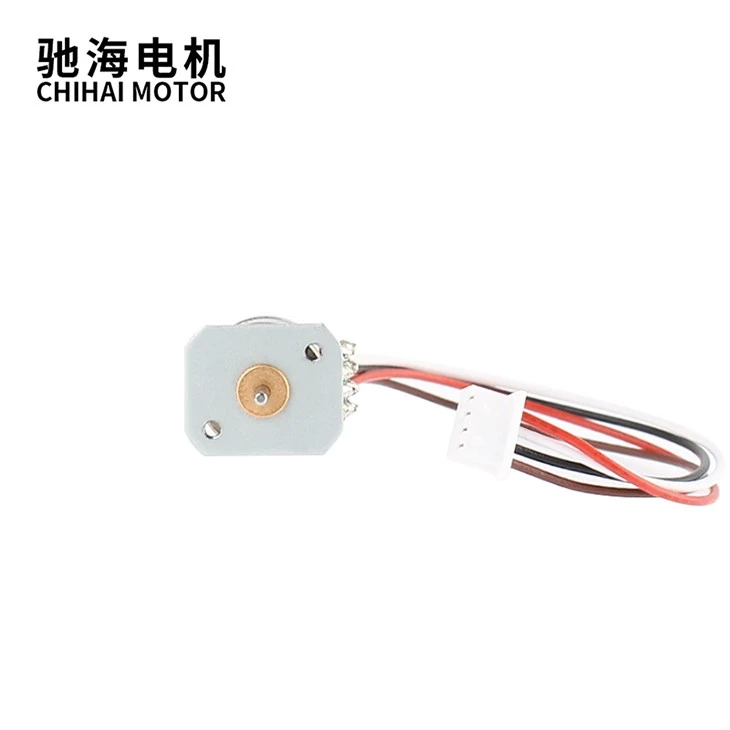

Circular shaft：
Easier to install, less slippery, saves installation time

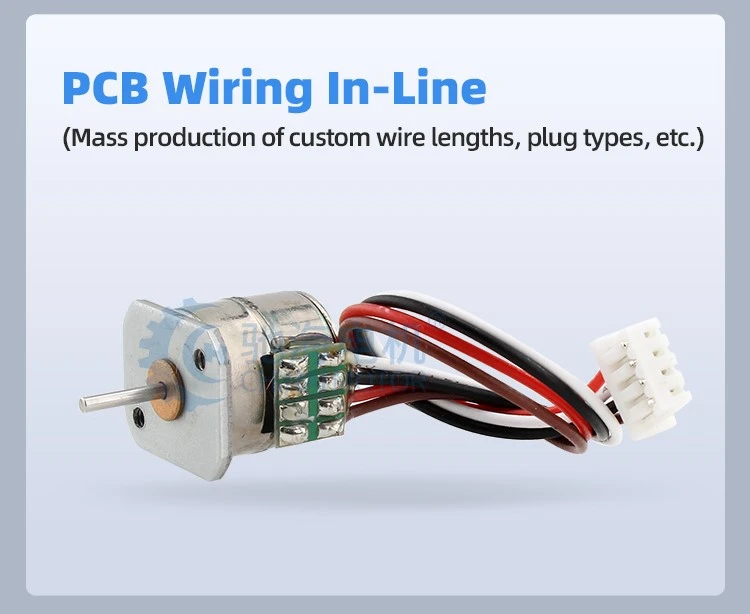

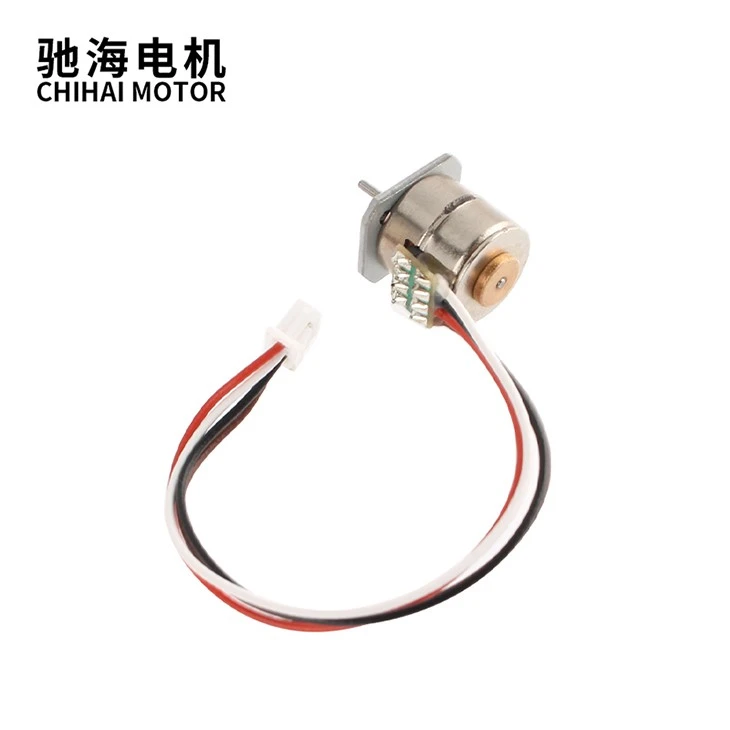

PCB Wiring In-Line：
(Mass production of custom wire lengths, plug types, etc.)
Brushless 2-phase 4-wire stepper motor input

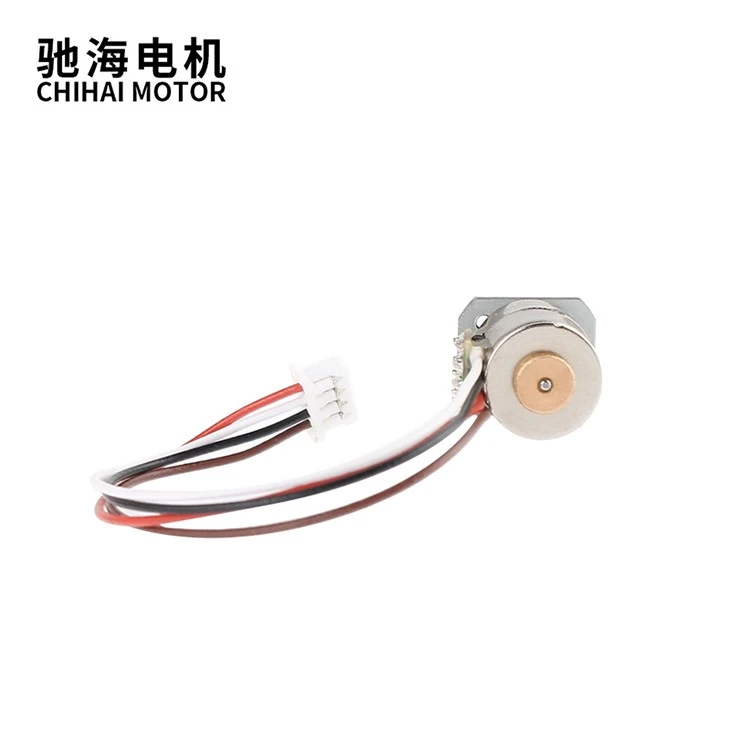

Detailed Images：
Product Paramenters
| Model: CH-SM1090-10BY Brushless Stepping Motor | |
| Voltage: DC 5.0V (Driver IC:L6219) | |
| CURRENT PER PHASE | 128mA/PHASE |
| COIL RESISTANCE | 39±7% ohm/PHASE |
| NO. OF PHASES | 2 PHASES |
| STEP ANGLE | 18°/STEP |
| EXCITATION ME THOD | 2 PHASE EXCITATION |
| DRIVE MODE | BIPOLAR DRIVE |
| PULL-IN TORQUE | MORE THAN 3.5gf - cm AT 500 pps |
| HOL DING TORQUE | MORE THAN 13gf - cm AT 0 pps |
| MAX RESPONSE FREQUENCY | MORE THAN 1200 PPS |
| MAX STARTING FREQUENCY | MORE THAN 900 PPS |
| INSULATION CL ASS | CLASS E FOR COILS |
| INSULATION STRENGTH | 100 V AC FOR ONE SECOND |
| INSULATION RESISTANCE | 50MΩ DC 500 V |
| OPERATING TEMPERATURE RANGE | -0 ~ +55 ℃ |
