25BY-10Ω Brushless Stepper Motor 12V
Product Description： Circular shaft： Easier to install, less slippery, saves installation time Wiring PCB With Sheath： Mass production of custom wire lengths, plug types, etc. Pure copper wire winding： The rotor part adopts pure, copper group, small resistance, strong electrical conductivity,...
Send Inquiry
Product Description：
| Brand | CHIHAI MOTOR |
| Model | CHS-25BY-10Ω Brushless Stepper motor |
| Shaft length | 6.7mm |
| Shaft Dianeter | Φ2mm circular shaft |
| Voltage | DC 5V |
| Step Angle | 15° step angle |
| Phase resistance | 10 Ω/Phase |
| Wiring | A+ (Black) A-(Blue) B+ (Yellow) B-(Red) |
| Weight | About 20g |
| Application |
Intelligent robot, intelligent manipulator, intelligent furniture Intelligent focusing system, miniature head, etc |
Circular shaft：
Easier to install, less slippery, saves installation time
Wiring PCB With Sheath：
Mass production of custom wire lengths, plug types, etc.
Pure copper wire winding：
The rotor part adopts pure, copper group, small resistance,
strong electrical conductivity, large torque,

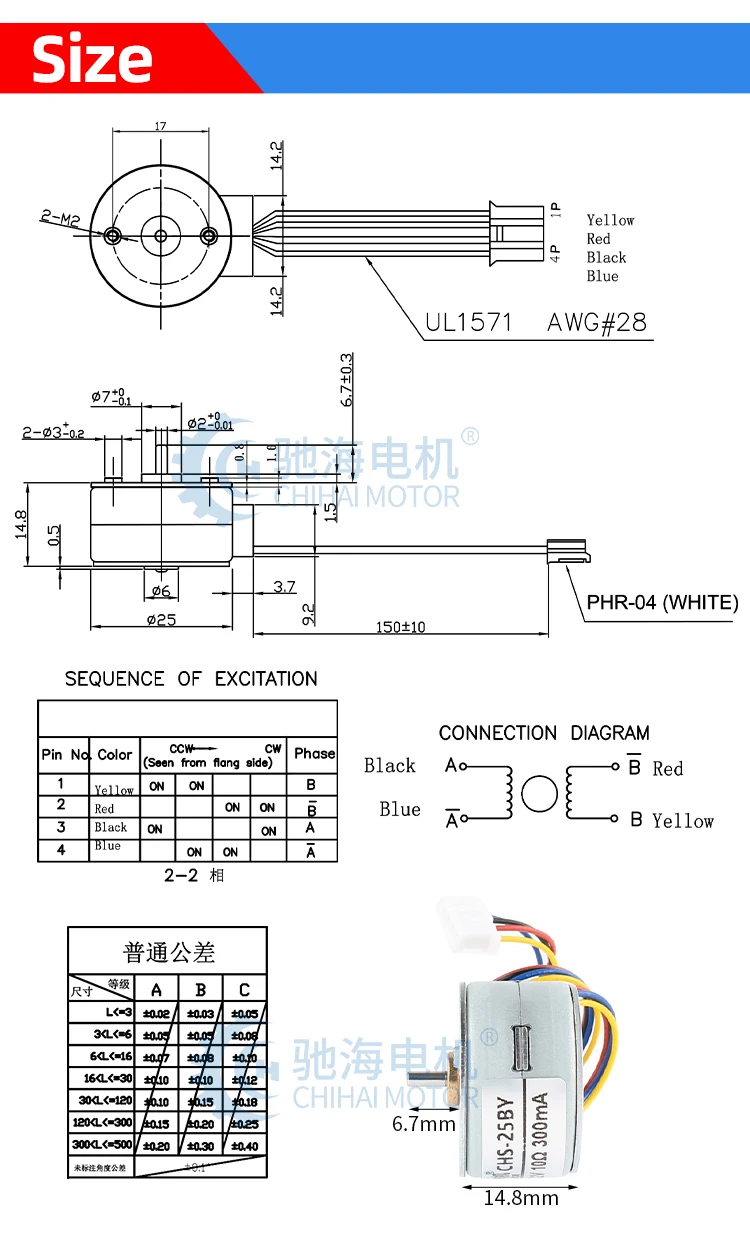

Detailed Images：
Product Paramenters
| Model: CHS-25BY-10Ω Brushless Stepping Motor | |
| Voltage: DC 12V (Driver IC:L6219) | |
| CURRENT PER PHASE | 300 mA/PHASE |
| COIL RESISTANCE | 10±7% ohm/PHASE |
| NO. OF PHASES | 2 PHASES |
| STEP ANGLE | 15°/STEP |
| EXCITATION ME THOD | 2 PHASE EXCITATION |
| DRIVE MODE | BIPOLAR DRIVE |
| PULL-IN TORQUE | MORE THAN 60 gf - cm AT 100 pps |
| HOL DING TORQUE | MORE THAN 90 gf - cm AT 100 pps |
| MAX RESPONSE FREQUENCY | MORE THAN 1100 PPS |
| MAX STARTING FREQUENCY | MORE THAN 800 PPS |
| INSULATION CL ASS | CLASS E FOR COILS |
| INSULATION STRENGTH | 100 V AC FOR ONE SECOND |
| INSULATION RESISTANCE | 100MΩ DC 500 V |
| OPERATING TEMPERATURE RANGE | -0 ~ +55 ℃ |
