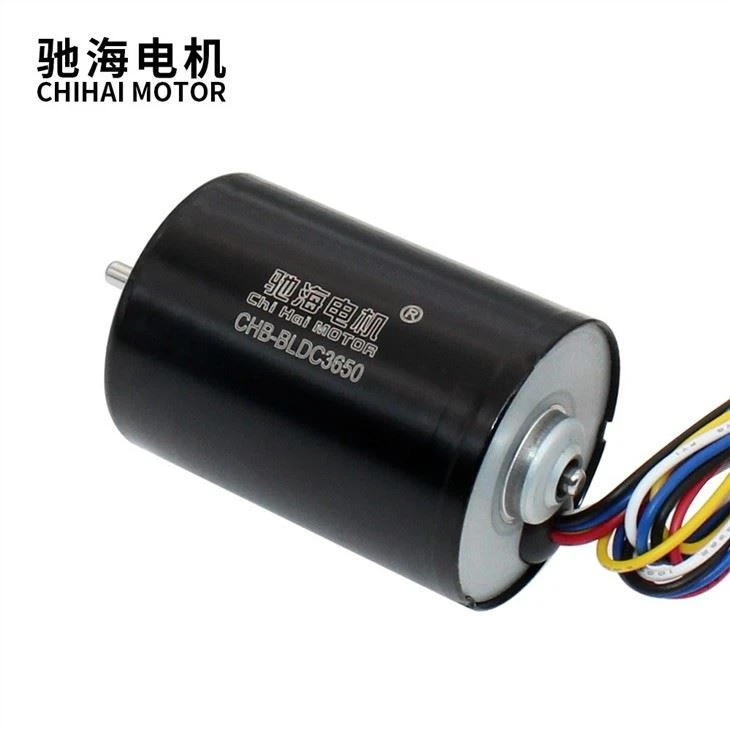

DC 24V 8000RPM 36mm High Speed Long Life Dc Brushless Motor
Product Description

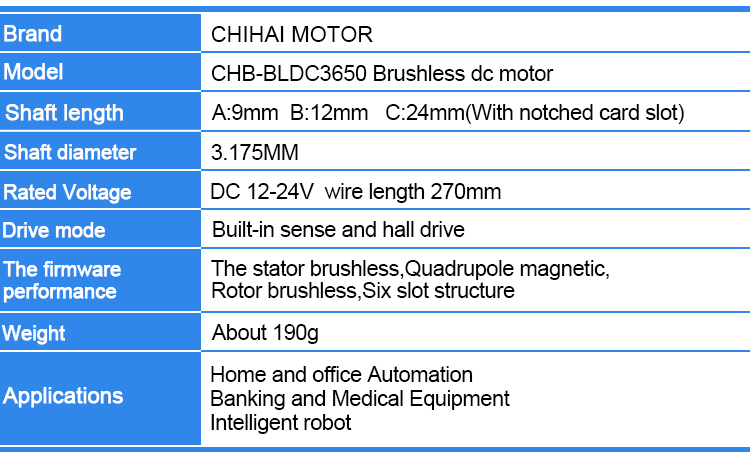

Brand: | Chihai motor | |||
Product Type: | CHB-BLDC3650 36mm Brushless dc motor for electrical tools and robots | |||

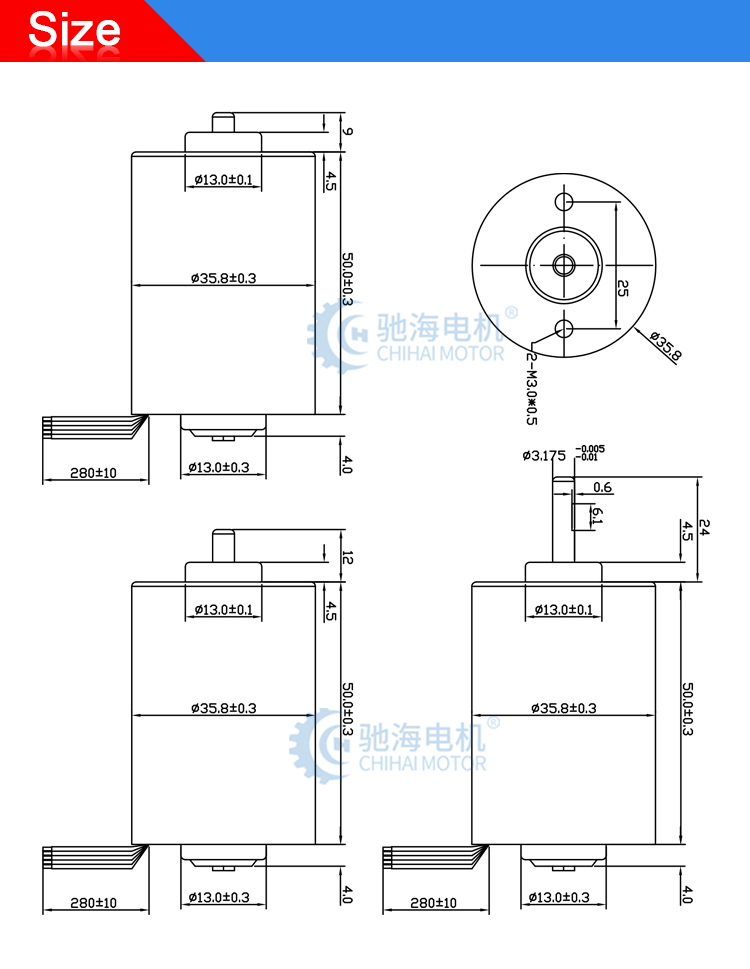

Size: | Diameter 36mm | |||
axle diameter: | diameter 8mm, D type shaft | |||
Axle length: | A:9mm B:12mm C:24mm(With notched card slot) | |||
Voltage: | DC 12-24V wire length 270mm | |||

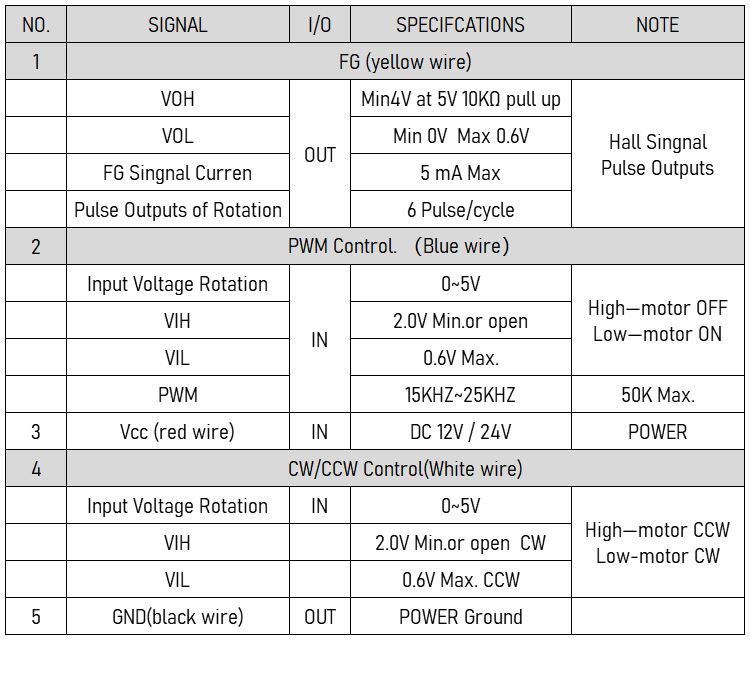

Drive mode: | Built-in sense hall drive | |||
The firmware performance: | The stator brushless,Quadrupole magnetic,Rotor brushless, Six slot structure | |||
Weight: | about 190g | |||
Application: | Robots, mechanical equipment, intelligent machines, electric Windows, electric doors, automatic rotating equipment, etc | |||
Features:
1. Motor type: Brushless DC motor
3. Voltage: 12V, 24V
4. Speed: 4150RPM8300RPM
5. Torque: 80g.cm-160g.cm
6. Shaft dia: 3.175mm
7. Direction: CW /CCW
8. Typical application: Micro air pump, Water pump, Robotics, Power tools, Automation equipment, Medical equipment, Textile equipment
9. Customized service: Motor's performance parameter, Shaft type, Wires and connectors, Encoders, Internal Drivers
Detailed Images

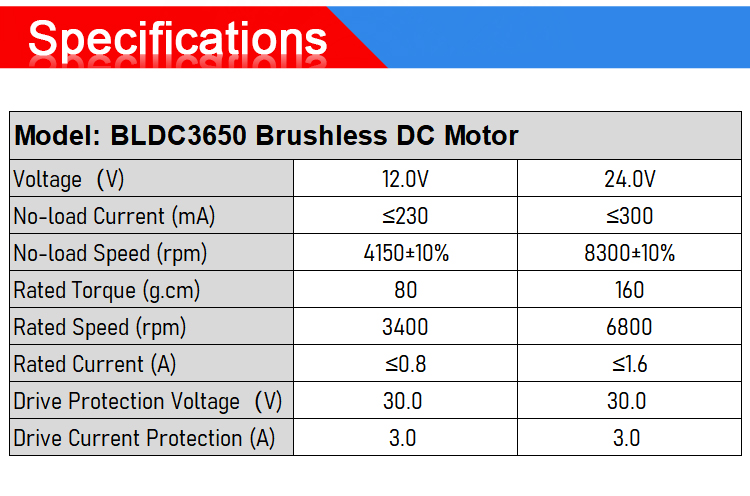

Product Paramenters
Application
Certifications

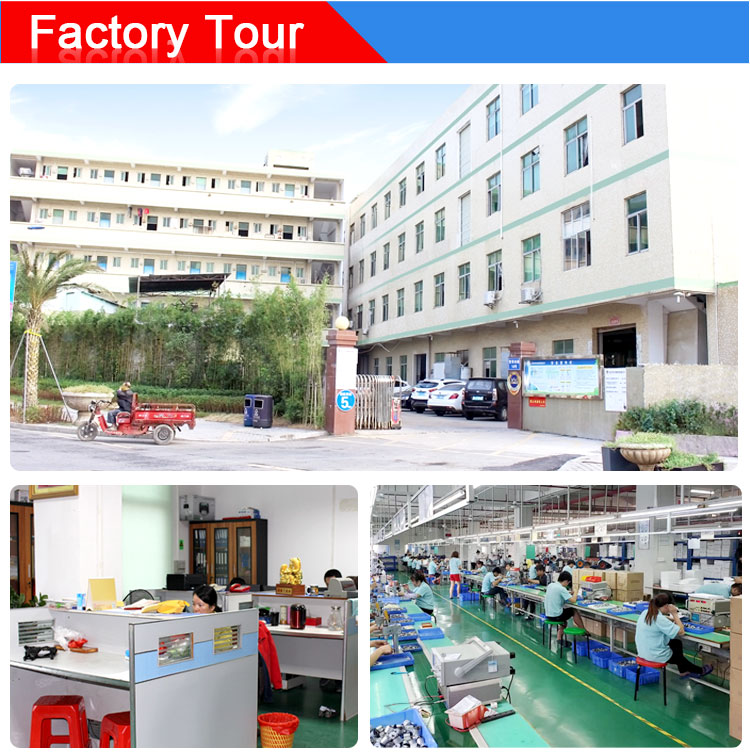

Company Profile
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
