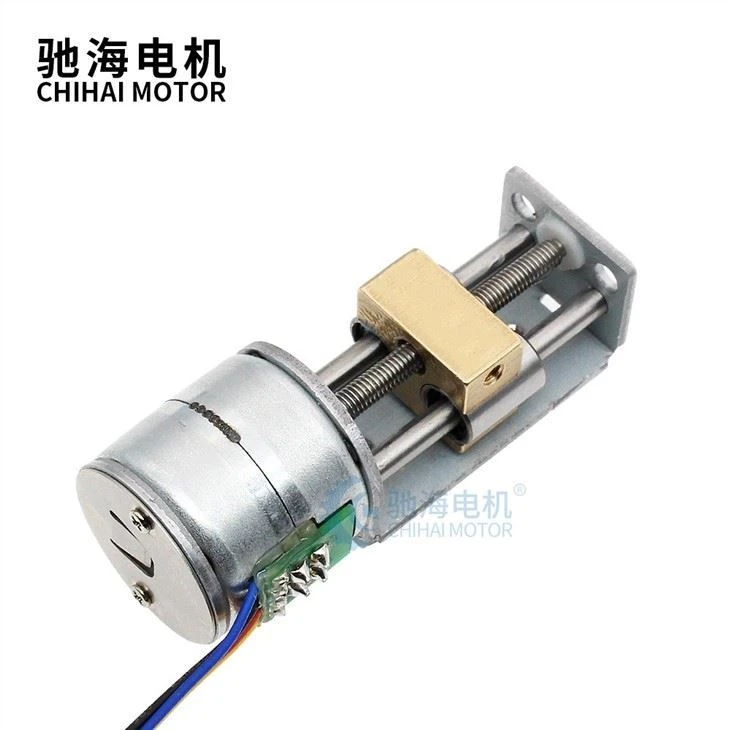

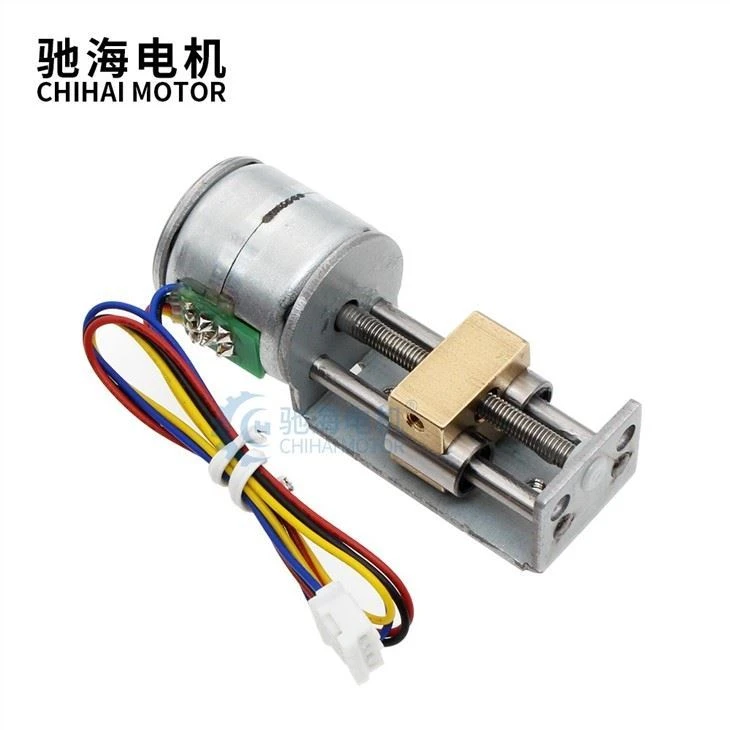

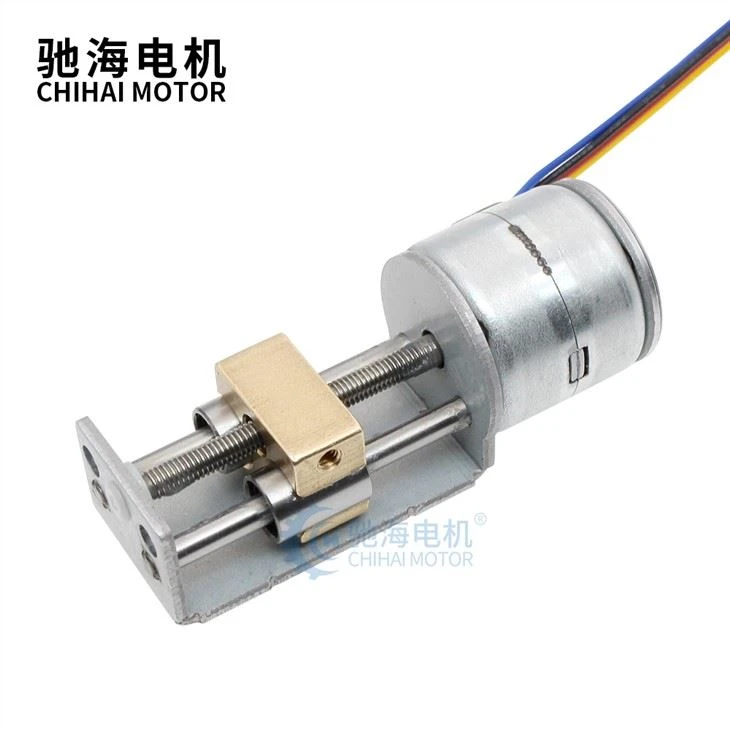

20 Stepper Motor Slide Table Mini Screw Rod Screw Moving Push 20mm Linear Motor
Product Description

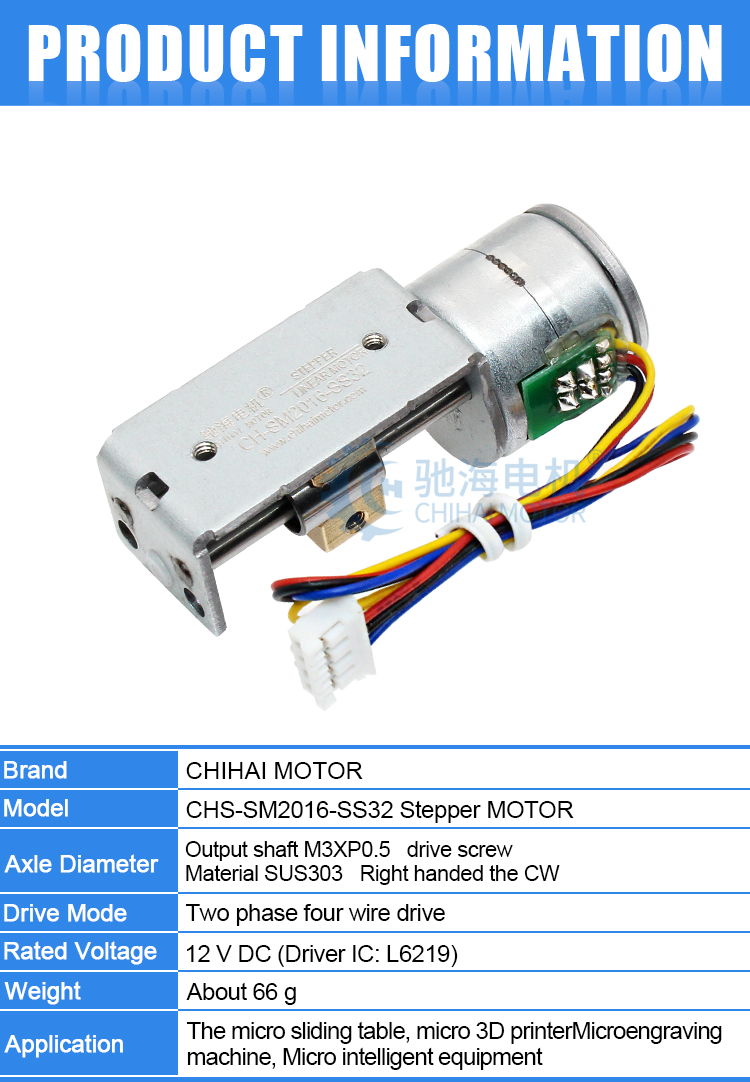

Brand: | Chihai motor | |||
Product Type: | CHS-SM2016-SS32 stepper motor micro slider linear stepping motor screw motor with bracket | |||
axle diameter: | Output shaft M3XP0.5 drive screw Material SUS303 Right handed the CW | |||

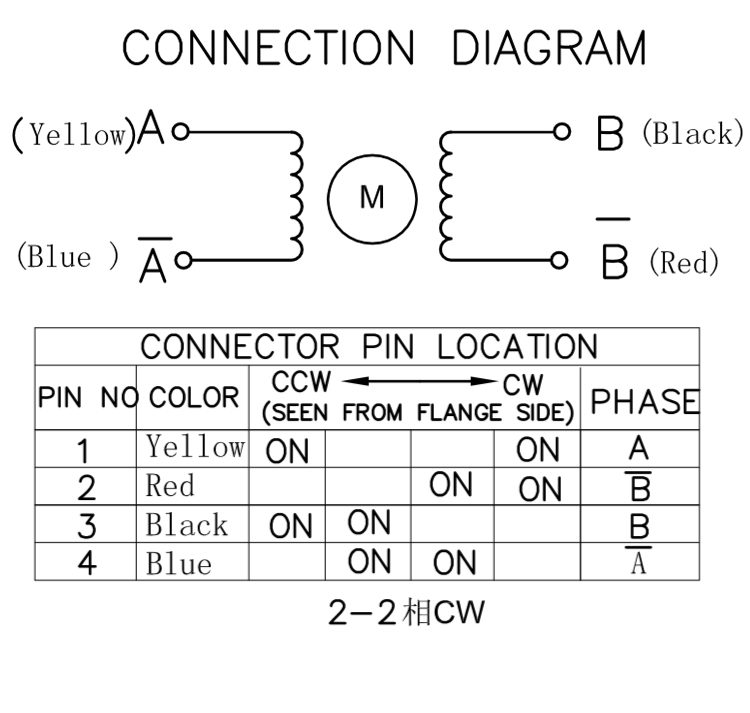

Drive mode: | Two phase four wire drive | |||
Voltage range: | DC 12.0V (Driver IC:L6219) | |||
Weight: | About 66g | |||
Application: | The micro sliding table,micro 3D printer, Microengraving machine,Micro intelligent equipment | |||
Stepper motor sliding table mini screw moving push rod linear motor has been widely used in automation equipment, robot, semiconductor manufacturing and other fields. It has the characteristics of precision, high speed and high efficiency, and has made important contributions to the development of industrial control systems.
The advantages of stepper motor sliding table mini screw screw moving push rod linear motor are numerous. In terms of positioning control, the stepper motor has high precision and high reliability, which can realize accurate position control without missing step. In the low-speed movement, the speed change of the stepper motor is continuous and stable, there is no shock, and it can also produce high positioning force; Third, in terms of high-speed movement, the response speed of the stepper motor is fast, and it can quickly respond to the circuit control signal to achieve high-speed movement.

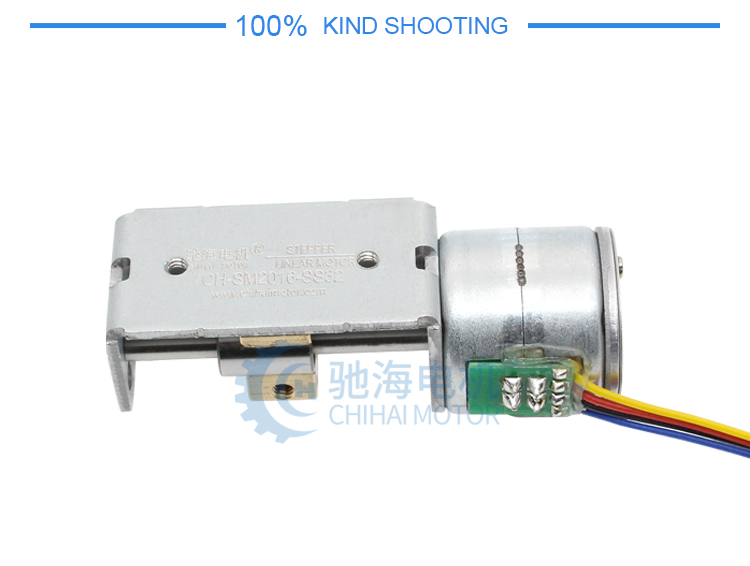

Detailed Images

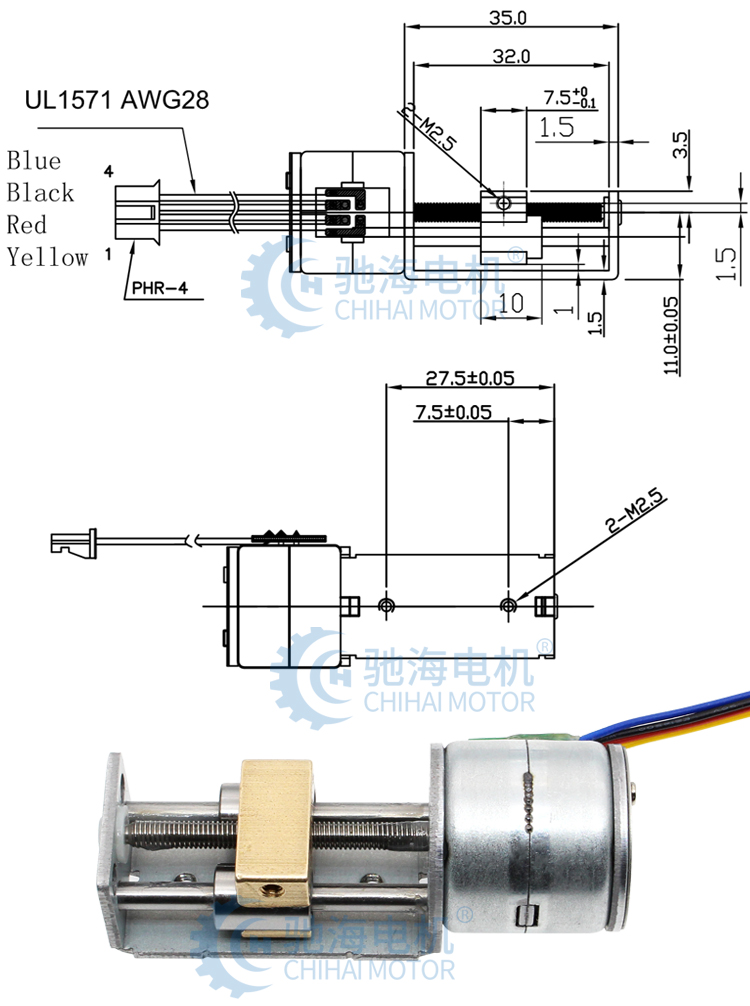

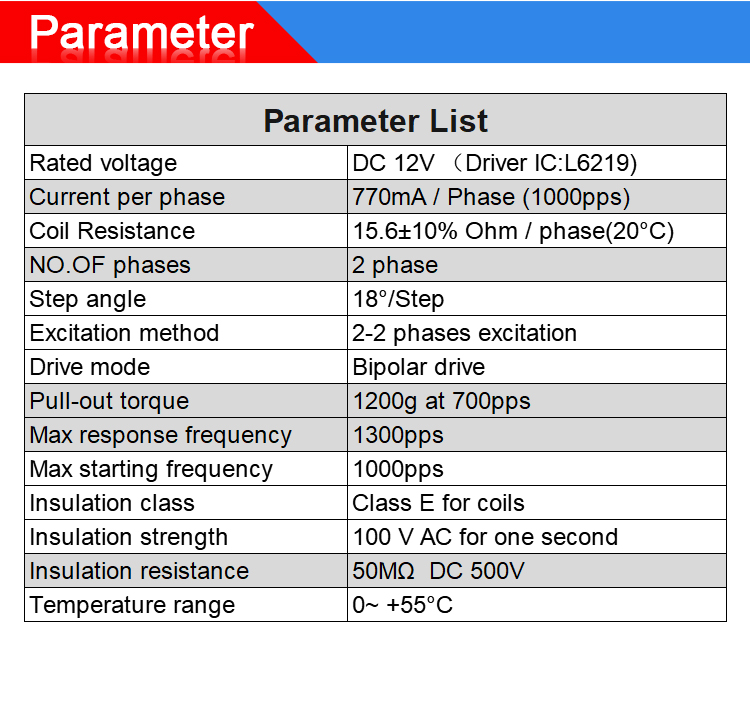

Product Paramenters
Application
Certifications

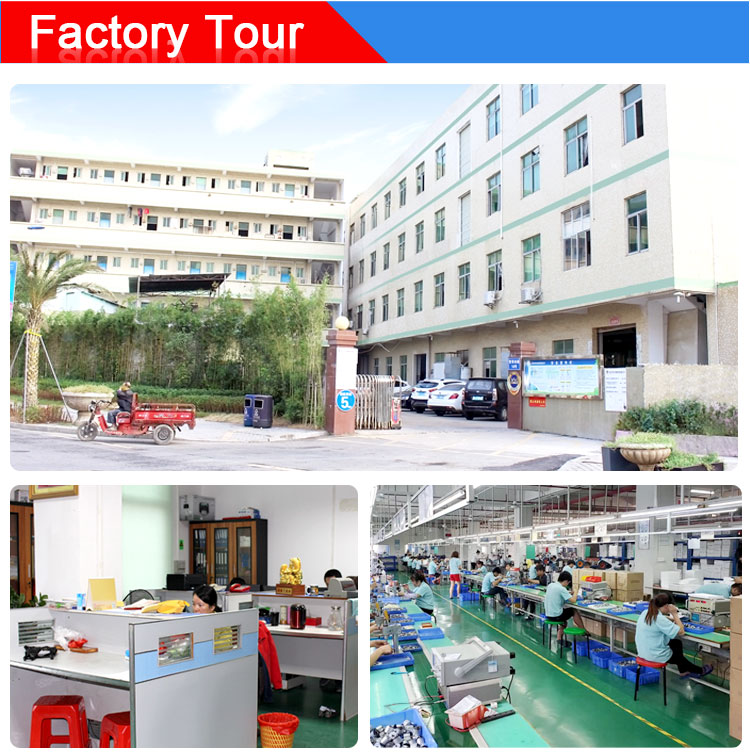

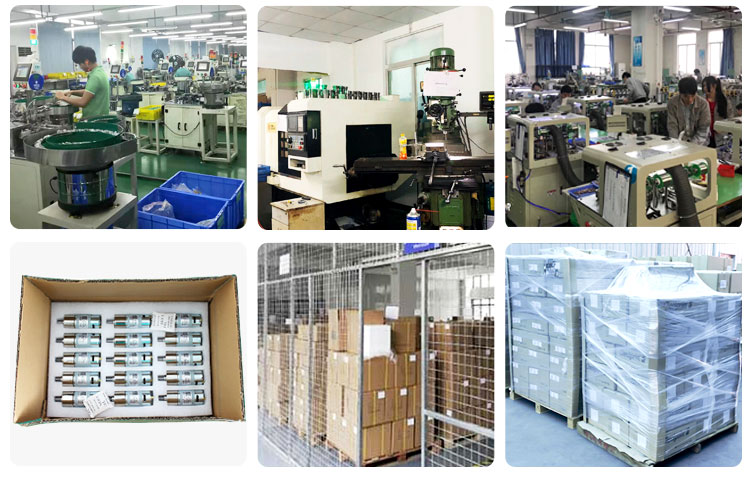

Company Profile
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
