Screw Shaft M3 Mini Dc Stepper Gear Motor
shaft length:33.6mm (batch customizable)
Shaft diameter:M3 Thread the shaft (batch customizable)
screw shaft M3 mini dc Stepper gear motor
Product Description
Product Type: | CHS-GM12-10BY Brushless Stepping Gear Motor |

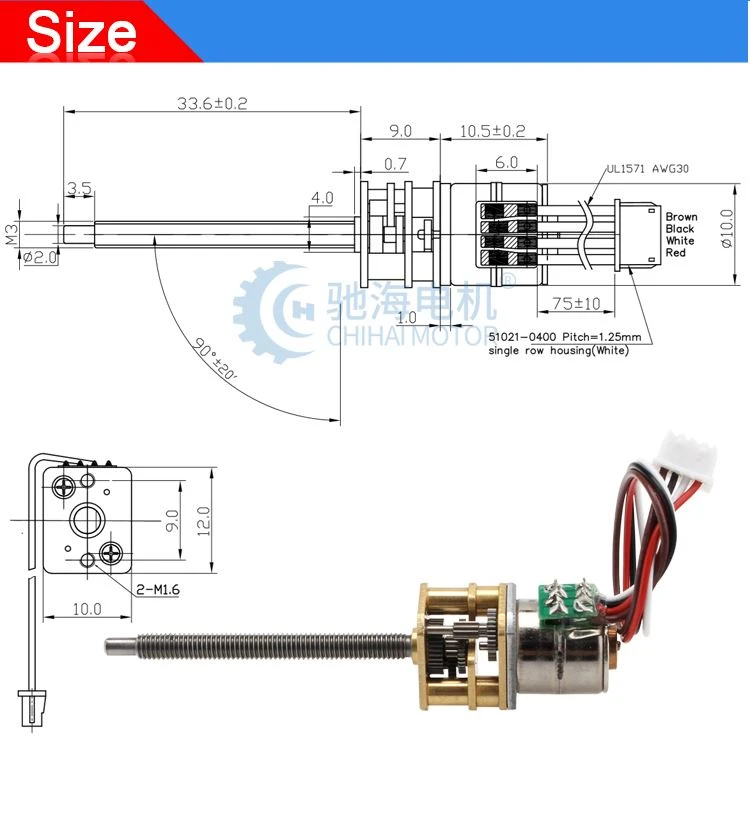

Shaft length | 33.6mm (batch customizable) |
Shaft diameter | M3 Thread the shaft (batch customizable) |
Voltage range | DC 5.0V |
weight | About 11g |
Step Angle | 18 ° Step Angle |
phase resistance | 39 Ω/Phase |
application | Intelligent platform, electric selfie stick, mobile phone camera tracking equipment Robot, intelligent manipulator, etc Optional accessories：flange coupling, simple drive, etc. |

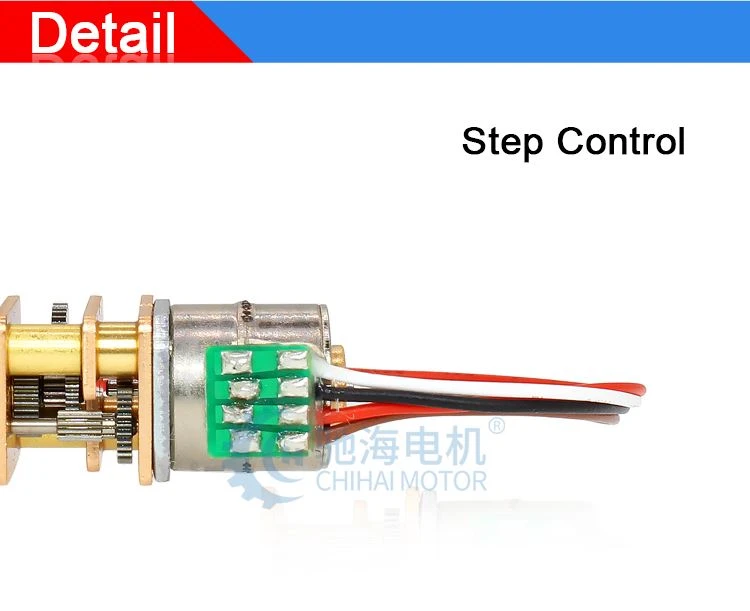

Detailed Images
Packing & Delivery
Model:CHS-GM12-10BY Brushless Stepping Gear Motor | |||||||||
Voltage: DC 5.0V (Driver IC:L6219) | |||||||||

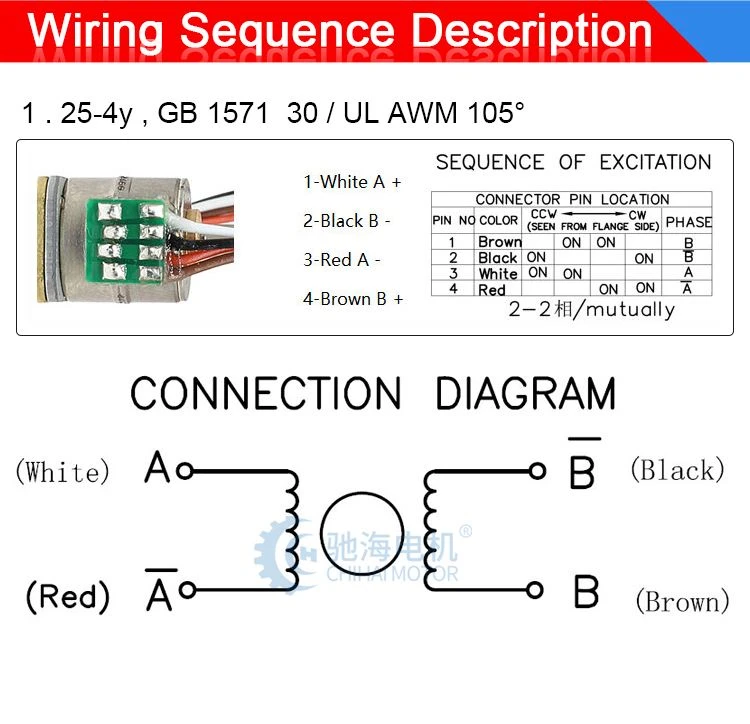

NO. of phases | Bipolar 2-2 Phase | ||||||||
Ratio | 1: 10 | 1: 20 | 1: 30 | 1: 50 | 1: 100 | 1: 150 | 1: 210 | 1: 298 | 1: 380 |
Accurate reduction ratio | 9.68 | 19.36 | 29.47 | 51.1 | 99.3 | 150.96 | 209.76 | 297.9 | 379.16 |
Step angle | 1.86° | 0.93° | 0.61° | 0.35° | 0.18° | 0.12° | 0.086° | 0.06° | 0.047° |
Phase Current | 128mA / PHASE | ||||||||
Phase Resistance | 39±7% ohm / PHASE | ||||||||
Phase Inductance | 14.3 mH / PHASE | ||||||||
Holding Torque(kgf.cm) | 0.12 | 0.24 | 0.36 | 0.60 | 1.20 | 1.80 | 2.50 | Maximum allowed 3.0kgf.cm | |
Pull out Torque(kgf.cm) | 0.03 | 0.06 | 0.09 | 0.15 | 0.30 | 0.45 | 0.63 | 0.90 | 1.10 |
Max starting frequency | MORE THAN 1200 PPS | ||||||||
Max response frequency | MORE THAN 900 PPS | ||||||||
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
