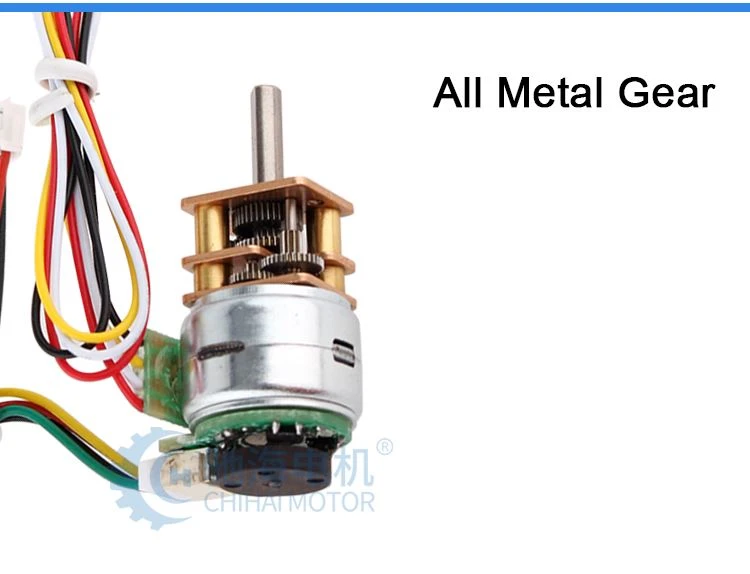

15mm 30 Ohm Full Metal Gear Stepper 15BY Motor With Encoder
Voltage: DC 5-12V
Step Angle: 18 ° / 50

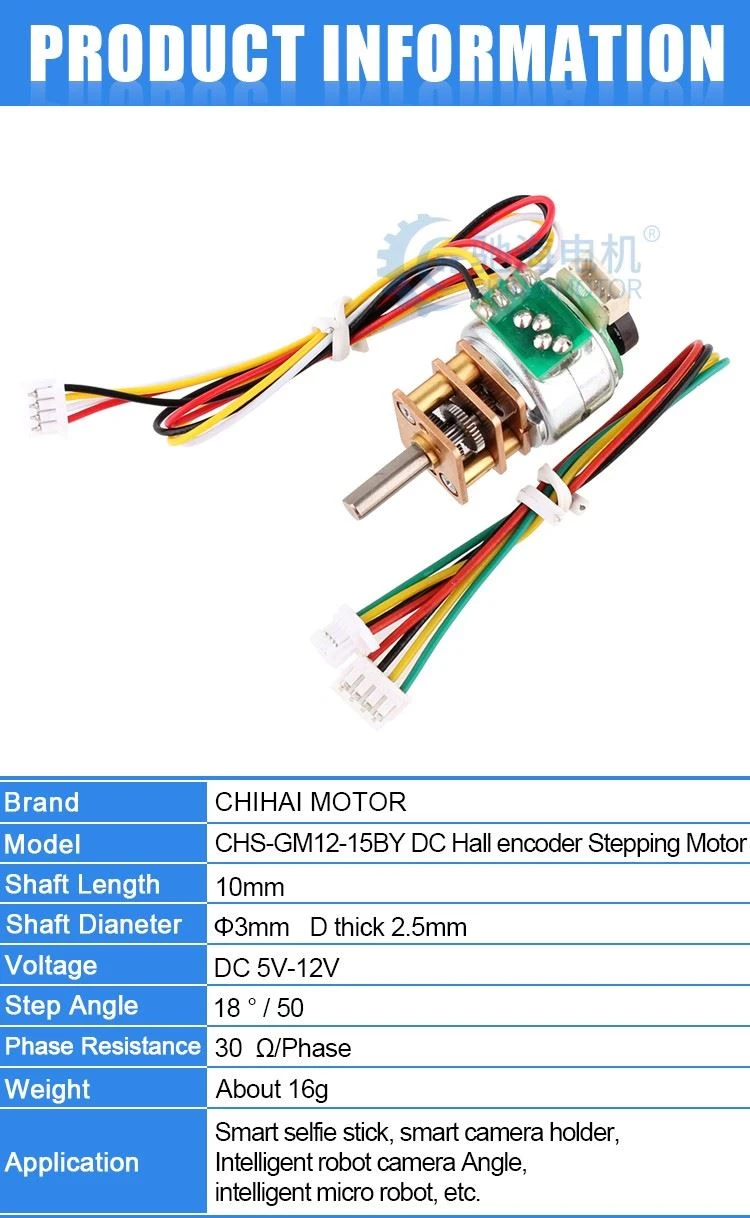

Product Description
Product Type: | CHS-GM12-15BY DC Hall encoder Stepping Motor |

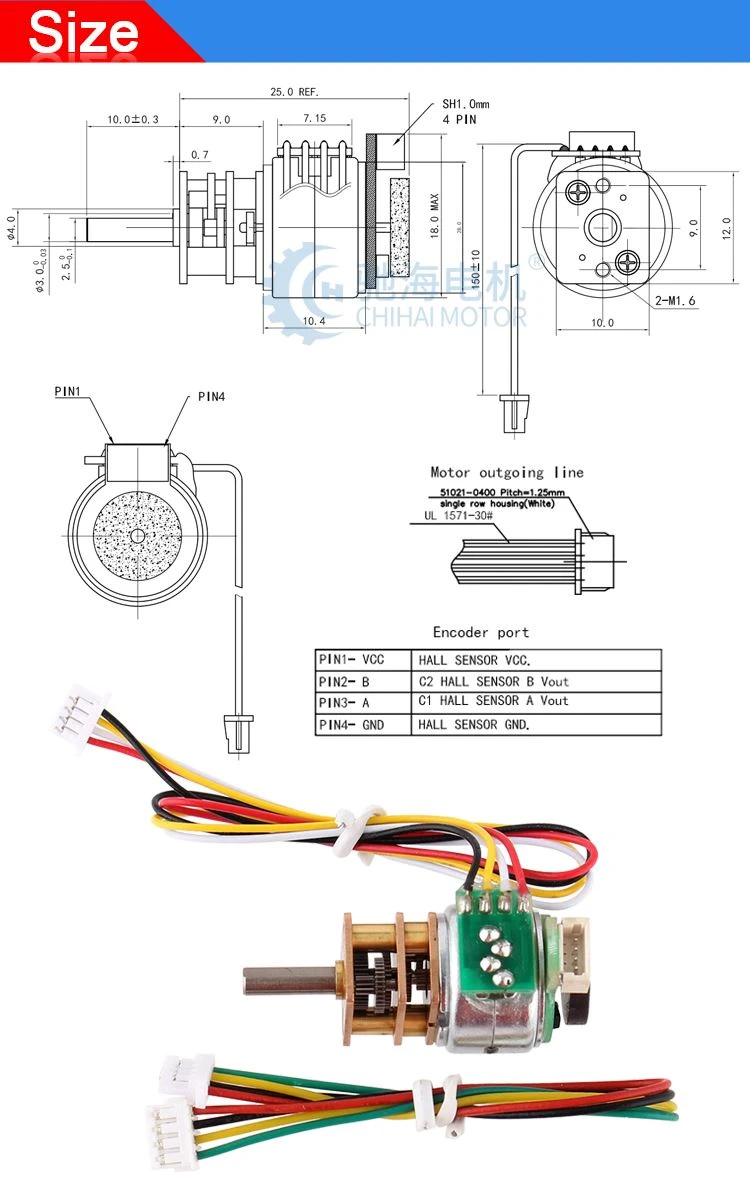

Size: | Φ15*20mm (not include the length of the axis) |
Shaft diameter: | 3mm D type shaft |
Shaft length: | 10 mm |
Voltage: | DC 5-12V |
Step Angle: | 18 ° / 50 |
Phase resistance: | 30 Ω/Phase |
Weight: | About 16g |
application: | Intelligent selfie stick, intelligent camera holder, intelligent robot camera Angle, intelligent miniature robot, etc |

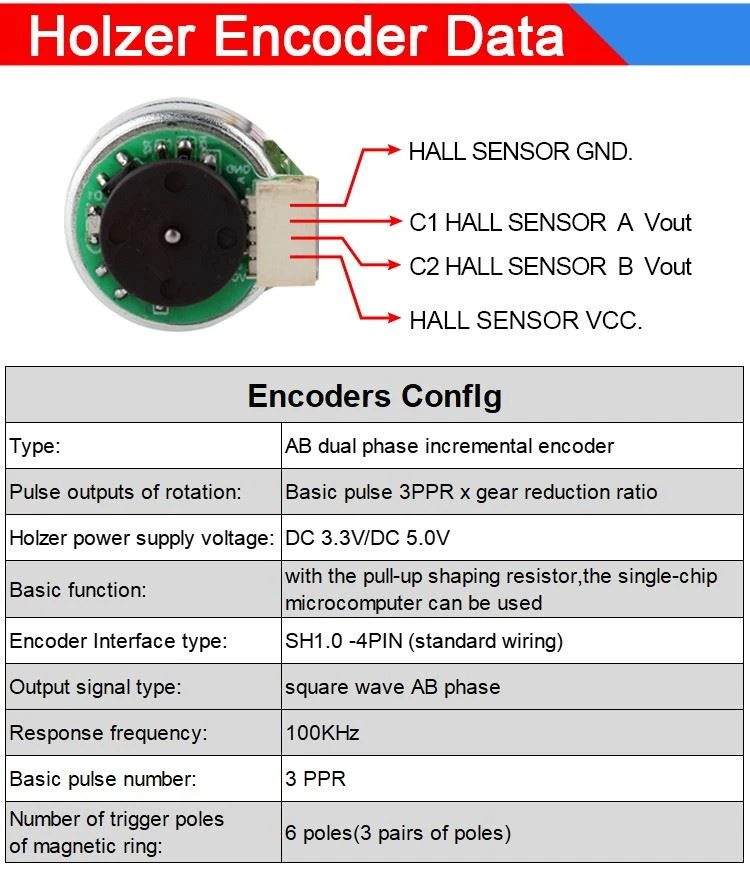

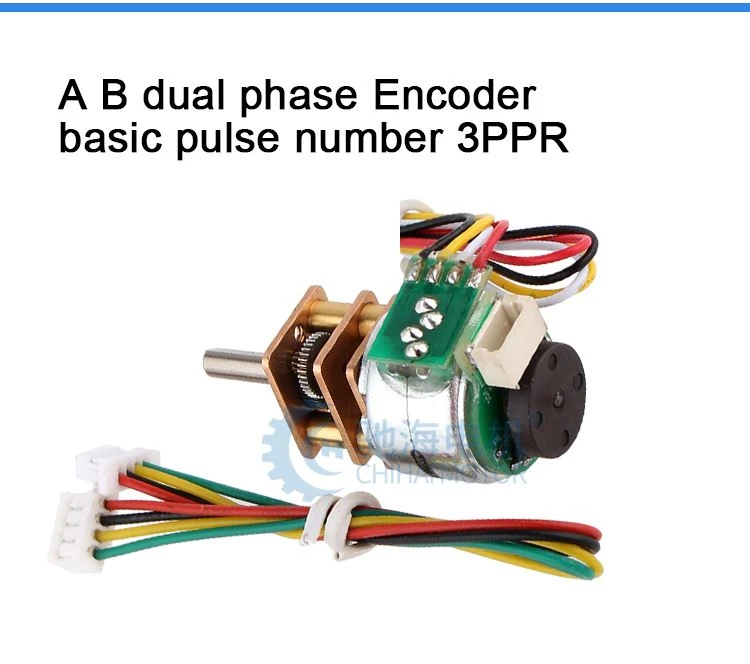

Detailed Images
Input stepper motor parameters
MODEL | CHS-15BY-M3015 | ||
RATED VOLTAGE | 5 V DC (DrIVER IC:l6219) | CURRENT PER PHASE | 160mA / PHASE |
COIL RESISTANCE | 30±7% ohm / PHASE | NO.OF PHASES | 2 PHASES |
STEP ANGLE | 18° / STEP | EXCITATION METHOD | 2 PHASES EXCITATION |
DRIVE MODE | BIPOLAR DRIVE | COIL INDUCTANCE | 9.5 mH / PHASE |
PULL-OUT TORQUE | MORE THAN | HOLDING TORQUE | MORE THAN |
MAX RESPONSE FREQUENCY | MORE THAN 1200 pps | MAX STARTING FREQUENCY | MORE THAN 900 pps |
INSULATION CLASS | CLASS E FOR COILS | INSULATION STRENGTH | 100 V AC FOR ONE SECOND |
INSULATION RESISTANCE | 50MΩ DC 500V | OPERATING TEMPERATURE | -0 ～ +55℃ |
Output parameters of deceleration motor
Model:CHS-GM12-15BY Brushless Stepping Gear Motor | |||||||||
Voltage:DC 12.0 V ( Driver IC :L6219 ) | |||||||||

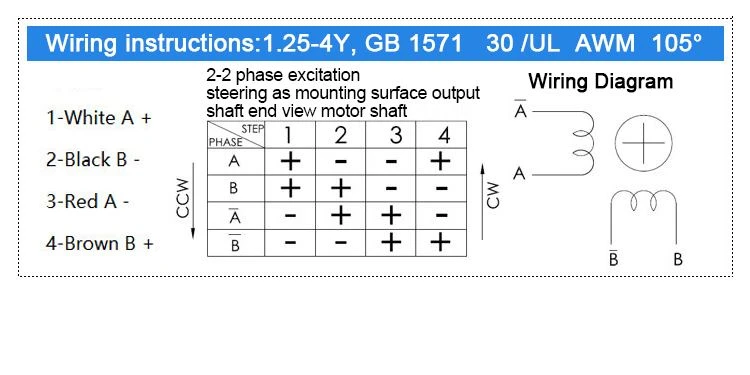

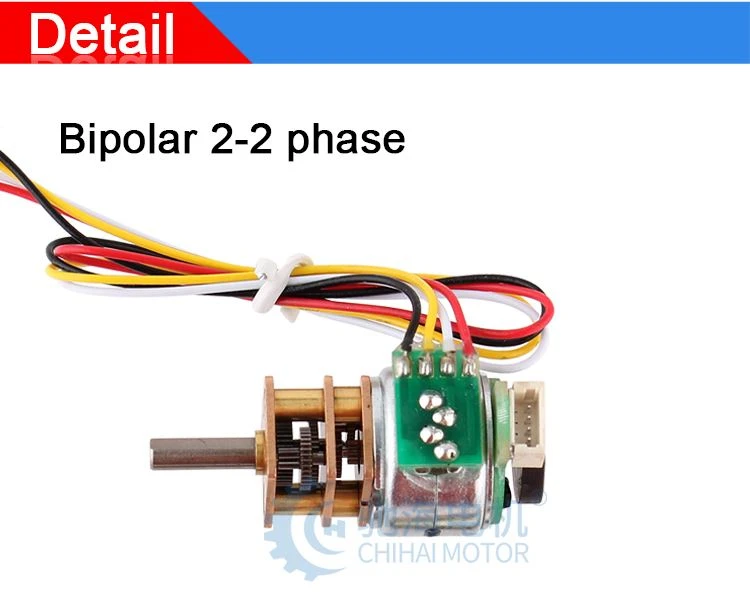

NO. of phases | Bipolar 2-2 Phase | ||||||||
Ratio | 1：10 | 1：20 | 1：30 | 1：50 | 1:100 | 1:150 | 1:210 | 1:298 | 1:380 |
Accurate reduction ratio | 9.68 | 19.36 | 29.47 | 51.1 | 99.3 | 150.96 | 209.76 | 297.9 | 379.16 |
Step angle | 1.86 ° | 0.93 ° | 0.61 ° | 0.35 ° | 0.18 ° | 0.12 ° | 0.086 ° | 0.06 ° | 0.047 ° |
1000 PPS speed | 300rpm | 200rpm | 100rpm | 60rpm | 30rpm | 20rpm | 14rpm | 10rpm | 8rpm |
Phase Current | 150mA / PHASE | ||||||||
Phase Resistance | 30±7% ohm / PHASE | ||||||||
Phase Inductance | 9.5 mH / PHASE | ||||||||
Holding Torque(kgf.cm) | 0.14 | 0.28 | 0.42 | 0.70 | 1.40 | 2.10 | 2.90 | Maximum allowed | |
Pull out Torque(kgf.cm) | 0.04 | 0.08 | 0.12 | 0.20 | 0.40 | 0.60 | 0.84 | 1.20 | 1.50 |
Max starting frequency | MORE THAN 1200 pps | ||||||||
Max response frequency | MORE THAN 900 pps | ||||||||

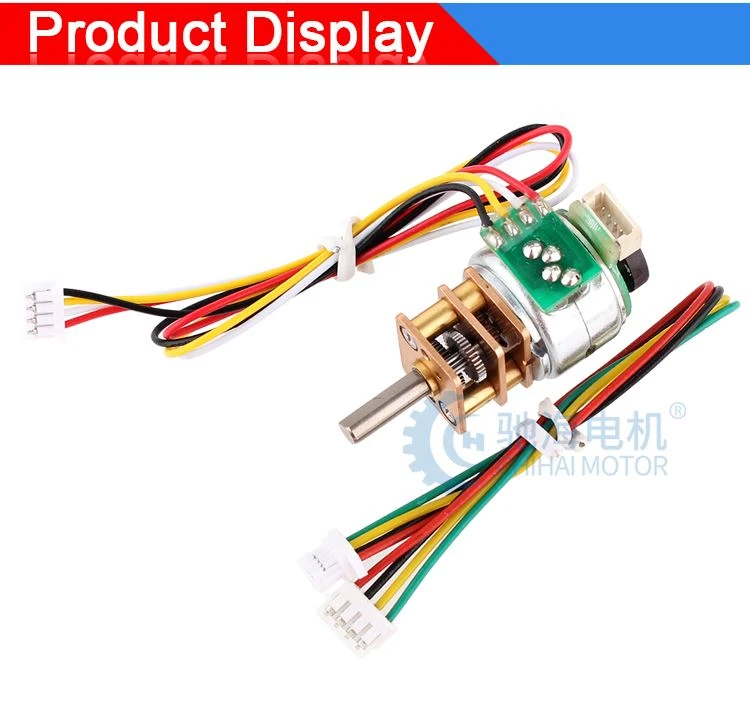

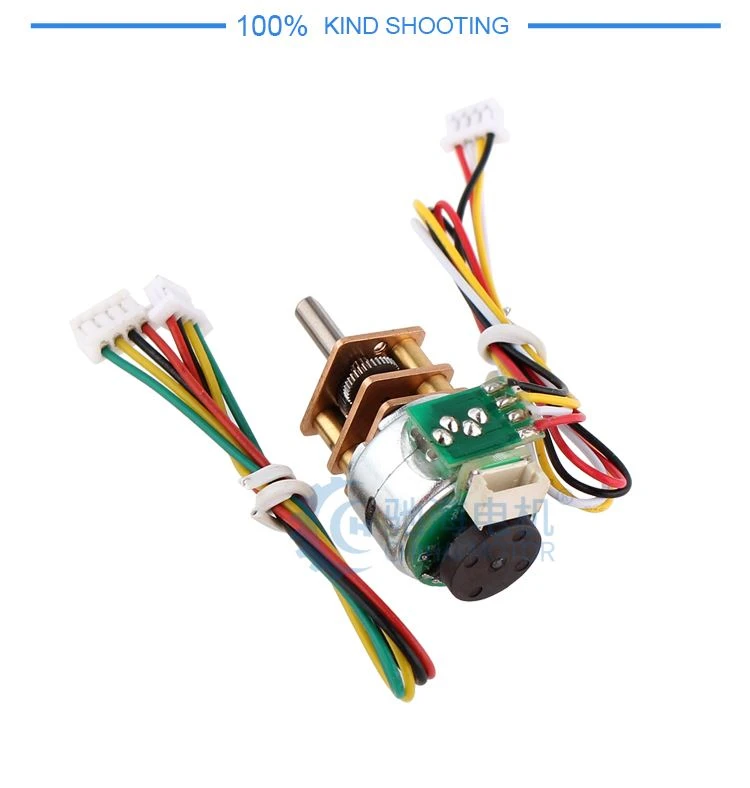

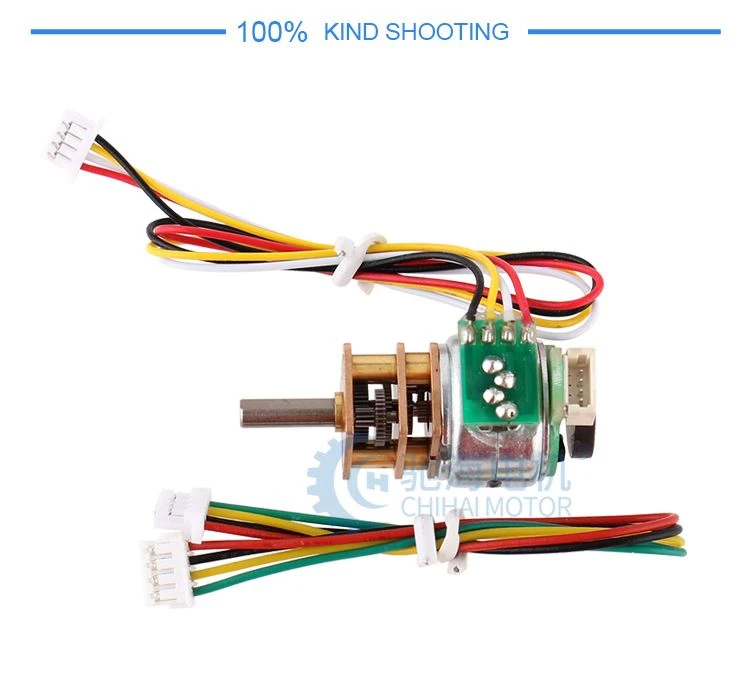

Product &display
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
