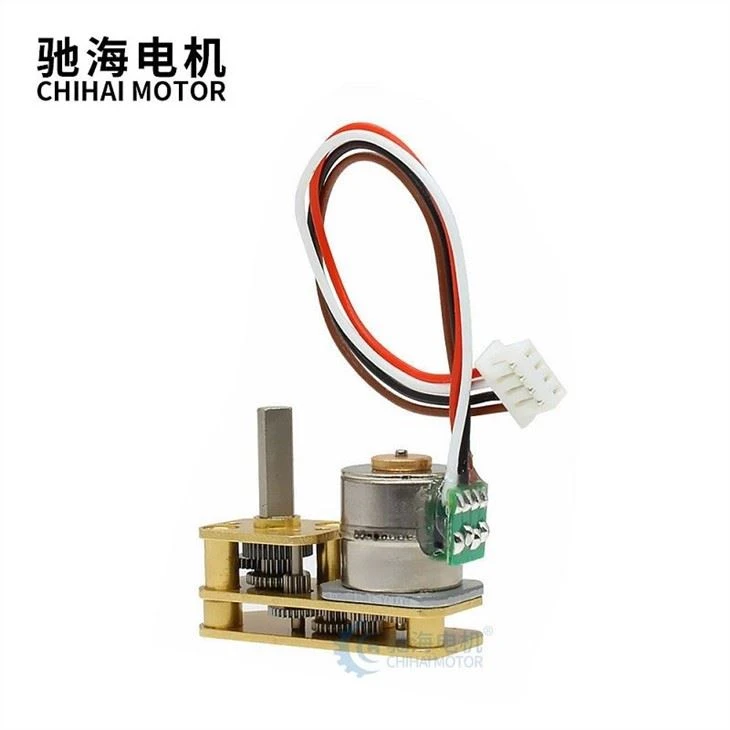

DC 5V Brushless 10BY Stepper Motor
- Can adjust speed.
- UEW copper wire, 1.25-4pin.
Product Description
Product Type: | CHS-GM1024-10BY Permanent magnet 2 phase 4 wire metal gear stepping brushless geared motor |
Phase: | 2 |
Step Angle: | 18° |
Impedance： | 39 Ω/Phase |
Torque： | 3.5 gf.cm |
Features:

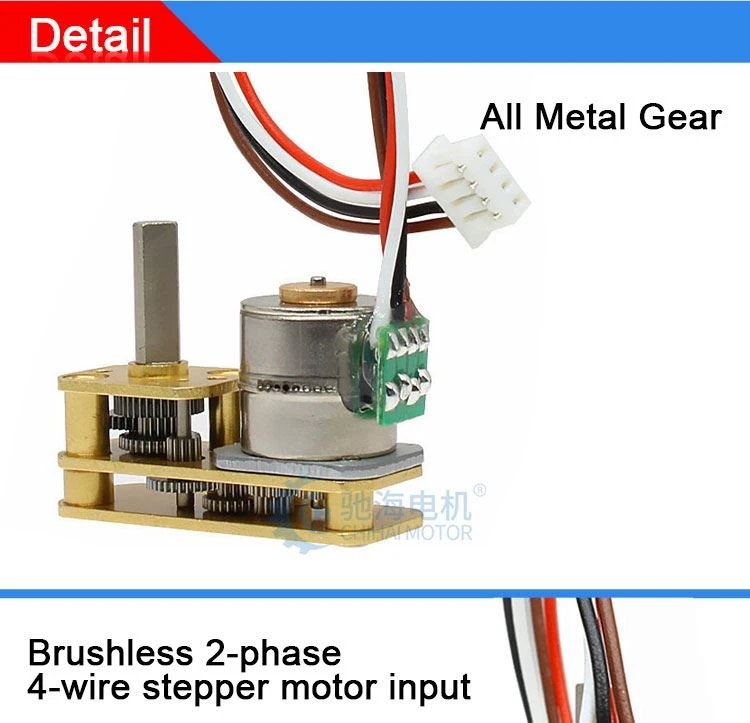

- 2 phase 4 wire motor with metal gear.
- Can be positive and negative rotation.
- Can adjust speed.
- UEW copper wire, 1.25-4pin.
Specifications:
- Enter the step angle of the stepping motor:18°
- Phase resistance:39 ohms
- Voltage:DC5V

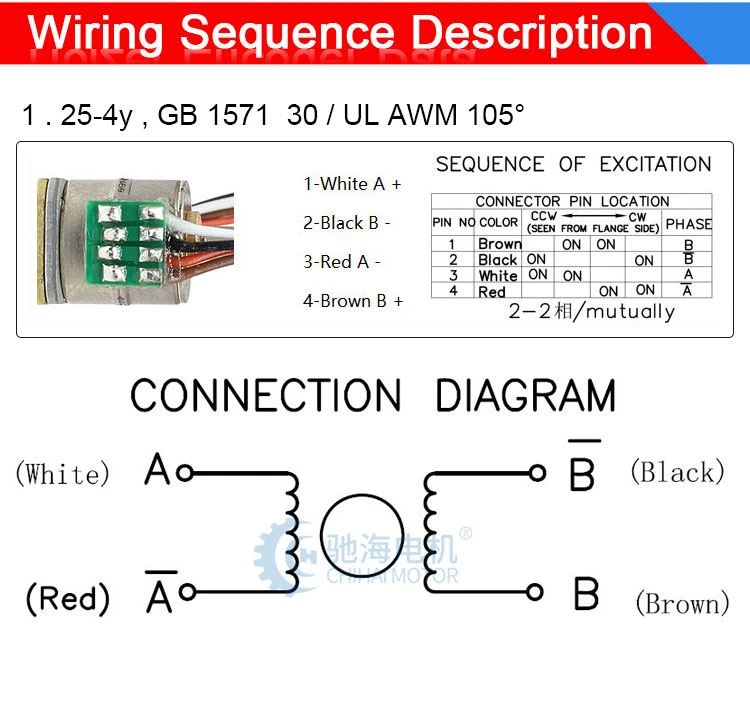

- Wiring:Red A-White A+Black B-Brown B+
The brushless stepper gear reduction motor is an efficient and energy-saving motor product, which uses advanced brushless motor technology and stepper gear reduction technology to provide efficient power output and accurate motion control.
the efficiency of the brushless stepper gear motor is higher. Because it uses brushless motor technology, it reduces friction and current loss compared to brushed motors, and can greatly improve energy utilization and efficiency. At the same time, the design of the stepper gear reducer can also greatly reduce the energy loss of the mechanical transmission, and further improve the efficiency of the entire motor.
The motion control of the brushless stepper gear motor is more accurate. Brushless motor not only has high efficiency, but also has high precision motion control ability. Combined with the design of the stepper gear reducer, accurate position control and motion control can be achieved, and it has a wider range of application scenarios.
The service life of the brushless stepper gear motor is longer. Brushless motors are not affected by brush wear, can run stably for a long time, have a longer service life, and have lower maintenance costs.

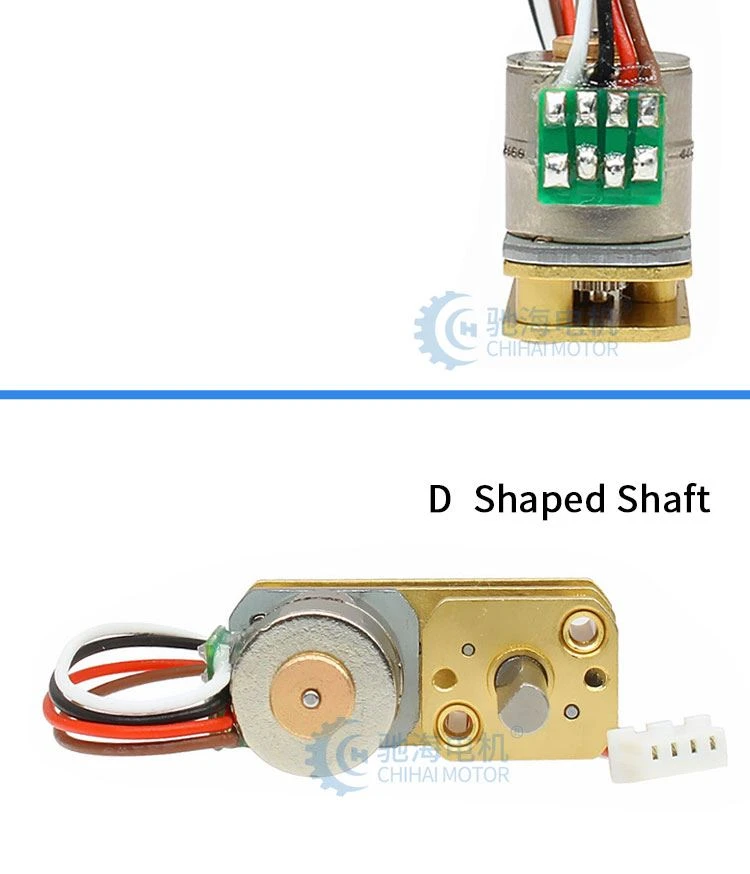

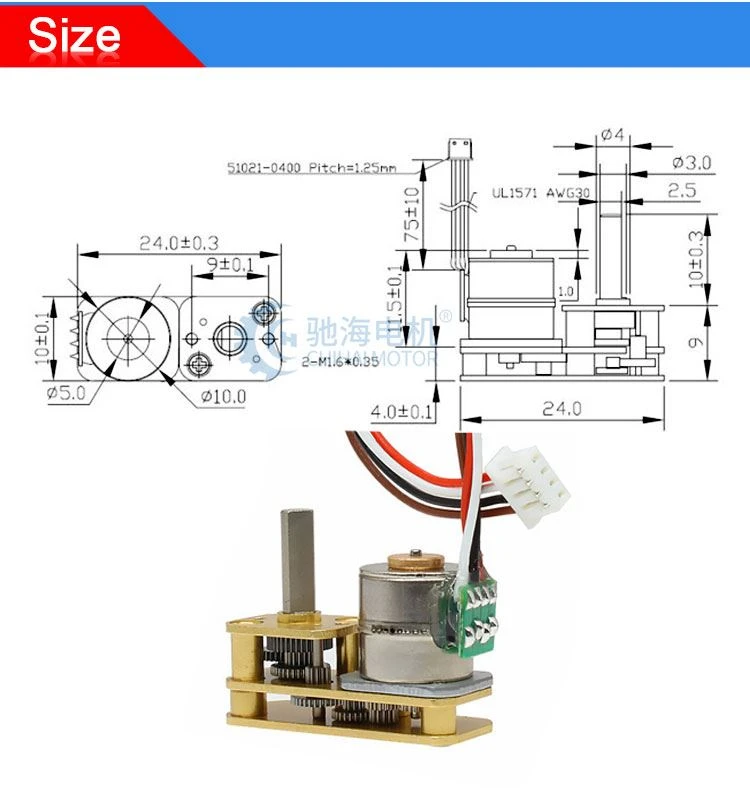

Detailed Images
MODEL | CHS-10BY-M1055 | ||
RATED VOLTAGE | 5 V DC (DrIVER IC:l6219) | CURRENT PE PHASE | 128mA / PHASE |
COIL RESISTANCE | 39±7% ohm / PHASE | NO.OF PHASES | 2 PHASES |
STEP ANGLE | 18° / STEP | EXCITATION METHOD | 2 PHASES EXCITATION |
DRIVE MODE | BIPOLAR DRIVE | OIL INDUCTANCE | 14.3 mH / PHASE |
PULL-OUT TORQUE | MORE THAN | HOLDING TORQUE | MORE THAN |
3.5 gf-cm AT 500 pps | 13 gf-cm AT 0 pps | ||
MAX RESPONSE FREQUENCY | MORE THAN 1200 pps | MAX STARTING | MORE THAN 900 pps |
INSULATION CLASS | CLASS E FOR COILS | INSULATION STRENGTH | 100 V AC FOR ONE |
INSULATION STRENGTH | |||
INSULATION RESISTANCE | 50MΩ DC 500V | OPERATING | -0 ～ +55℃ |
Output parameters of deceleration motor
Model:CHS-GM1024-10BY Brushless Stepping Gear Motor | |||||||
Voltage: DC 5.0V (Driver IC:L6219) | |||||||
Number Of Phase | Bipolar 2-2 Phase | ||||||
Reduction Ratio | 1: 50 | 1: 100 | 1: 150 | 1: 200 | 1: 350 | 1: 380 | 1: 500 |
Step Angle | 0.36° | 0.18° | 0.12° | 0.09° | 0.051° | 0.047° | 0.036° |
Current Per Phase | 128mA / PHASE | ||||||
Resistance Per Phase | 39±7% ohm / PHASE | ||||||
Inductor Per Phase | 14.3 mH / PHASE | ||||||
Holding Torque( Kgf.cm)) | 0.60 | 1.10 | 1.60 | 2.00 | Can't exceed 3.0kgf.cm | ||
Pull Out Torque( Kgf.cm) | 0.18 | 0.30 | 0.45 | 0.60 | 1.00 | 1.10 | 1.50 |
Max. No Load Response | MORE THAN 1200 pps | ||||||
Max. Slew Speed | MORE THAN 900 pps | ||||||

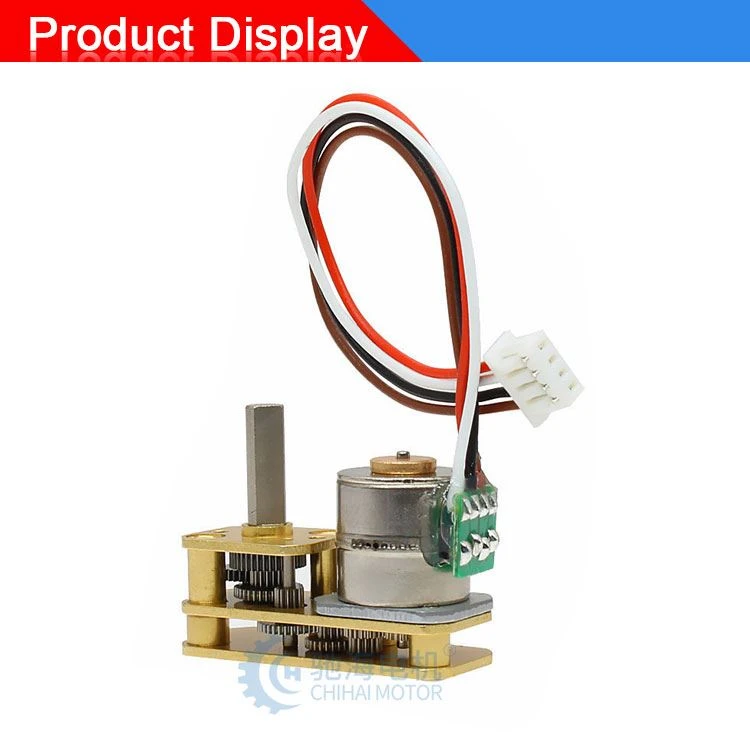

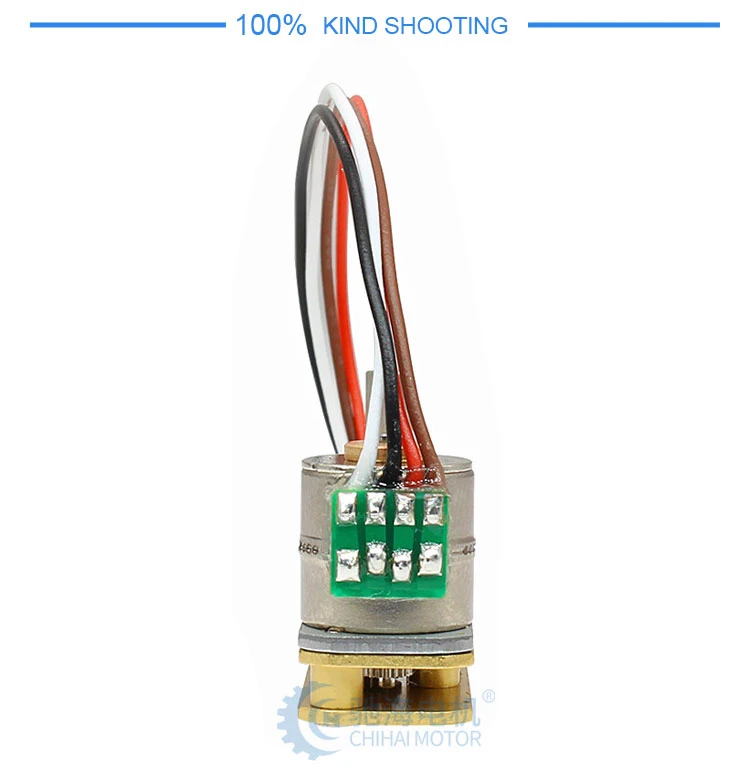

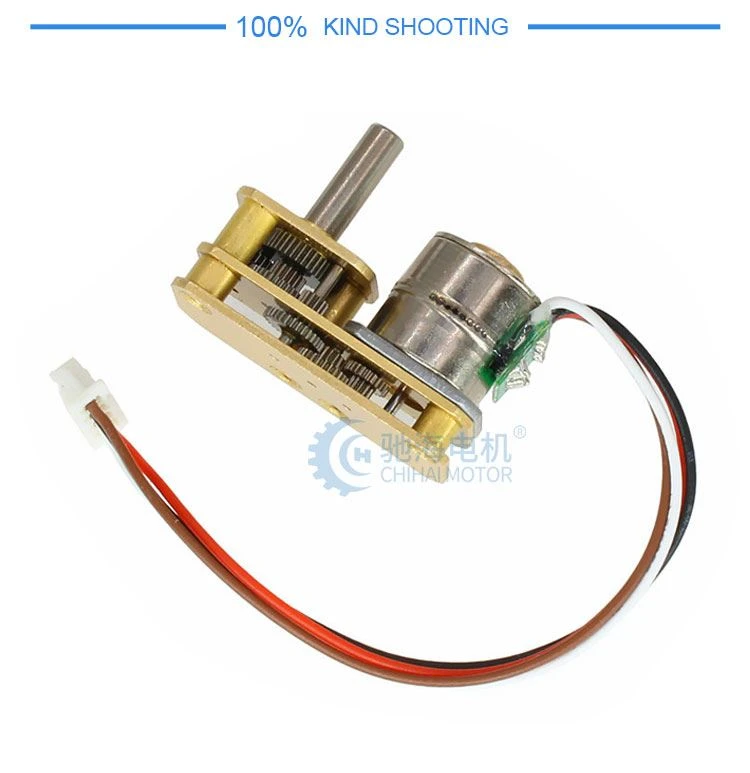

Product &display
