2 Phase 30ohm 37BY DC12V Brushless Motor For 3D Print
Product Description
|
Product Type: |
CHS-GM37BY mini geared stepper motor |
|||
|
Step angle: |
7.5° |
|||
|
length of shaft: |
12 mm |
|||
|
diameter of shaft: |
6 mm |
|||
|
Phase resistance: |
30Ω/phase |
|||
|
Rated operating voltage: |
DC 12.0V |
|||
|
Weight: |
about 165-200g |
|||
|
Application: |
Smart selfie stick, smart camera holder, Intelligent robot camera Angle, intelligent micro robot, etc. |
|||
The 37BY 2phase brushless geared stepper motor is a compact and powerful motor that is ideal for use in 3D printers. With its all-metal gears, this motor is designed to withstand heavy loads and provide exceptional torque. The motor's small size and high performance make it an excellent choice for compact 3D printers where space is at a premium.
One of the key features of the 37BY2 motor is its brushless design. By eliminating the brushes found in traditional stepper motors, this motor provides smoother operation and longer life. In addition, the motor's geared design provides improved accuracy and repeatability, making it an excellent choice for precision 3D printing applications.
Overall, the 37BY2 brushless geared stepper motor is an exceptional choice for anyone looking to build a high-performance 3D printer. Its small size, high torque, and smooth operation make it a must-have for any serious maker or hobbyist.

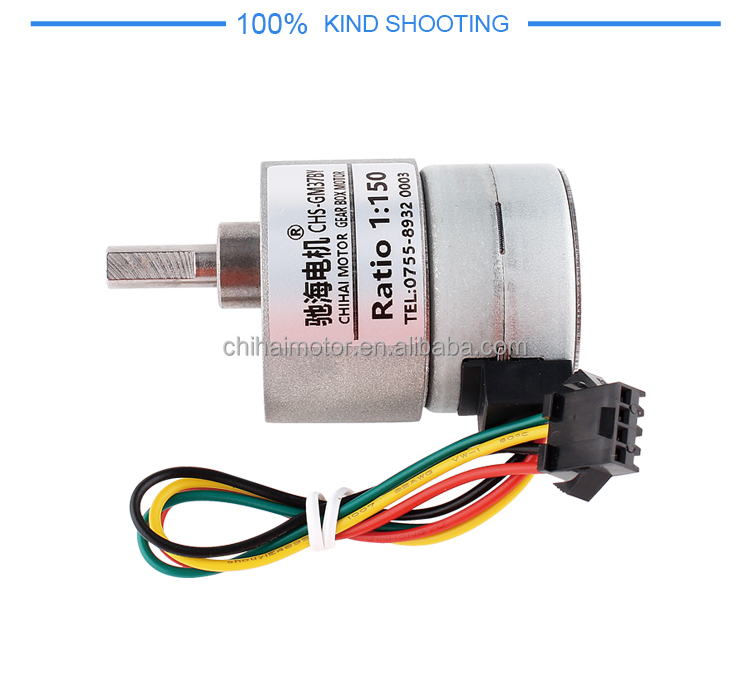

Detailed Images
Product Paramenters
| MODEL： CHS-GM37BY-30Ω | |||
| RATED VOLTAGE：12 V DC | |||
| 30±15% Ω / PHASE | 0.4 A / PHASE | ||
| COIL RESISTANCE | CURRENT PER PHASE | ||
| 7.5° / STEP | 2 PHASES | ||
| STEP ANGLE | NO.OF PHASES | ||
| BIPOLAR DRIVE | 2 PHASES EXCITATION | ||
| DRIVE MODE | EXCITATION METHOD | ||
| PULL-OUT TORQUE | MORE THAN ≥300 gf.cm |
HOLDING TORQUE | MORE THAN ≥600 gf.cm AT 0 PPS |
| 750 ppc | 700 ppc | ||
| MAX RESPONSE FREQUENCY | MAX STARTING FREQUENCY | ||
| CLASS E FOR COILS | 100 V AC FOR ONE SECOND | ||
| INSULATION CLASS | INSULATION STRENGTH | ||
| 100MΩ DC 500V | -10 ～ +55℃ | ||
| INSULATION RESISTANCE | OPERATING TEMPERATURE | ||
| Model：CHS-GM37BY Brushless stepping gear reduction motor |
||||
| Voltage: DC 12V Test frequency 700 PPS |  |
|||
| Reduction ratio | STEP ANGLE (STEP) |
No-load speed 700PPS(rpm) |
Holding torque （kgf.cm) |
Pull-out torque （kgf.cm) |
| 1：6.3 | 1.19 ° | 138 rpm | 2.8 | 1.2 |
| 1：10 | 0.75° | 87 rpm | 4.5 | 2.00 |
| 1：18.8 | 0.399 ° | 46 rpm | 8.00 | 3.50 |
| 1：30 | 0.25 ° | 29 rpm | 13.00 | 6.00 |
| 1：50 | 0.15 ° | 17 rpm | 22.00 | 10.00 |
| 1：67 | 0.112 ° | 13 rpm | 30.00 | 13.00 |
| 1：90 | 0.083 ° | 9.6 rpm | Can't exceed 30.0kgf.cm | 18.00 |
| 1：150 | 0.05 ° | 5.8 rpm | Can't exceed 30.0kgf.cm |
|
| 1：270 | 0.027 ° | 3.1 rpm | ||
| 1：450 | 0.0167 ° | 1.9 rpm | ||
| 1：630 | 0.012 ° | 1.4 rpm | ||
| 1：810 | 0.0093° | 1.09 rpm | ||
