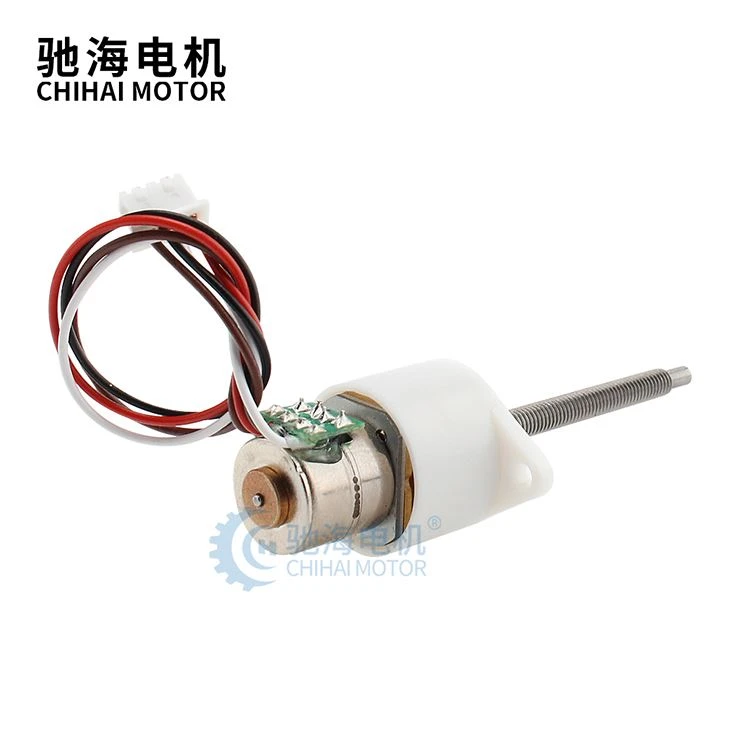

Brushless Stepping Gear Motor
Product Description
| Product Type |
CHS-GM12-10BY Brushless Stepping Gear Motor |
| Shaft length |
32.3mm (batch customizable) |
| Shaft diameter |
M3 Thread the shaft (batch customizable) |
| Voltage range |
DC 5.0V |
| weight |
About 11g |
| Step Angle |
18 ° Step Angle |
| phase resistance |
39 Ω/Phase |
| application |
Intelligent platform, electric selfie stick, mobile phone camera tracking equipment Robot, intelligent manipulator, etc Optional accessories：flange coupling, simple drive, etc. |
The brushless stepping gear motor is a common drive in the market at present, which is not only simple in structure, stable in performance, high in power output, but also widely used in mechanical equipment, smart home and other fields. Compared with traditional brushless motors, brushless motors not only reduce noise and wear, but also have higher efficiency and life.
Brushless stepper motor can not only be applied to traditional mechanical equipment and electronic equipment, but also can be applied to smart home and other fields. For example, smart curtains, smart door locks, smart home appliances, etc., can be applied to brushless stepping gear motors. These smart devices can improve people's quality of life, increase the convenience of life, and let people enjoy life more comfortably.
Detailed Images
Packing & Delivery
| Model:CHS-GM12-10BY Brushless Stepping Gear Motor |
| Voltage: DC 5.0V (Driver IC:L6219) |
| NO. of phases | Bipolar 2-2 Phase |
| Ratio | 1: 10 | 1: 20 | 1: 30 | 1: 50 | 1: 100 | 1: 150 | 1: 210 | 1: 298 | 1: 380 |
| Accurate reduction ratio | 9.68 | 19.36 | 29.47 | 51.1 | 99.3 | 150.96 | 209.76 | 297.9 | 379.16 |
| Step angle | 1.86° | 0.93° | 0.61° | 0.35° | 0.18° | 0.12° | 0.086° | 0.06° | 0.047° |
| Phase Current | 128mA / PHASE |
| Phase Resistance | 39±7% ohm / PHASE |
| Phase Inductance | 14.3 mH / PHASE |
| Holding Torque(kgf.cm) | 0.12 | 0.24 | 0.36 | 0.60 | 1.20 | 1.80 | 2.50 |
Maximum allowed 3.0kgf.cm |
| Pull out Torque(kgf.cm) | 0.03 | 0.06 | 0.09 | 0.15 | 0.30 | 0.45 | 0.63 | 0.90 | 1.10 |
| Max starting frequency | MORE THAN 1200 PPS |
| Max response frequency | MORE THAN 900 PPS |
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
