480Ultra-22TPA High Torque Large Silver Brush Airsoft Motor
Product Description
| Brand | CHIHAI MOTOR |
| Product Type | CHF-480Ultra-22TPA High Torque Large Silver Brush Airsoft Motor |

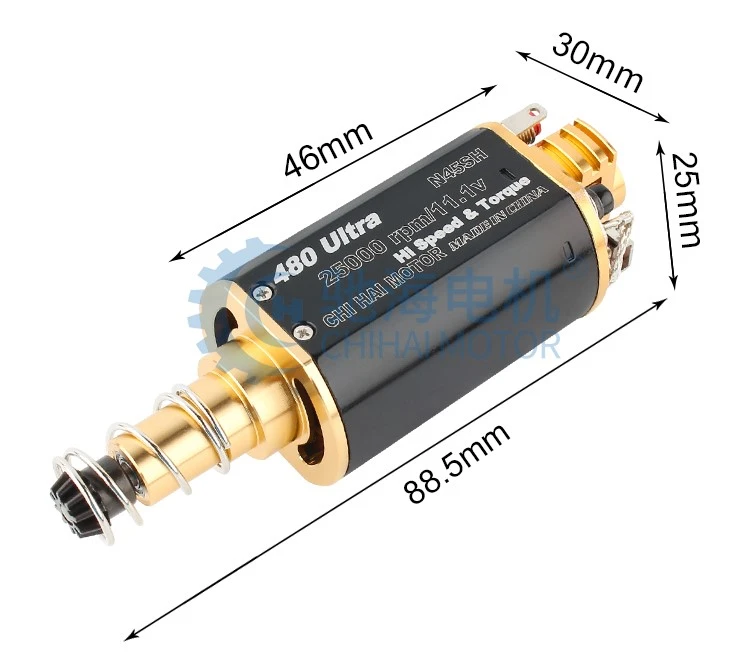

| sizes | 88.5x25x30mm(Includes shaft and gears) |
| Magnetic materials | N45SH temperature resistant NdFeB magnet |
| DC11.1V SPEED | 25000 rpm |
| DC7.4V SPEED | 16000 rpm |
| weight | About 140g |
As an important part of modern power transmission and control technology, high-speed DC motor is widely used in various fields through its fast, accurate and efficient characteristics.
High-speed DC motor has a variety of excellent performance, such as high efficiency, stability, reliability, etc., can effectively improve the work efficiency and production quality of mechanical equipment. Small size, light weight, strong controllability, wide adaptability and many other advantages, suitable for different working environments in various fields.
In industrial manufacturing, high-speed DC motors are widely used in machine tools, robots, automated production lines, digital control technology, electric vehicles, aerospace and other fields. Being able to efficiently complete various tasks not only improves the performance and capability of intelligent devices such as robots, but also improves production efficiency and quality, and reduces energy consumption and environmental pollution.
In life, high-speed DC motors also play an irreplaceable role, such as home appliances, vehicles and so on. In the field of home appliances, high-speed DC motors are widely used in refrigerator compressors, washing machines, etc. In the field of transportation, high-speed DC motors are widely used in electric vehicles, electric motorcycles and so on.

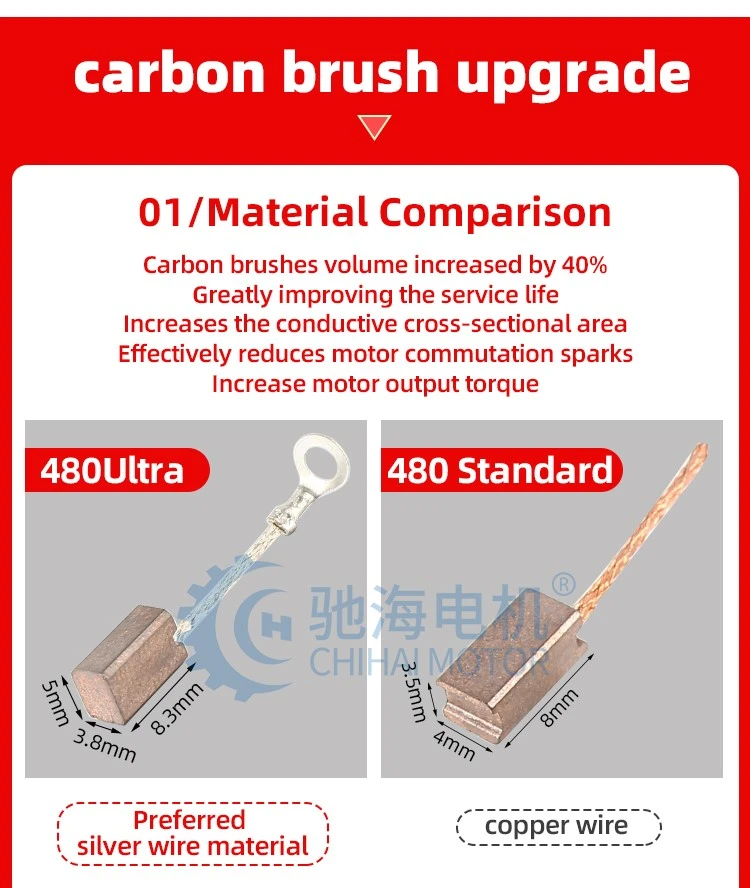

N45SH temperature resistant NdFeB magnet:
Ensures constant and stable torque output high durability and not easy to demagnetize.

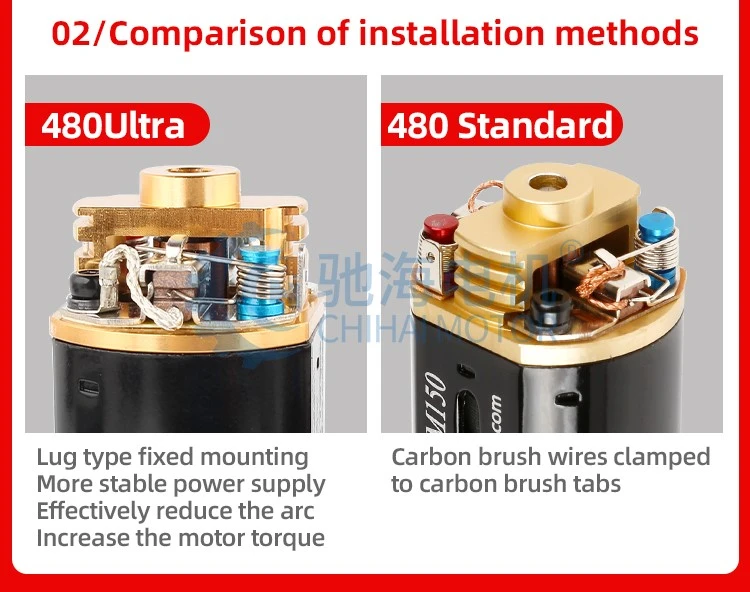

Ball bearing construction:
The front cover and bushing are processed in one piece, including two ball bearings.
CNC machined back cover with one ball bearing inside
CNC aluminum alloy front and rear covers:
CNC high-precision specifications ensure protection
The aluminum alloy shell has stronger heat dissipation, rigidity and durability.
MIM injection steel cut bevel gear:
Hardened, stable and durable for longer life.
Detailed Images
Product Paramenters
| Model:CHF-480Ultra-22TPA High performance NdFeB magnets Motor |
| Voltage:DC 11.1V CCW |
| No Ioad speed | No Ioad current | At stall torque | At stall torque |
| 25000 rpm | 2.80 A | 416.6 mN.m | 103.6 A |
| At max efficiency |
| Effi | Torque | Speed | Current | Output Powe |
| 69.98 % | 58.82 mN.m | 21471 rpm | 17.03 A | 132.3 W |
| At max output power |
| Effi | Torque | Speed | Current | Output Powe |
| 46.19 % | 208.3 mN.m | 12500 rpm | 53.2 A | 272.8 W |
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
