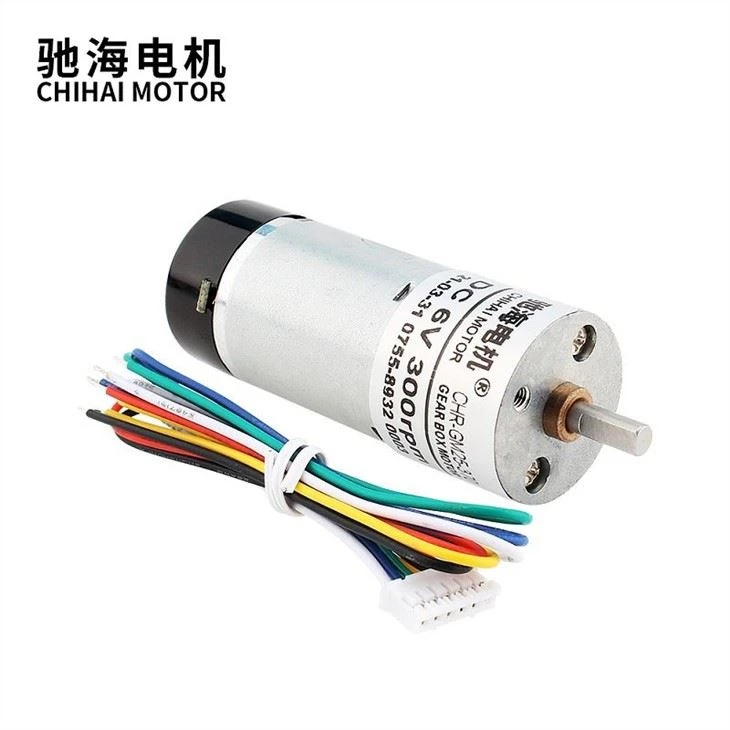

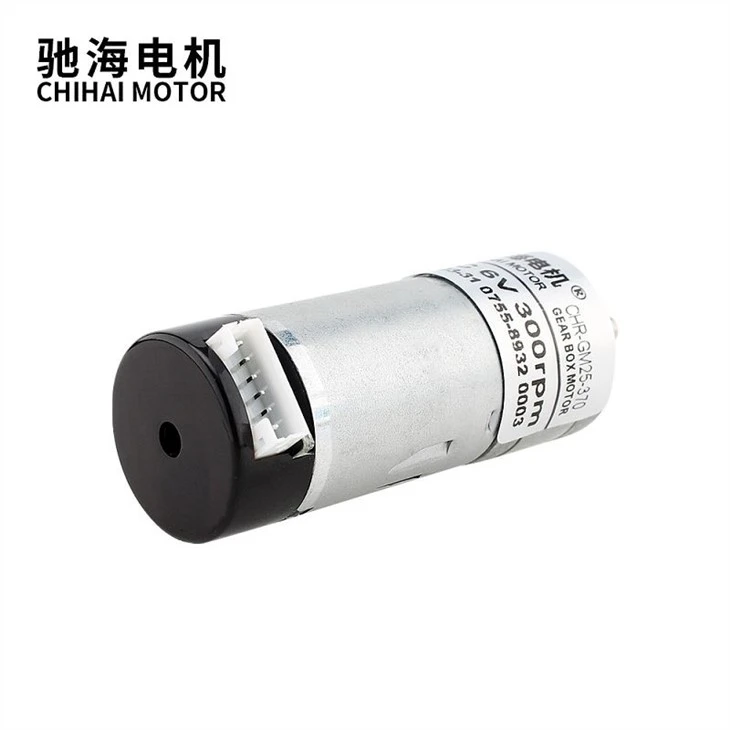

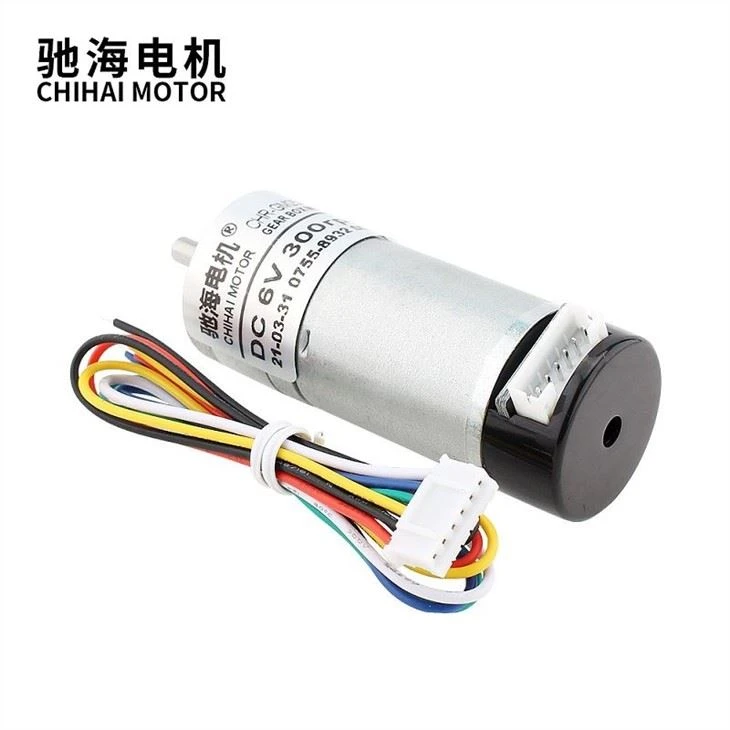

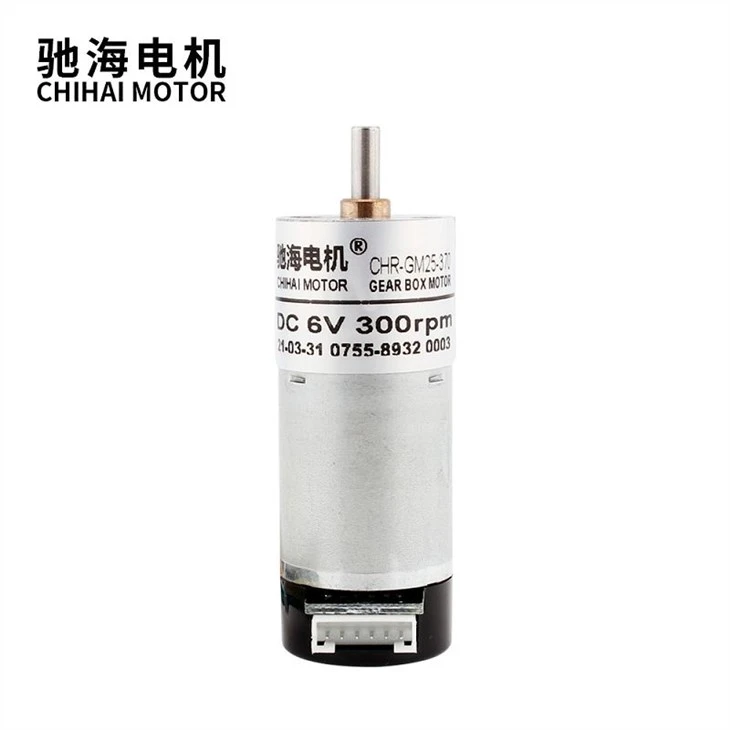

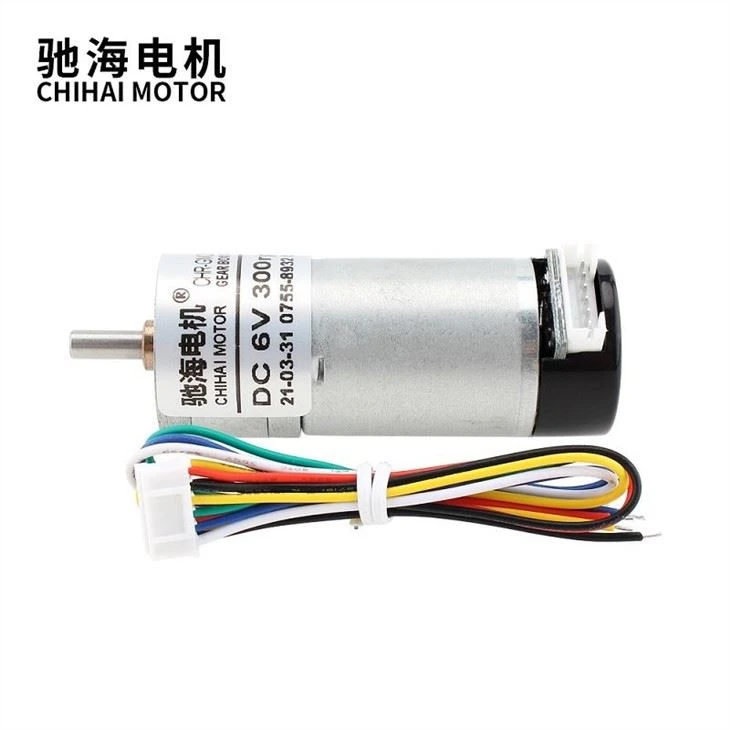

25mm Brush DC Motor Geared 370 Motor With Encoder
Voltage: DC 3-24V (Other voltages can be customized in batches)
Weight: About 95g
Wiring specification: PH2.0-6PIN terminal connector
Product Description
Product Type: | CHR-GM25-370 encoder dc gear reducer motor |

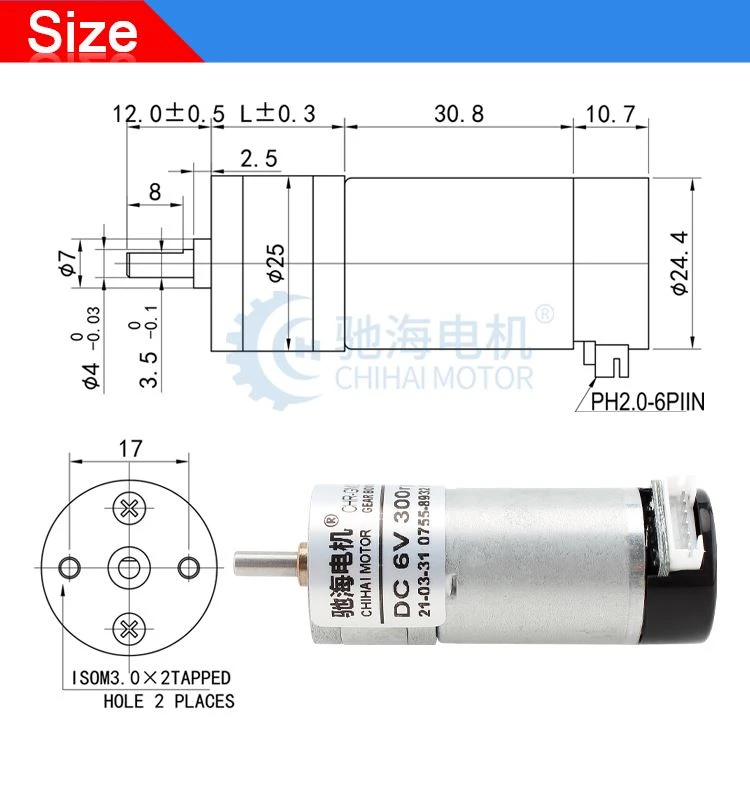

external diameter： | Φ25mm * Lmm |
Shaft length： | 12mm D 8mm |
Shaft Dianeter: | Φ5.0mm |
Voltage: | DC 3-24V (Other voltages can be customized in batches) |
Weight： | About 95g |
Wiring specification： | PH2.0-6PIN terminal connector |

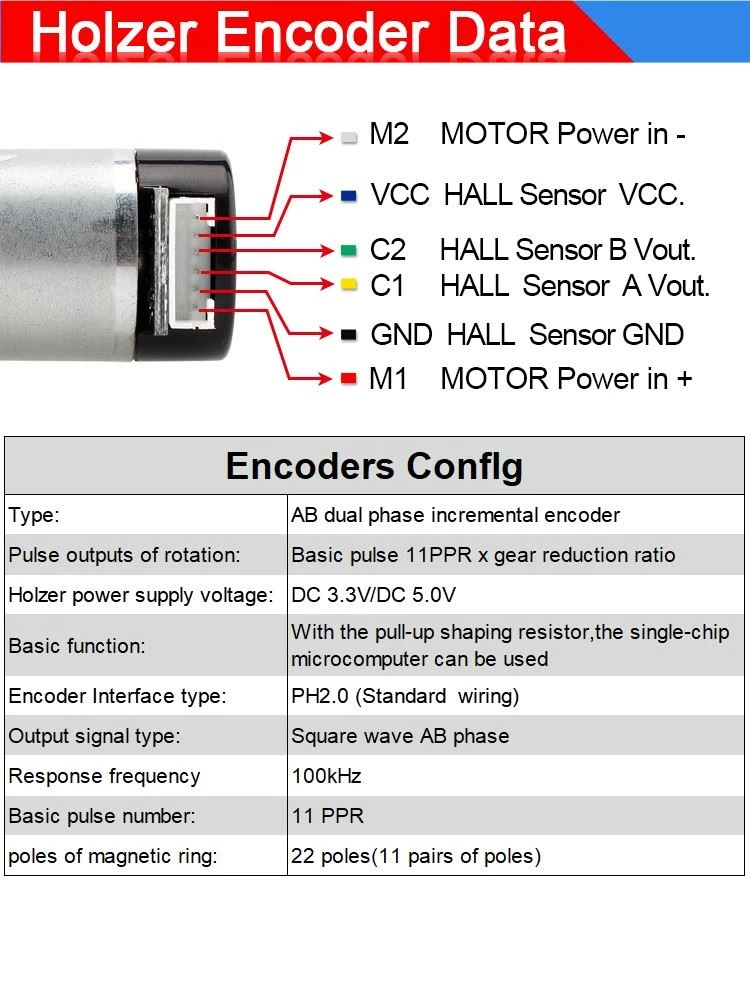

Specifications： | AB dual phase encoder 11 line basic signal voltage 3.3V or 5.0V |
It has a sturdy construction.
Low Noise
Shaft equips metal bushes for long life.

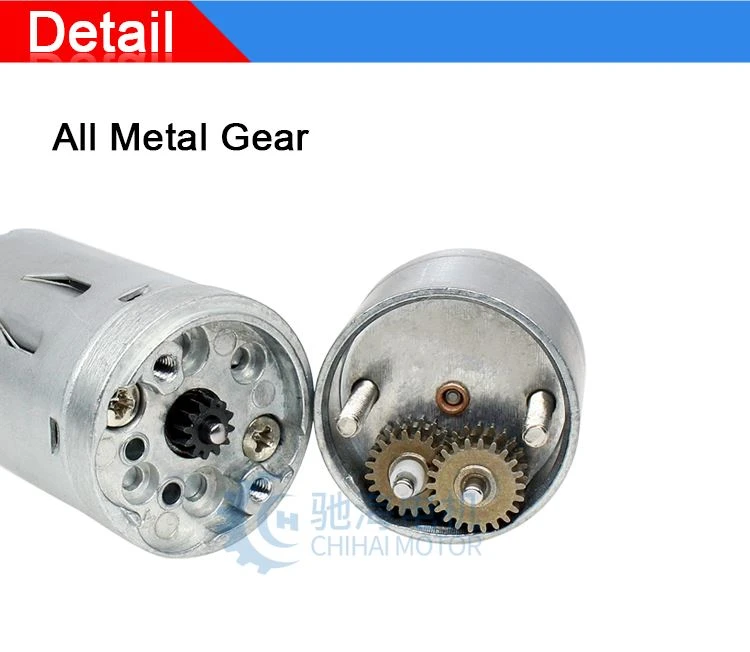

Metal Gears for High performance
It comes with High-Quality gears.
High torque at very low Current Consumptions
DC Geared motor with encoder speed measuring code plate features stable performance and high efficiency, convenient for you to use.
This brush DC motor possess stable performance,stable gear transmission,large transmission torsion and high efficiency,it is convenient for you to use.

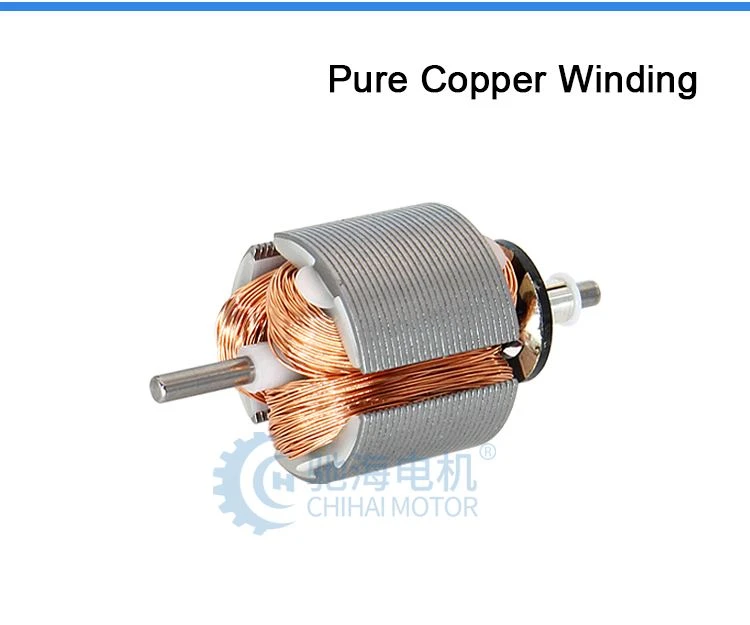

Gear motor adopts high quality copper and stainless steel material, sturdy and durable for a long service life.
Detailed Images
Product & specifications
Model: CHR-GM25-370ABHL Holzer Encoder DC Motor | ||||||||||
Reduction Ratio | 1:4.4 | 1:9.3 | 1:20 | 1:34 | 1:45 | 1:75 | 1:100 | 1:165 | 1:217 | 1:478 |
No load Current(mA) | ≤130 | ≤130 | ≤130 | ≤130 | ≤130 | ≤130 | ≤130 | ≤130 | ≤130 | ≤130 |
No load Speed(rpm) | 1350 | 630 | 300 | 175 | 130 | 80 | 60 | 35 | 27 | 12 |
Rated Torque(kg.cm) | 0.15 | 0.35 | 0.75 | 1.30 | 1.80 | 3.00 | 4.00 | 8.00 | 8.00 | 8.00 |
Rated Torque(N.m) | 0.015 | 0.035 | 0.074 | 0.13 | 0.18 | 0.3 | 0.4 | 0.8 | 0.8 | 0.8 |
Rated Speed(rpm) | 1000 | 480 | 225 | 130 | 100 | 60 | 45 | 27 | 20 | 11 |
Rated Current(A) | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
Stall Current (A) | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 |
Stall Torque(kg.cm) | 0.6 | 1.1 | 2.7 | 4.5 | 6.0 | 9.0 | Can't exceed 9.0kg.cm | |||
Hall resolution(PPR) | 48.4 | 102.04 | 224.51 | 374.11 | 493.877 | 823.13 | 1086.58 | 1810.95 | 2390.43 | 5258.92 |
Length of gearbox | 19.0 | 19.0 | 19.0 | 21.0 | 21.0 | 23.0 | 23.0 | 25.0 | 25.0 | 27.0 |
Reduction Ratio | 1:4.4 | 1:9.3 | 1:20 | 1:34 | 1:45 | 1:75 | 1:100 | 1:165 | 1:217 | 1:478 |
No load Current(mA) | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 |
No load Speed(rpm) | 1350 | 630 | 300 | 175 | 130 | 80 | 60 | 35 | 27 | 12 |
Rated Torque(kg.cm) | 0.15 | 0.35 | 0.75 | 1.30 | 1.80 | 3.00 | 4.00 | 8.00 | 8.00 | 8.00 |
Rated Torque(N.m) | 0.015 | 0.035 | 0.074 | 0.13 | 0.18 | 0.3 | 0.4 | 0.8 | 0.8 | 0.8 |
Rated Speed(rpm) | 1000 | 480 | 225 | 130 | 100 | 60 | 45 | 27 | 20 | 11 |
Rated Current(A) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 |
Stall Current (A) | ≤1.5 | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 |
Stall Torque(kg.cm) | 0.6 | 1.1 | 2.7 | 4.5 | 6.0 | 9.0 | Can't exceed 9.0kg.cm | |||
Reduction Ratio | 1:4.4 | 1:9.3 | 1:20 | 1:34 | 1:45 | 1:75 | 1:100 | 1:165 | 1:217 | 1:478 |
No load Current(mA) | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 |
No load Speed(rpm) | 1350 | 630 | 300 | 175 | 130 | 80 | 60 | 35 | 27 | 12 |
Rated Torque(kg.cm) | 0.15 | 0.35 | 0.75 | 1.30 | 1.80 | 3.00 | 4.00 | 8.00 | 8.00 | 8.00 |
Rated Torque(N.m) | 0.015 | 0.035 | 0.074 | 0.13 | 0.18 | 0.3 | 0.4 | 0.8 | 0.8 | 0.8 |
Rated Speed(rpm) | 1000 | 480 | 225 | 130 | 100 | 60 | 45 | 27 | 20 | 11 |
Rated Current(A) | ≤0.18 | ≤0.18 | ≤0.18 | ≤0.18 | ≤0.18 | ≤0.18 | ≤0.18 | ≤0.18 | ≤0.18 | ≤0.18 |
Stall Current (A) | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
Stall Torque(kg.cm) | 0.6 | 1.1 | 2.7 | 4.5 | 6.0 | 9.0 | Can't exceed 9.0kg.cm | |||

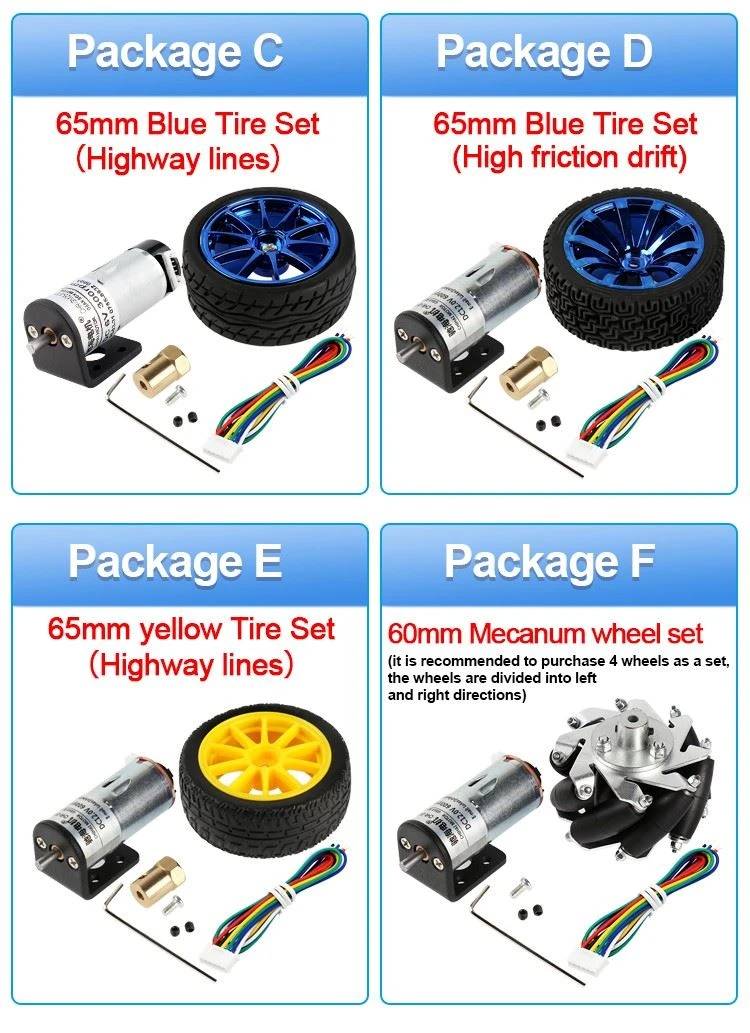

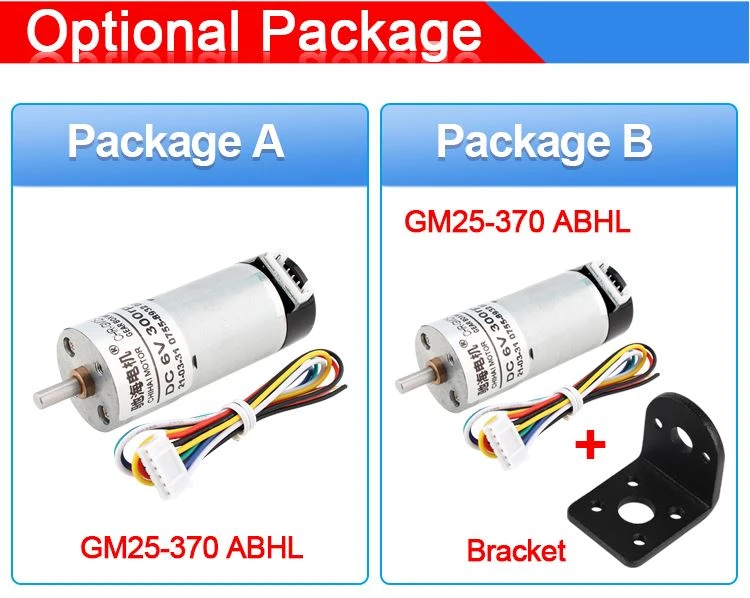

Product &display
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
