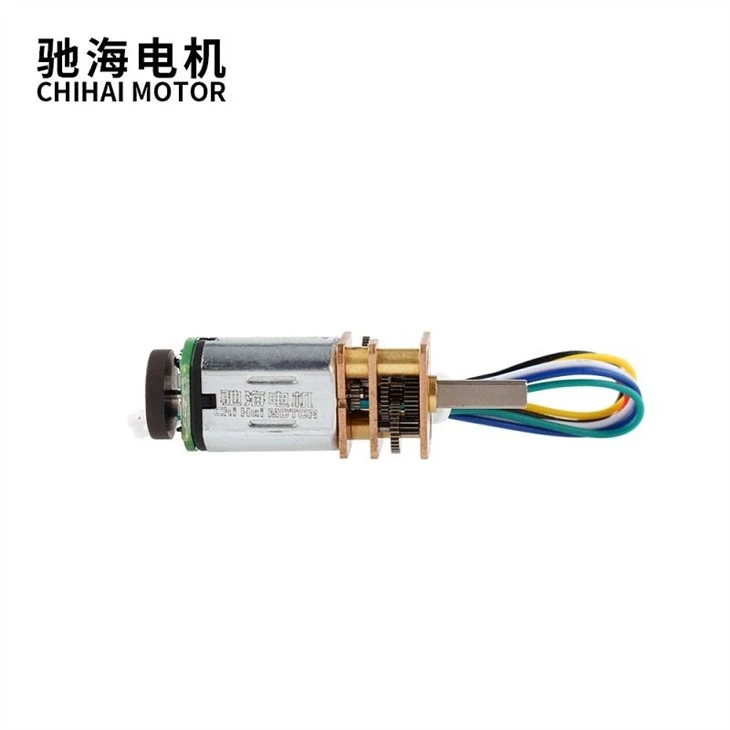

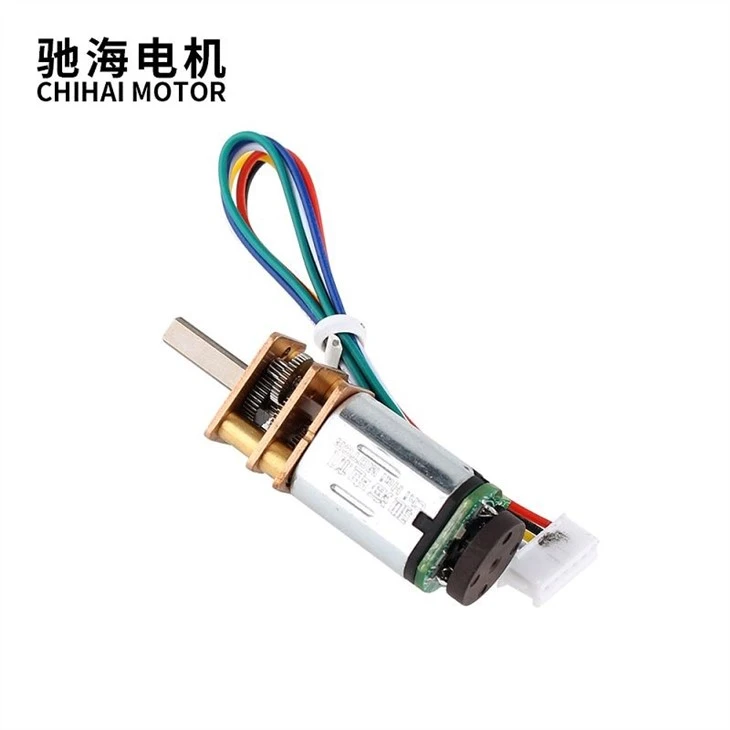

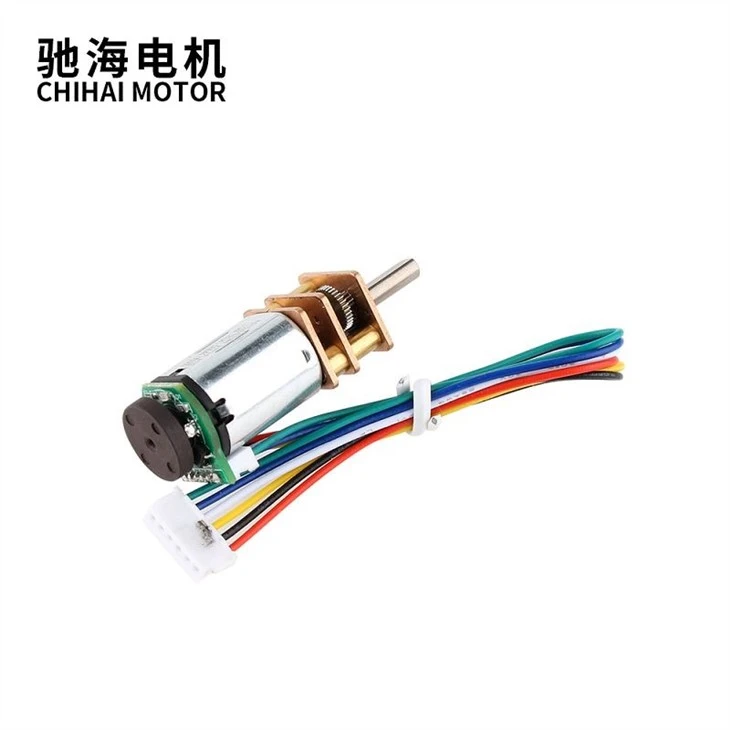

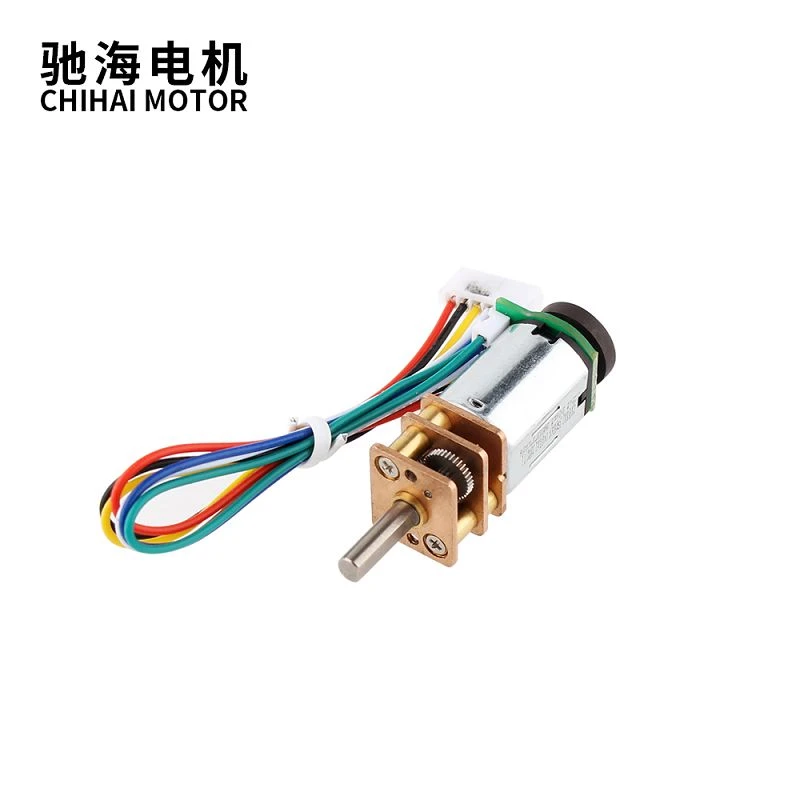

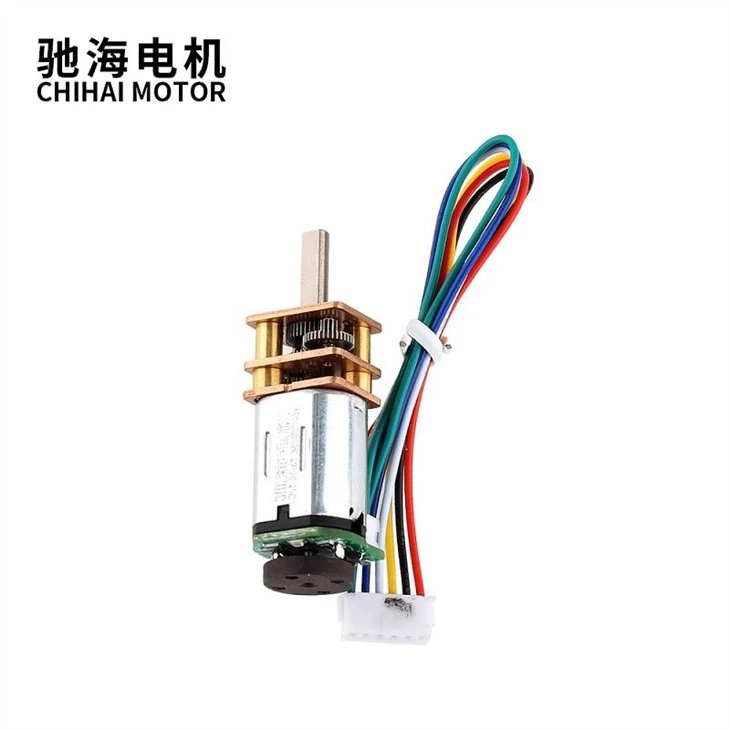

N20 Dc Gear Motor With 3PPR Encoder
Weight: about 13g

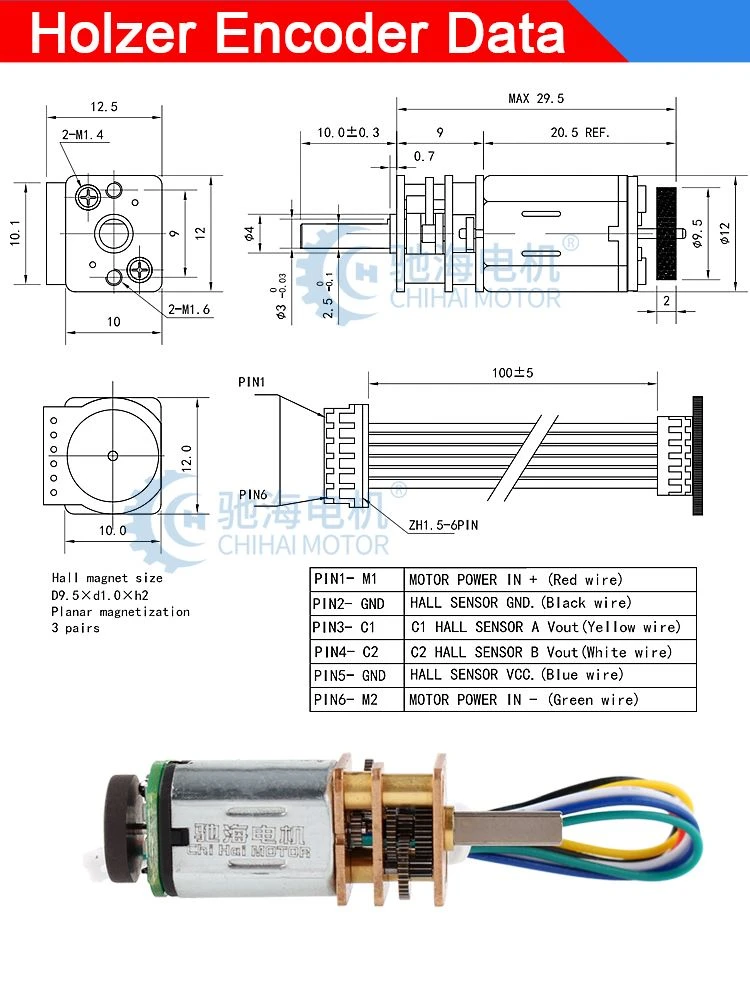

Wiring specification: ZH1.5-6PIN terminal connector

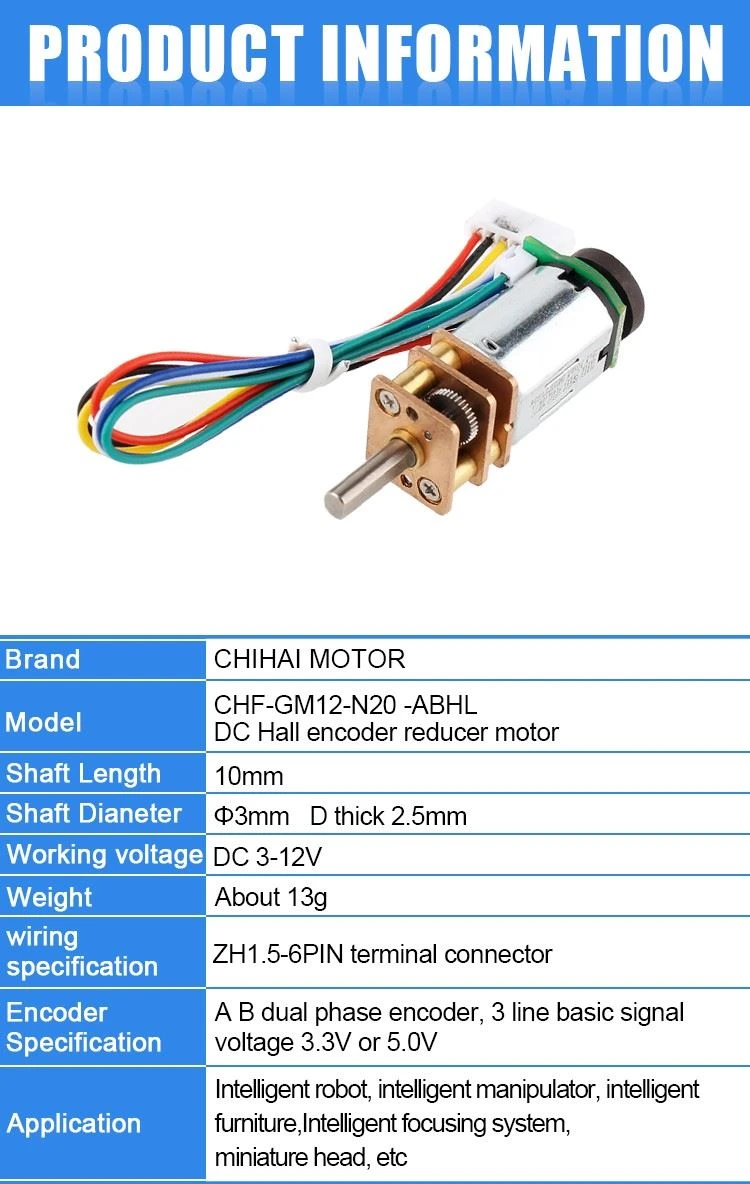

Product Description
Product Type: | CHF-GM12-N20K ABHL |

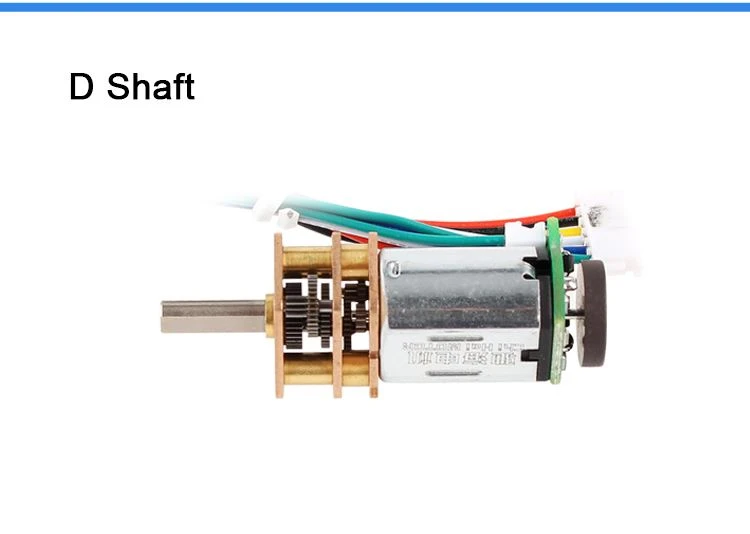

Output shaft length: | 10mm thickness of D 2.5mm |
Shaft diameter: | Φ3mm D |
Voltage range: | DC3- 12.0V |
Weight: | about 13g |
Wiring specification: | ZH1.5-6PIN terminal connector |

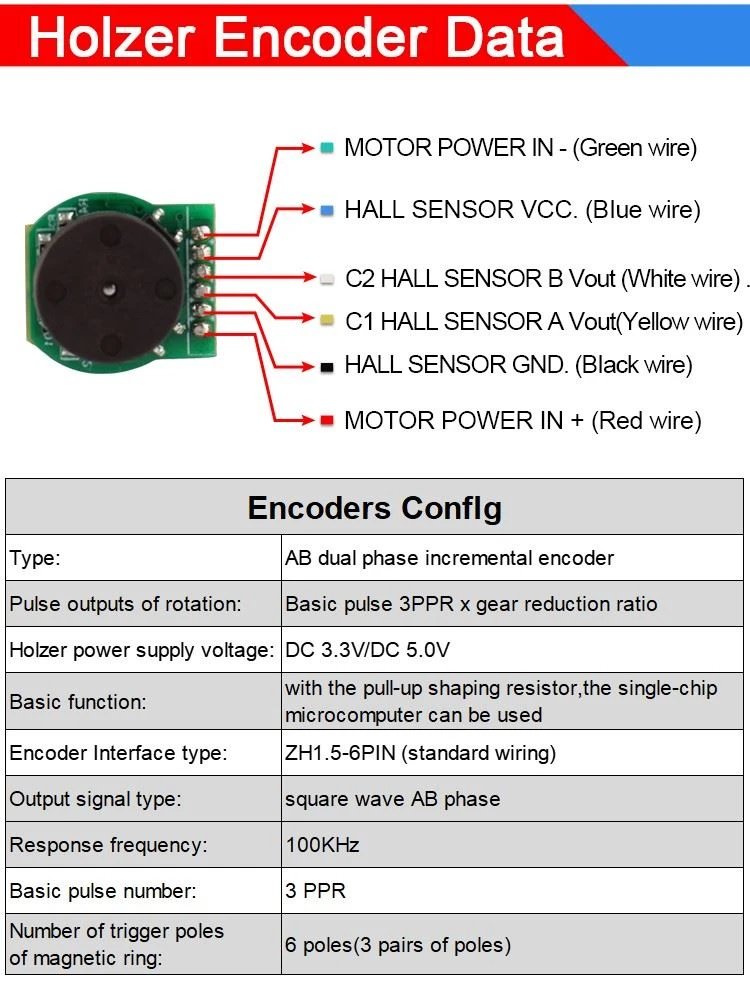

Encoder Specification: | A B dual phase encoder, 3 line basic signal voltage 3.3V or 5.0V |
Application: | Intelligent self-balancing two-wheeled vehicle, intelligent tracking car, intelligent home appliances, robots, camera rocker, |
● small diameter
● high speed
● shaft can be customed
● low noise
● can be screw thread shaft

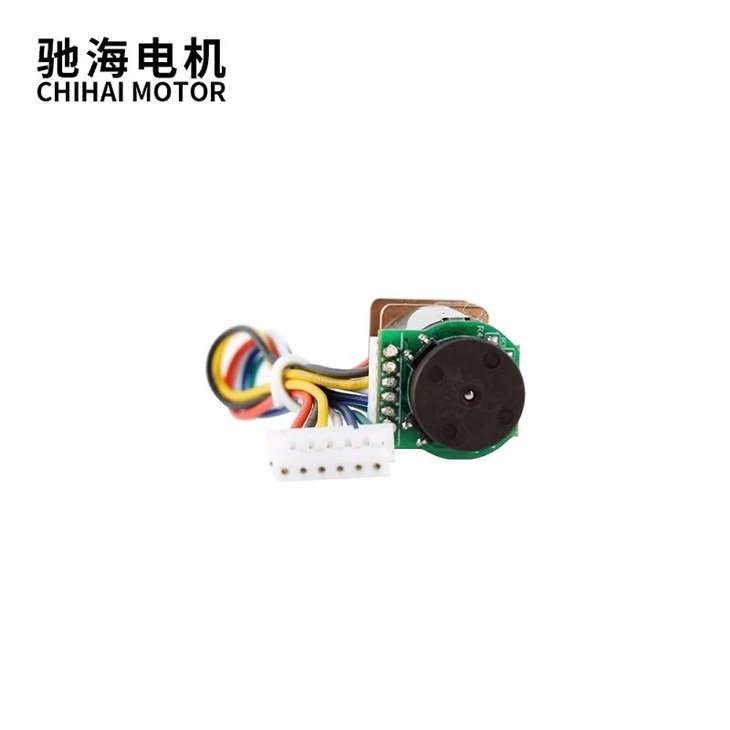

3ppr (12cpr) magnet encoder
12mm metal square gearbox
N20 precious metal brush or carbon brush motor
Dc gear motor and encoder are important mechanical control components in modern manufacturing industry, which can achieve accurate control of motor speed and precise positioning. Dc motor as a common type of motor, cost-effective, compact structure, high efficiency advantages. The encoder is an important tool to accurately control the rotation Angle and position of the motor during the operation of the motor. It can convert the rotation Angle and position information into digital signals, making the control of the motor more accurate and reliable.
Dc gear motors and encoders have a wide range of applications, from industrial automation, electronic equipment, to household appliances, etc. They can be seen. In the rapid development of intelligent manufacturing, Internet of Things, robotics and other industries, DC gear motors and encoders have become indispensable components.

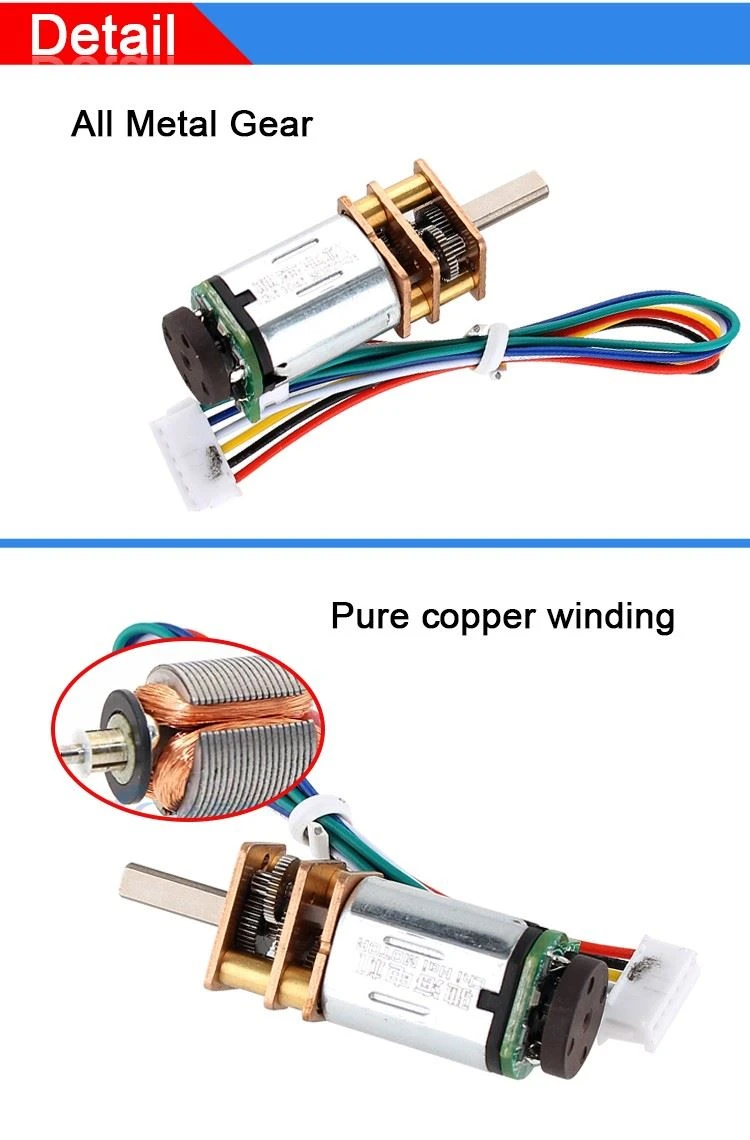

The motor uses pure copper wire winding, which can provide a more stable, smoother, more efficient transmission without energy consumption, thus making the motor run more efficient. And the copper wire can withstand the current is larger, can better play the power of the motor, can better adapt to the voltage jump.

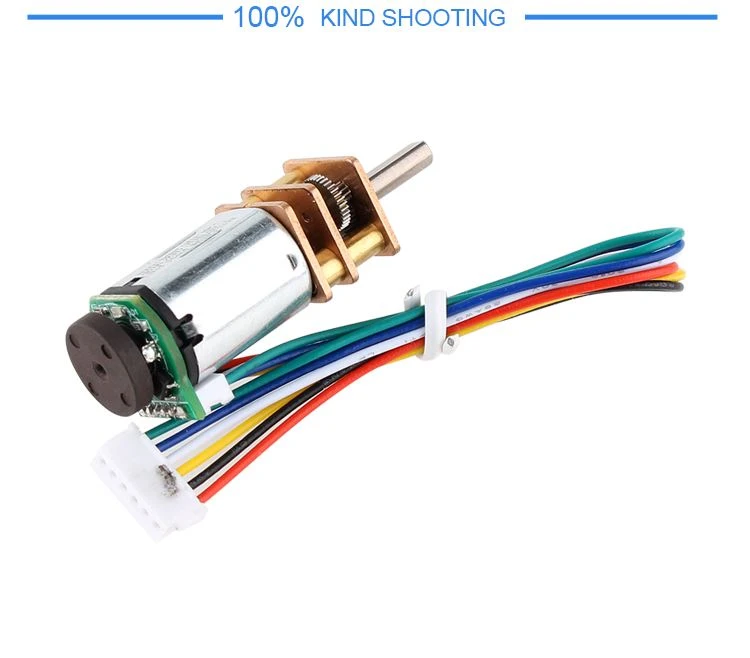

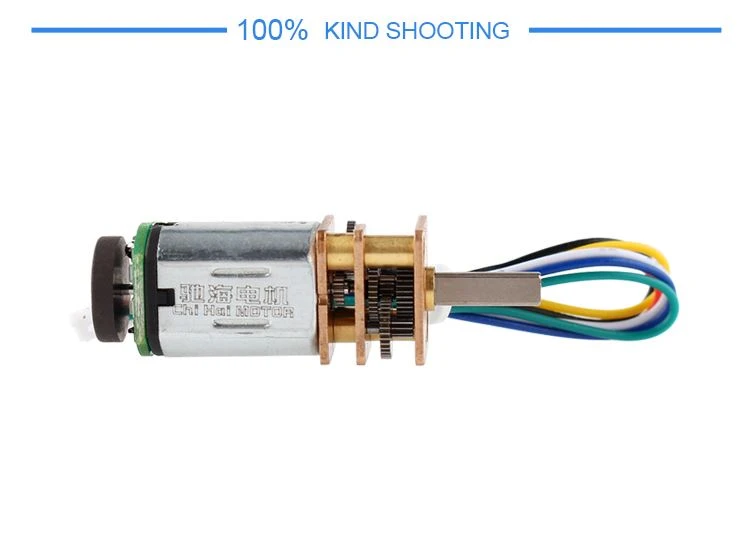

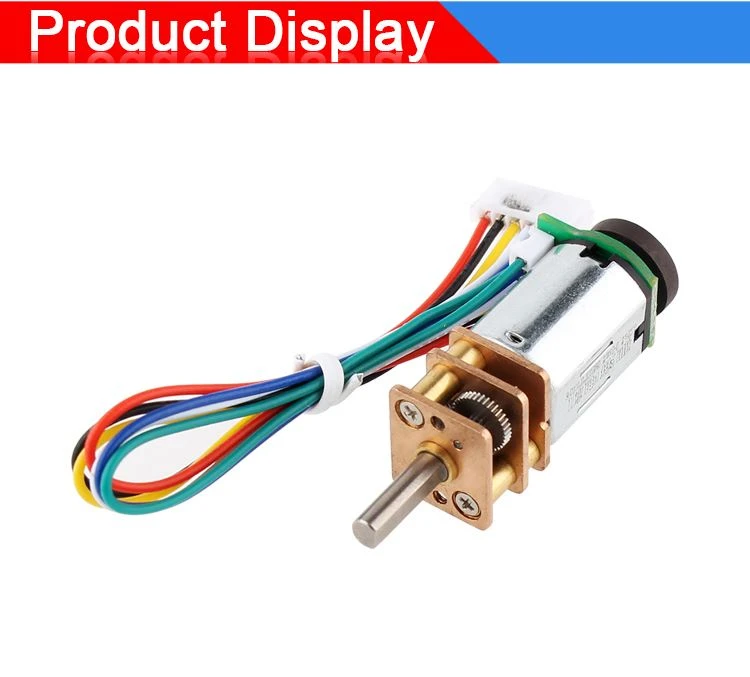

Detailed Images

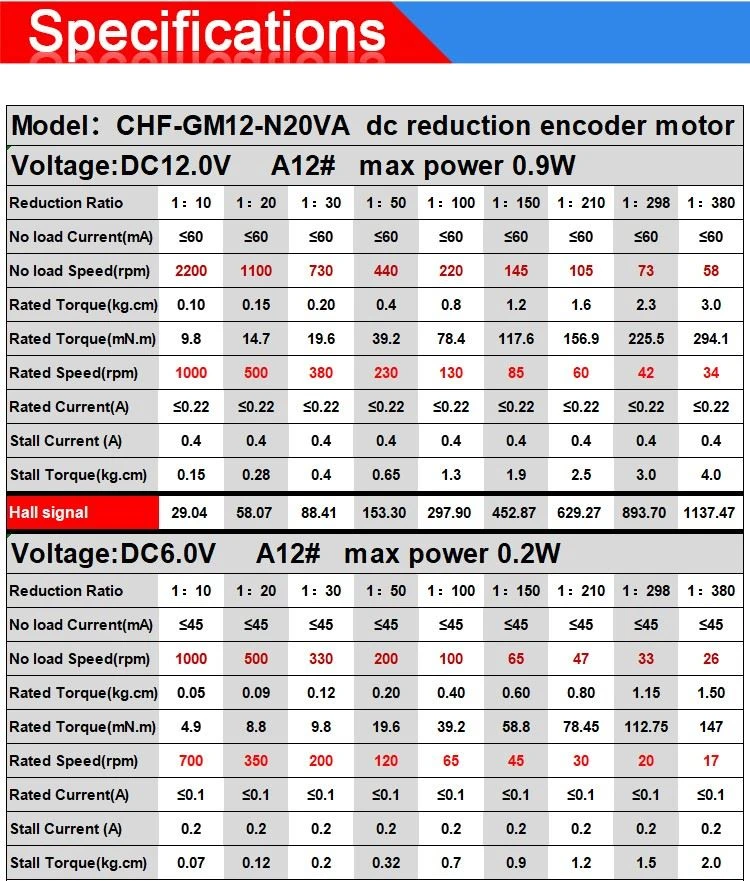

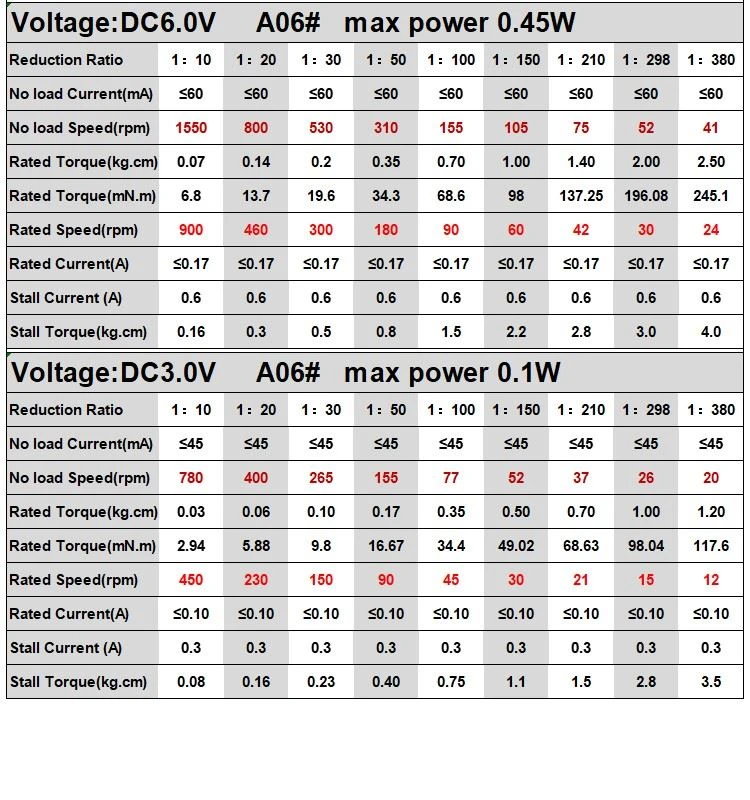

Product Paramet
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
