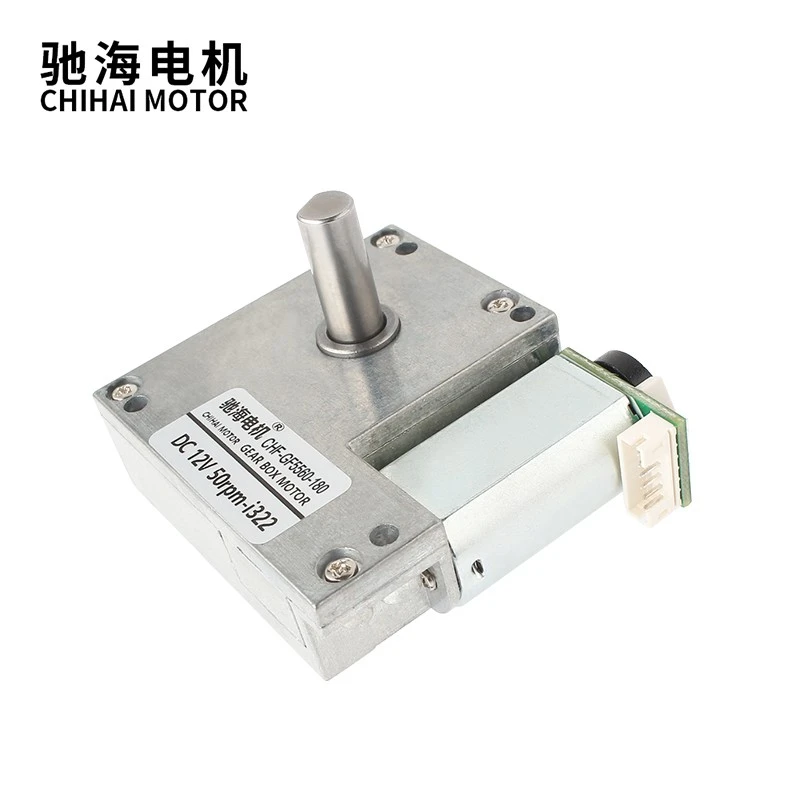

GF5560-180 Encoder Dc Gear Reducer Motor 6V 12V

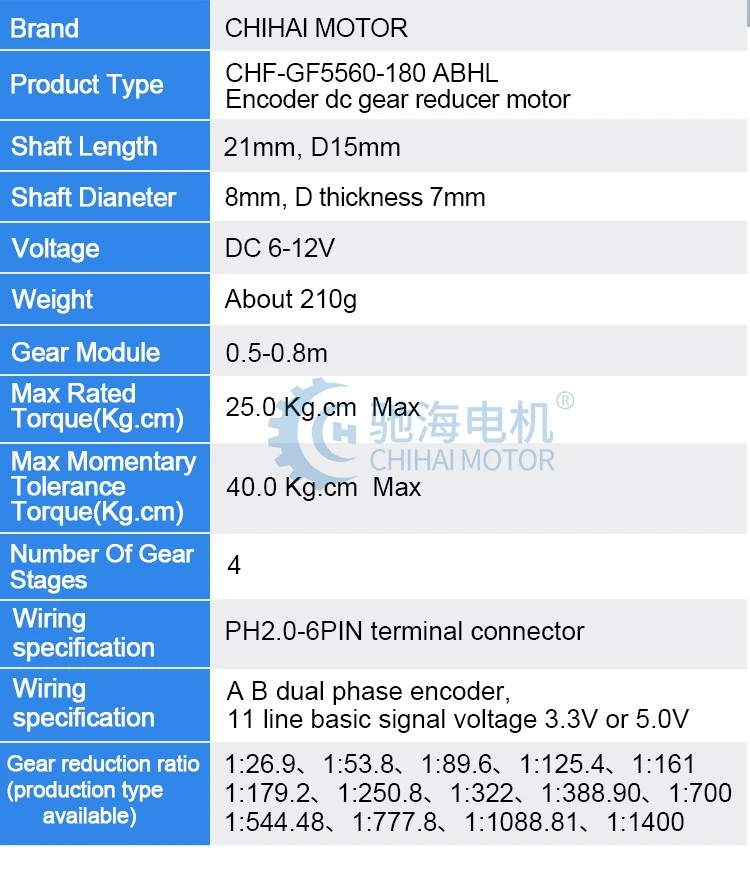

Product Description：
| Brand | CHIHAI MOTOR |
| Product Type | CHF-GF5560-180 ABHL Encoder dc gear reducer motor |
| Shaft Length | 21mm, D15mm |
| Shaft Dianeter | 8mm, D thickness 7mm |
| Voltage | DC 6-12V |
| Weight | About 210g |
| Gear Module | 0.5-0.8m |
| Max Rated Torque(Kg.cm) | 25.0 Kg.cm Max |
| Max Momentary Tolerance Torque(Kg.cm) | 40.0 Kg.cm Max |
| Number Of Gear Stages | 4 |
| Wiring specification | PH2.0-6PIN terminal connector |
| Wiring specification | A B dual phase encoder, 11 line basic signal voltage 3.3V or 5.0V |
| Gear reduction ratio (production type available) | 1:26.9,1:53.8,1:89.6,1:125.4,1:161 1:179.2,1:250.8,1:322,1:388.90,1:700 1:544.48,1:777.8,1:1088.81,1:1400 |

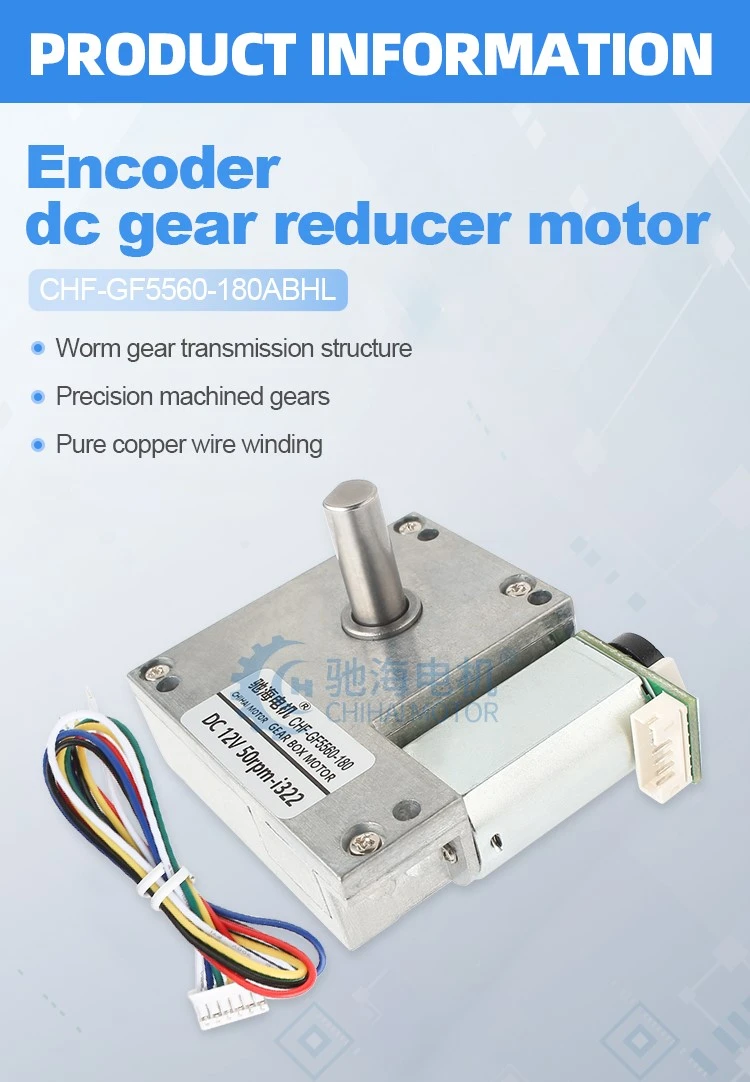

Worm gear transmission structure：
Copper worm with POM material worm wheel, Effectively reduce noise; Improve abrasion resistance, long service life Strong composite ability; strong self-locking ability.
Precision machined gears：
The transmission gears in the stress stage are manufactured by machining, Enhancing affordability Wear resistant type, Ensure load capacity under high torque.
Pure copper wire winding：
Narrow slot high torque rotor full balance correction

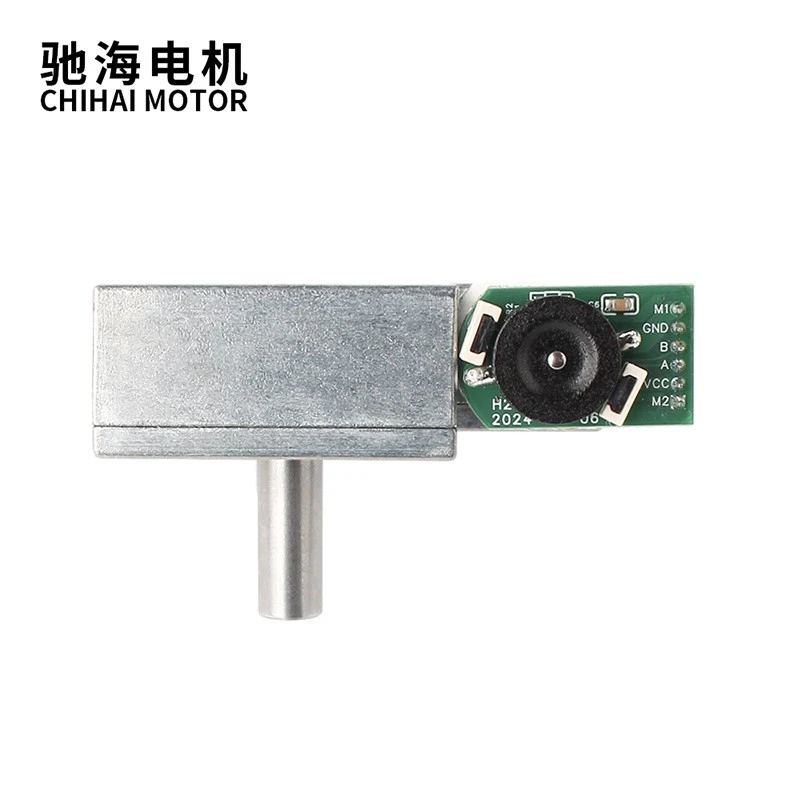

AB dual phase incremental encoder：
More convenient installation, not easy to slip to Save installation time

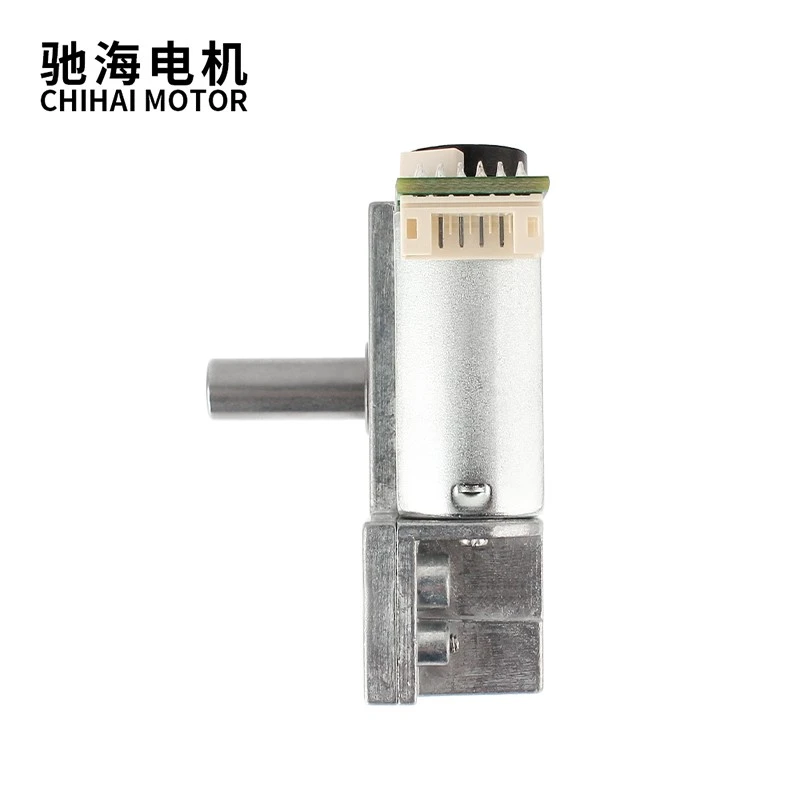

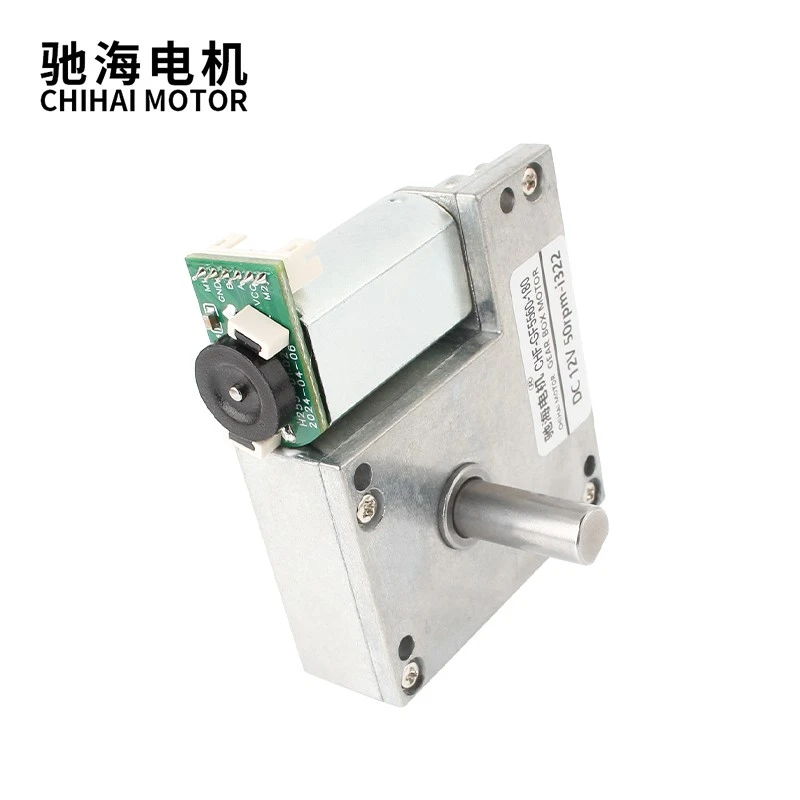

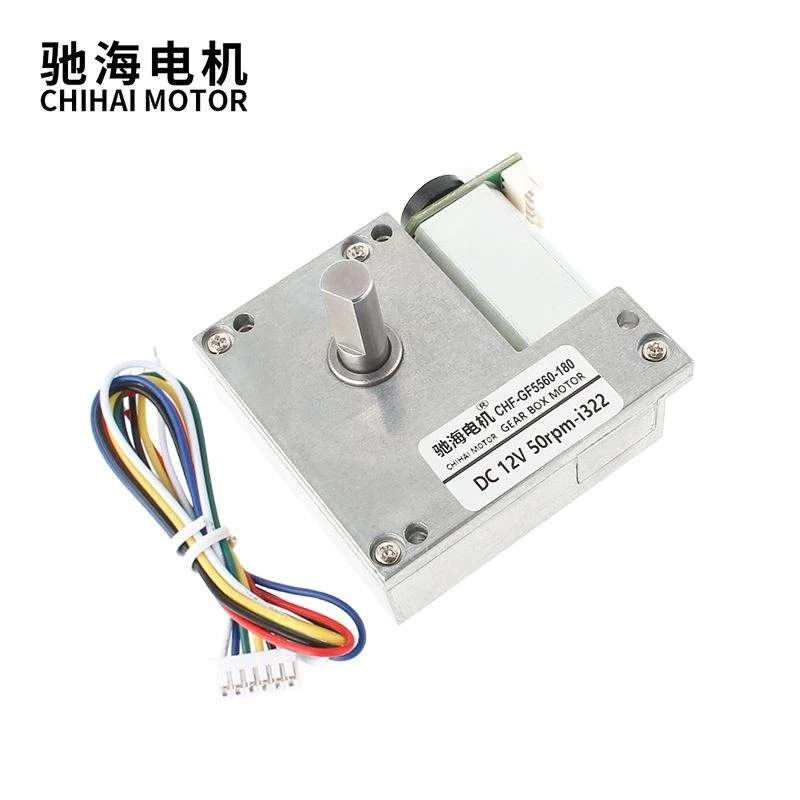

Detailed Images：
