High Torque Dual Shaft DC Worm Gear Motor Self Locking
(can be customized for bidirectional output shaft) Shaft diameter: 8mm
Voltage range: DC1.5- 24.0V
Product Description

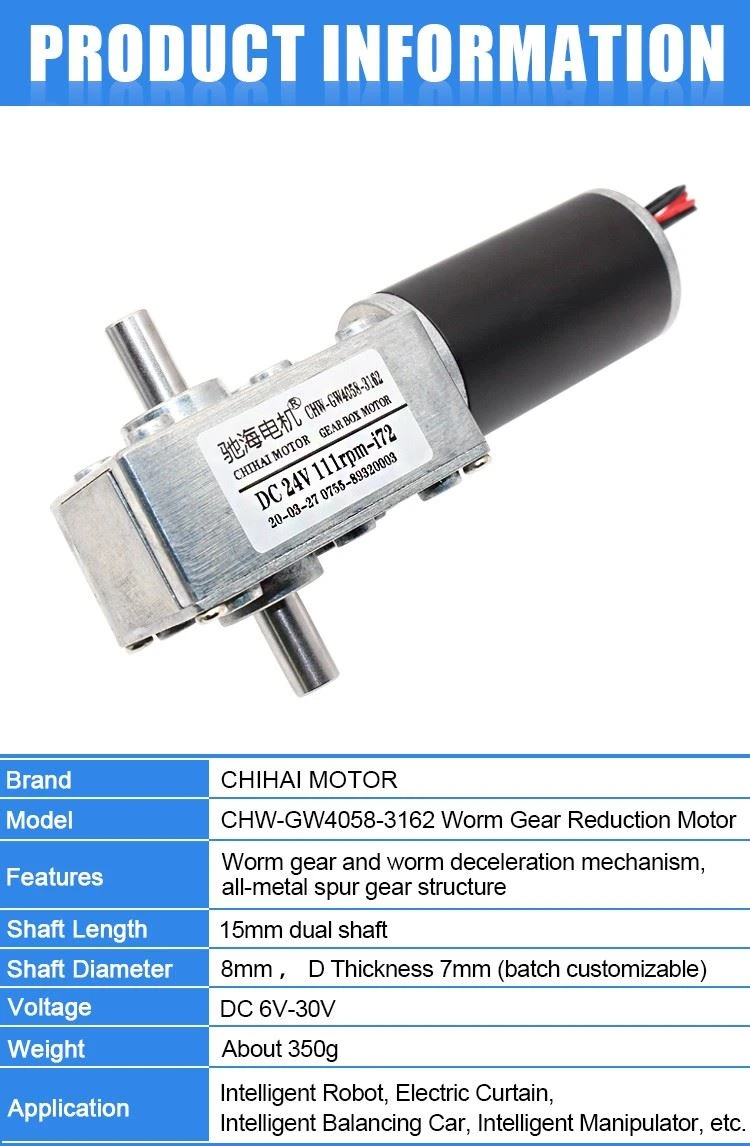

Product Type: | CHW-GW4058-31ZY DC Worm Gear Motor with dual shaft12V 24V Self Locking |
Output shaft length: | 45mm |
Shaft length: | 15mm dual shaft |
Shaft diameter: | 8mm |
Voltage range: | DC1.5- 24.0V |
Application: | Intelligent self-balancing dual-wheel car, intelligent tracking car, intelligent appliances, robot, camera rocker arm, electric paper cutter, etc |
Weight: | about 350g |
Description:
● This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive andnegative be changed. It is also have addition two characteristics:
● With self-locking, the output shaft can not rotation when switch off, that is self-locking.
● Gearbox output shaft and motor shaft are come to be a rectangle, it is widely used in various of occasions that require special installation size.
Application:
● Boat, Car, Electric Bicycle, Fan, Home Appliance, BBQ, Machinery and equipment, automation instruments, electric curtain, stage lighting, counter, faucet, safe, wet towel dispenser, vending machines, automatic monitoring and other modern art.

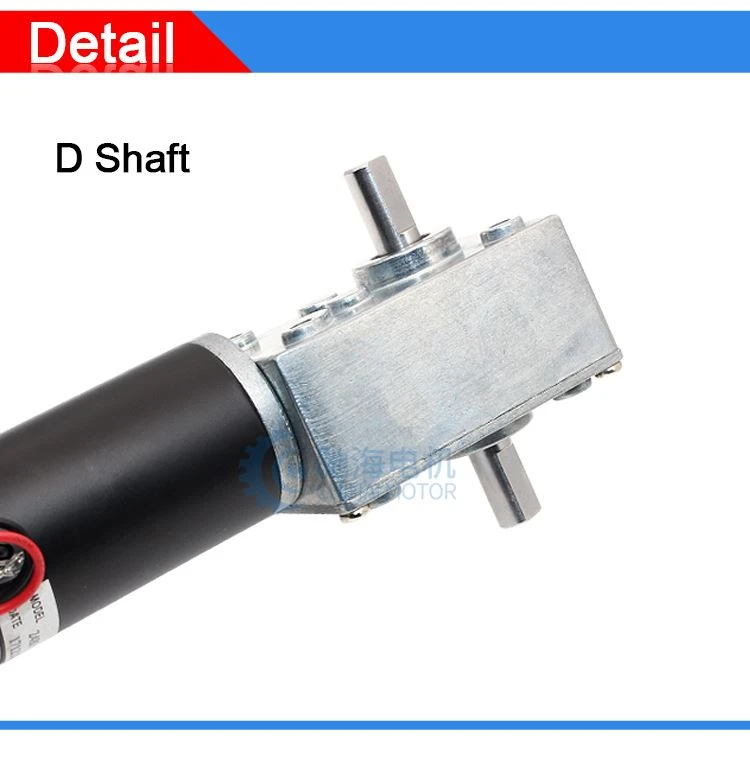

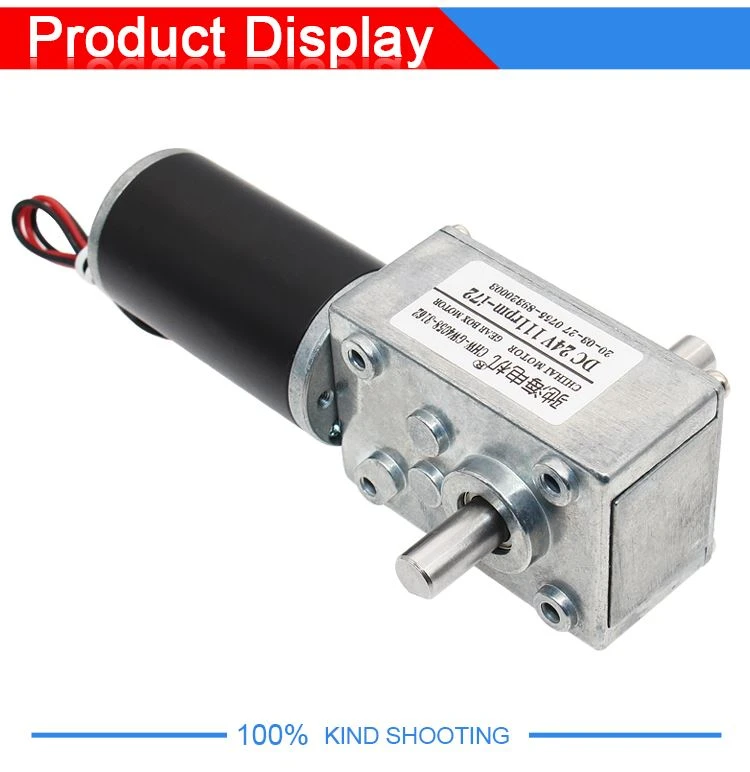

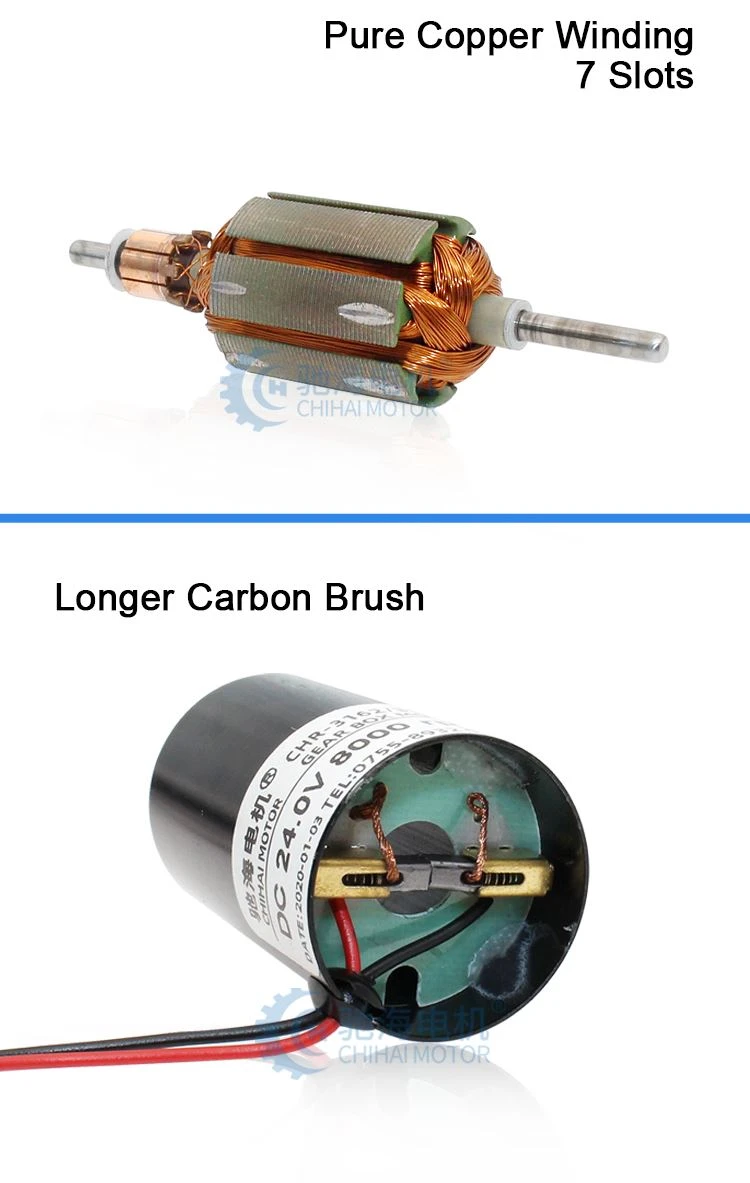

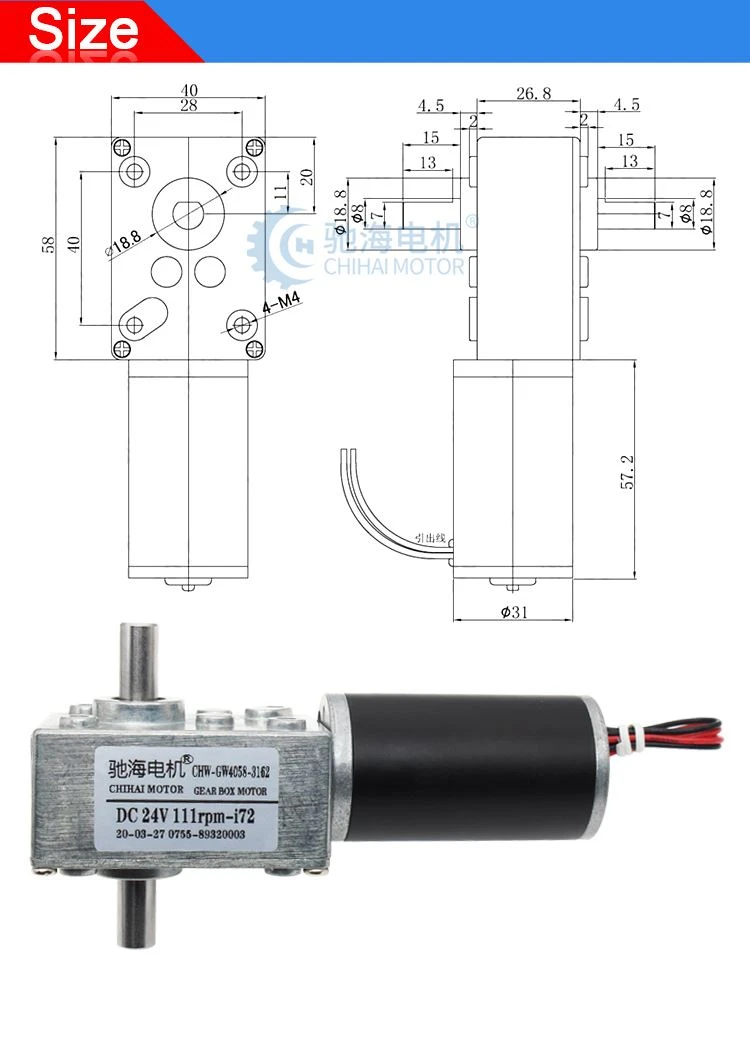

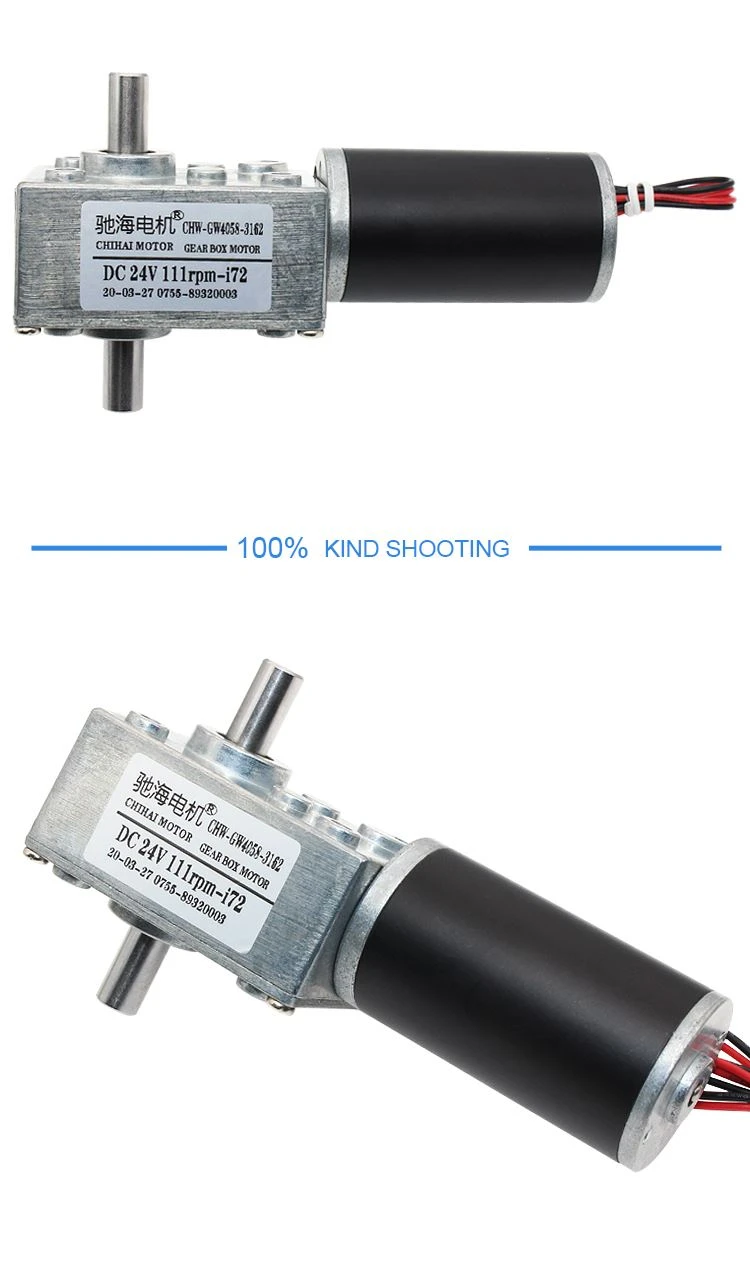

Detailed Images

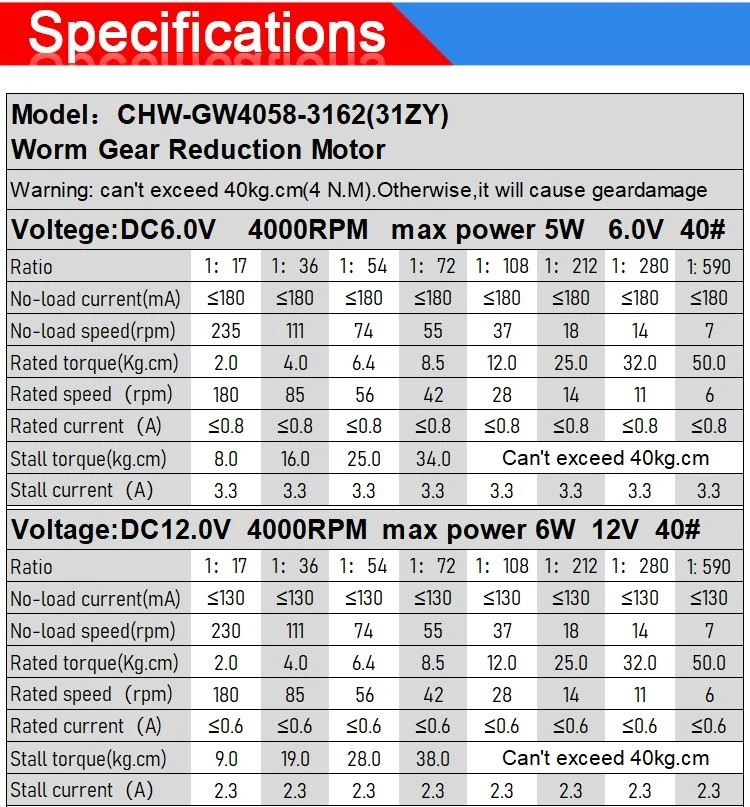

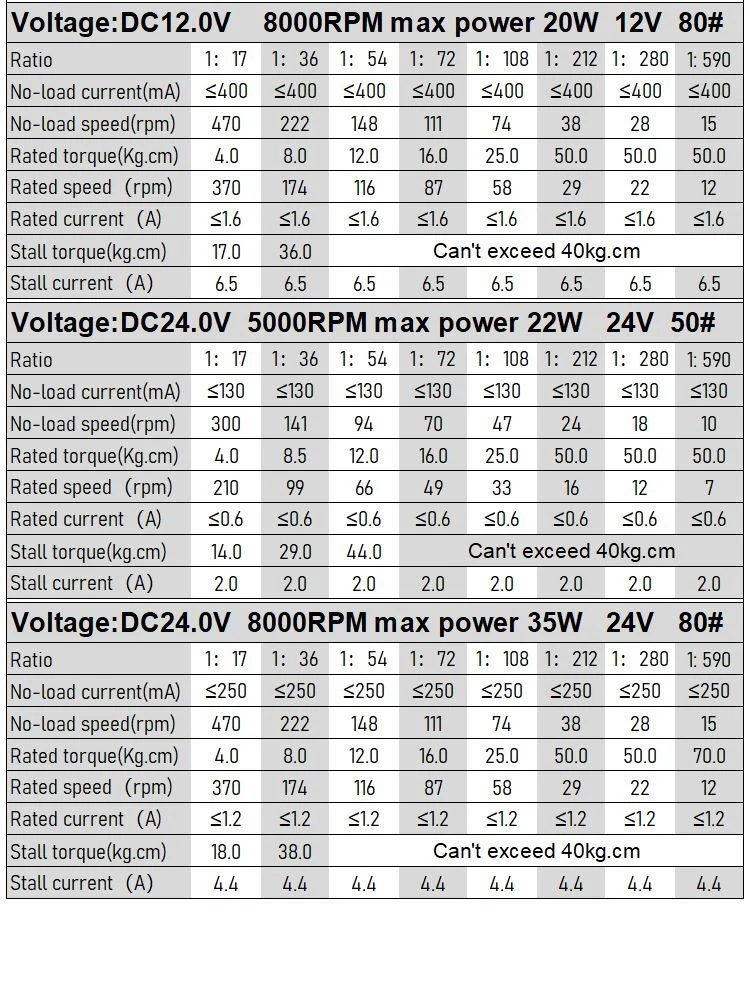

Product Paramet
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
