555 Size 6V 12V 24V DC Motor With Encoder
Voltage: DC 6-24V
Weight: About 230g
Product Description

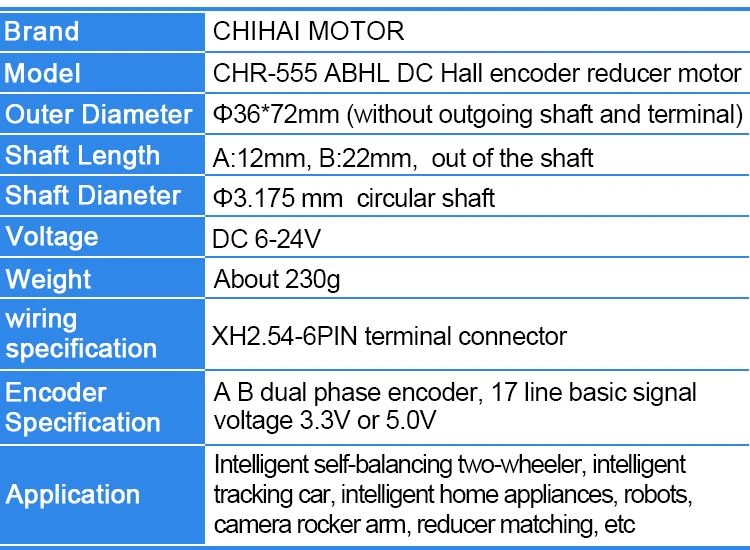

Product Type: | CHR-555 ABHL DC Hall encoder reducer motor |
external diameter： | Φ36*72mm (without outgoing shaft and terminal) |

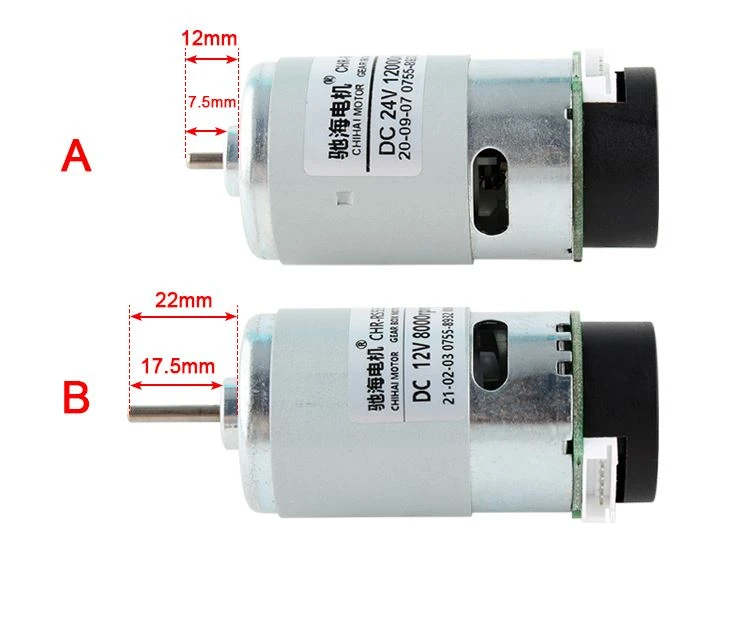

Shaft length： | A:12mm, B:22mm, out of the shaft |
Shaft Dianeter： | Φ3.175 mm circular shaft |
Voltage: | DC 6-24V |
Weight： | About 230g |
wiring specification： | A B dual phase encoder, 17 line basic signal voltage 3.3V or 5.0V |

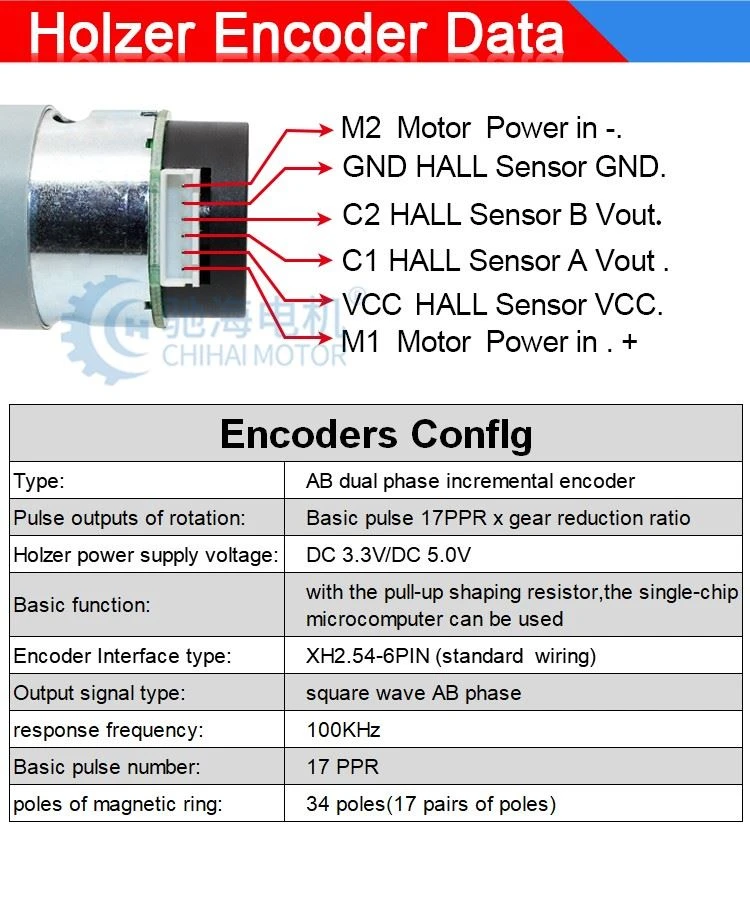

encoder Specification： | A B dual phase encoder, 17 line basic signal voltage 3.3V or 5.0V |
Application： | Intelligent self-balancing two-wheeler, intelligent tracking car, intelligent home appliances, robots, camera rocker arm, reducer matching, etc |

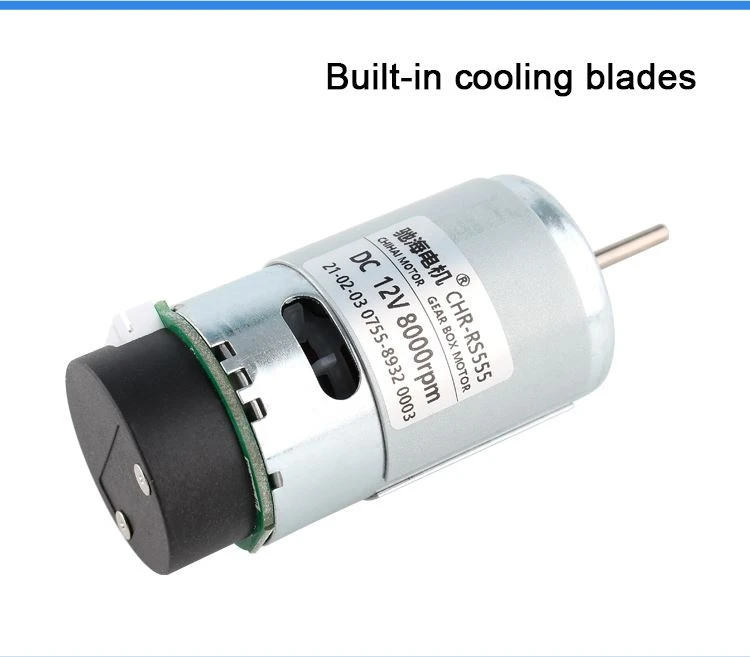

1.Cooling blade inside, Balanced heat dissipation and stable power
2.Hall sensor, 2 channels encoder, 17 PPR
3.Big torque, long lifetime more than 1000 Hours
4.36D DC brush motor with encoder, High speed, big torque.
5.Application: Intelligent self-balancing two-wheeler, intelligent tracking car, intelligent home appliances, robots, camera rocker arm, reducer matching, etc
Detailed Images

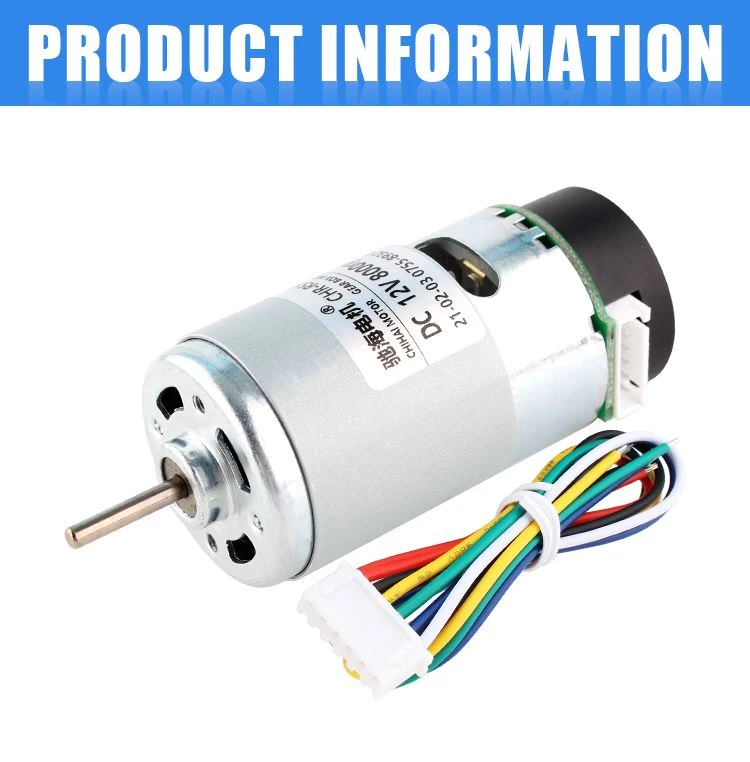

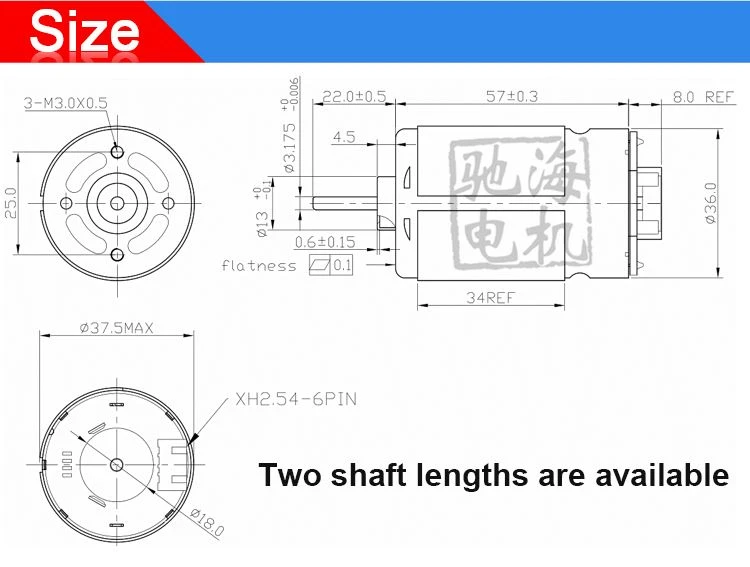

Product & specifications

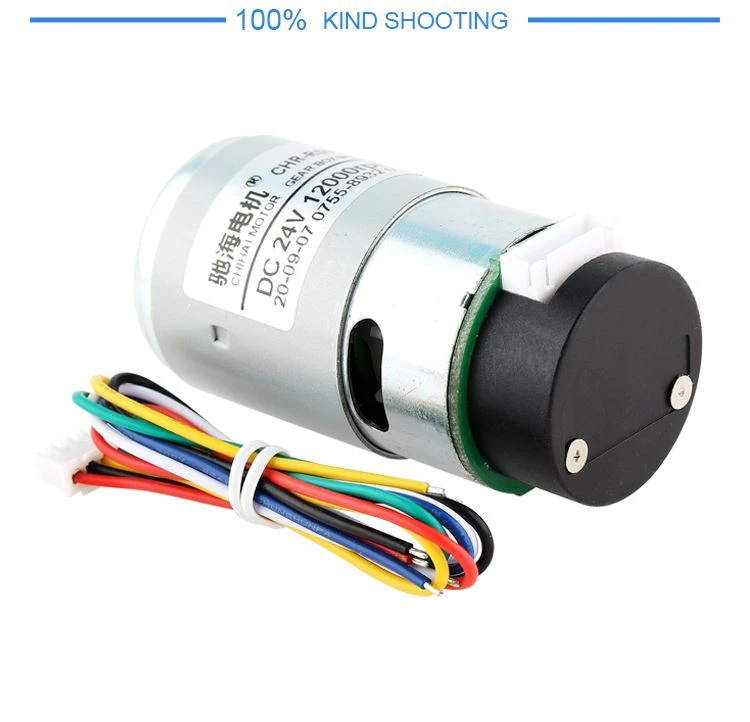

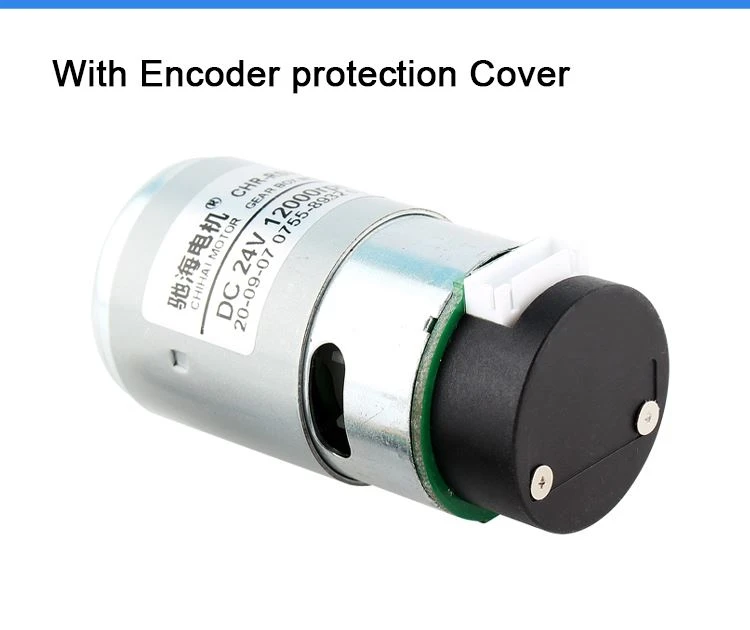

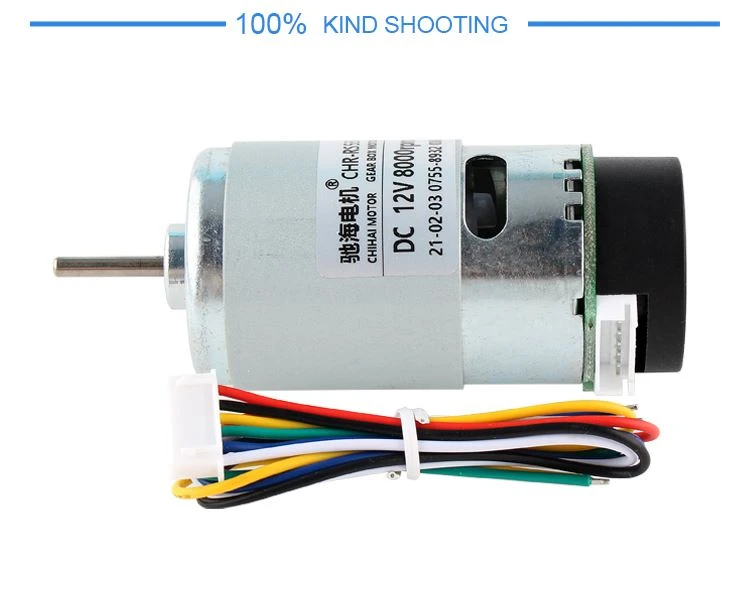

Product &display
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
