DC 12V 24V Long Life 3429 Motor
Wiring specification:length of red and black wire 9.5cm
Terminal specification:SM2P-2.54 pitch
Product Description
Product Type: | CHR-3429K Ball bearing DC motor |
external diameter： | 3.0 mm circular shaft |
Shaft length： | 12.5mm one-way outlet shaft |
Voltage: | DC 3.0-24V |
Weight： | about 95g |

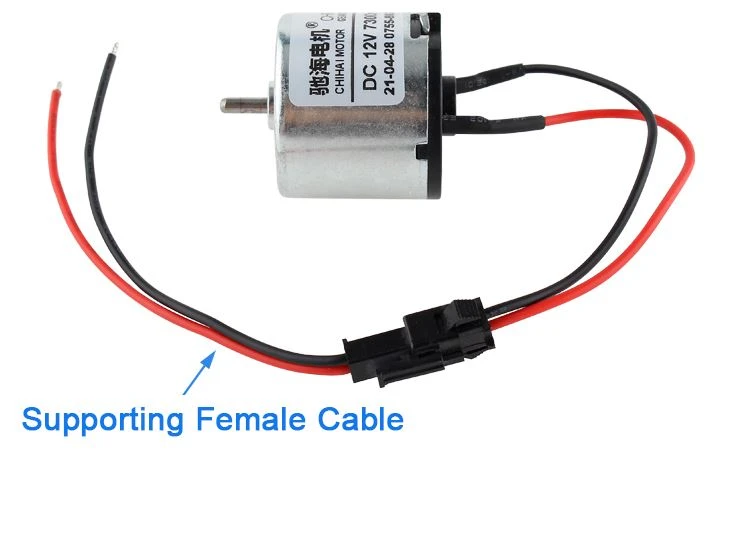

Wiring specification： | length of red and black wire 9.5cm |
Terminal specification： | SM2P-2.54 pitch |
Application: Power Tools, Car, Household Appliances, Industrial, Universal
Operating Speed: 3600-7300RPM
Function: Control
Casing Protection: Closed Type
Number of Poles: 2

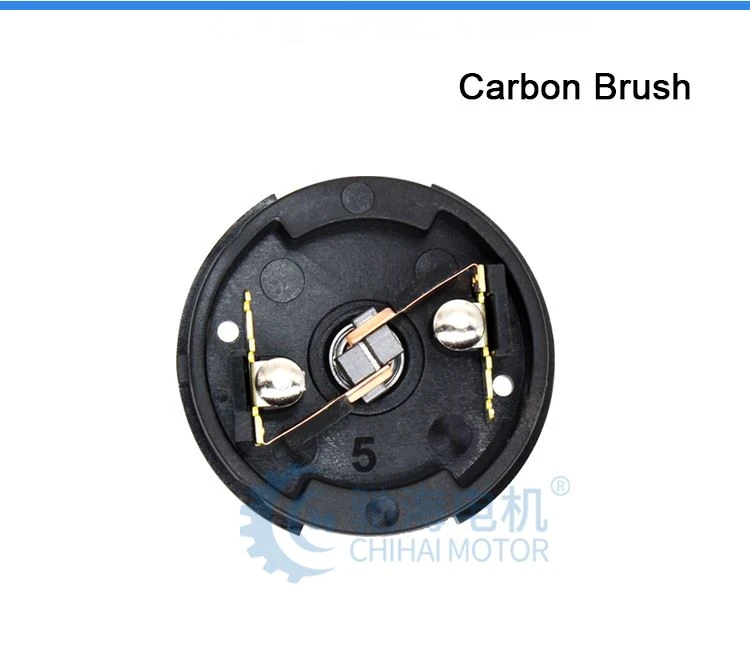

Structure and Working Principle: Brush
Detailed Images

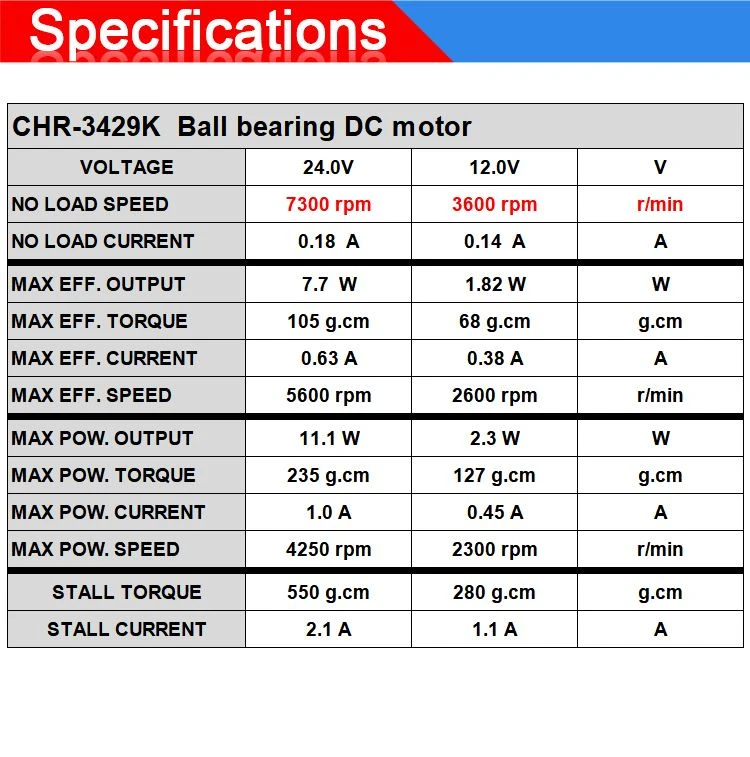

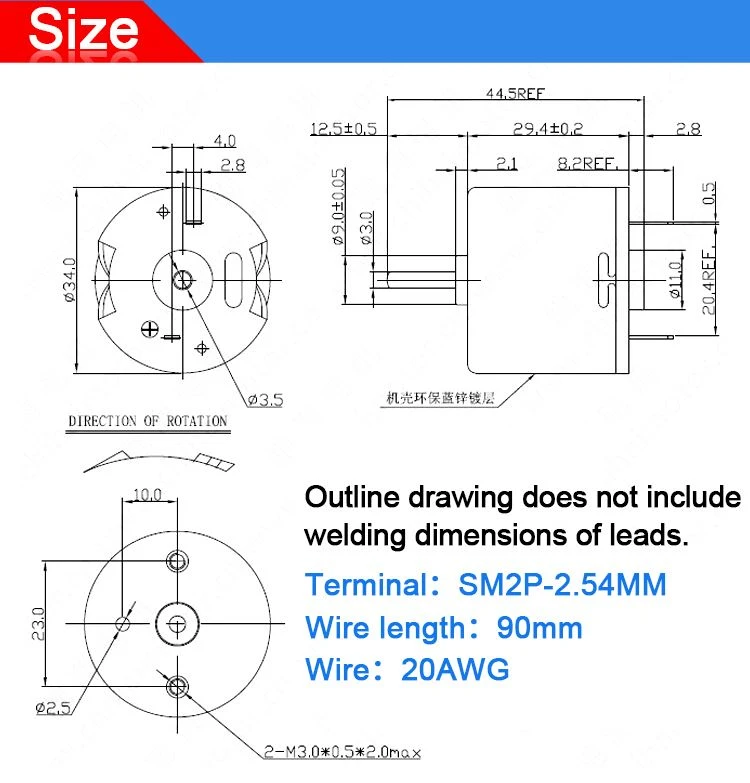

Product & specifications
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
