Dc Gear Reducer Encoder Motor
Product Description
| Product Type |
CHR-GM25-BK370-ABHL dc gear reducer encoder motor |
| Motor diameter | Φ25mm |

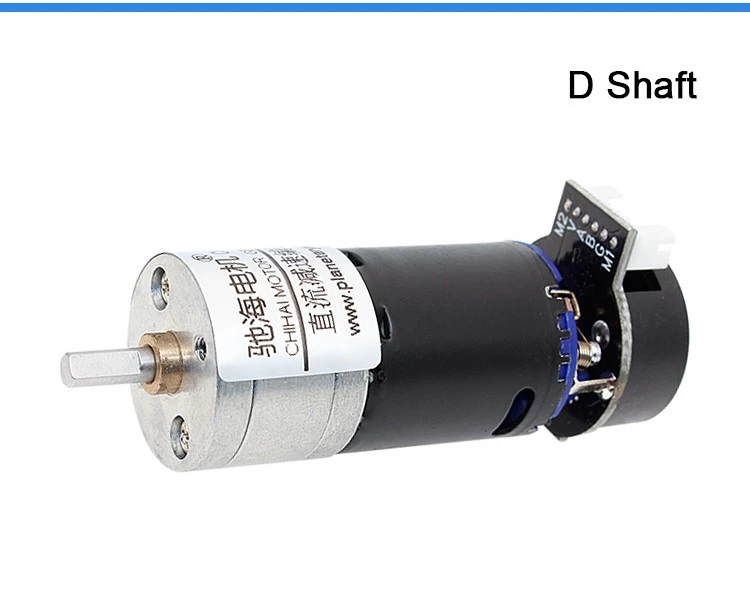

| Shaft length | 12mm D 8mm |
| Voltage | DC 1.5-12V (customized in batches) |
| Weight | About 97g |
| Wiring specification | PH2.0 (Standard wiring) |

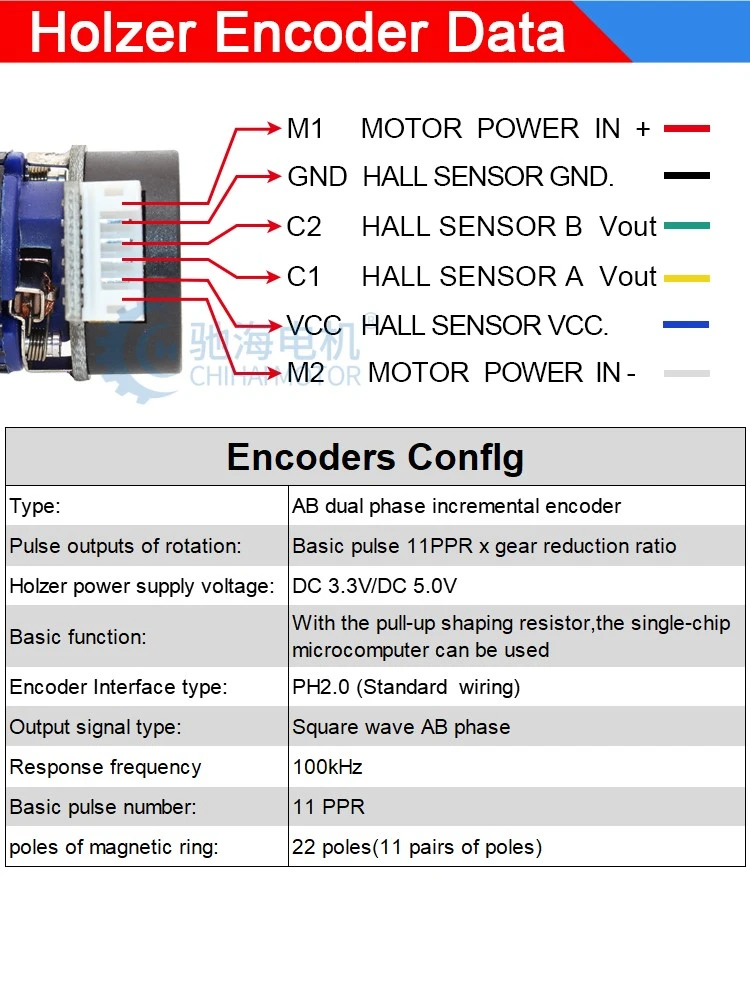

| Encoder specifications |
AB dual phase encoder 11 line basic signal voltage 3.3V or 5.0V |
| Application |
Intelligent self-balancing two-wheeled car, intelligent home appliances,Robot, camera rocker arm, electric paper cutter, etc |
DC encoder motor is a widely used device for motor control systems with various advantages and features. It can operate in a variety of environments such as low temperature, high temperature, humid or dusty environments. The efficient, accurate and stable operation characteristics of this type of motor make it suitable for numerous applications such as automation equipment, industrial robots, medical devices and many more.
The DC encoder motors have a very high control accuracy, allowing for very complex motion control tasks such as position, speed and acceleration control, making them ideal for applications that require high precision motion. In addition, it also features short start-up time, quick response and stable operation, which allows for long and stable operation, greatly improving productivity and product quality.
The DC encoder motor also features small size, light weight and simple structure, making it easy to install and maintain.

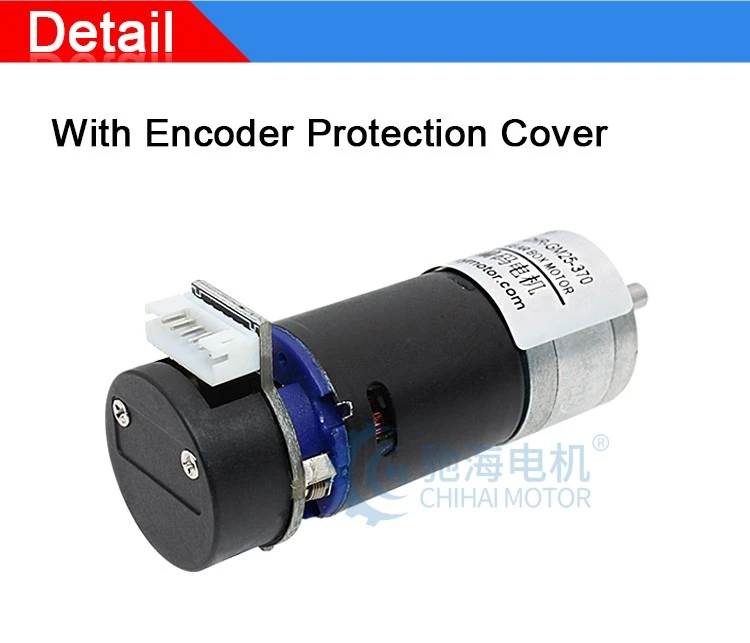

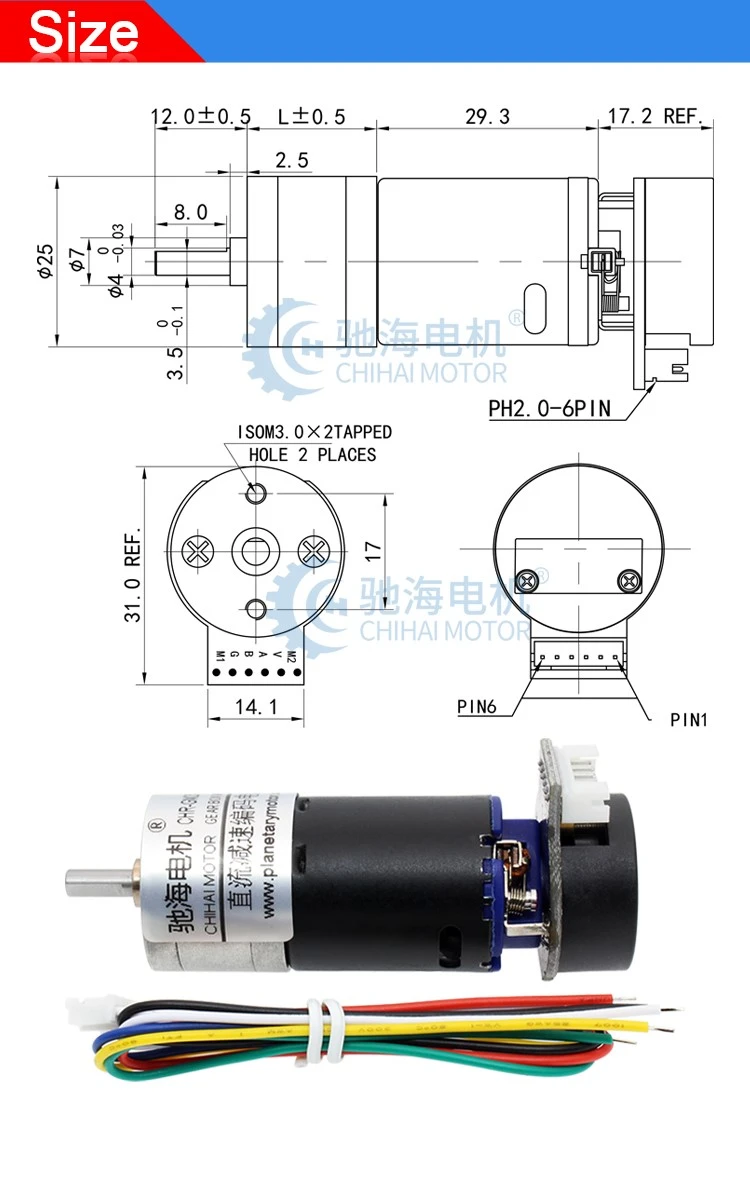

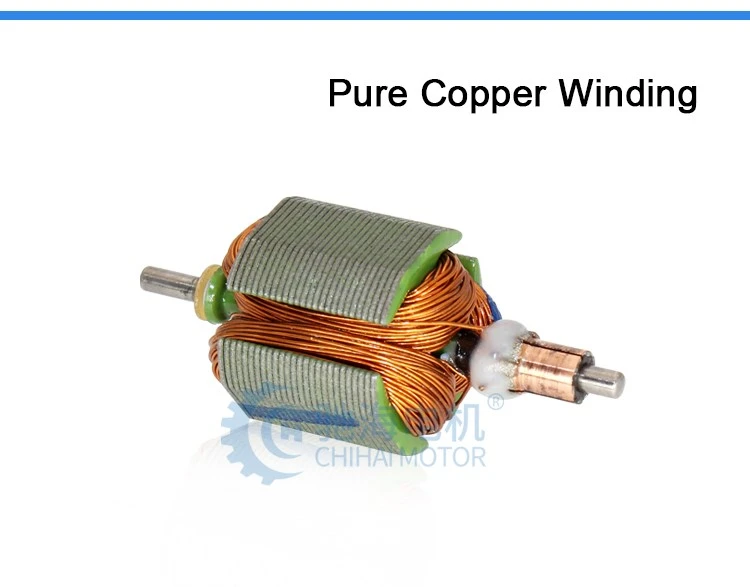

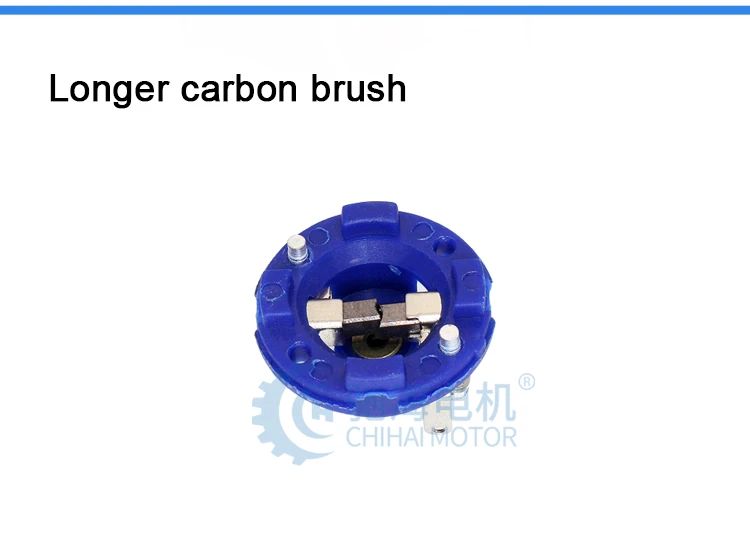

Detailed Images
Product & specifications
| Model：CHR-GM25-BK370-ABHL DC gear reducer encoder motor |
| Special note: Due to the high power and high current of the motor, all customers must have a power supply of 10A or more. |
| Voltage:DC6.0V max power 8.0W Input motor speed 10000RPM |
| RATIO | 1:4.4 | 1:9.3 | 1:20 | 1:34 | 1:45 | 1:57 | 1:75 | 1:100 | 1:125 | 1:217 | 1:478 |
| No-load current(mA) | ≤400 | ≤400 | ≤400 | ≤400 | ≤400 | ≤400 | ≤400 | ≤400 | ≤400 | ≤400 | ≤400 |
| No-load speed(rpm) | 2000 | 880 | 440 | 259 | 195 | 154 | 117 | 88 | 70 | 40 | 18 |
| Rated torque(Kg.cm) | 0.3 | 0.60 | 1.2 | 2.0 | 2.7 | 3.5 | 4.5 | 6.0 | can't exceed 8.0kg.cm(0.8N.m) | ||
| Rated torque(N.m) | 0.03 | 0.06 | 0.12 | 0.20 | 0.27 | 0.34 | 0.44 | 0.59 | |||
| Rated speed(rpm) | 1500 | 660 | 330 | 194 | 147 | 116 | 88 | 66 | 53 | 30 | 14 |
| Rated current(A) | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 |
| Stall current(A） | ≤8.0 | ≤8.0 | ≤8.0 | ≤8.0 | ≤8.0 | ≤8.0 | ≤8.0 | ≤8.0 | ≤8.0 | ≤8.0 | ≤8.0 |
| Stall torque(kg.cm) | ≥1.5 | ≥2.5 | ≥5.0 | ≥7.0 | ≥8.0 | can't exceed 9.0 kg.cm | |||||
| length of gearbox(L) | 19 | 19.0 | 19.0 | 21.5 | 24.0 | 24.0 | 26.5 | 26.5 | 29.0 | 29.0 | 29.0 |
| Hall signal | 48.4 | 102.3 | 220 | 374 | 495 | 627 | 825 | 1100 | 1361.8 | 2387 | 5258 |
| Voltage:DC12.0V max power 26W Input motor speed 20000RPM |
| RATIO | 1:4.4 | 1:9.3 | 1:20 | 1:34 | 1:45 | 1:57 | 1:75 | 1:100 | 1:125 | 1:217 | 1:478 |
| No-load current(mA) | ≤600 | ≤600 | ≤600 | ≤600 | ≤600 | ≤600 | ≤600 | ≤600 | ≤600 | ≤600 | ≤600 |
| No-load speed(rpm) | 4300 | 1892 | 946 | 556 | 420 | 332 | 252 | 189 | 151 | 87 | 40 |
| Rated torque(Kg.cm) | 0.5 | 1.1 | 2.3 | 3.50 | 4.50 | 6.00 | 7.00 | can't exceed 8.0kg.cm(0.8N.m) |
|||
| Rated torque(N.m) | 0.05 | 0.10 | 0.21 | 0.34 | 0.44 | 0.59 | 0.69 | ||||
| Rated speed(rpm) | 3300 | 1452 | 726 | 427 | 323 | 255 | 194 | 145 | 116 | 67 | 30 |
| Rated current(A) | ≤2.7 | ≤2.7 | ≤2.7 | ≤2.7 | ≤2.7 | ≤2.7 | ≤2.7 | ≤2.7 | ≤2.7 | ≤2.7 | ≤2.7 |
| Stall current(A） | ≤16.0 | ≤16.0 | ≤16.0 | ≤16.0 | ≤16.0 | ≤16.0 | ≤16.0 | ≤16.0 | ≤16.0 | ≤16.0 | ≤16.0 |
| Stall torque(kg.cm) | ≥0.8 | ≥1.3 | ≥2.5 | ≥3.5 | ≥4.5 | ≥6.0 | ≥8.0 | can't exceed 9.0 kg.cm | |||
