Diameter Helical Pinion Gearbox Silent Metal Geared Motor High Torque DC12V 24V
Product Description
| Product Type | CHR-GM37-545 DC Gear Motor |

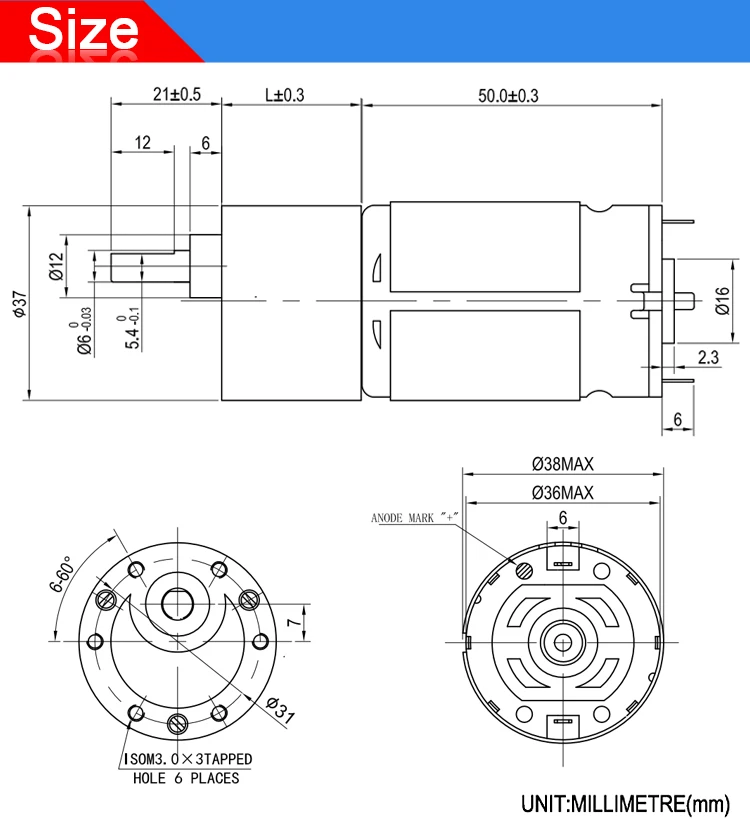

| Size | Φ37mm (different deceleration different ratio) |

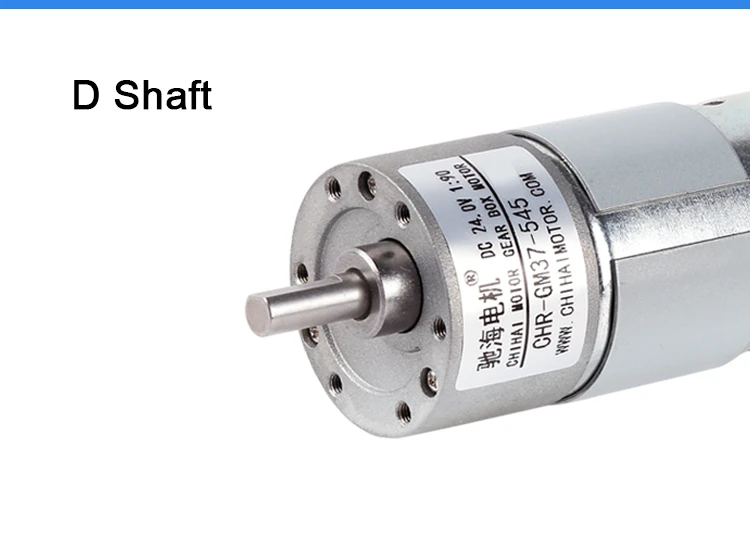

| Shaft length | 21mm D 12mm |
| Shaft Dianeter | Φ6mm D thick 5.4 |
| Voltage | DC 6-24V |
| Weight | About 275 g |
| Application |
smart self-balancing two-wheeled cart, smart appliances.Robots, camera jibs, electric paper cutters, etc. |
DC gear motor is a kind of high efficiency, low power consumption and high power density motor, which is widely used in various industries, including household appliances, vehicles, mechanical equipment, medical equipment and so on. It has simple structure, high reliability, easy operability and long life.
DC gear motors play an important role in modern industrial production and life. It can significantly reduce energy costs and improve productivity. Compared with traditional AC gear motors, DC gear motors can control the speed and torque of the motor more finely, making the motor run more smoothly and stably.
In the field of industrial automation, DC gear motors have become a key component of many automation systems. Used in conjunction with controllers and sensors, they keep the system running in cycles on automated production lines.

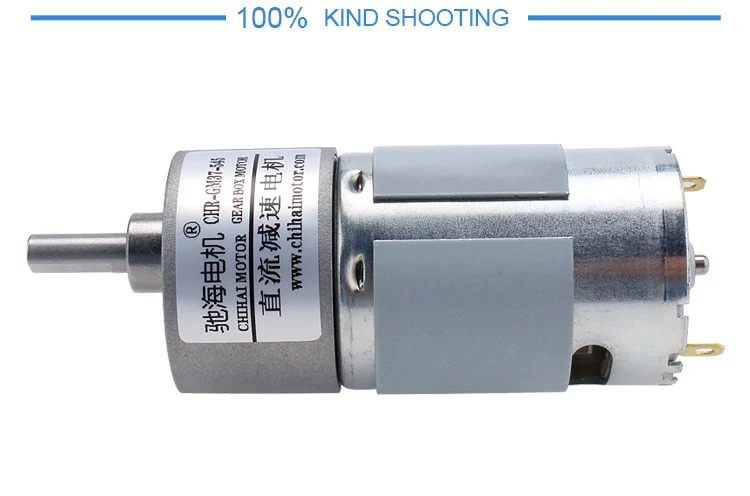

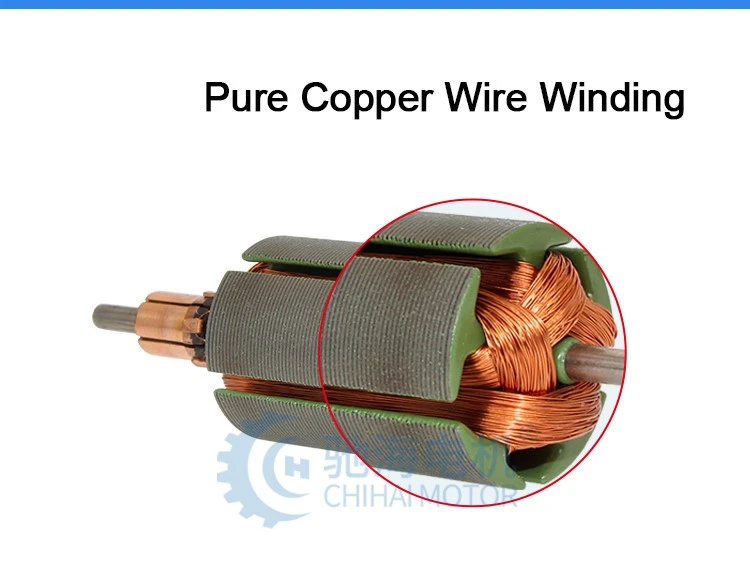

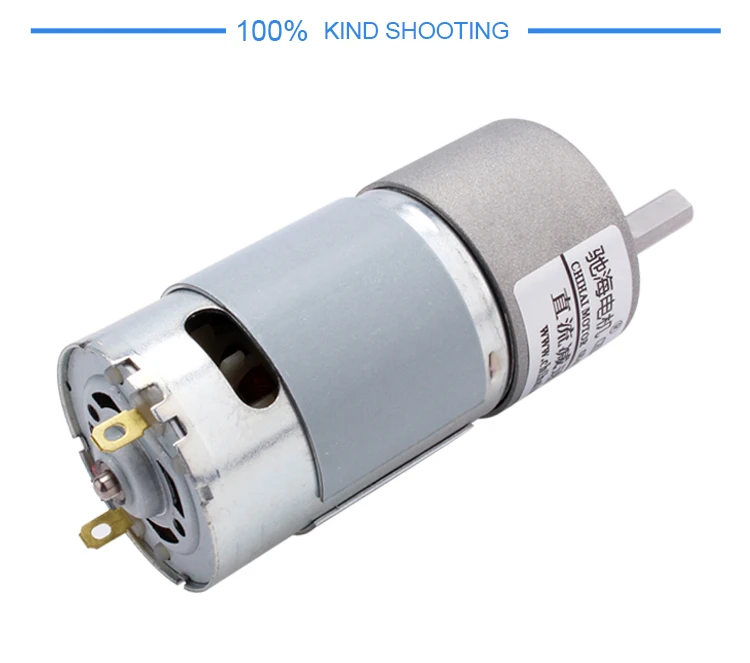

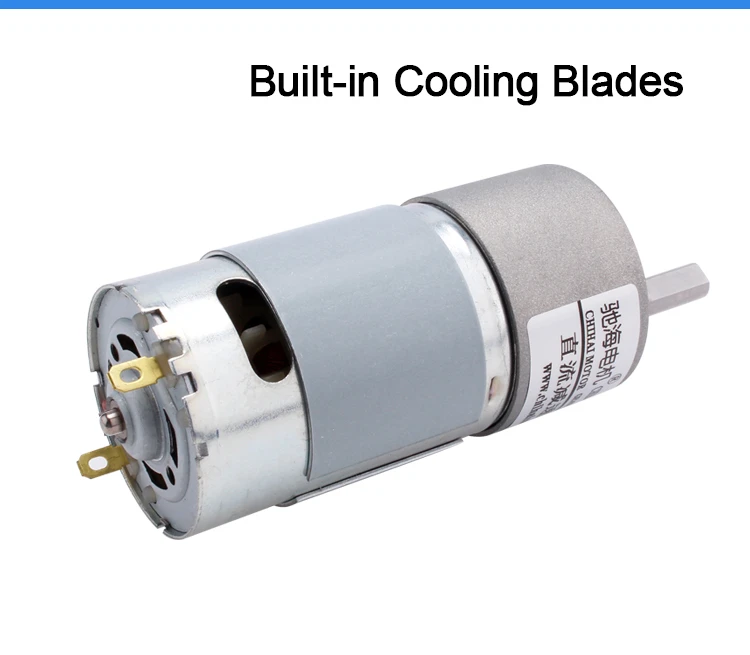

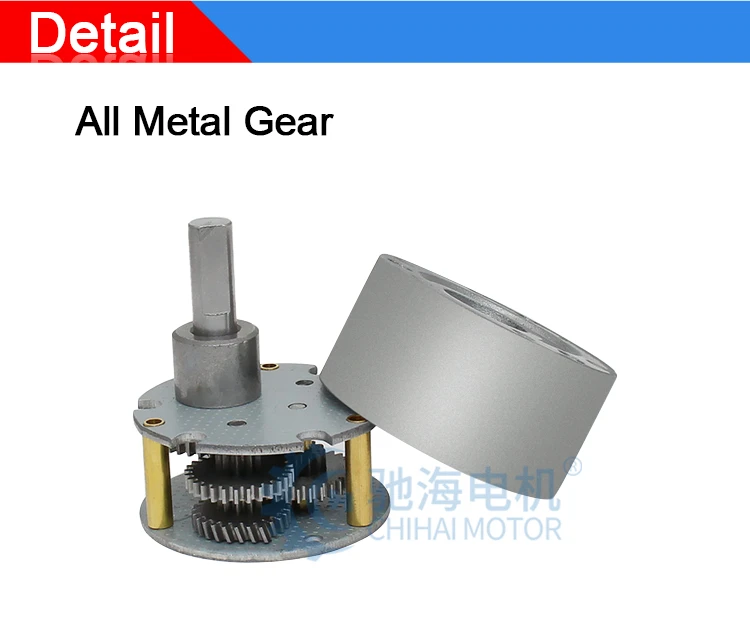

Detailed Images
Product & specifications
| Model：CHR-GM37-545 Carbon Brush DC Gear Motor |
| Special note: the motor due to the large power, high current, so customers must be more than 10A power supply |
| Voltage: DC 24.0V |
| Reduction ratio | 1:6.3 | 1:10 | 1:30 | 1:50 | 1:90 | 1:150 | 1:270 | 1:450 | 1:650 | 1:810 |
| No-load current(mA) | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 |
| No-load speed(rpm) | 1111 | 700 | 233 | 140 | 78 | 47 | 27 | 16 | 11 | 9 |
| Rated torque(Kg.cm) | 0.5 | 0.8 | 2.3 | 3.9 | 6.5 | 11 | 20 | 30 | 30 | 30 |
| Rated speed(rpm) | 980 | 617 | 205 | 123 | 69 | 41 | 24 | 14 | 9 | 8 |
| Rated current(A) | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 |
| Rated torque(kg.cm) | 5.0 | 8.0 | 24.0 | can't exceed 35kg.cm | ||||||
| Stall current(A) | 7.5 | 7.5 | 7.5 | 7.5 | The above reduction ratio is not allowed to be used in stall |
|||||
| Gearbox length L | 19.0mm | 22.0mm | 24.0mm | 26.5mm | 29.0mm | |||||
| Voltage: DC 12.0V |
| Reduction ratio | 1:6.3 | 1:10 | 1:30 | 1:50 | 1:90 | 1:150 | 1:270 | 1:450 | 1:650 | 1:810 |
| No-load current(mA) | ≤120 | ≤120 | ≤120 | ≤120 | ≤120 | ≤120 | ≤120 | ≤120 | ≤120 | ≤120 |
| No-load speed(rpm) | 550 | 350 | 116.5 | 70 | 39 | 23.5 | 13.5 | 8 | 5.5 | 4.5 |
| Rated torque(Kg.cm) | 0.3 | 0.4 | 1.1 | 2.1 | 3.5 | 6.5 | 10 | 18 | 25 | 25 |
| Rated speed(rpm) | 490 | 308 | 100 | 60 | 34 | 20 | 11 | 6 | 4 | 3 |
| Rated current(A) | ≤0.55 | ≤0.55 | ≤0.55 | ≤0.55 | ≤0.55 | ≤0.55 | ≤0.55 | ≤0.55 | ≤0.55 | ≤0.55 |
| Rated torque(kg.cm) | 2.5 | 4 | 12 | 19 | 32 | can't exceed 35kg.cm | ||||
| Stall current(A) | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 | The above reduction ratio is not allowed to be used in stall |
||||

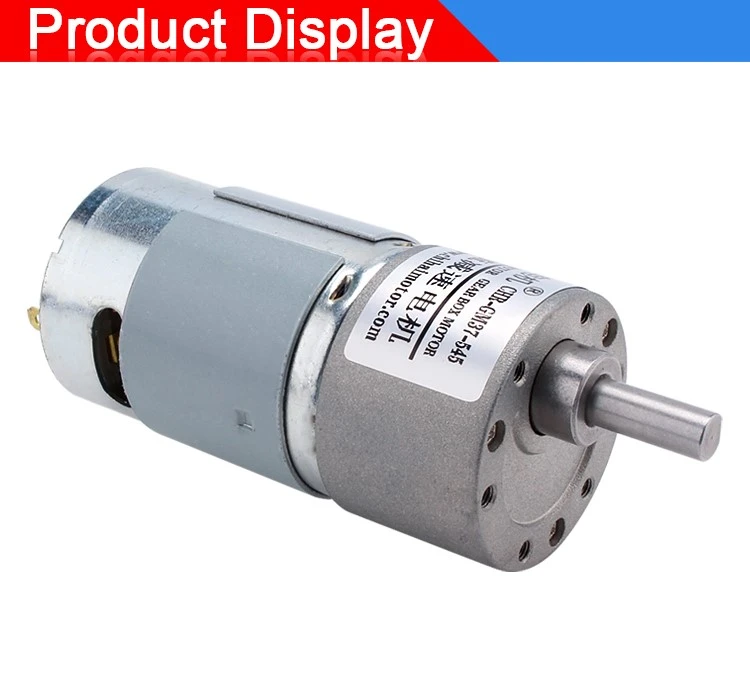

Product &display
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
