25mm Diameter Dc6v 1250rpm Miniature Reduction DC Gear Motor
Product Description
| Product Type | CHR-GM25-310 DC Gear Motor |
| Size | Φ25mm (different deceleration different ratio) |
| Shaft length | 12mm D 8mm |
| Shaft Dianeter | Φ4mm D thick 3.5mm |
| Voltage | DC 3-6V |
| Weight | About 70 g |
| Application |
Smart lock safes, smart home appliances, robots, Balanced smart car, etc |
DC motor is a common type of motor that is usually used in instruments, power tools, machinery, vehicles and other fields. They are small in size, light in weight, have a strong starting torque, a wide range of speed regulation, and are simple and easy to use.
One of the main advantages of a DC motor is its powerful starting torque. It can start quickly and withstand larger loads and is suitable for applications requiring high starting torque. The wide speed range is also another advantage. The speed of the motor itself can be adjusted by varying the supply voltage, and DC motors can accommodate a wide range of speed requirements, from low to high speeds.
In addition, DC motors are relatively easy to operate because their control circuits are relatively simple and do not require a high level of skill to master their operating principles and control essentials. This makes DC motors easier to maintain and repair and reduces production and maintenance costs.

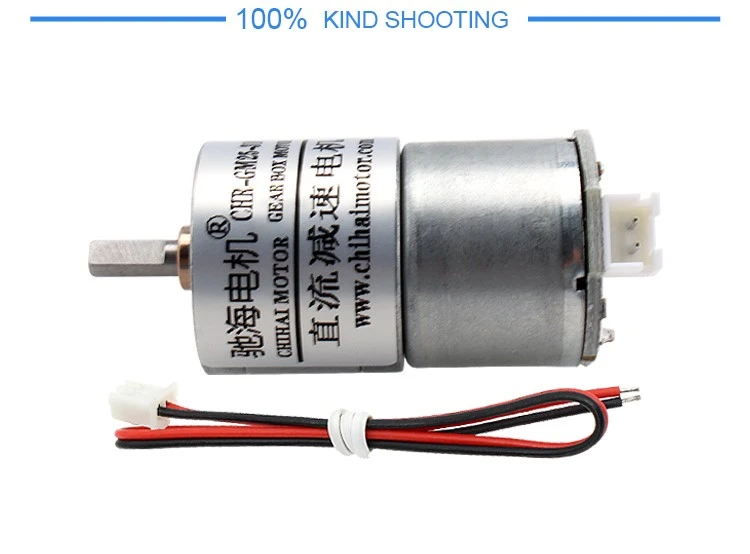

Detailed Images
Product & specifications
| Model: CHR-GM25-310 DC Gear Motor |
| Voltage:DC 6V MAX POWER 3.5W |
| RATIO | 1: 4.4 | 1: 9.3 | 1: 20 | 1: 34 | 1: 45 | 1: 75 | 1: 100 | 1: 125 | 1: 165 | 1: 217 | 1: 362 | 1: 478 |
| No-load current(mA) | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 |
| No-load speed(rpm) | 1250 | 590 | 275 | 160 | 120 | 73 | 55 | 44 | 32 | 25 | 15 | 11.5 |
| Rated torque(Kg.cm) | 0.04 | 0.10 | 0.19 | 0.30 | 0.43 | 0.70 | 1.0 | 1.2 | 1.5 | 2.0 | 3.4 | 4.5 |
| Rated torque(mN.m) | 3.9 | 9.8 | 18.6 | 29.4 | 42.2 | 68.6 | 98 | 117.6 | 147.1 | 196.1 | 333.3 | 441.2 |
| Rated speed(rpm) | 660 | 310 | 145 | 85 | 64 | 38 | 29 | 23 | 17.5 | 13.4 | 8.0 | 6.0 |
| Rated current（mA) | ≤320 | ≤320 | ≤320 | ≤320 | ≤320 | ≤320 | ≤320 | ≤320 | ≤320 | ≤320 | ≤320 | ≤320 |
| Stall torque(Kg.cm) | ≥0.1 | ≥0.2 | ≥0.4 | ≥0.75 | ≥0.9 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.3 | ≥4.0 | ≥7.0 | ≥9.0 |
| Stall current(A) | ≤0.56 | ≤0.56 | ≤0.56 | ≤0.56 | ≤0.56 | ≤0.56 | ≤0.56 | ≤0.56 | ≤0.56 | ≤0.56 | ≤0.56 | ≤0.56 |
| Gearbox length L(mm) | 19.0 | 19.0 | 19.0 | 21.0 | 21.0 | 23.0 | 23.0 | 25.0 | 25.0 | 25.0 | 27.0 | 27.0 |
Product &display
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
