Permanent Magnet DC Coreless Gear Motor
Product Description
| Product Type |
CHF-GM12-1215R Permanent magnet DC coreless gear motor |
| Size | 12mm X24.2mm (excluding the size of output shaft) |
| Shaft length | 10mm or 4.4mm (mass customizable) |
| Shaft Dianeter | Φ3mm D thickness 2.5mm |
| Voltage | DC 3-12V |
| Weight | About 11g |
| Application |
intelligent fingerprint door lock, intelligent robot, intelligent manipulator, intelligent furniture, intelligent focusing system, miniature cradle head, etc |
Dc hollow gear motor is a kind of efficient, reliable and stable motor equipment, which has a wide range of applications in modern industry and family life. In the production and manufacturing process, DC hollow core gear motors can provide effective power output for equipment and machines, so that production efficiency and quality can be improved.
Compared with other motor equipment, DC hollow core gear motor has its unique advantages and characteristics. First of all, the hollow core design makes the overall structure of the motor more compact, lighter weight, easy to install and maintain. Secondly, the gear transmission can effectively increase the output torque, and the noise is lower and the performance is superior. In addition, the DC air-core gear motor has electronic speed regulation and reverse function, which can adjust the output speed and direction of the motor according to the need to improve the work efficiency and stability.

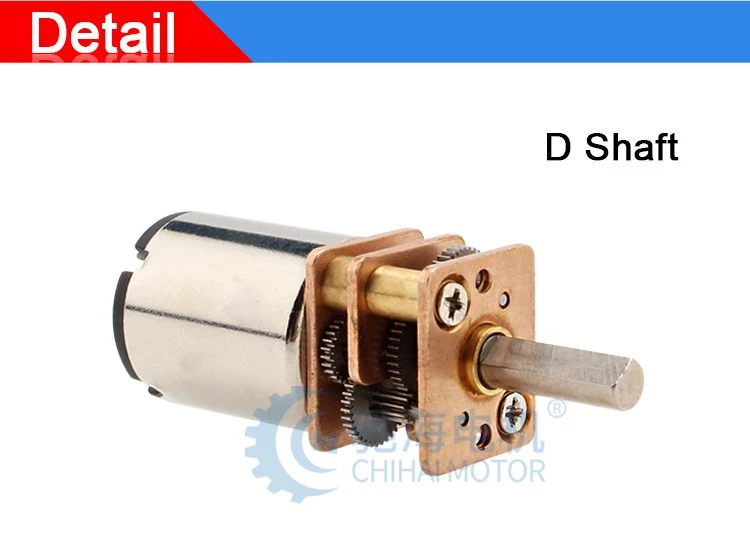

Detailed Images
Product & specifications
| Model：CHF-GM12-1215R Permanent magnet DC coreless gear motor |
| Voltage:DC12.0V MAX POWER 1.3 W |
| Special note: can't exceed 3.0kg.cm(0.3N.m).otherwise,it will cause gear damage. |
| RATIO | 1：10 | 1：20 | 1：30 | 1：50 | 1：100 | 1：150 | 1：210 | 1：298 | 1：380 |
| No load current(mA) | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 |
| No load speed(rpm) | 2150 | 1050 | 720 | 430 | 215 | 140 | 100 | 72 | 56 |
| Rated torque(Kg.cm) | 0.1 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.0 | 2.0 |
| Rated speed（rpm) | 1200 | 600 | 400 | 240 | 120 | 80 | 57 | 50 | 45 |
| Rated current（A) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.25 | ≤0.2 |
| Stall torque(kg.cm) | 0.2 | 0.4 | 0.6 | 1.0 | 2.0 | can't exceed 3.0kgcm | |||
| Stall current（A） | ≤0.75 | ≤0.75 | ≤0.75 | ≤0.75 | ≤0.75 | ≤0.75 | ≤0.75 | ≤0.75 | ≤0.75 |
| Voltage:DC6.0V MAX POWER 0.35W |
| RATIO | 1：10 | 1：20 | 1：30 | 1：50 | 1：100 | 1：150 | 1：210 | 1：298 | 1：380 |
| No load current(mA) | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 |
| No load speed(rpm) | 0.05 | 0.1 | 0.15 | 0.25 | 0.50 | 0.70 | 1.00 | 1.40 | 2.0 |
| Rated torque(Kg.cm) | 1050 | 530 | 360 | 210 | 107 | 70 | 50 | 36 | 28 |
| Rated speed（rpm) | 600 | 300 | 200 | 120 | 60 | 40 | 28 | 20 | 15 |
| Rated current（A) | ≤0.16 | ≤0.16 | ≤0.16 | ≤0.16 | ≤0.16 | ≤0.16 | ≤0.16 | ≤0.16 | ≤0.16 |
| Stall torque(kg.cm) | 0.1 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 3.0 | 3.0 |
| Stall current（A） | ≤0.45 | ≤0.45 | ≤0.45 | ≤0.45 | ≤0.45 | ≤0.45 | ≤0.45 | ≤0.45 | ≤0.45 |
| Voltage:DC3.0V MAX POWER 0.65W |
| RATIO | 1：10 | 1：20 | 1：30 | 1：50 | 1：100 | 1：150 | 1：210 | 1：298 | 1：380 |
| No load current(mA) | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 |
| No load speed(rpm) | 1750 | 870 | 580 | 350 | 175 | 115 | 83 | 58 | 46 |
| Rated torque(Kg.cm) | 0.07 | 0.1 | 0.2 | 0.45 | 0.70 | 1.00 | 1.40 | 2.0 | 2.5 |
| Rated speed（rpm) | 870 | 430 | 290 | 174 | 87 | 58 | 40 | 29 | 23 |
| Rated current（A) | ≤0.75 | ≤0.75 | ≤0.75 | ≤0.75 | ≤0.75 | ≤0.75 | ≤0.75 | ≤0.75 | ≤0.75 |
| Stall torque(kg.cm) | 0.2 | 0.3 | 0.5 | 0.7 | 1.4 | can't exceed 3.0kgcm | |||
| Stall current（A） | ≤1.6 | ≤1.6 | ≤1.6 | ≤1.6 | ≤1.6 | ≤1.6 | ≤1.6 | ≤1.6 | ≤1.6 |
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
