Single Shaft Turbine Worm DC Gear Motor With Encoder
Voltage range: DC6- 24.0V
Weight: about 350g
Product Description
Product Type: | CHW-GW4058-3162ABHL a single output shaft. DC6v 12V 24V Powerful Torque Turbo Worm Geared Motor Type-D Shaft High Power Reversed Low Speed Big Worm Gear Motor with encoder |
Shaft length: | 15mm |
shaft diameter: | 8mm D |
Voltage range: | DC6- 24.0V |
Weight: | about 350g |
Application: | Intelligent self-balancing dual-wheel car, intelligent tracking car, intelligent appliances, robot, camera rocker arm, electric |
Power supply mode: DC
Power supply type: DC motor
Working principle: Brushed DC worm gear motor
Operating speed: low speed motor
Uses: Widely used in modern automatic fields such as mechanical equipment, automatic instruments, medical instruments, electric curtains, stage lighting, currency counters, sensor faucets, safes, soft towel machines, vending machines, automatic monitoring, etc.
Function type: drive motor

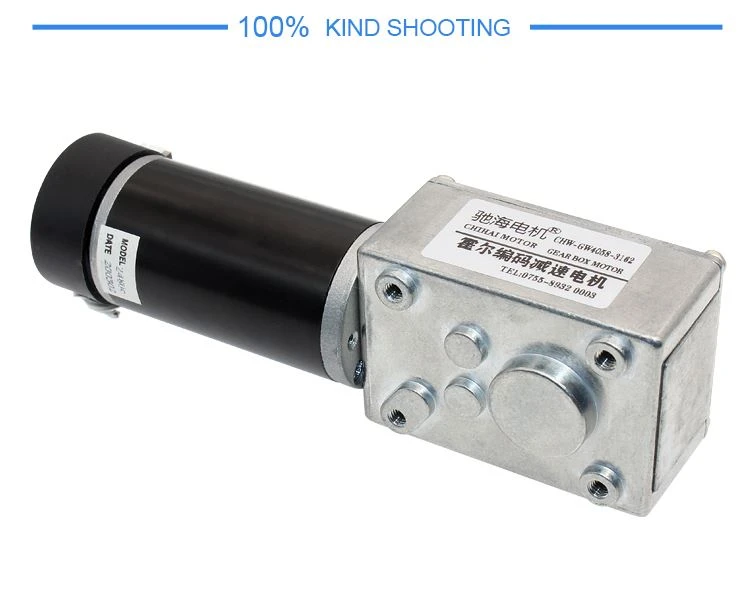

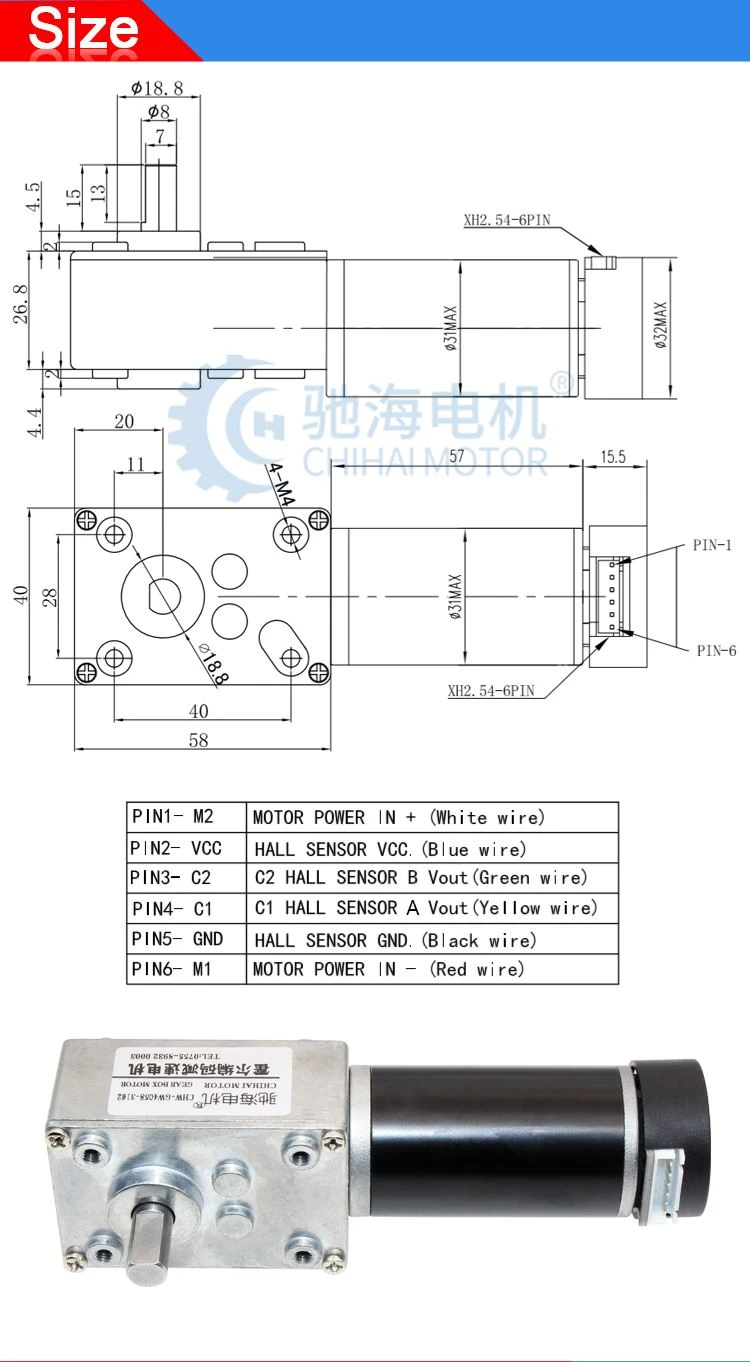

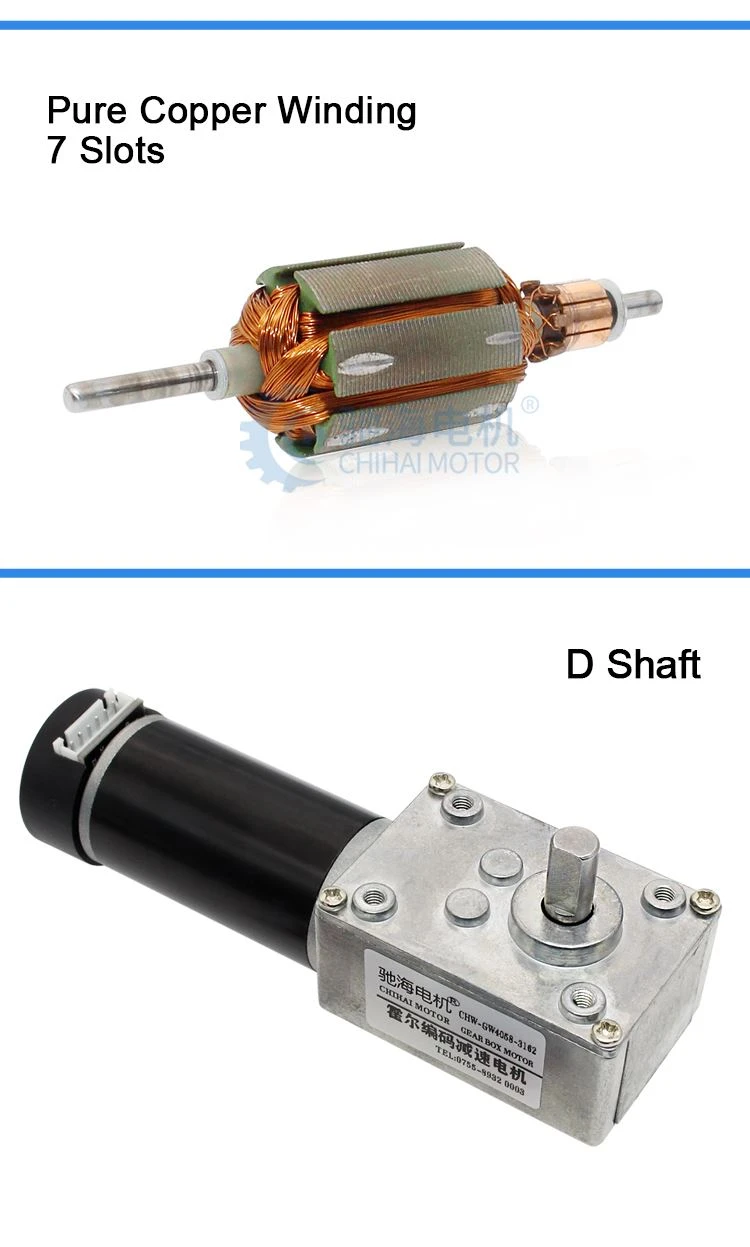

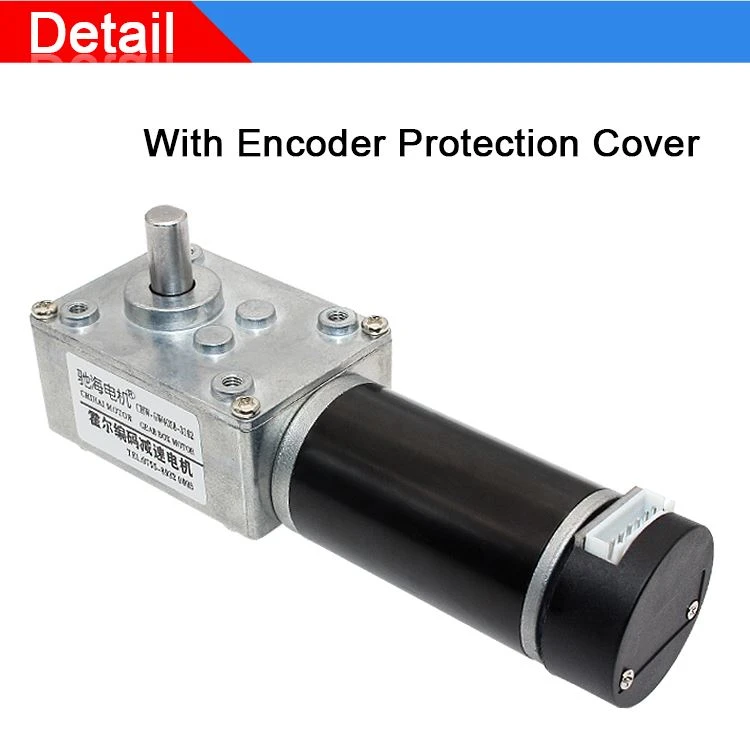

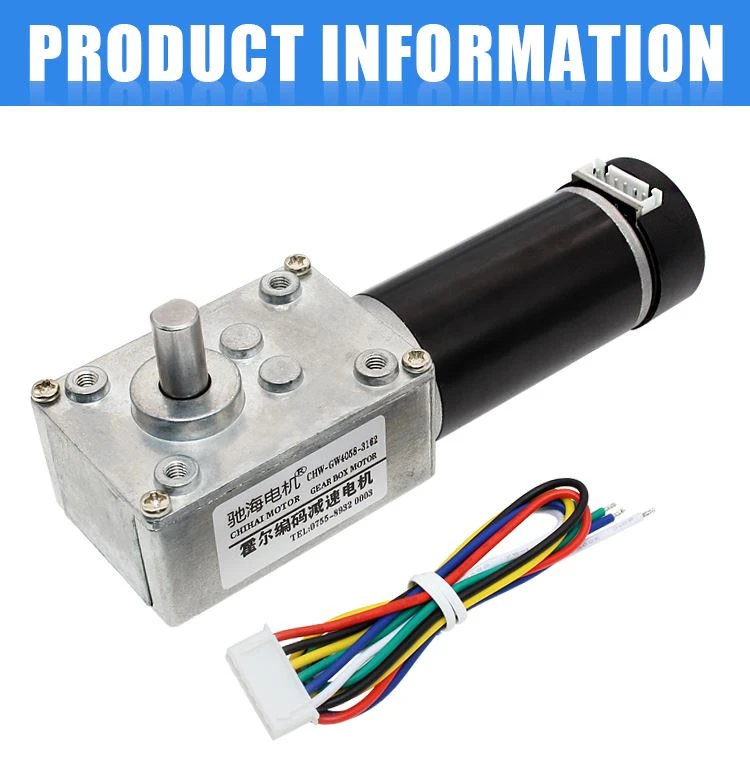

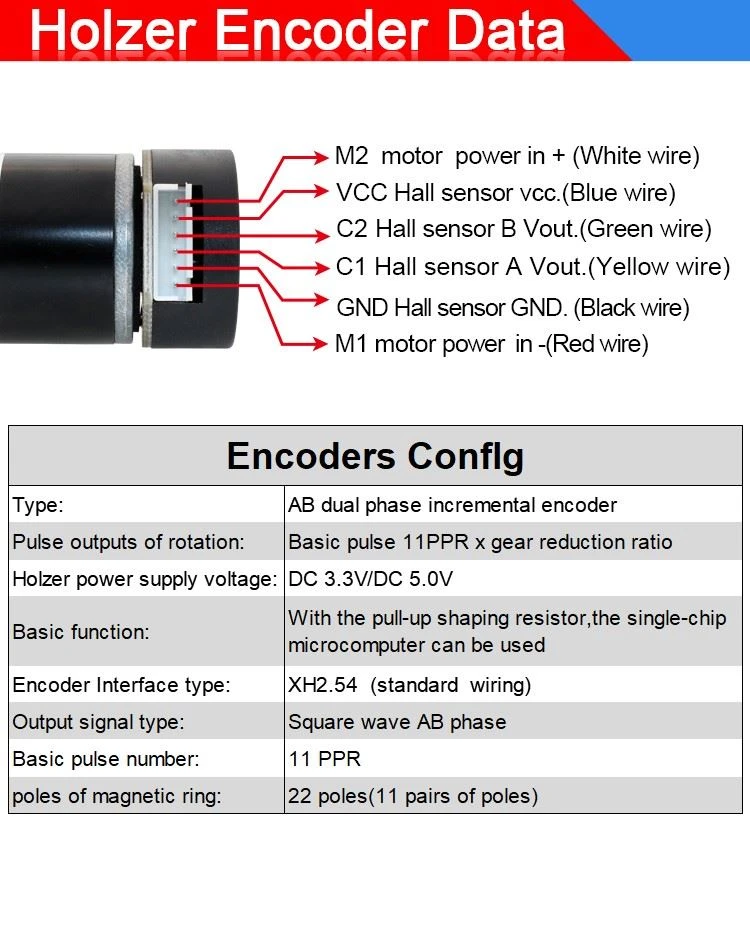

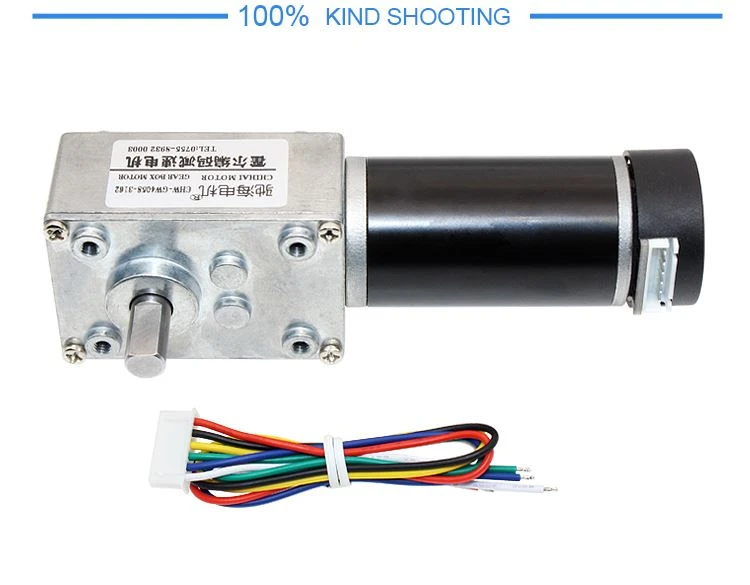

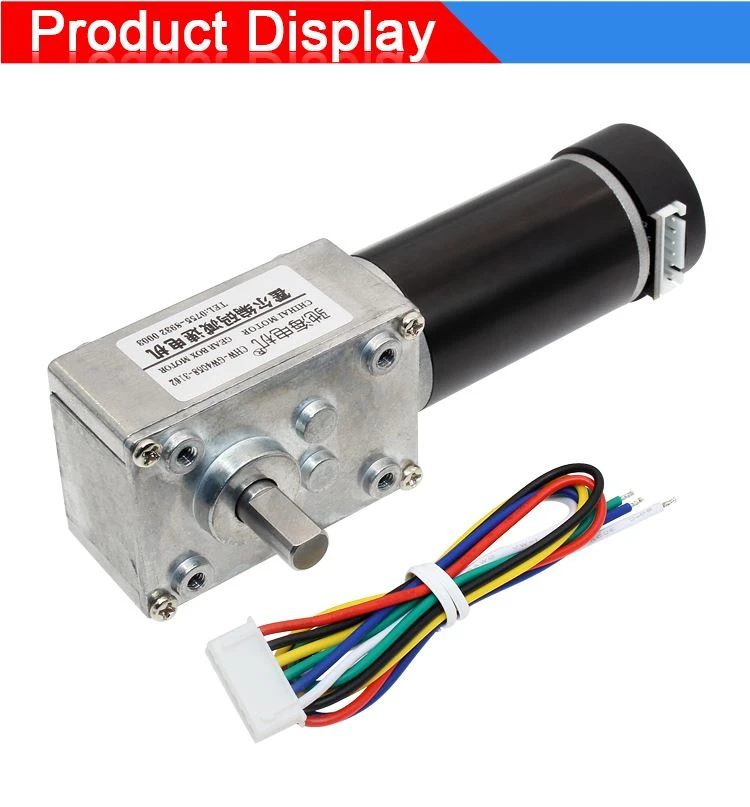

Detailed Images

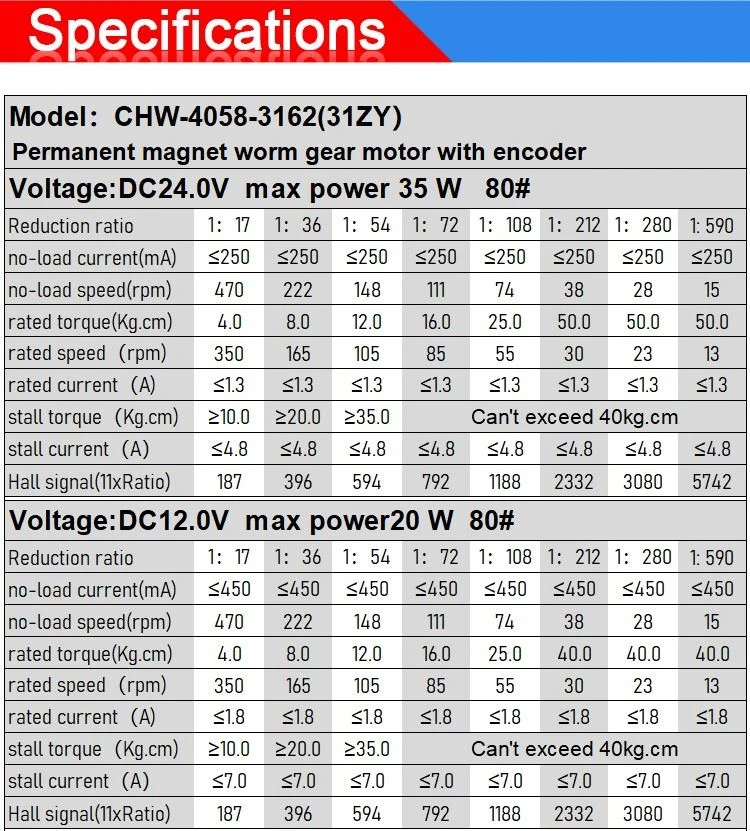

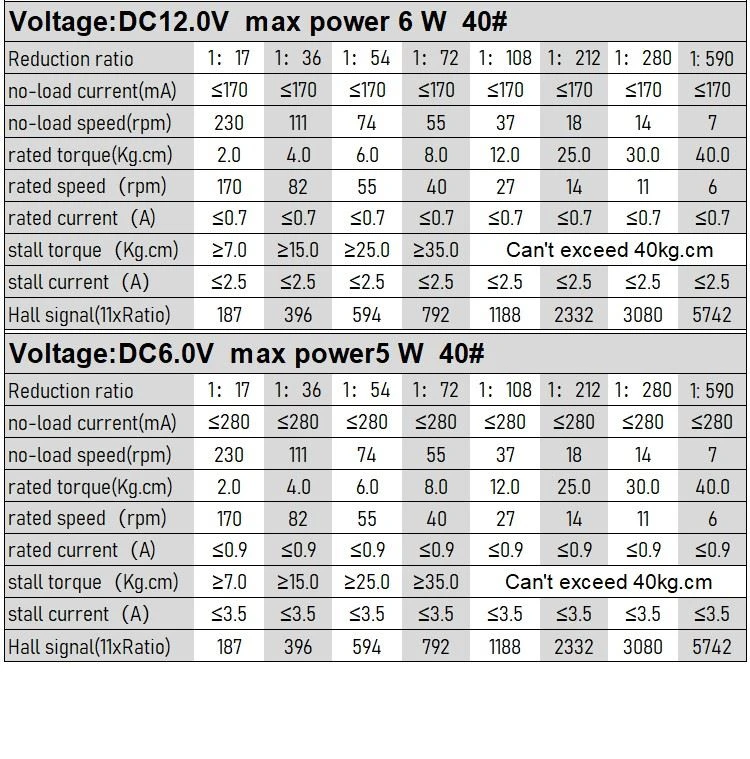

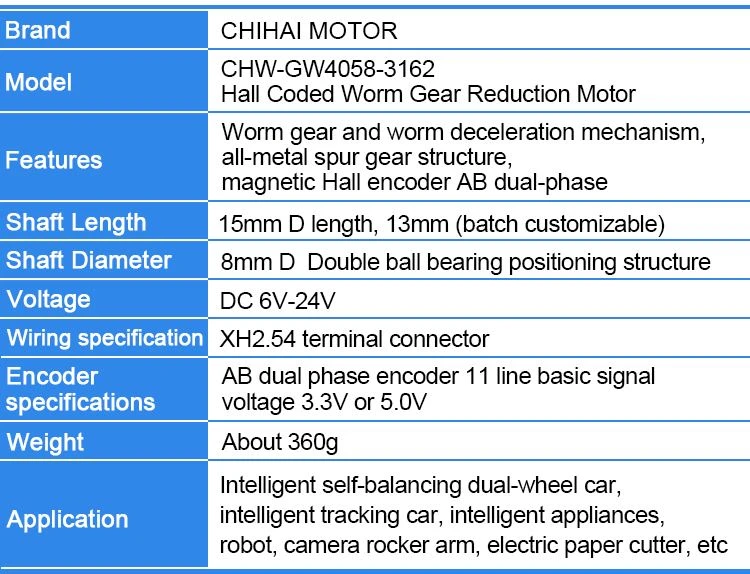

Product Paramet
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
