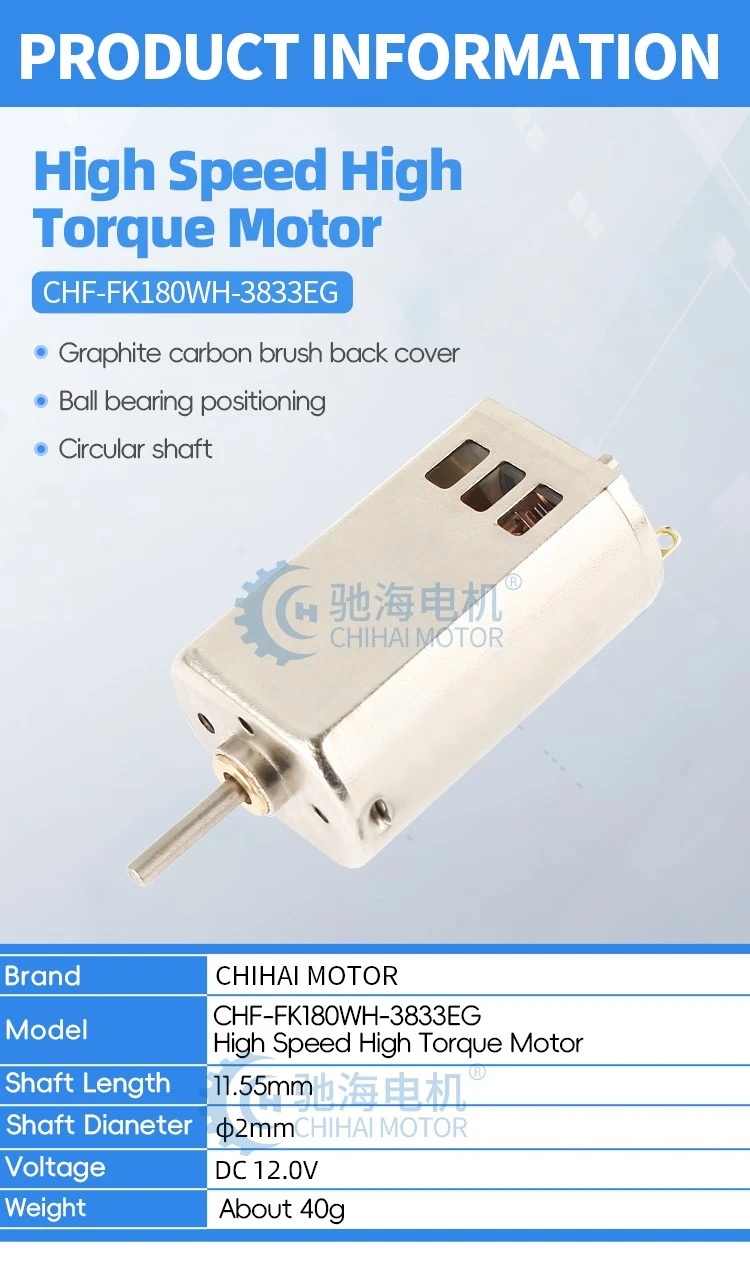

12V High Speed High Torque Motor
Product Description：
| Brand | chihai motor |
| Model | CHF-FK180WH-3833EG High Speed High Torque Motor |
| Shaft length | 11.55mm |
| Shaft Dianeter | φ2mm |
| Voltage | DC 12.0V |
| Weight | About 40g |

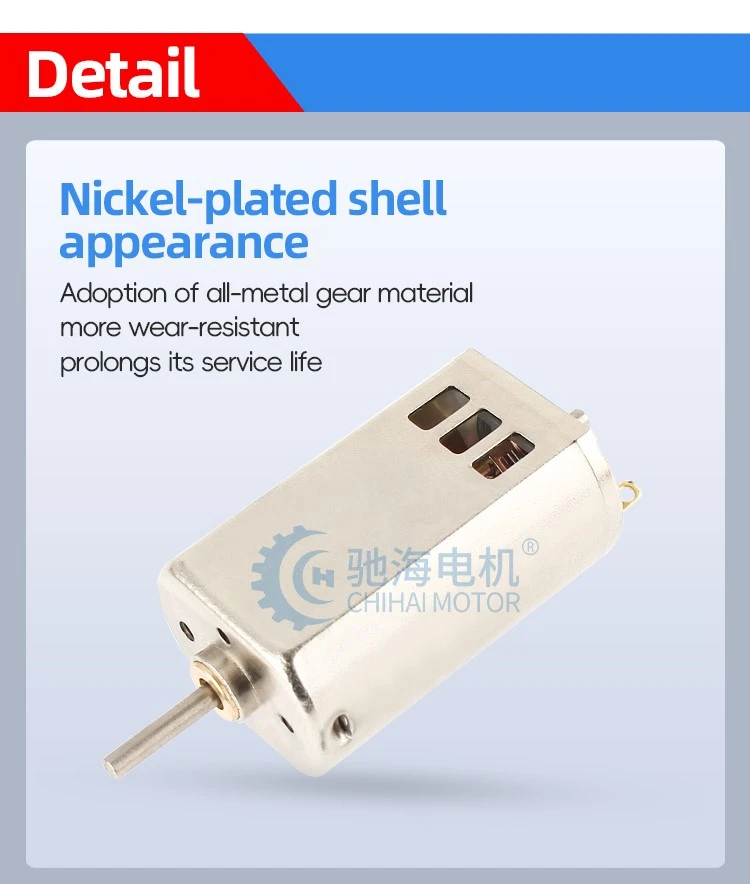

Nickel-plated shell appearance:
Adoption of all-metal gear material more wear-resistant prolongs its service life

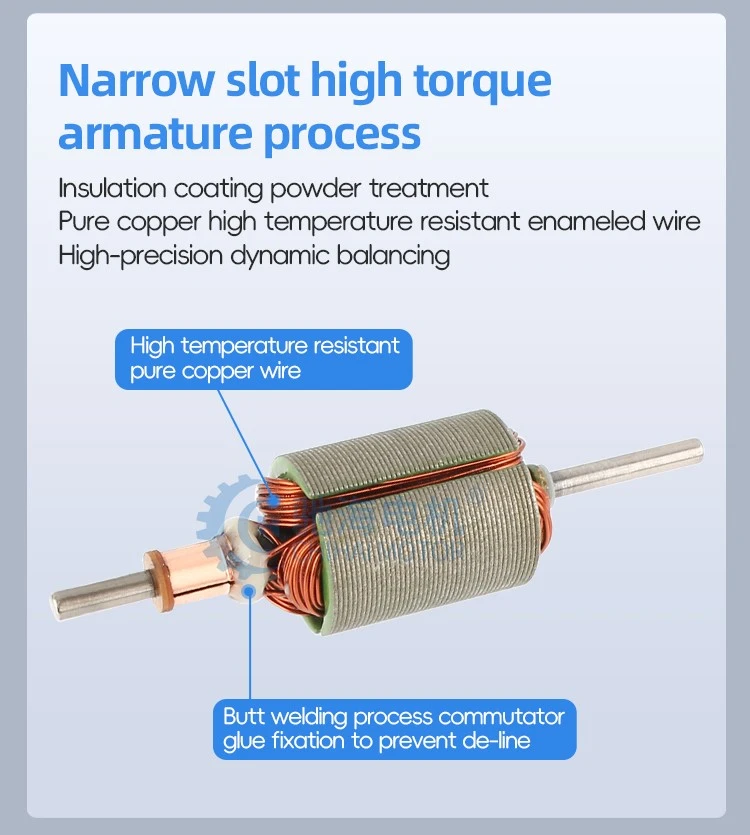

Narrow slot high torque armature process:
Insulation coating powder treatment Pure copper high temperature resistant enameled wire High-precision dynamic balancing
High temperature resistant pure copper wire
Butt welding process commutator glue fixation to prevent de-line

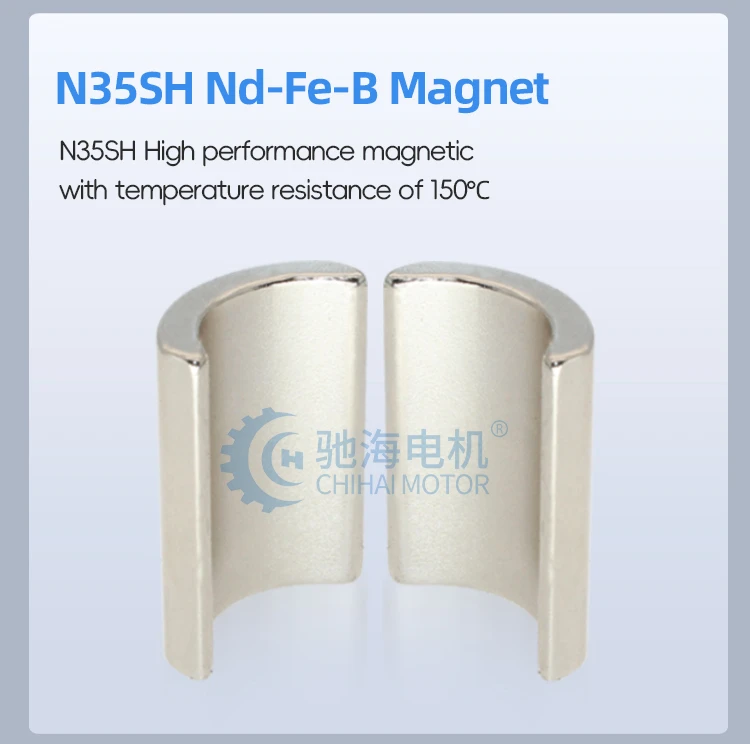

N35SH Nd-Fe-B Magnet:
N35SH High performance magnetic with temperature resistance of 150℃

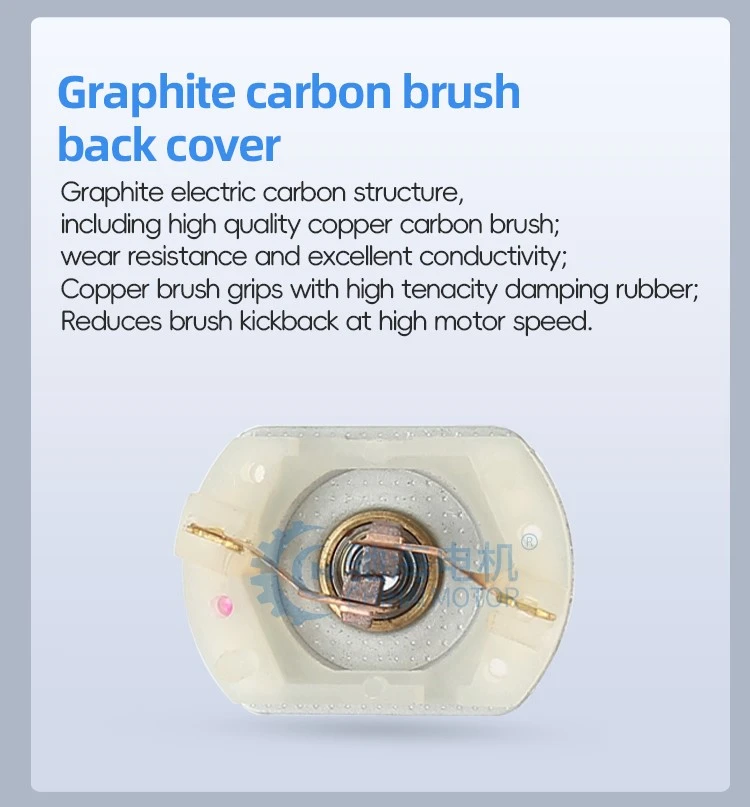

Graphite carbon brush back cover:
Graphite electric carbon structure, including high quality copper carbon brush;
wear resistance and excellent conductivity;
Copper brush grips with high tenacity damping rubber;
Reduces brush kickback at high motor speed.

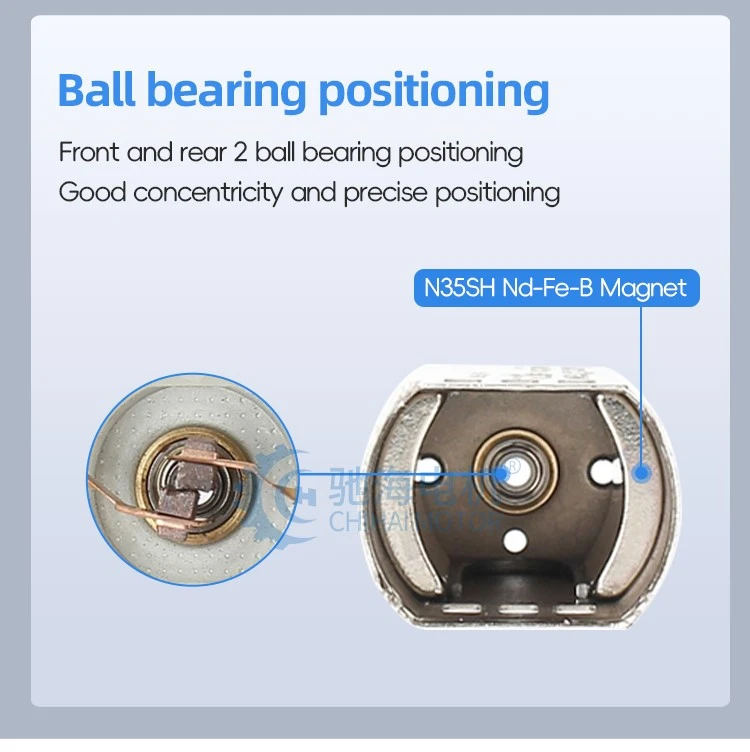

Ball bearing positioning:
Front and rear 2 ball bearing positioning Good concentricity and precise positioning
Detailed Images：
