Brushless DC Motor With Built-in Drive
Product Description
| Product Type |
CHB-BLDC3650 Brushless dc motor |

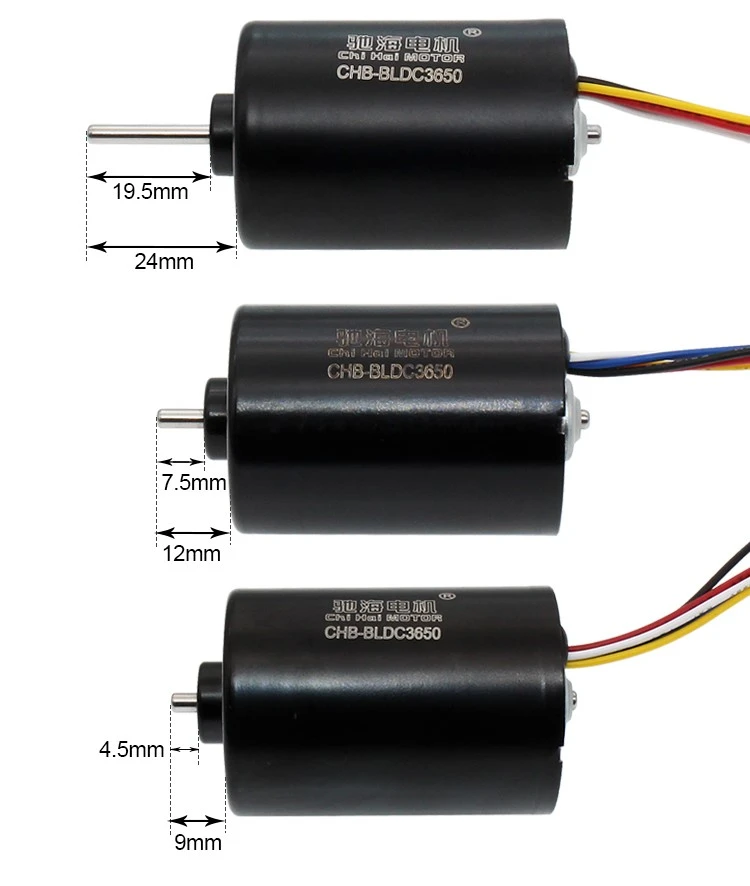

| Shaft length | A:9mm B:12mm C:24mm(With notched card slot) |
| Shaft Dianeter | 3.175mm |
| Rated Voltage | DC 12-24V wire length 270mm |

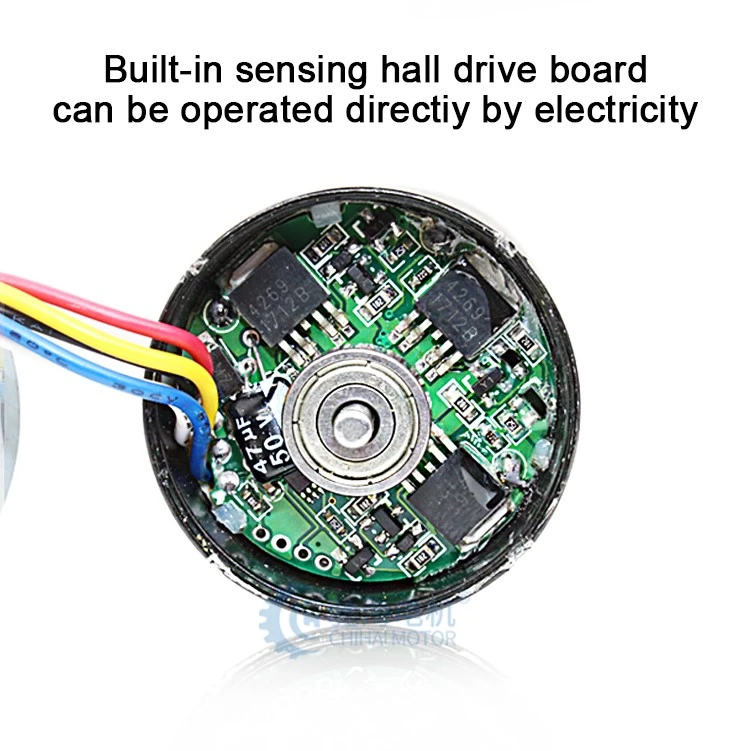

| Drive mode | built-in sense and hall drive |
|
The firmware Performance |
The stator brushless,Quadrupole magnetic, Rotor brushless,Six slot structure |
| Weight | About 190g |
| Applications |
Home and office Automation Banking and Medical Equipment Intelligent robot |
With the continuous progress of science and technology, the brushless DC motor has become one of the main drivers in the modern industrial field. Compared with the traditional brush motor, it has higher efficiency, longer life and lower noise, and is widely used in electric vehicles, drones, robots and other fields.
The brushless DC motor uses advanced control technology, which can automatically adjust the speed and direction to achieve efficient operation. At the same time, the brushless structure is used to remove the brush structure that is easy to wear in the traditional automobile motor, and there is no need to replace the brush, so the service life of the motor is greatly extended and the maintenance cost is reduced.

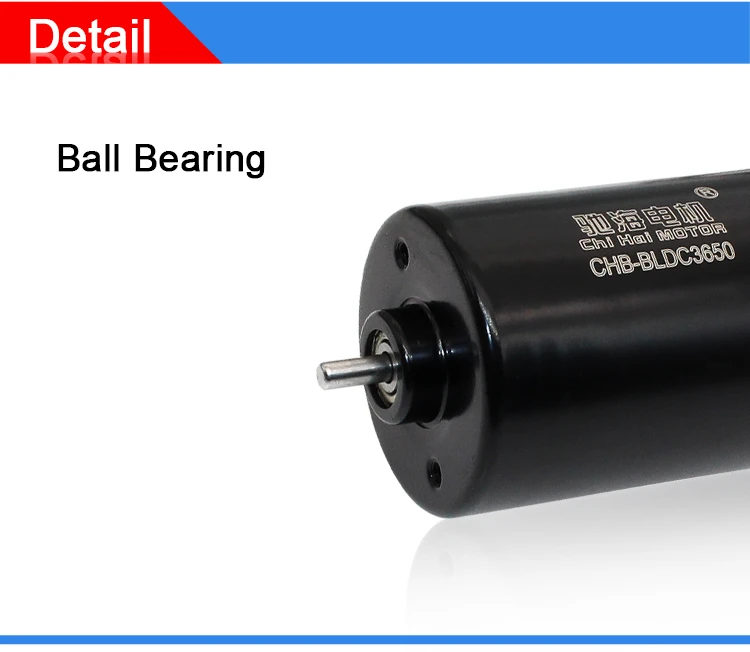

Detailed Images
Product & specifications
| Model: BLDC3650 Brushless DC Motor |
| Voltage（V) | 12.0V | 24.0V |
| No-load Current (mA) | ≤230 | ≤300 |
| No-load Speed (rpm) | 4150±10% | 8300±10% |
| Rated Torque (g.cm) | 80 | 160 |
| Rated Speed (rpm) | 3400 | 6800 |
| Rated Current (A) | ≤0.8 | ≤1.6 |
| Drive Protection Voltage（V) | 30 | 30 |
| Drive Current Protection (A) | 3 | 3 |

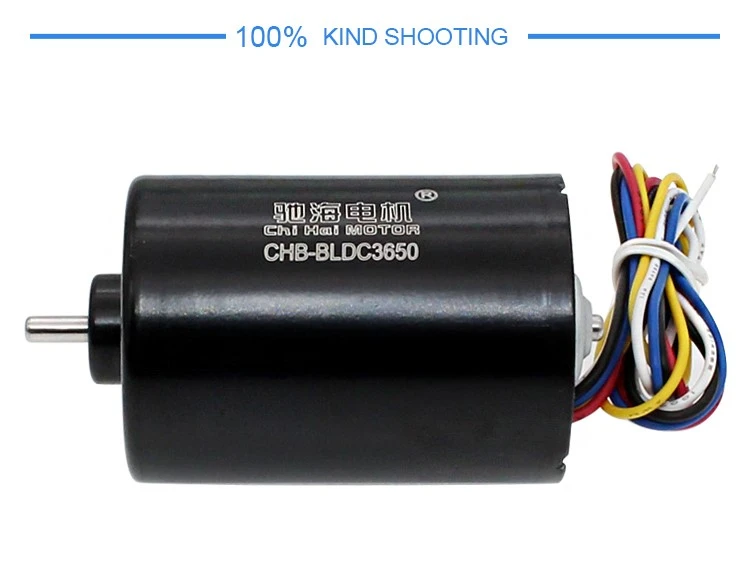

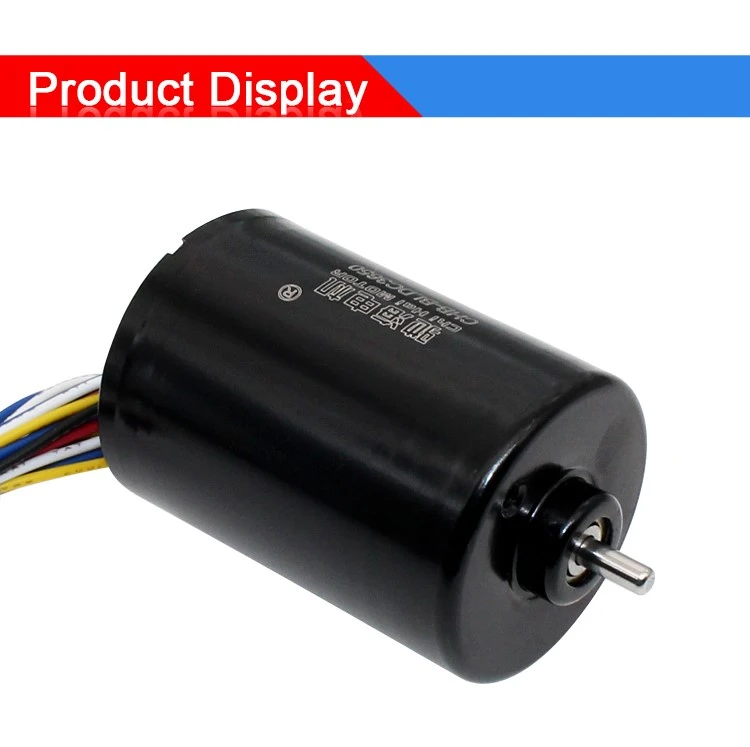

Product &display
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
