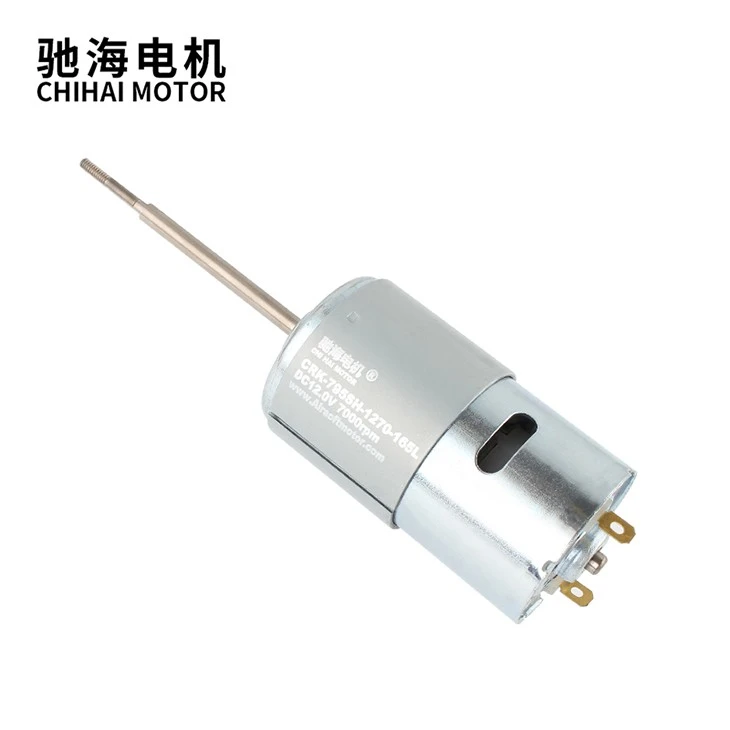

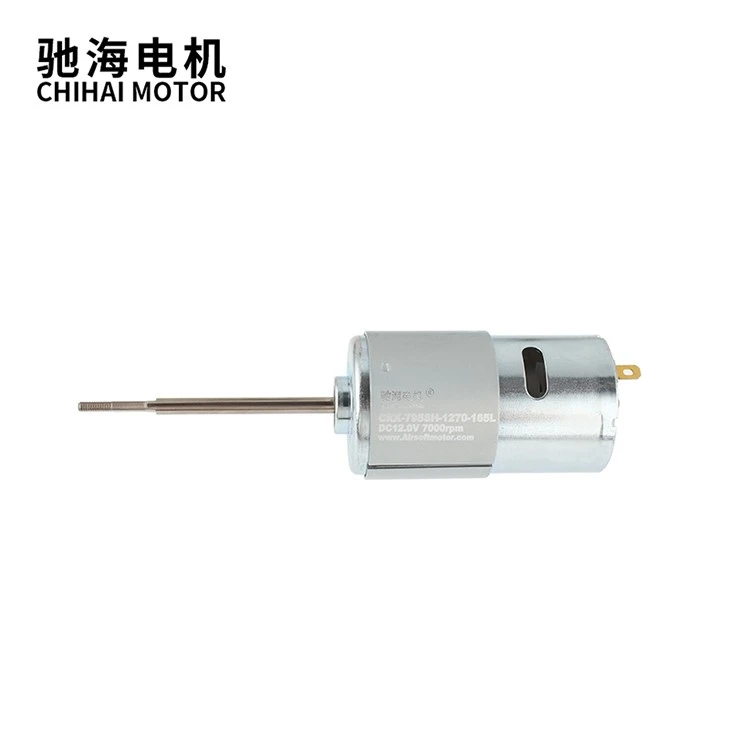

Permanent Magnet DC High Speed Motor 12V
Product Description：
| Brand | CHIHAI MOTOR |
| Product Type | CRK-795SH-1270#-165L Permanent Magnet DC High Speed Motor |
| Shaft diameter | M4 threaded shaft |
| Shaft type | extended shaft + threaded shaft + double flat shaft |
| Voltage | DC 12V |
| Weight | About 420g |
| Application | Suitable for nesting boats, ship models, power motors, etc. |
Micro motors are widely used. They are commonly used as power equipment in miniaturized automatic mechanical equipment and are suitable for nesting boats, ship models, power motors, etc.

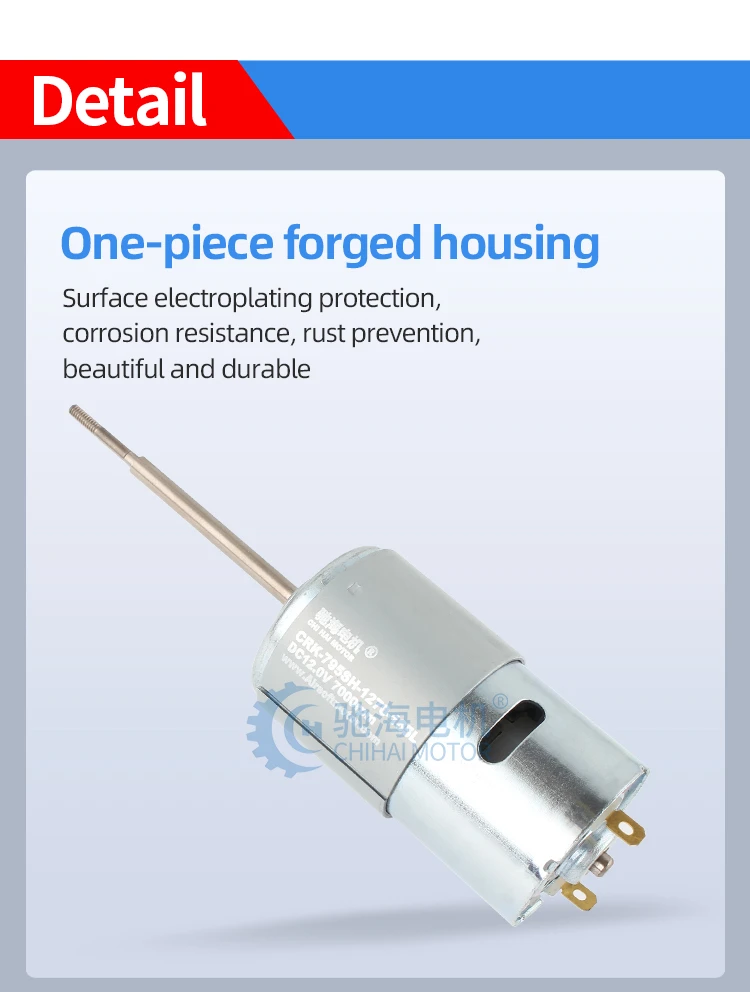

One-piece forged housing：
Surface electroplating protection, corrosion resistance, rust prevention, beautiful and durable

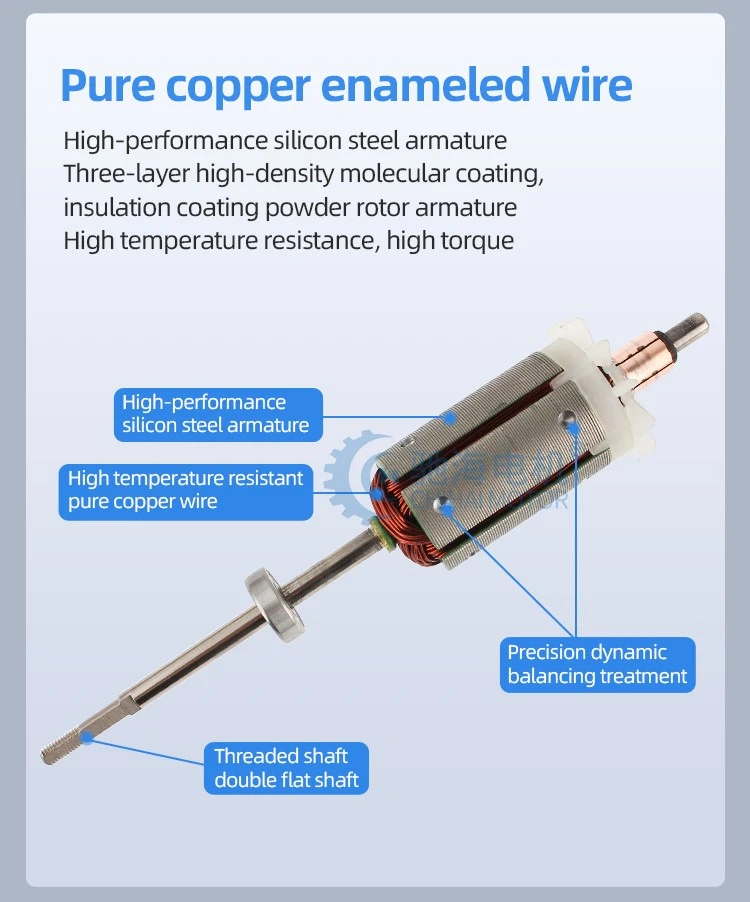

Pure copper enameled wire：
High-performance silicon steel armature Three-layer high-density molecular coating,
insulation coating powder rotor armature High temperature resistance, high torque

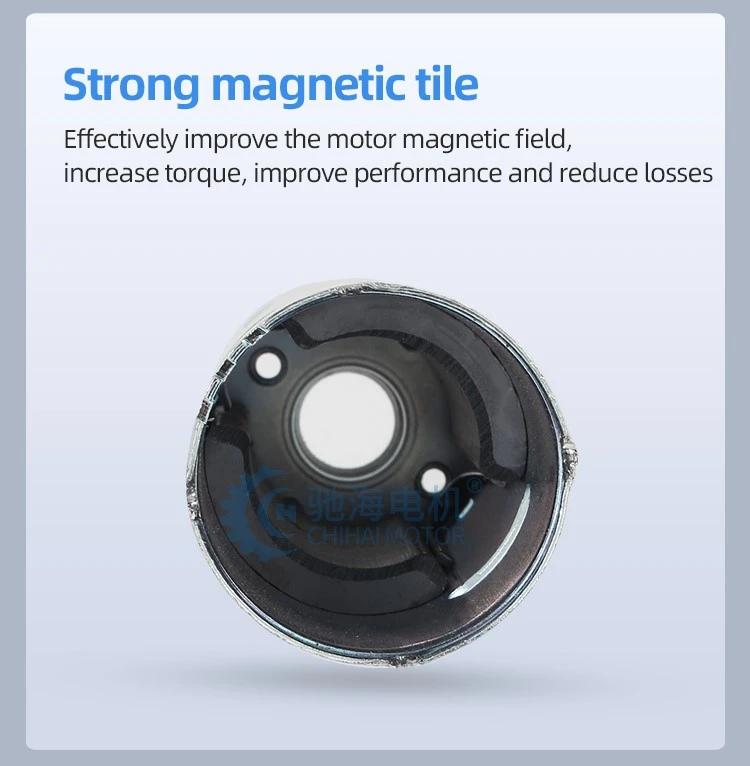

Strong magnetic tile：
Effectively improve the motor magnetic field, increase torque, improve performance and reduce losses
Graphite carbon brush end cap：
Graphite carbon structure, containing high-quality copper carbon brush,
taking into account both wear resistance and excellent conductivity
Ball bearing structure：
Two ball bearings for positioning, good concentricity and precise positioning
Threaded shaft double flat shaft design：
Easy to install, not easy to slip, saves installation time
Detailed Images：

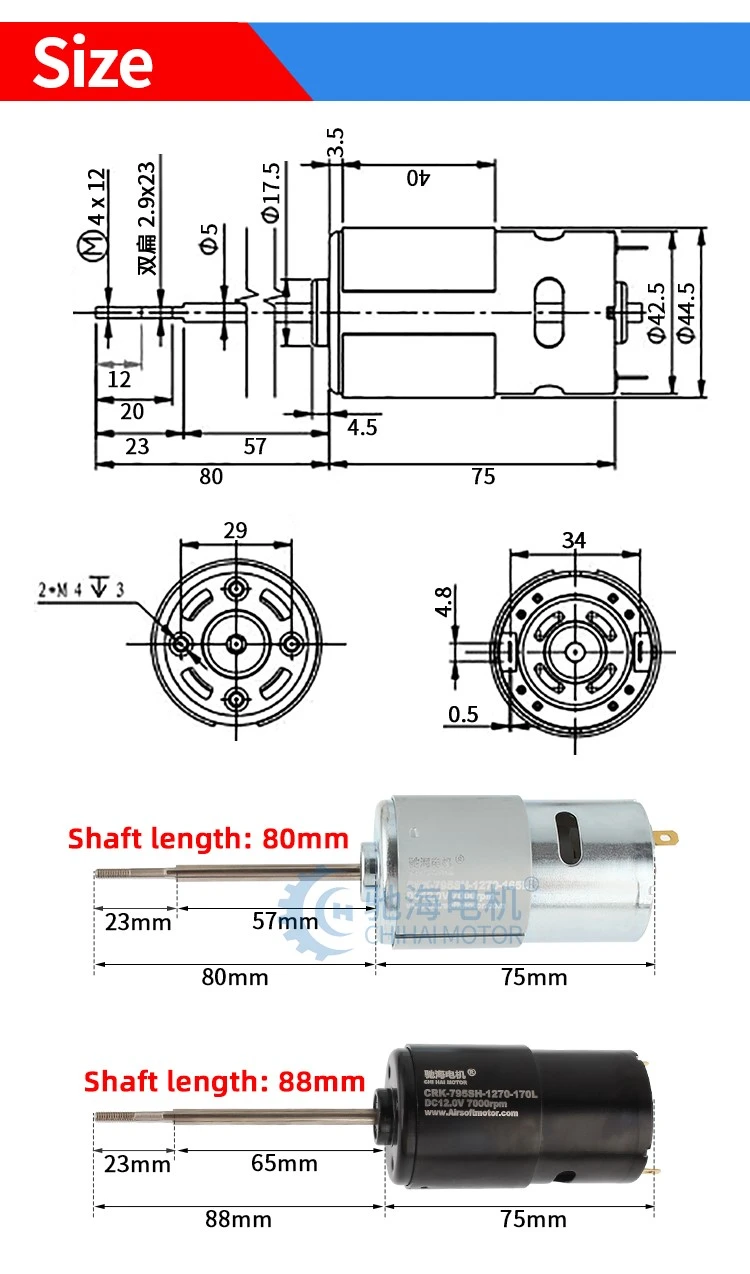

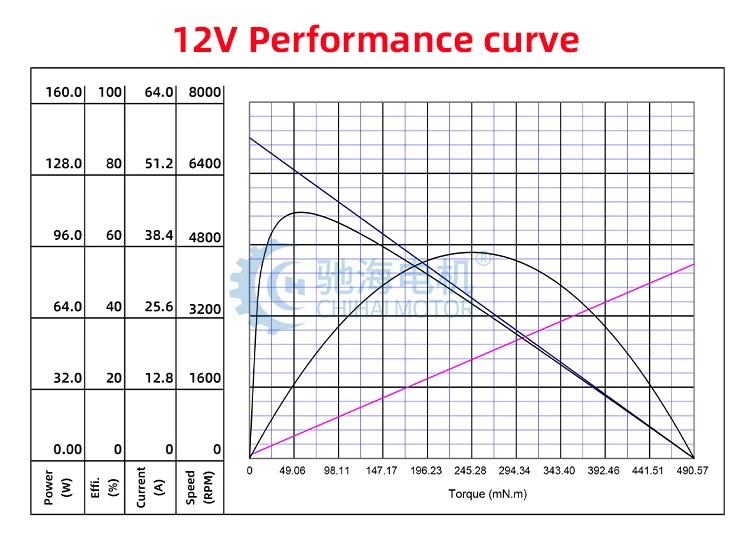

Product & specifications:
| Model：CRK-795SH-1270#-165L DC High Speed Motor | |||
| Voltage：DC 12V | |||
| No Ioad speed | No Ioad current | At stall torque | At stall current |
| 7200 rpm | 0.60 A | 490.56 mN.m | 34.90 A |
At max efficiency
| Effi | Torque | Speed | Current | Output Powe |
| 69.06 % | 56.86 mN.m | 6365 rpm | 4.58 A | 37.9 W |
At max output power
| Effi | Torque | Speed | Current | Output Powe |
| 43.43 % | 245.28 mN.m | 3600 rpm | 17.75 A | 92.52 W |
