GW12T-N30VA DC Worm Gear Motor

Product Description：

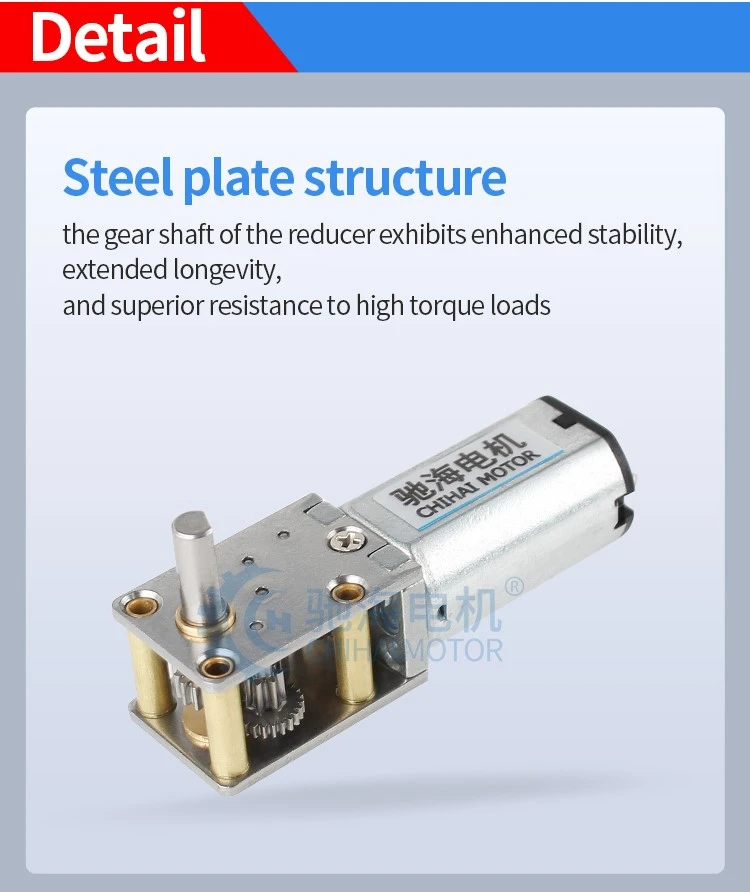

Steel plate structure:

the gear shaft of the reducer exhibits enhanced stability, extended longevity, and superior resistance to high torque loads

Pure copper wire winding

The rotor part adopts pure, copper group, small resistance, strong electrical conductivity, large torque.

Built-in DV pressure sensitive, EMC compliant

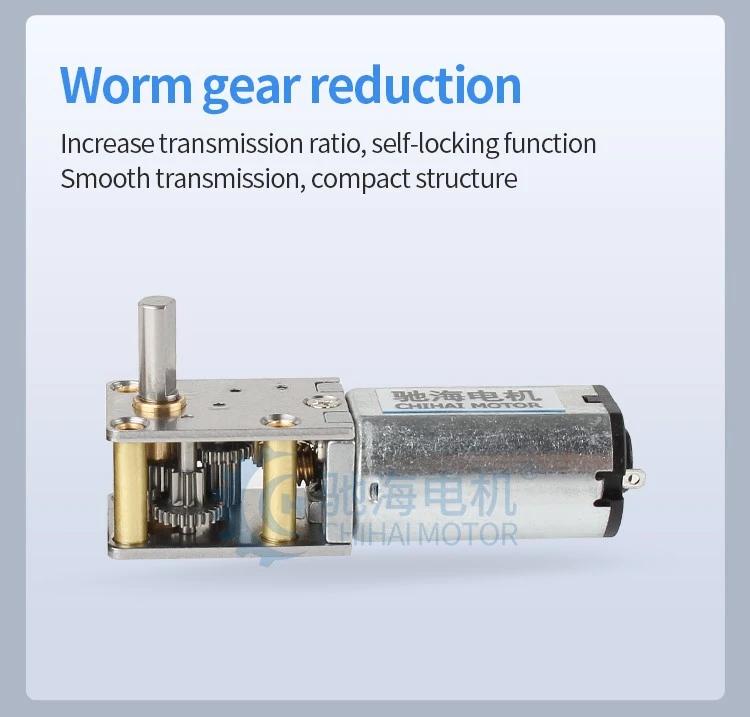

Worm gear reduction:

Increase transmission ratio, self-locking function Smooth transmission, compact structure

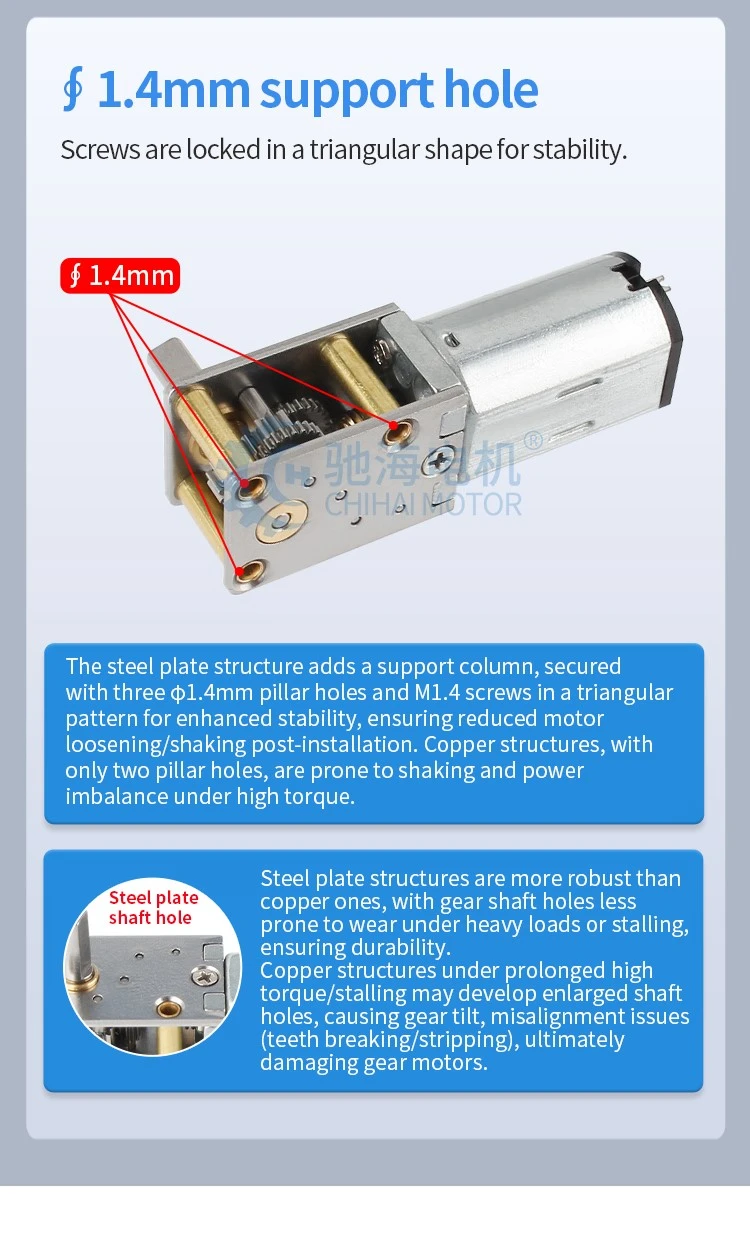

∮1.4mm support hole:

Screws are locked in a triangular shape for stability.

The steel plate structure adds a support column, secured with three φ1.4mm pillar holes and M1.4 screws in a triangular pattern for enhanced stability, ensuring reduced motor loosening/shaking post-installation. Copper structures, with only two pillar holes, are prone to shaking and power imbalance under high torque.

Steel plate structures are more robust than copper ones, with gear shaft holes less prone to wear under heavy loads or stalling, ensuring durability. Copper structures under prolonged high torque/stalling may develop enlarged shaft holes, causing gear tilt, misalignment issues (teeth breaking/stripping), ultimately damaging gear motors.

Detailed Images：
